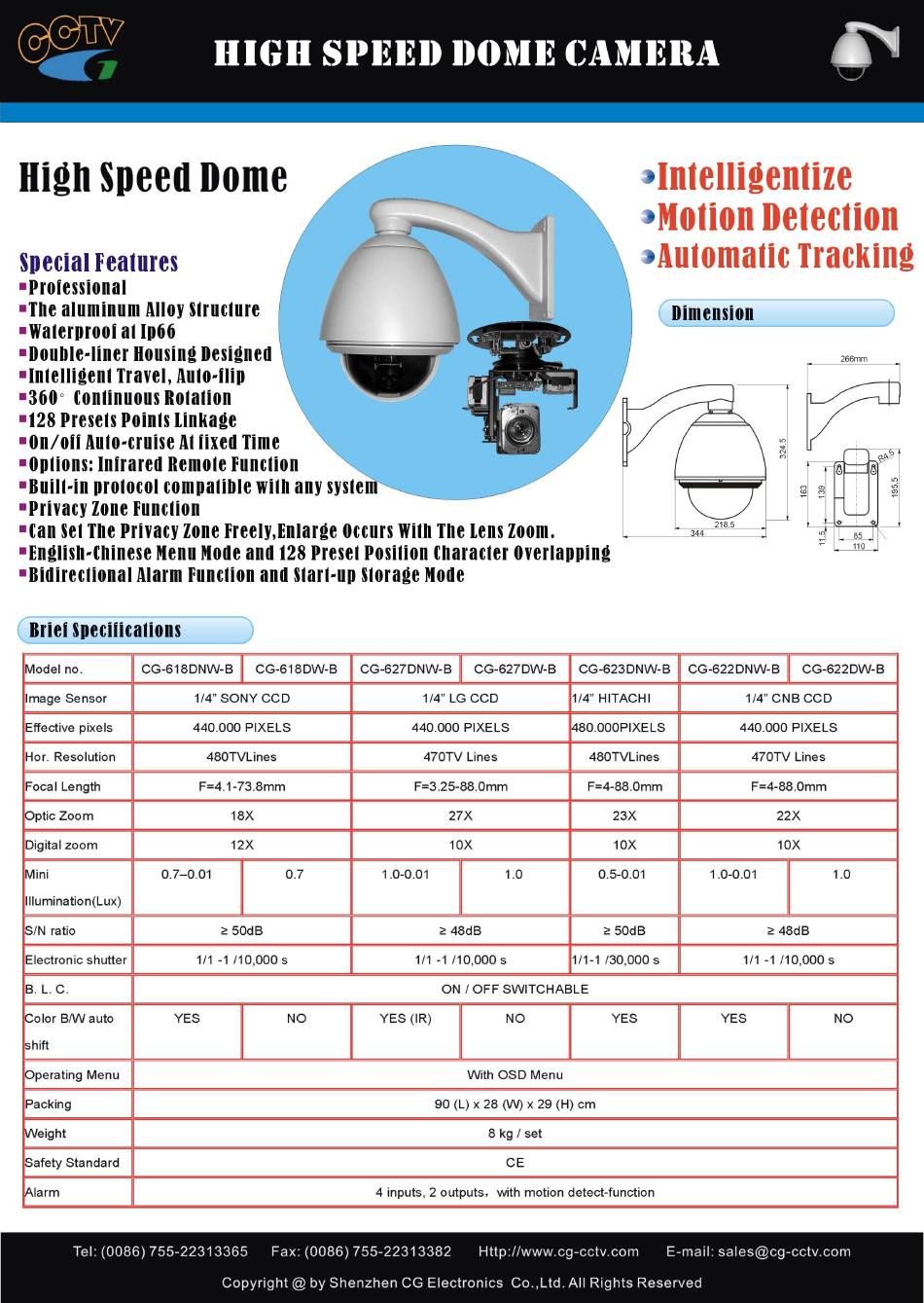

Shenzhen CG Electronics CG-618DNW-B User Instruction

Outdoor/indoor speed
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG-618DNW-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Shenzhen CG Electronics CG-618DNW-B

  • Page 3: U S E R I N S T R U C T I On

    OUTDOOR/INDOOR SPEED DOME CAMERA...

  • Page 4: Performance Features

    PERFORMANCE FEATURES Advanced DSP CCD camera with high resolution Integral Multi-protocol Receiver/Driver: W Manchester or RS-485 protocol 64 programmable Targets (Presets), accurate position 360°Continuous Pan Rotation without blind points 180° "Auto Flip" Dome Rotation Surge protection and memory retention Compact, attractive, low-profile, integrated design Proportional high speed pan and tilt Zoom adjusted programming Variable proportional scan speed...
  • Page 5 scenes may be programmed for each camera Receiver. 3. Lens control Zoom control Users can adjust the zoom of the touch tracker keyboard or matrix system to obtain the full or close-up scene. Focus control The default is set to auto focus. The camera will automatically focus towards the center of the object and keep the image clear.

  • Page 6: General Operation

    Iris mode. The default is set to “OFF”. 5. Color/B& W Auto Shift The camera will automatically shift CCD light level according to various lighting conditions. The camera can be properly exposed because of the enough light level by daylight. At night it will automatically adjust to low light level and displays clearly through the black &...
  • Page 7 Calling a preset(Pre-positioned)camera Scene To set up and store a preset scene: Enter a desired camera number in the keypad, then press the “Camera” button to select the camera. Operate joystick, zoom button, focus button and Iris control to adjust the image of the camera. 3.
  • Page 8 Iris lens control In general ,the automatic Iris adjusts the light lever of video. This setting should be adjusted if the video lever in the auto Iris mode is too bright or too dark. Move the joystick up or down to a value. Press the Iris “Open button”...

  • Page 9: Important Safeguards And Warnings

    number 3 in the keyboard and press ON button to turn on the function of auto scan so that the dome can realize to auto scan to and for at the setting speed between the left limit and the right limit. When moving to the limit position, it will stop for 3 seconds, then mover to the different direction.

  • Page 10: Specifications

    SPECIFICATIONS MECHANICAL GENERAL Environment Construction In-ceiling: Indoor only Back box: Aluminum Pendant: Indoor/outdoor Dome drive: Aluminum, ABS plastic Operating Rang Lower dome: Acrylic In-ceiling: 0 ° C to 60 ° C intermittent Pan movement: 360°continuous pan rotation operation; 0°C to 50°C continuous operation Vertical tilt: Unobstructed-3°to 93°...
  • Page 11 CAMERAS 18x(B＆W) 23x(B＆W) Model Signal NTSC NTSC NTSC NTSC Format Image sensor 1/4″CCD 1/4″CCD 1/4″CCD 1/4″CCD 752（H） 752 （ H） 724(H) 724(H) 752（H） 768（H） 752（H） 768（H） Effective ×582 ×494 × × ×582 （V） ×494 （V） ×582 （V） ×494 （V） pixels （V）...

  • Page 12: Installation

    INSTALLATION The power dome shipping cartons contain three boxer each box to make sure all parts are present. Package PENDANT IN-CEILING Back box MODELS(INDOOR MODELS /OUTDOOR) Dome drive box Dome Drive 1 Dome drive 1 Dome drive 1 Back box 1 Backer dome Back box 1 O-rin box...
  • Page 13 APPENDIX: Wall mount Bracket Wall-Mount Video Coaxial Cable Requirements Corner mount Cable Type Maximum Distance RG59/U 750ft(229m) RG6/U 1,000ft(305m) RG11/U 1,500ft(457m) Minimum cable requirements: 75ohms impedance All-copper center conductor All-copper braided shield with 95% braid coverage Pole mount Flange Pole Splice 24VAC Wiring Distances Wire Gauge...

  • Page 14: In-Ceiling Installation

    IN-CEILING INSTALLATION： STEP 1 – PREPARE CEILING a. Locate the center point of the mounting b. Draw a circle on the ceiling using the compass location. Drill a hole(3mm)in the ceiling tool and a pencil. Cut the circle out of the using a drill.
  • Page 15 STEP 3-INSTALL DOME DRIVE a. Set the DIP switches for Sw1 and Sw2 on the bottom of Sw1-Protoc Dip Switch the dome drive for the appropriate receiver address. Refer to off off off off off off off the labels on the dome drive or Tables A through C in the D2400B off off off off off off P2400B...
  • Page 16 PENDANT-MOUNT INSTALLATION WALL-MOUNT INSTALLATION STEP 1-MOUNT AND INSTALL THE BACK BOX NOTE: If installing outdoors make sure the installation is properly sealed to keep moisture and high temperature our. a. Install the mount for the pendant dome. Bring the wiring for the dome through the mount as illustrated in the picture.
  • Page 17 STEP 2-INSTALL DOME DRIVE Sw1-Protoc Dip Switch off off off off off off off D2400B off off off off off off P2400B off off off off off P4800B off off off off off off on off P9600B off off off off Sw2-Addres "W"...
  • Page 18 Dimension drawing of various mount installation Drop-ceiling Mount Dome Wall-Mount Dome Corner Mount Drop-Pole pole Mount Wall-Mount Bracket Dimension Wall-Mount Bracket Dimension Dome-Pole-Bracket Dimension Corner Bracket Dimension Drop-ceiliing Fixed Underpan Dimension Dome-DC Bracket Dimension...

  • Page 19: Troubleshoothing

    TROUBLESHOOTHING PROBLEM POSSIBLE CAUSE SOLUTION a. Check the fuse on the circuit board. Replace fuse if it is bad. Check to see if the red LED Fuse: 2 A on the circuit board in the b. Use a voltmeter to check if 24 VAC is getting to the power back box is lit.

  • Page 20: Maintenance

    MAINTENANCE 1. Use the product on the requirements of operating environment. Indoor dome temperature: 0ºC to 40ºC，humidity<90％；AC power：24V/1.25A 50Hz； Outdoor dome temperature: -40ºC 至 +50ºC，humidity<90％；AC power：24V/3A 50Hz； 2. The camera can’t aim at the object with bright light. Never make the product aim at the sun or other shining objects, otherwise the cameral will be damaged permanently.
  • Page 21 LIST OF TABLES SWITCH SETTING Table A. Switch Settings for SW1 Switch Settings Control Code W-type control D-type control 2400B P-type control 2400B P-type control 4800B P-type control 9600B Nature9600 Vicon2400B Vicon4800B Vicon9600B SAMSUNG4800 SAMSUNG9600 SAMSUNG19200 NOTES: SW5-8 Must be OFF. Table B.
  • Page 22 Table C. Switch Settings for SW2 - W-Type control Address 1 – 64 Switch Settings Switch Settings Receiver Receiver Address Address Unnecessary to set Baud Rate for Manchester...
  • Page 23 Table D. Switch Settings for SW2- D-Type Control Address 1 – 64 Switch Settings Switch Settings Receiver Receiver ddress Address Fixed Baud Rate:2400B for D-Type Control Unnecessary to set Baud Rate for Manchester...
  • Page 24 Switch Setting for SW2 – D-Type Control (continued) Address: 65 – 128 Switch Settings Switch Settings Receiver Receiver Address Address Fixed Baud Rate: 2400B for D-Type Control...
  • Page 25 Switch Setting for SW2 – D-Type Control (continued) Address 129 – 192 Switch Settings Switch Settings Receiver Receiver Address Address OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON...
  • Page 26 Switch Setting for SW2 – D-Type Control (continued) Address 193 – 254 Switch Settings Switch Settings Receiver Receiver Address Address Fixed Baud Rate: 2400B for D-Type Control...
  • Page 27 P-Type control protocol The extension that allows us to use the same basic protocol contents over a normal asynchronous port(232,422)is available and is commonly called the “P” protocol. 1. Pan/Tilt control demand Data format:1 start bit,8 data bit,1 stop bit,0 check bit; Baud rate:2400B/4800B/9600B/S. The“P”...
  • Page 28 Byte1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Address Code Preset Scene Check Code The command to call the preset scene of 1-32 Byte1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Address Code...
  • Page 29 5) To stop the auto scan function：A0 01 00 07 00 60 AF 69 4. The command to call up the auxiliary switch The command to turn on the auxiliary switch Byte1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8...
  • Page 30 Address Code Check Code The command to manually shift the B＆Wand color function Byte1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Address Code Check Code 9. The command to turn on/off the B＆W and color auto shift function The command to turn on the B＆W and color auto shift function Byte1...
  • Page 31 Control command table of P-Type protocol of the Dome Command Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 Address Pan Left 00-3FH CheckCode Code Address Check Pan Right 00-3FH Code Code Address 00-3F Check Tilt Up Code Code Address 00-3F Check Tilt Down Code...
  • Page 32 switch Code Code switch Auxiliar Turn off aux Address Check switch Code Code switch Turn on auto Address Check Iris Code Code Turn off auto Address Check Iris Code Code Turn on auto acklight Address Check Compensatio Code Code Turn off auto backlight Address Check...
  • Page 33 D-Type control protocol The extension that allows us to use the same basic protocol contents over a normal asynchronous port (232, 422, 485) is available and is commonly called the “D” protocol. 1. Pan/Tilt control demand Data format:1 start bit,8 data bit,1 stop bit,0check bit; Baud rate:2400B/s. The“D”...
  • Page 34 The command to set up the preset scene of 1-32: Byte1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 SYNC BYTE Address Code Preset Scene Check Code The command to call the preset scene of 1-32: Byte1 Byte 2 Byte 3...
  • Page 35 4. The command to call up the auxiliary switch The command to turn on the auxiliary switch Byte1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 SYNC BYTE Address Code Auxiliary switch Check Code The command to turn off the auxiliary switch Byte1 Byte 2 Byte 3...
  • Page 36 The command to manually shift the B＆W and color function Byte1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 SYNC BYTE Address Code Check Code 9. The command to turn on/off the B＆W and color auto shift function The command to turn on the B＆W and color auto shift function Byte1 Byte 2...
  • Page 37 Control Command Table of D-Type Protocol of the Dome Command Byte1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 SYNC Address Check Pan Left 00-3FH BYTE Code Code SYNC Address Check Pan Right 00-3FH BYTE Code Code SYNC Address...
  • Page 38 switch BYTE Code switch Code Turn on SYNC Address Check auto Iris BYTE Code Code Turn off auto SYNC Address Check Iris BYTE Code Code Turn on auto SYNC Address Check acklight BYTE Code Code Compensati Turn off auto backlight SYNC Address Check...
