Summary of Contents for ELERIX EX-L12V100R

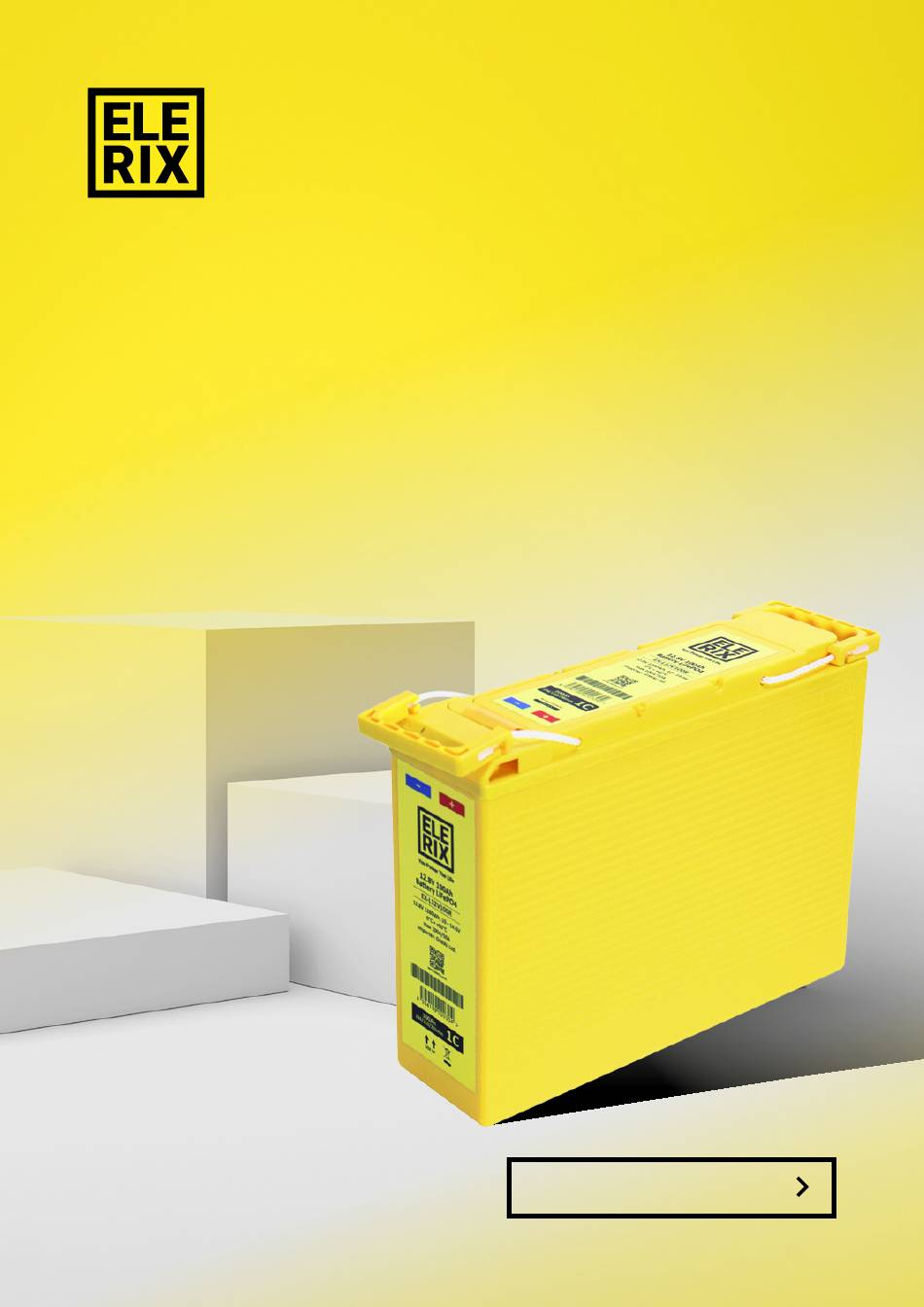

- Page 1 Technical manual ELERIX EX-L12V100R High Energy LFP Front Terminal 12V Battery 12.8V / 100Ah / 1C PRODUCT WEBPAGE www.elerix.com EX-L12V100R...
- Page 2 High Energy LFP Front Terminal 12V Battery 12.8V / 100Ah / 1C Service Connector Application Notes The EX-L12V100R Service Connector is a magnetic 5-pin connector that allows direct access to the individual cells of the 12V battery. The wiring of the connector The function of the connector is following Measure the voltage of the individual cells.
- Page 3 ELERIX EX-L12V100R High Energy LFP Front Terminal 12V Battery 12.8V / 100Ah / 1C SHORT-CIRCUIT WARING WARNING the individual output pins are directly connected to the individual cells. There are no fuses, nor any other protection. You must avoid any short circuit by accidental connection of the pins or by improper wiring on the opposite part of the connector.
- Page 4 ELERIX EX-L12V100R ELERIX EX-L12V100R High Energy LFP Front Terminal 12V Battery High Energy LFP Front Terminal 12V Battery 12.8V / 100Ah / 1C 12.8V / 100Ah / 1C Are you interested in more details? PRODUCT WEBPAGE Visit our online presentation.
