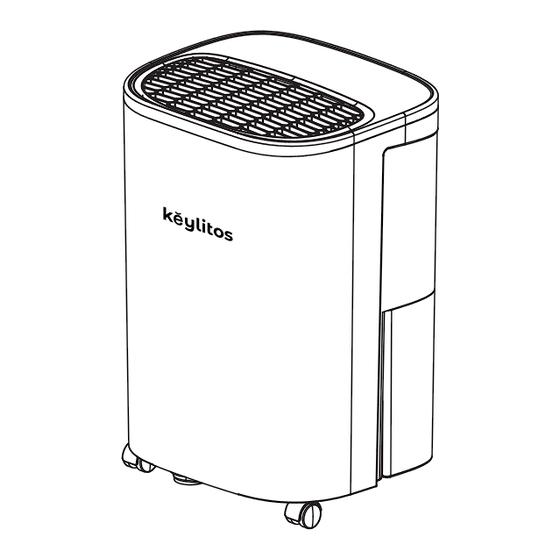

- Page 1 DEHUMIDIFIER USER MANUAL PD8-KDE...
-
Page 2: Table Of Contents
CONTENT ------------------------------------------------ IMPORTANT NOTICE -------------------------------------------- SAFETY INFORMATION ------------------------------------------- PRODUCT STRUCTURE -------------------------------------- OPERATING INSTRUCTION --------------------------------------------------------------- WARNING ----------------------------------------- DRAINING INSTRUCTION ---------------------------------- MAINTENANCE INSTRUCTION ----------------------------------------------- TROUBLESHOOTING SPECIFICATIONS ---------------------------------------------------- WARRANTY AND SERVICE -------------------------------------- CUSTOMER SERVICE Email:support@keylitos.com... -
Page 3: Important Notice
IMPORTANT NOTICE Thank you a lot for choosing Keylitos's dehumidifier, let it be a member of your family to protect the health of the whole family. Please read the manual carefully before you use the dehumidifier, it will help you operate the machine better, so as to achieve the best effect and extend the life of the machine. - Page 4 (32°C).The unit will not work properly if the temperature is out of this temperature range, or the performance of the unit will fall greatly. • Please check the machine for damage before use. If you have any questions, please contact (support@keylitos.com)us immediately.
-
Page 5: Safety Information
SAFETY INFORMATION 1. Please storage the unit in a safe place to avoid electricity leakage, flaming or personal injure. 2. Do not put this product in the water or any other liquids. 3. Stop using this appliance in the below situations, or the product might be damaged: power cord and wire are broken, the unit is dropped or broken down. -
Page 6: Product Structure
PRODUCT STRUCTURE 1. Control panel 2. Air outlet 3. Handle 4. Housing 5. Drain hole 6. Water tank CONTROL PANEL DESCRIPTION... -
Page 7: Operating Instruction
OPERATING INSTRUCTION POWER Press this key to turn “on” or “off” corresponding indicating light on or off (While the indoor humidity reaches the setting value, the compressor will stop running and the indicating light will flash.) FAN SPEED Press the key to choose the high speed (HI) or low speed (LOW), and the relating indicat ing light may follow the instruction to illuminate or extinguish. - Page 8 OPERATING INSTRUCTION CONTINUOUS MODE[CO] Press to activate the continuous dehumidifying operation. The appliance will work continu- ously and will not stop except that the bucket is full. COMFORT MODE [AU] a.When the ambient temperature is lower than 41°F(5°C), the compressor will stop working. b.When the ambient temperature is higher than 41°F(5°C) and lower than 68°F(20°C), the product will set the humidity to 60% automatically.
-
Page 9: Warning
WARNING 1.When operating the dehumidifier, please do not set the humidity higher than ambient humidity. 2.When indicating light illuminates, please pour the water out of the tank and put it back. Then the product will resume working. 3.When the product shuts down, please wait at least 3 minutes before restarting the unit to prevent damaging the compressor. -
Page 10: Draining Instruction
DRAINING INSTRUCTION 1. Use the bucket When dehumidifying, the condensing water may be drained to the water tank. The unit stops working and illuminates the indication when the water tank is full of water. Please pour out the water that time. (1)Take out the water tank (as Fig 01) and pour out the water. - Page 11 DRAINING INSTRUCTION Note: • Make sure the connection is tight and there is no leaking. • Lead the water hose to the floor drain or a suitable drainage facility, the drainage facility should be lower than the drain outlet of the dehumidifier. •...
- Page 12 DRAINING INSTRUCTION Care and cleaning of the dehumidifier WARNING: Turn the dehumidifier off and remove the plug from the power source or outlet before cleaning 1.Clean the bucket Clean the bucket with water every 2 weeks. 2.Clean the air filter (1)Take out the water tank before removing the filter.
-
Page 13: Maintenance Instruction
MAINTENANCE INSTRUCTION 1.The unit is not allowed to be placed on a surface that is soft or not flat to avoid the unit causing noise, vibration, and water or electricity leakage when operating. 2.Never insert any slim rod or hard stuff into the unit to avoid damage to the unit. 3.Please disconnect the power cord to the power supply when you turn off the unit or intend to stop using it for a long time. -
Page 14: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Please contact service agent or (E1)Temperature sensor error, similarly qualified persons for or the control system is off. repairing. Check the house fuse/circuit No electricity. The dehumidifier breaker box. does not start Remove and reconnect The power cord is not the power cord,and wait for properly plugged in. - Page 15 TROUBLESHOOTING The dust filter is dirty/blocked. Clean the dust filter. Make sure there are no curtains, The dehumidifier Air outlet or intake is blocked. blinds or furniture blocking the runs but the front or back of the dehumidifier. humidity level does not decrease After initial installation, allow Insufficient time for the...
- Page 16 TROUBLESHOOTING Dehumidifier has been recently This is normal. Frost will Frost appears turned on in low room disappear in an hour or so after on the coils temperatures (usually below the dehumidifier is switched OFF. 41°F (5°C)). Raise the front of the Some floors may have an The water dehumidifier ½...
-
Page 17: Specifications
SPECIFICATIONS Model PD8-KDE Power Supply 120V~60Hz Rated Power (104°F RH35%) 150W Total Input Rated Current(104°F RH35%) 1.38A Moisture Removal (65°F RH60%) 8 Pints/Day Moisture Removal (86°F RH80%) 25 Pints/Day 1.57 Liters/kWh IEF(65°F RH60%) Motor FLA 0.35A Motor Compressor RLA:1.36A LRA:7.0A Refrigerant R134a / 3.46oz（98g）... -
Page 18: Warranty And Service
WARRANTY AND SERVICE Keylitos offers a 24-month warranty to all of our products, newly purchased and unused, from Keylitos or through an authorized reseller, together with the original proof of purchase when a defect occurred,wholly or substantially, or as a result of faulty manufacturing, parts or workmanship during the Warranty Period.
