JACT AT500 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Thank you for purchasing the AT500 series inverter developed by Wuxi JACT
Electric Co., Ltd.
The AT500 series inverter is a general-purpose high-performance current vector
control inverter. It can implement the control of asynchronous motor. It is used to
drive various automation production equipment involving textile, paper-making,
wire drawing, machine tool, packing, food, fan and pump.
This manual describes the correct use of the AT500 series inverter, including
selection, parameter setting, commissioning, maintenance & inspection. Read and
understand the manual before use and forward the manual to the end user.
The drawings presented in this instructions are sometimes
shown without covers or protective guards.Always replace the equipment's
cover or protective guard as specified first,and the operate the products in
accordance with the instructions.
The drawings presented in the instructions are typical examples
and may not match the product you received.
These instructions are subject to change due to product
improvement,specification modification, specification modification.
If you want to order the manual due to loss or damage, please
contact our company agents in each region or our company customer
service center directly.
If there is still any problem during using the product, please
contact our company customer service center directly.
Our Service Hotline:0510-85380261
Fax:0510-85380361
24-hour technical service line:13306170378 13306170877

Preface

Note matter
1
AT500 User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT500 Series and is the answer not in the manual?

Questions and answers

แสงฟ้า
March 25, 2025

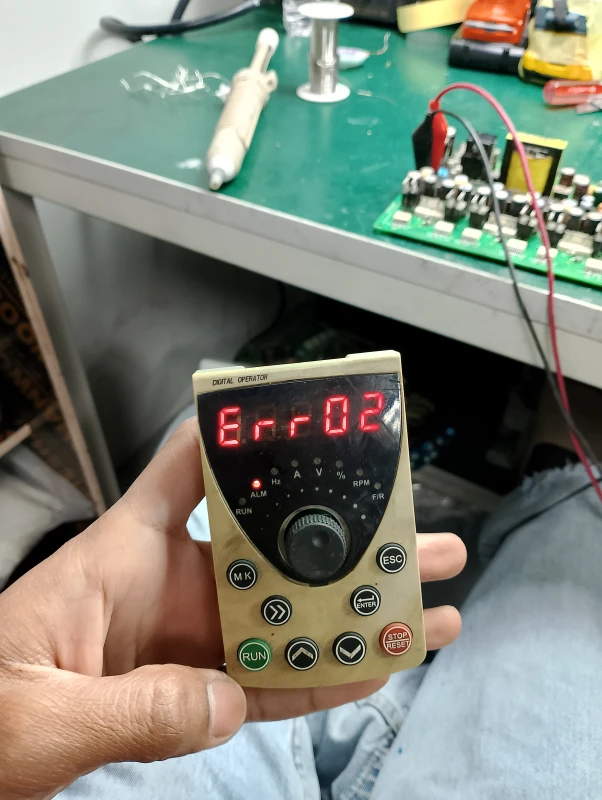

Err02 ต้องดูที่จุดไหน

User image 67e26e3e86469
0
1 comments:
Mr. Anderson
March 25, 2025

For Err02 (Overcurrent during acceleration) on the JACT AT500 Series, check the following:

1. Output Circuit – Ensure it is not grounded or short-circuited.
2. Motor Auto-Tuning – Perform motor auto-tuning if not already done.
3. Acceleration Time – Increase the acceleration time if it is too short.
4. Manual Torque Boost or V/F Curve – Adjust if not appropriate.
5. Voltage Level – Ensure the voltage is within the normal range.
6. Startup Operation – Avoid starting the motor while it is still rotating; use rotational speed tracking restart if necessary.
7. Sudden Load Addition – Remove any sudden load added during acceleration.
8. Inverter Power Class – If the inverter is too small for the application, select a higher power class.

If the issue persists after these checks, further troubleshooting or contacting support may be necessary.

This answer is automatically generated

0

Related Manuals for JACT AT500 Series

Summary of Contents for JACT AT500 Series

  • Page 1: Preface

    AT500 User's Manual Preface Thank you for purchasing the AT500 series inverter developed by Wuxi JACT Electric Co., Ltd. The AT500 series inverter is a general-purpose high-performance current vector control inverter. It can implement the control of asynchronous motor. It is used to drive various automation production equipment involving textile, paper-making, wire drawing, machine tool, packing, food, fan and pump.

  • Page 2: Table Of Contents

    1.2 Notes....................5 Chapter 2 Product information..............8 2.1 Naming rules..................8 2.2 Nameplate..................8 2.3 AT500 series inverter..............8 2.4 Product description of each part............ 10 2.5 Technical Specifications..............10 2.6 Appearance and installation dimensions........13 2.7 Appearance and installation size keyboard........16 2.8 Appearance and hole size keyboard tray........

  • Page 3: Chapter 1 Safety Information And Precautions

    AT500 User's Manual Chapter 1 Safety information and precautions Safety definition: In this manual, Safety cautions are divided into two types: Danger: since not according to the requirements of the operating cause danger, may result in serious injury or death. Note:since not according to the requirements of the operating cause danger, may cause moderate damage or minor injuries, and equipment damage.
  • Page 4 AT500 User's Manual fire! ●Please confirm the power supply in zero energy state before connection , or you will get an electric shock risk! ●Please according to the standard of inverter for correct standard grounding, or you will get an electric shock risk! Danger ●Don’t connected the power to the output terminals (U, V, W) the inverter.

  • Page 5: Notes

    AT500 User's Manual get an electric shock! ●At the beginning of the power on,the automatic system of the inverter will check the high voltage outside, at this time,you should never touch the U, V, W terminals or motor terminals of inverter, or it will get an electric shock! Danger ●...
  • Page 6 AT500 User's Manual type megameter,guarantee the insulation resistance not less than 5 MΩ. 1.2.2 Motor of the thermal protection If choose motor and converter does not match the rated capacity, especially the rated power greater than motor inverter power rating, be sure to adjust the inverter motor protection in related parameters value or in motor with thermal relay to before to motor protection.
  • Page 7 AT500 User's Manual 1.2.12 Some special usage If the customer was using when required to book recommendations provided by methods other than when wiring diagram, such as dc bus, etc, please consult our company. 1.2.13 Converter scrap note The main loop of the electrolytic capacitor and printed circuit boards electrolytic capacitors on incineration can explode.

  • Page 8: Chapter 2 Product Information

    380V 18.5 660V 1140V Figure 2.1 Naming rules 2.2 Nameplate Figure 2.2 inverter brand of the data 2.3 AT500 series inverter Table 2-1 AT500 series inverter Power supply Adapter motor inverter types Input current Rated output capacity （power）(horsepower) current(A) G/P...
  • Page 9 AT500 User's Manual Power supply Adapter motor inverter types Input current Rated output capacity （power）(horsepower) current(A) G/P (KW) (HP) (KVA) AT500-T3-0R7G 0.75 AT500-T3-1R5G AT500-T3-2R2G AT500-T3-4R0G 10.5 AT500-T3-5R5G 14.6 AT500-T3-7R5G 20.5 AT500-T3-011G AT500-T3-015G AT500-T3-018G 38.5 18.5 AT500-T3-022G 46.5 AT500-T3-030G AT500-T3-037G AT500-T3-045G AT500-T3-055G AT500-T3-075G AT500-T3-090G...

  • Page 10: Product Description Of Each Part

    Power terminal 功率端子 Key board 键盘 Control terminal 控制端子 Shell 外壳 inverter 变频器铭牌 nameplate Figure 2.4 Components of AT500 series inverter(sheet metal housing) 2.5 Technical Specifications Table 2-2 Technical specifications of the AT500 Project Specification Basic Maximum 320Hz functions frequency...
  • Page 11 AT500 User's Manual Carrier 0.5kHz~16.0kHz；Depending on the load characteristics,and frequency automatically adjust the carrier frequency. Input frequency Digital set:0.01Hz resolution Simulation set:The highest frequency×0.025% Control mode V/F Control,SVC,FVC Startup torque 150% Speed range 1:100(SVC) 1:1000(FVC) Speed stability ±0.5%(SVC) ±0.02%(FVC) accuracy Overload G type machine: 150%rated current 60s,180%rated current 3s capacity...
  • Page 12 AT500 User's Manual RS485 Modbus-RTU protocol support • Operation panel Running • Control terminals command • Serial communication port source You can perform switch over between these sources in various ways. There are a total of 13 frequency sources, such as digital setting, analog voltage setting, analog current setting, pulse Frequency setting and serial communication port setting,variety of...

  • Page 13: Appearance And Installation Dimensions

    AT500 User's Manual 2.6 Appearance and installation dimensions(mm) 2.6.1 Wall-mounted mounting dimensions Figure2-5 Molded case circuit breaker mounting dimensions Figure2-6 Sheet metal mounting dimensions The size of installation holes Table 2-3 The size of AT500 installation holes（mm） Mounting Diam Dimensions holes locations eter Model...
  • Page 14 AT500 User's Manual AT500-T3-0R7G AT500-T3-1R5G AT500-T3-2R2G AT500-T3-4R0G 118.4 224.5 236 130 163.5 170.5 φ5.5 AT500-T3-5R5G AT500-T3-7R5G φ7 AT500-T3-011G AT500-T3-015G 291. AT500-T3-018G 273.5 φ6 AT500-T3-022G AT500-T3-030G φ7 AT500-T3-037G AT500-T3-045G φ10 AT500-T3-055G AT500-T3-075G φ12 AT500-T3-090G AT500-T3-110G φ12 AT500-T3-132G AT500-T3-160G 1024 1050 550 φ14 AT500-T3-200G AT500-T3-220G...
  • Page 15 AT500 User's Manual Figure2-8 Cabinet mounting dimensions φD Model AT500-T3-090G AT500-T3-110G 1050 1005 φ10 AT500-T3-132G AT500-T3-160G 1370 1340 φ12 AT500-T3-200G AT500-T3-220G AT500-T3-250G 1540 1490 φ12 AT500-T3-280G AT500-T3-315G AT500-T3-355G 1775 1710 φ12 AT500-T3-400G AT500-T3-450G...

  • Page 16: Appearance And Installation Size Keyboard

    AT500 User's Manual 2.7 Appearance and installation size keyboard 21.3 14.3 38.8 Figure 2.9 Appearance and installation size keyboard 2.8 Appearance and hole size keyboard tray 74.2 15.8 托盘开孔尺寸 键盘托盘尺寸 115mm*67mm ） （也可开方孔 Figure 2.10 Keyboard tray appearance and hole size map...

  • Page 17: Chapter 3 Mechanical And Electrical Installation

    AT500 User's Manual Chapter 3 Mechanical and electrical installation 3.1 Mechanical Installation 3.1.1 Installation Environment 1)Environmental temperature: the ambient temperature has a great influence, should always keep the environment temperature under the inverter’s allowed temperature range (-10 to 50 Degrees Celsius). 2)When inverter installed in flame retardant surface, it need to have enough space, because when inverter working, it is easily to produce a lot of heat and screw vertically on the...

  • Page 18: Products Cover Disassembly

    Description: Please install the insulation baffle icon when the inverter is installed vertically upward. The AT500 series inverter dissipates heat from the bottom to the top. When multiple inverters are required to work together, install them side by side. For application installing multiple inverters, if one row of inverters need to be installed above another row, install an insulation guide plate to prevent inverters in the lower row from heating those in the upper row and causing faults.

  • Page 19: Electrical Installation

    AT500 User's Manual 3.3 Electrical Installation 3.3.1 Peripheral Electrical Devices Use within the allowable power supply specification Three-phase AC power supply of the inverter Moulded case circuit breaker Select a proper breaker to resist large in-rush current (MCCB) or earth leakage circuit that flows into the inverter at power-on breaker To guarantee safety, use an electromagnetic contactor.
  • Page 20 AT500 User's Manual Contactor Do not start and stop the inverter frequently by switching the contactor on and off (less than twice per minute) nor use it to directly start the inverter. • Improve the power factor of the input side. AC input •...

  • Page 21: Selection Of Braking Unit And Braking Resistor

    AT500 User's Manual AT500-T3-030G AT500-T3-037G AT500-T3-045G AT500-T3-055G AT500-T3-075G AT500-T3-090G AT500-T3-110G AT500-T3-132G AT500-T3-160G AT500-T3-200G AT500-T3-220G AT500-T3-250G 2*120 2*120 AT500-T3-280G 2*120 2*120 AT500-T3-315G 2*150 2*150 AT500-T3-355G 1000 2*185 2*185 AT500-T3-400G 1250 2*240 2*240 AT500-T3-450G 1250 1000 2*240 2*240 3.4 Selection of Braking Unit and Braking Resistor 3.4.1 Physical Dimensions of External DC Reactor The motor and load's regenerative energy is almost completely consumed on the braking resistor when braking.
  • Page 22 AT500 User's Manual The following table provides data for reference. You can select different resistance and power based on actual needs. However, the resistance must not be lower than the recommended value. The power may be higher than the recommended value. The braking resistor model is dependent on the generation power of the motor in the actual system and is also related to the system inertia, deceleration time and potential energy load.

  • Page 23: Wiring Of Inverter Control Circuit

    AT500 User's Manual 3.5 Wiring of inverter Control Circuit AT500 Figure3.5 Wiring mode of the inverter control circuit Note: 1) Terminal is the main circuit terminals, Terminal ○ is control circuit terminal. 2) the product models with "B" indicates the brake unit. 3) Braking resistor according to the user need to choose the Selection Guide, see the braking resistor.
  • Page 24 AT500 User's Manual Table 3-5 Main circuit terminal description of single phase inverter Symbol Name Function Description Connect to the single-phase 220 VAC Single-phase power L1、L2 power supple input terminals supply Positive and negative (+)、(-) Common DC bus input point terminals of DC bus Connecting terminals (+)、PB...
  • Page 25 AT500 User's Manual damage the inverter. d) External reactor connecting terminals P1/PR, ( + ) •For the inverter of 45 kW and above , remove the jumper bar across terminals P1 /PR and (+) and install the reactor between the two terminals. e)inverter output terminals U, V, W •The specification and installation method of external power cables must comply with the local safety regulations and related IEC standards.
  • Page 26 AT500 User's Manual AI1- Analog input 1、Input voltage range:DC 0V~10V terminal 1 2、Input impedance :22kΩ 1 、 Input range: DC 0V ~10V /0mA ~20mA, simulation decided by the AI2 jumper on the control Input AI2- Analog input board. terminal 2 2、...
  • Page 27 AT500 User's Manual shielded cable must be used and the cable length must be less than 20 m, as shown in following Figure . AT500 Figure 3.7 Wiring mode of AI terminals AT500 Figure 3.8 Install filter capacitor or ferrite magnetic core 2) Wiring of DI terminals Generally, select shielded cable no longer than 20 m.
  • Page 28 AT500 User's Manual +VCC 信号 Signal Control board of the External controller 外部控制器 inverter 变频器控制板 Figure 3.10 Wiring in SOURCE mode This wiring must jump jumper J12 of PLC COM, the + 24V and public termination external controller together. If you use an external power supply, but also the negative external power supply must be connected to the PLC.

  • Page 29: Chapter 4 Operating And Display

    AT500 User's Manual Chapter 4 Operating And Display 4.1 Operation and display interface Operation panel, the inverter function parameter modification, inverter working state monitoring and inverter control ( start, stop ) and other operations, its appearance and function area as shown below: Data display Unit indicating lamp...

  • Page 30: Viewing And Modifying Function Codes

    AT500 User's Manual confirmation Increment key Λ Increase data or function code Decrement key Decrease data or function code Select the displayed parameters in turn in the stop or running >> Shift key state, and select the digit to be modified when modifying parameters Cancel key...

  • Page 31: Selecting Menu Mode

    AT500 User's Manual after the modification. 4.3 Selecting menu mode User-defined mode Base mode User-modified mode (Group FE) (All function codes) User-modified codes No key operation within 2 seconds Level I menu Λ Press view function codes in turn in corresponding range,Press ENTER to view parameter...

  • Page 32: Chapter5 Function Parameter List

    AT500 User's Manual Chapter5 Function Parameter List Symbols in the menu are described below: “●” : The parameter can be modified when the inverter is in running state; “〇” : The parameter cannot be modified when the inverter is in the running state; “◇”...
  • Page 33 AT500 User's Manual Func- Prope Default tion Parameter Name Setting range r-ty code Unit's digit (Frequency source selection) 0: Main frequency source X operation(operation relationship determined by ten's digit) 2: Switchover between X and Y 3: Switchover between X and "X and Y Frequency source operation F0.07...
  • Page 34 AT500 User's Manual code Frequency offset of auxiliary frequency 0.00 Hz to maximum frequency (F0.10) F0.19 0.00 Hz ● source for X and Y operation units' digit : stop memory options 0: no memory 1: memory Ten's digit: direct selection UP/DN and analog operation 0: reversing 1: no reversing...
  • Page 35 AT500 User's Manual Group F1: Motor 1 Parameters 0: Common asynchronous motor F1.00 Motor model 1:Variable frequency asynchronous 〇 motor Model Motor rated F1.01 0.1kW~1000.0kW depende 〇 power Model Motor rated F1.02 1V~2000V depende 〇 voltage Model Motor rated 0.01–655.35 A (inverter power ≤ 55 kW) F1.03 depende 〇...
  • Page 36 AT500 User's Manual Func- Proper- Default tion Parameter Name Setting range code function 0: No function F2.00 〇 selection 1: Forward RUN (FWD) 2: Reverse RUN (REV) function F2.01 〇 3: Three-line control selection 4: Forward JOG (FJOG) function F2.02 〇...
  • Page 37 AT500 User's Manual tion code 39: Switch over between main frequency source X and digital Frequency 40: Switch over between auxiliary frequency source Y and digital frequency 41: PID parameters switch over 42:User-defined fault 1 43: User-defined fault 2 44: Speed control/Torque control switch over 45:Emergency stop 46: External STOP terminal 2...
  • Page 38 AT500 User's Manual Func- Proper- Default tion Parameter Name Setting range code AI curve 3 F2.24 0.00V~F2.26 0.20V ● minimum input Corresponding setting of AI F2.25 -100.0%~+100.0% 0.0% ● curve 3 minimum input AI curve 3 F2.26 F2.24~+10.00V 10.00V ● maximum input Corresponding setting of AI...
  • Page 39 AT500 User's Manual tion code F2.35 X1 delay time 0.0s~3600.0s 0.0s 〇 F2.36 X2 delay time 0.0s~3600.0s 0.0s 〇 F2.37 X3 delay time 0.0s~3600.0s 0.0s 〇 0: High level valid 1: Low level valid Unit's digit:X1 valid mode F2.38 Ten's digit:X2 selection Hundred's digit:X3 Thousand's digit:X4...
  • Page 40 AT500 User's Manual tion code 29: Current 2 reached 30: Timing reached 31: AI1 input limit exceeded32: Load becoming 0 33: Reverse running 34: Zero current state 35: Module temperature reached 36: Software current limit exceeded Frequency lower limit reached(having output at stop) 38: Alarm output 39: Motor overheat warning 40: Current running time reached...
  • Page 41 AT500 User's Manual Func- Proper- Default tion Parameter Name Setting range code R output delay F3.16 0.0s~3600.0s 0.0s ● time E output delay F3.17 0.0s~3600.0s 0.0s ● time F3.18 Reservation ● 0: Positive logic 1: Negative logic Output Unit's digit:Y1 F3.19 terminals valid...
  • Page 42 AT500 User's Manual Func- Proper- Default tion Parameter Name Setting range code Running mode when 0: Run at frequency lower limit frequency lower 1: Stop ● 2: Run at zero speed than frequency lower limit F4.15 Droop control 0.00Hz~10.00Hz 0.00Hz ●...
  • Page 43 AT500 User's Manual tion code Frequency detection F4.29 0.0%–100.0% (FDT2 level) 5.0% ● hysteresis(FDT hysteresis 2) frequency F4.30 reaching detection 0.00 Hz to maximum frequency 50.00Hz ● value 1 frequency F4.31 reaching detection 0.0%~100.0%（maximum frequency） 0.0% ● amplitude 1 frequency F4.32 reaching detection 0.00 Hz to maximum frequency...
  • Page 44 AT500 User's Manual Func- Proper- Default tion Parameter Name Setting range code AI1 input voltage F4.45 0.00V~F4.46 3.10V ● lower limit AI1 input voltage F4.46 F4.45~10.00V 6.80V ● upper limit Module F4.47 temperature 0℃~100℃ 75℃ ● threshold Cooling 0: Fan working during running F4.48 ●...
  • Page 45 AT500 User's Manual Func- Proper- Default tion Parameter Name Setting range code Switchover F5.02 0.00~A2.05 5.00Hz ● frequency 1 Speed loop F5.03 proportional gain 1~100 ● Speed loop F5.04 0.01s~10.00s 1.00s ● integral time 2 Switchover F5.02to maximum output F5.05 10.00Hz ●...
  • Page 46 AT500 User's Manual 3: 1.2-power V/F Func- Proper- Default tion Parameter Name Setting range code 4: 1.4-power V/F 6: 1.6-power V/F 8: 1.8-power V/F Model 0.0%:(fixed torque boost） F6.01 Torque boost depende ● 0.1%~30.0% Cut-off F6.02 frequency 0.00 Hz to maximum output frequency 50.00Hz 〇...
  • Page 47 AT500 User's Manual Rotational speed F7.02 1~100 ● tracking speed F7.03 Startup frequency 0.00Hz~10.00Hz 0.00Hz ● Startup frequency F7.04 0.0s~100.0s 0.0s 〇 holding time Startup F7.05 0%~100% 〇 braking current Startup F7.06 0.0s~100.0s 0.0s 〇 braking time Func- Proper- Default tion Parameter Name Setting range...
  • Page 48 AT500 User's Manual Bit02: Output current (A) Bit03: Output voltage (V) Bit04:Output power (kW) Bit05: Output torque (%) Bit06: Bus voltage (V) Bit07: X input status 1 Bit08:Reservations Bit09:Digital output status Bit10:AI1 voltage (V) Bit11: AI2 voltage (V) Func- Proper- Default tion Parameter Name...
  • Page 49 AT500 User's Manual Heatsink F8.07 temperature 0.0℃~100.0℃ ◇ inverter module Accumulative F8.09 0h~65535h ◇ running time F8.11 Software version ◇ Number 0: 0 decimal place F8.12 decimal places 1: 1 decimal place ● for load speed 2: 2 decimal places Group F9: Fault and Protection Parameters display 3: 3 decimal places...
  • Page 50 AT500 User's Manual protection 1: Enabled selection 0: No fault F9.14 1st fault type － ◇ 1: Reserved F9.15 2nd fault type 2:Overcurrent during acceleration 3:Overcurrent during deceleration 4: Overcurrent at constant speed 3rd (latest) fault F9.16 － ◇ 5: Overvoltage during type acceleration 6: Overvoltage during deceleration...
  • Page 51 AT500 User's Manual status upon 3rd fault inverter F9.21 temperature upon － － ◇ 3rd fault inverter status F9.22 － － ◇ upon 3rd fault F9.23 Power-on time － － ◇ Func- Proper- Default tion Parameter Name Setting range code upon 3rd fault Running time...
  • Page 52 AT500 User's Manual Unit's digit (Motor overload, Err11) 0: Coast to stop 1: Stop according to the stop mode 2: Continue to run Fault protection F9.47 Ten's digit (Power input phase loss, 00000 ● action selection 1 Err12) Hundred's digit (Power output phase loss, Err13) Func- Proper-...
  • Page 53 AT500 User's Manual 2: Continue to run Unit's digit (Too large speed deviation,Err42) Fault protection F9.50 0: Coast to stop 00000 ● action selection 4 1: Stop according to the stop mode 2: Continue to run Frequency 0:Current running frequency F9.54 ●...
  • Page 54 AT500 User's Manual deviation Group FA: PID Function Parameters 0: FA.01 1: AI1 2: AI2 FA.00 PID setting source ● 3: AI3 4: Pulse setting (DI5) 5: Communication setting Func- Proper- Default tion Parameter Name Setting range code 6: Multi-reference FA.01 PID digital setting 0.0%~100.0%...
  • Page 55 AT500 User's Manual 0: No switchover parameter 1: Switchover via X FA.18 switchover ● 2: Automatic switchover based on condition deviation parameter FA.19 0.0%~FA.20 20.0% ● switchover Func- Proper- Default tion Parameter Name Setting range code deviation 1 parameter FA.20 switchover FA.19~100.0% 80.0%...
  • Page 56 AT500 User's Manual amplitude Swing frequency Fb.03 0.1s~3000.0s 10.0s ● cycle Triangular wave Fb.04 rising time 0.1%~100.0% 50.0% ● coefficient Fb.05 Set length 0m~65535m 1000m ● Func- Proper- Default tion Parameter Name Setting range code Fb.06 Actual length 0m~65535m ● Number of pulses Fb.07 0.1~6553.5...
  • Page 57 AT500 User's Manual FC.05 Reference 5 -100.0%~100.0% 0.0% ● FC.06 Reference 6 -100.0%~100.0% 0.0% ● FC.07 Reference 7 -100.0%~100.0% 0.0% ● FC.08 Reference 8 -100.0%~100.0% 0.0% ● FC.09 Reference 9 -100.0%~100.0% 0.0% ● FC.10 Reference10 -100.0%~100.0% 0.0% ● Func- Proper- Default tion Parameter Name...
  • Page 58 AT500 User's Manual reference 3 Acceleration/dec eleration time of FC.25 ● simple reference 3 Running time of FC.26 0.0s(h)~6553.5s(h) 0.0s（h） ● simple PLC Func- Proper- Default tion Parameter Name Setting range code reference 4 Acceleration/dec eleration time of FC.27 ● simple reference 4 Running time of...
  • Page 59 AT500 User's Manual Running time of FC.38 simple 0.0s(h)~6553.5s(h) 0.0s（h） ● reference 10 Acceleration/dec FC.39 eleration time of ● simple PLC Func- Proper- Default tion Parameter Name Setting range code reference 10 Running time of FC.40 simple 0.0s(h)~6553.5s(h)） 0.0s（h） ● reference 11 Acceleration/dec eleration time of...
  • Page 60 AT500 User's Manual source 2: AI2 3: AI3 4: Pulse setting 5: PID 6: Set by preset frequency (F0.08), modified via terminal UP/DOWN Group Fd: Communication Parameters Func- Proper- Default tion Parameter Name Setting range code 0:300BPS 1:600BPS 2:1200BPS 3:2400BPS Fd.00 Baud rate ●...
  • Page 61 AT500 User's Manual FE.14 Quick Menu 14 F6.00 ● FE.15 Quick Menu 15 F6.10 ● FE.16 Quick Menu 16 F0.00 ● FE.17 Quick Menu 17 F0.00 ● FE.18 Quick Menu 18 F0.00 ● FE.19 Quick Menu 19 F0.00 ● FE.20 Quick Menu 20 F0.00 ●...
  • Page 62 AT500 User's Manual inflexion 1 input Corresponding setting P0.11 -100.0%~+100.0% -30.0% ● curve 5 inflexion 1 input Func- Proper- Default tion Parameter Name Setting range code curve P0.12 P0.10~P0.14 3.00V ● inflexion 1 input Corresponding setting P0.13 -100.0%~+100.0% 30.0% ● curve 5 inflexion 1 input curve...
  • Page 63 AT500 User's Manual Factory measured P1.02 6.000V~9.999V correcte ● voltage 2 P1.03 AI1 displayed 6.000V~9.999V Factory ● Func- Proper- Default tion Parameter Name Setting range code correcte voltage 2 Factory measured P1.04 0.500V~4.000V correcte ● voltage 1 Factory displayed P1.05 0.500V~4.000V correcte ●...
  • Page 64 AT500 User's Manual Factory target P1.18 6.000V~9.999V correcte ● voltage 2 P1.19 AO2 measured 6.000V~9.999V Factory ● Func- Proper- Default tion Parameter Name Setting range code correcte voltage 2 P1.20 AI1 filtering dead 0~255 ● zone P1.21 AI2 filtering dead 0~255 ●...
  • Page 65 AT500 User's Manual time H0.26 Motor overload count 0.1% Motor current H0.27 0.1% percentage H0.28 Remaining operating 0.1Min Function Code Parameter Name Min. Unit time H0.29 PLC stage Communication setting H0.30 0.01% value voltage before H0.31 0.01V correction voltage before H0.32 0.01V correction...

  • Page 66: Chapter6 Parameter Description

    AT500 User's Manual Chapter6 Description of Function Codes Group F0 :Basic Function Parameters F0.00 G/P type Range:1~2 Default:1 1: G type (constant torque load) 2: P type (variable torque load e.g. Fan and pump) F0.01 Motor control mode Range:0~2 Default:2 0: Sensorless flux vector control (SFVC) It indicates open-loop vector control, and is applicable to high-performance control applications such as machine tool, centrifuge, wire drawing machine and injection moulding...
  • Page 67 AT500 User's Manual 9–30 V (voltage range) and 0–100 kHz (frequency range). The corresponding value100% of pulse setting corresponds to the value of F0.10 (Maximum frequency). 6: Multi-reference In multi-reference mode, combinations of different X terminal states correspond to different set frequencies. The AT500 supports a maximum of 16 speeds implemented by 16 state combinations of four X terminals (allocated with functions 12 to 15)in Group FC.
  • Page 68 AT500 User's Manual maximum frequency or main frequency X. If relative to main frequency X, the setting range of the auxiliary frequency Yvaries according to the main frequency X. F0.07 Frequency source Range:0~34 Default:0 selection Ten's digit Unit's digit 0: X+Y 0: Main frequency source 1: X-Y 1:Main...
  • Page 69 AT500 User's Manual When the frequency source is AI, pulse setting (X5), or multi-reference, 100% of the input corresponds to the value of this parameter. F0.11 Source of frequency upper Range:0~5 Default:0 limit It is used to set the source of the frequency upper limit, including digital setting (F0.12), AI,pulse setting or communication setting.
  • Page 70 AT500 User's Manual 0: No 1: Yes It is used to set whether the carrier frequency is adjusted based on the temperature. The inverter automatically reduces the carrier frequency when detecting that the heatsink temperature is high. The inverter resumes the carrier frequency to the set value when the heatsink temperature becomes normal.
  • Page 71 AT500 User's Manual F0.21 Acceleration/Deceleration Range:0~2 Default:0 time base frequency 0: Maximum frequency (F0.10) 1: Set frequency 2: 100 Hz The acceleration/deceleration time indicates the time for the inverter to increase from 0 Hz to the frequency set in F0.21. If this parameter is set to 1, the acceleration/deceleration time is related to the set frequency.

  • Page 72: Group F1: Motor Parameters

    AT500 User's Manual F0.26 Parameter modification Range:0~1 Default:0 property 0: Modifiable 1: Not modifiable It is used to set whether the parameters are modifiable to avoid mal-function. If it is set to 0, all parameters are modifiable. If it is set to 1, all parameters can only be viewed. Group F1: Motor parameters F1.00 Motor model...

  • Page 73: Group F2:Input Terminal

    Group F2:Input Terminal AT500 series inverter have five multi-function input terminals X1 ~ X5 (X5 which can be used as high-speed pulse input), two analog input terminal AI1, AI2 (which can be used as a voltage input AI2, but also as a current input), a keyboard potentiometer.
  • Page 74 AT500 User's Manual Set value Function Description No function Forward RUN (FWD) The terminal is used to control forward or reverse RUN of the inverter. Reverse RUN (REV) The terminal determines three-line control of the Three-line control inverter. For details, see the description of F2.11. Forward JOG (FJOG) FJOG indicates forward JOG running, while RJOG indicates...
  • Page 75 AT500 User's Manual If the command source is set to communication control (F0.02 = 2), this terminal is used to perform switchover between communication control and operation panel control. It enables the inverter to maintain the current frequency Acceleration/Decelerati output without being affected by external signals (except on prohibited the STOP command).
  • Page 76 AT500 User's Manual PID parameters DI terminal (FA.18 = 1), the PID parameters are FA.05 to FA.07 when the terminal becomes OFF; the PID parameters are FA.15 to FA.17 when this terminal becomes ON. User-defined fault 1 If these two terminals become ON, the inverter reports Err27 and Err28 respectively, and performs fault User-defined fault 2 protection actions based on the setting in F9.49.
  • Page 77 AT500 User's Manual Acceleration/Deceleration Time Selection acceleration/ Acceleration acceleration/deceleration Correspond-i deceleration time /deceleration time time selection ng parameter terminal 2 terminal 1 Acceleration time1 F0.17、F0.18 Acceleration time2 F4.03、F4.04 Acceleration time3 F4.05、F4.06 Acceleration time4 F4.07、F4.08 Range:0.000s~1.0 F2.10 X filter time Default:0.010s It is used to set the software filter time of X terminal status.
  • Page 78 AT500 User's Manual In this mode, X3 is RUN enabled terminal, and the direction is decided by X1 and X2. AT500 Figure6.5 Setting of three-line mode 1 As shown in the preceding Figure , if SB1 is ON, the inverter instructs forward rotation when SB2 is pressed to be ON and instructs reverse rotation when SB3 is pressed to be ON.
  • Page 79 AT500 User's Manual AI curve 1 minimum F2.16 Range:0.00V~F2.18 Default:0.20V input Corresponding setting Range:-100.0%~100.0 F2.17 curve Default:0.0% minimum input AI curve 1 maximum F2.18 Range:F2.16~+10.00V Default:10.00V input Corresponding setting Range:-100.0%~100.0 F2.19 curve Default:100.0% maximum input These parameters are used to define the relationship between the analog input voltage and the corresponding setting.
  • Page 80 AT500 User's Manual AI curve 3 minimum F2.24 Range:0.00V~F2.26 Default:0.20V input Corresponding setting of Range:-100.0%~+100.0 F2.25 Default:0.0% curve 3 minimum input AI curve 3 maximum F2.26 Range:F2.24~+10.00V Default:10.00V input Corresponding setting of Range:-100.0%~+100.0 F2.27 Default:100.0% curve 3 maximum input Please refer to the curve 1 when use 2,3 curve function. F2.28 PULSE minimum input Range:0.00kHz~F2.30...

  • Page 81: Group F3: Output Terminals

    Group F3: Output Terminals AT500 series inverter comes standard with two digital output terminal Y1, Y2 (Y2 which can be used as high-speed pulse output DO), 2 relay outputs R, E, 2 analog outputs AO1, AO2 (can be selected as the current output).
  • Page 82 AT500 User's Manual Frequency-level detection Refer to the descriptions of F4.19,F4.20. FDT1 output When the output frequency and set frequency error is less Frequency reached than F4.21 (percentage of the maximum frequency with respect to) the set value, the output ON. If the inverter runs with the output frequency of 0, the Zero-speed running (no terminal becomes ON.
  • Page 83 AT500 User's Manual (having becomes ON. In the state of stop, the signal is still ON. output at stop) Accumulative power-on If the inverter accumulative power-on time (F8.13)exceeds time the value set in F4.16, the terminal becomes ON. reached Frequency level detection Refer to the descriptions of F4.28 and F4.29...
  • Page 84 AT500 User's Manual DO terminal output pulse frequency range of 0.01kHz ~ F3.09 (DO maximum output frequency), F3.09 can be set between 0.01kHz ~ 100.00kHz. Analog output AO1 and AO2 output range of 0V ~ 10V, or 0mA ~ 20mA. Pulse output or analog output range, with the corresponding scaling function relationships in the table below: Value...

  • Page 85: Group F4: Auxiliary Functions

    AT500 User's Manual F3.17 E output delay time Range:0.0s~3600.0s Default:0.0s These parameters are used to set the delay time of output terminals Y1,Y2, relay R, relay E from status change to actual output. F3.19 Output terminals Range:0000~1111 Default:0000 valid mode selection It is used to set the logic of output terminals Y1, Y2, relay R, .relay R 0: Positive logic The output terminal is valid when being connected with COM, and invalid when being...
  • Page 86 AT500 User's Manual the jump frequency close to the set frequency. Setting the jump frequency helps to avoid the mechanical resonance point of the load. The AT500 supports two jump frequencies. If both are set to 0, the frequency jump function is disabled.
  • Page 87 AT500 User's Manual 0: Run at frequency lower limit 1: Stop 2: Run at zero speed F4.15 Droop control Range:0.00Hz~10.00Hz Default:0.00Hz his function is typically used for load sharing with multiple motors drag a load. Droop control refers to as the load increases, the inverter output frequency decreases, so more than one motor drive the same load, the load of the motor output frequency drops more, which can reduce the load on the motor to achieve multiple motors load evenly.
  • Page 88 AT500 User's Manual Figure6.10 FDT level Detection range of F4.21 Range:0.0%~100.0% Default:0.0% frequency reached If the inverter running frequency is within the certain range of the set frequency, the corresponding DO terminal becomes ON. This parameter is used to set the range within which the output frequency is detected to reach the set frequency.
  • Page 89 AT500 User's Manual point between m frequency deceleration time 1 and deceleration time This function is valid when motor 1 is selected and acceleration/deceleration time switchover is not performed by means of X terminal. It is used to select different groups of acceleration/deceleration time based on the running frequency range rather than X terminal during the running process of the inverter.
  • Page 90 AT500 User's Manual frequency Range:0.00Hz~maximu F4.32 reaching Default:50.00Hz m frequency detection value 2 frequency F4.33 reaching Range:0.0%~100.0% Default:0.0% detection amplitude 2 If the output frequency of the inverter is within the positive and negative amplitudes of the any frequency reaching detection value, the corresponding digital output becomes ON. The AT500 provides two groups of any frequency reaching detection parameters, including frequency detection value and detection amplitude, as shown in the following figure .
  • Page 91 AT500 User's Manual F4.26 Figure 6.15 Output overcurrent detection Any current reaching F4.38 Range:0.0%~300.0% Default:100.0% Any current reaching F4.39 Range:0.0%~300.0% Default:0.0% 1 amplitude current F4.40 Range:0.0%~300.0% Default:100.0% reaching2 Any current reaching F4.41 Range:0.0%~300.0% Default:0.0% 2 amplitude If the output current of the inverter is within the positive and negative amplitudes of any current reaching detection value, the corresponding output terminal becomes ON.
  • Page 92 AT500 User's Manual These parameters are used to implement the inverter timing function. If F4.42 is set to 1, the inverter starts to time at startup. When the set timing duration is reached, the inverter stops automatically and meanwhile the corresponding DO becomes The inverter starts timing from 0 each time it starts up and the remaining timing duration can be queried by H0.28.

  • Page 93: Group F5: Vector Control Parameters

    AT500 User's Manual reached If the current running time reaches the value set in this parameter, the corresponding output terminal becomes ON, indicating that the current running time is reached. Unit's digit: 0:AI1 ADT1channel 1:AI2 F4.54 Default:00 selection Ten's digit: 0:No output when stop 1:Output when stop Unit's digit:...
  • Page 94 AT500 User's Manual F5.00 F5.01 F5.03 F5.04 F5.02 F5.05 Figure 6.17 Relationship between running frequencies and PI parameters The speed dynamic response characteristics in vector control can be adjusted by setting the proportional gain and integral time of the speed regulator.To achieve a faster system response, increase the proportional gain and reduce the integral time.

  • Page 95: Group F6: V/F Control Parameters

    AT500 User's Manual Digital setting F5.10 torque upper limit in Range:0.0%~200.0% Default:150.0% speed control mode 0: A2-48 1: AI1 2: AI2 3: AI3 4: Pulse setting (X5) 5: Via communication 6: MIN(AI1,AI2) 7: MAX(AI1,AI2) When the inverter is in communication with the master, if F5.09 is set to 5 “communication setting”, F5.10 “Digital setting of torque upper limit in speed control mode”...
  • Page 96 AT500 User's Manual Cut-off frequency of Range:0.00Hz~maximu F6.02 Default:50.00Hz torqueboost m frequency To compensate the low frequency torque characteristics of V/F control, you can boost the output voltage of the inverter at low frequency by modifying F6.01. If the torque boost is set to too large, the motor may overheat, and the inverter may suffer overcurrent.

  • Page 97: Group F7: Start/Stop Control

    AT500 User's Manual compensation gain This parameter is valid only for the asynchronous motor. It can compensate the rotational speed slip of the asynchronous motor when the load of the motor increases, stabilizing the motor speed in case of load change. If this parameter is set to 100%, it indicates that the compensation when the motor bears rated load is the rated motor slip.
  • Page 98 AT500 User's Manual – If the DC braking time is not 0, the inverter performs DC braking first and then starts to run at the startup frequency. It is applicable to small-inertia load application where the motor is likely to rotate at startup. 1: Rotational speed tracking restart The inverter judges the rotational speed and direction of the motor first and then starts at the tracked frequency.
  • Page 99 AT500 User's Manual base value is the rated motor current. • If the rated motor current is greater than 80% of the rated inverter current, the base value is 80% of the rated inverter current. Acceleration/Decelera F7.07 Range:0~2 Default:0 tion mode It is used to set the frequency change mode during the inverter start and stop process.
  • Page 100 AT500 User's Manual Figure 6.21 S-curve acceleration/deceleration B F7.10 Stop mode Range:0~1 Default:0 0: Decelerate to stop After the stop command is enabled, the inverter decreases the output frequency according to the deceleration time and stops when the frequency decreases to zero. 1: Coast to stop After the stop command is enabled, the inverter immediately stops the output.

  • Page 101: Group F8: Operation Panel And Display

    AT500 User's Manual Figure 6.22 Stop DC braking process F7.15 Brake use ratio Range:0%~100% Default:100% It is valid only for the inverter with internal braking unit and used to adjust the duty ratio of the braking unit. The larger the value of this parameter is, the better the braking result will be.
  • Page 102 AT500 User's Manual status voltage torque power voltage current frequenc frequenc Bit15 Bit14 Bit13 Bit12 Bit11 Bit10 Bit09 Bit08 Pulse Reserve feedback setting setting voltage voltage voltage output frequenc status display running Range:0x0000~0xFF F8.04 Default:0x0000 parameters 2 Bit07 Bit06 Bit05 Bit04 Bit03 Bit02...

  • Page 103: Group F9: Fault And Protection

    AT500 User's Manual Number of decimal F8.12 places Range:0~3 Default:1 for load speed display F8.12 is used to set the number of decimal places for load speed display. The following gives an example to explain how to calculate the load speed: Assume that F8.06 (Load speed display coefficient) is 2.000 and F8.12 is 2 (2 decimal places).
  • Page 104 AT500 User's Manual When the accumulative output current of the inverter is greater than the value of the overload inverse time-lag curve multiplied by F9.02, the DO terminal on the inverter allocated with function 6 (Motor overload pre-warning) becomes ON. F9.03 Overvoltage stall gain Range:0~100...
  • Page 105 AT500 User's Manual Input phase loss F9.12 protection/contactor energizing Range:0~11 Default:10 protection selection Unit's digit: Input phase loss protection Ten's digit: Contactor energizing protection 0: Disabled 1: Enabled It is used to determine whether to perform input phase loss or contactor energizing protection.When F9.12 = 1, only the three-phase 380V, 018G and above models have the fault.
  • Page 106 AT500 User's Manual F9.28 Current upon 2nd fault Range:－ Default:－ F9.29 Bus voltage upon 2nd fault Range:－ Default:－ F9.30 X status upon 2nd fault Range:－ Default:－ inverter temperature F9.31 Range:－ Default:－ upon 2nd fault inverter status upon 2nd Range:－ Default:－ F9.32 fault Power-on time upon 2nd...
  • Page 107 AT500 User's Manual running time Err21) reached) 0: Coast to stop 0: Coast to stop 0: Coast to stop 1:Stop 1:Stop 1:Stop according to the according to the according to the stop mode stop mode stop mode 2: Continue to 2: Continue to 2: Continue to Fault...
  • Page 108 AT500 User's Manual Backup frequency upon F9.55 Range:60.0%~100.0% Default:100.0% abnormality If a fault occurs during the running of the inverter and the handling of fault is set to "Continue to run", the inverter displays A** and continues to run at the frequency set in F9.54. The setting of F9.55 is a percentage relative to the maximum frequency.

  • Page 109: Group Fa: Process Control Pid Function

    AT500 User's Manual Detection time of load becoming F9.65 Range:0.0s~60.0s Default:1.0s If protection upon load becoming 0 is enabled, when the output current of the inverter is lower than the detection level (F9.64) and the lasting time exceeds the detection time (F9.65), the output frequency of the inverter automatically declines to 7% of the rated frequency.
  • Page 110 AT500 User's Manual 5: Communication setting 6: AI1 + AI2 7: MAX (AI1, AI2) 8: MIN (AI1, AI2) FA.03 PID action direction Range:0~1 Default:0 0: Forward action When the feedback value is smaller than the PID setting, the inverter's output frequency rises.
  • Page 111 AT500 User's Manual limit If the deviation between PID feedback and PID setting is smaller than the value of FA.09, PID control stops. The small deviation between PID feedback and PID setting will make the output frequency stabilize, effective for some closed-loop control applications. PID differential FA.10 Range:0.00%~100.00%...
  • Page 112 AT500 User's Manual feedback and PID setting is smaller than the value of FA.19, group 1 is selected. When the absolute value of the deviation between PID feedback and PID setting is higher than the value of FA-20, group 2 is selected. When the deviation is between FA.19 and FA.20, the PID parameters are the linear interpolated value of the two groups of parameter values.

  • Page 113: Group Fb: Swing Frequency, Fixed Length,Count And Torque Control Parameters

    AT500 User's Manual 38 "PID integral pause" is ON In this case, only proportional and differential operations take effect. If it is set to invalid, integral separated remains invalid no matter whether the X allocated with function 38 "PID integral pause" is ON or not. Ten's digit (Whether to stop integral operation when the output reaches the limit) 0: Continue integral operation 1: Stop integral operation...
  • Page 114 AT500 User's Manual Swing frequency Fb.00 setting Range:0~1 Default:0 mode This parameter is used to select the base value of the swing amplitude. 0: Relative to the central frequency (F0.07 frequency source selection) It is variable swing amplitude system. The swing amplitude varies with the central frequency (set frequency).
  • Page 115 AT500 User's Manual terminal allocated with function 28. For details, see the descriptions of F4.00 to F4.09. Allocate corresponding X terminal with function 27 (Length count input) in applications. If the pulse frequency is high, X5 must be used. Set count value Default:1000 Fb.08 Range:1~65535...

  • Page 116: Groupfc: Multi-Reference And Simple Plc Function Parameters

    AT500 User's Manual twice of the inverter's rated torque. If the torque setting is positive, the inverter rotates in forward direction. If the torque setting is negative, the inverter rotates in reverse direction. • 1: Digital setting (Fb.12) The target torque directly uses the value set in Fb.12. •...
  • Page 117 AT500 User's Manual FC.04 Reference 4 Range:-100.0%~100.0% Default:0.0% FC.05 Reference 5 Range:-100.0%~100.0% Default:0.0% FC.06 Reference 6 Range:-100.0%~100.0% Default:0.0% FC.07 Reference 7 Range:-100.0%~100.0% Default:0.0% FC.08 Reference 8 Range:-100.0%~100.0% Default:0.0% FC.09 Reference 9 Range:-100.0%~100.0% Default:0.0% FC.10 Reference10 Range:-100.0%~100.0% Default:0.0% FC.11 Reference11 Range:-100.0%~100.0% Default:0.0% FC.12 Reference12...
  • Page 118 AT500 User's Manual restarts the PLC process after it is powered on again. PLC retentive upon stop indicates that the inverter records the PLC running moment and running frequency upon stop and will continue to run from the recorded moment after it starts up again.

  • Page 119: Group Fd: User-Defined Parameters

    AT500 User's Manual Acceleration/deceleration time of FC.41 Range:0~3 Default:0 simple PLC reference 11 Running time of simple PLC Range:0.0s （ h ） FC.42 Default:0.0s（h） reference 12 ~6553.5s（h） Acceleration/deceleration time of FC.43 Range:0~3 Default:0 simple PLC reference 12 Running time of simple PLC Range:0.0s （...

  • Page 120: Group Fe: Quick Menu Parameters

    AT500 User's Manual Quick Menu 21 Default:F0.00 FE.21 Quick Menu 22 Default:F0.00 FE.22 Quick Menu 23 Default:F0.00 FE.23 Quick Menu 24 Default:F0.00 FE.25 Quick Menu 24 Default:F0.00 FE.26 Quick Menu 24 Default:F0.00 FE.27 Quick Menu 24 Default:F0.00 FE.28 Quick Menu 24 Default:F0.00 FE.29 FE is user-defined parameter group.
  • Page 121 AT500 User's Manual curve 5 maximum input The function of curve 4 and curve 5 is similar to that curve 1 to curve 3, but curve 1 to curve 3 are lines, and curve 4 curve 5 are 4-point curves, implementing more flexible corresponding relationship.
  • Page 122 AT500 User's Manual GroupP1:Analog calibration parameters AI1 measured voltage 1 P1.00 Range:0.500V~4.000V Factory corrected AI1 displayed voltage 1 P1.01 Range:0.500V~4.000V Factory corrected AI1 measured voltage 2 P1.02 Range:6.000V~9.999V Factory corrected AI1 displayed voltage 2 P1.03 Range:6.000V~9.999V Factory corrected AI2 measured voltage 1 P1.04 Range:0.500V~4.000V Factory corrected...

  • Page 123: Group P1: Analog Calibration Parameters

    AT500 User's Manual They have been corrected upon delivery. When you resume the factory values, these parameters will be restored to the factory-corrected values. You need not perform correction in the applications. Target voltage indicates the theoretical output voltage of the inverter. Measured voltage indicates the actual output voltage value measured by instruments such as the multimeter.
  • Page 124 AT500 User's Manual Show current AI1, AI2 and AI3( keyboard potentiometer )voltage (corrected) H0.13 Input pulse frequency （kHz） 0.01kHz The input current 1mA correspond to 0.5V. It displays the X5 high-speed pulse sampling frequency. Its minimum unit is 0.01 Hz. H0.14 PID setting H0.15...

  • Page 125: Chapter 7 Maintenance And Troubleshooting

    AT500 User's Manual Chapter 7 Maintenance and Troubleshooting 7.1 Routine Repair and Maintenance of the AT500 7.1.1 Routine Maintenance The influence of the ambient temperature, humidity, dust and vibration will cause the aging of the devices in the inverter, which may cause potential faults or reduce the service life of the inverter.

  • Page 126: Faults And Solutions

    AT500 User's Manual indicated on the barcode) for the failure or damage under normal use conditions. If the equipment has been used for over 18 months, reasonable repair expenses will be charged. 3)Reasonable repair expenses will be charged for the damages due to the following causes: •...
  • Page 127 AT500 User's Manual constant 2: Motor auto-tuning is not autotuning. speed performed. 3: Adjust the voltage to normal 3: The voltage is too low. range. 4: A sudden load is added 4: Remove the added load. during operation. 5: Select an inverter of higher 5: The inverter model is of too power class.
  • Page 128 AT500 User's Manual lockedrotor occurs the motor and the mechanical motor. condition. 3: The inverter model is of too 3: Select an inverter of higher small power class power class. 1: The three-phase power input abnormal. Power 1: Eliminate external faults. 2: The drive board is faulty.
  • Page 129 AT500 User's Manual 2: The motor auto-tuning times properly. fault 2: Check the cable connecting the inverter and the motor. 1: Set the encoder type correctly 1: The encoder type is incorrect. based on the actual situation. 2: The cable connection of the Encoder 2: Eliminate external faults.

  • Page 130: Common Faults And Solutions

    AT500 User's Manual over-speed set incorrectly. properly. 2: The motor auto-tuning is not 2: Perform the motor auto performed. tuning. 3: F9.67 and F9.68 are set 3: Set F9.67 and F9.68 correctly incorrectly based on the actual situation. 7.4 Common Faults and Solutions Fault Possible Causes Solutions...
  • Page 131 AT500 User's Manual 3: The cable between the drive 3: Check and re-set motor board and the control board is in parameters poor contact. 4: The drive board is faulty. 1:Check reset 1: The parameters are set parameters in group F4. incorrectly.
