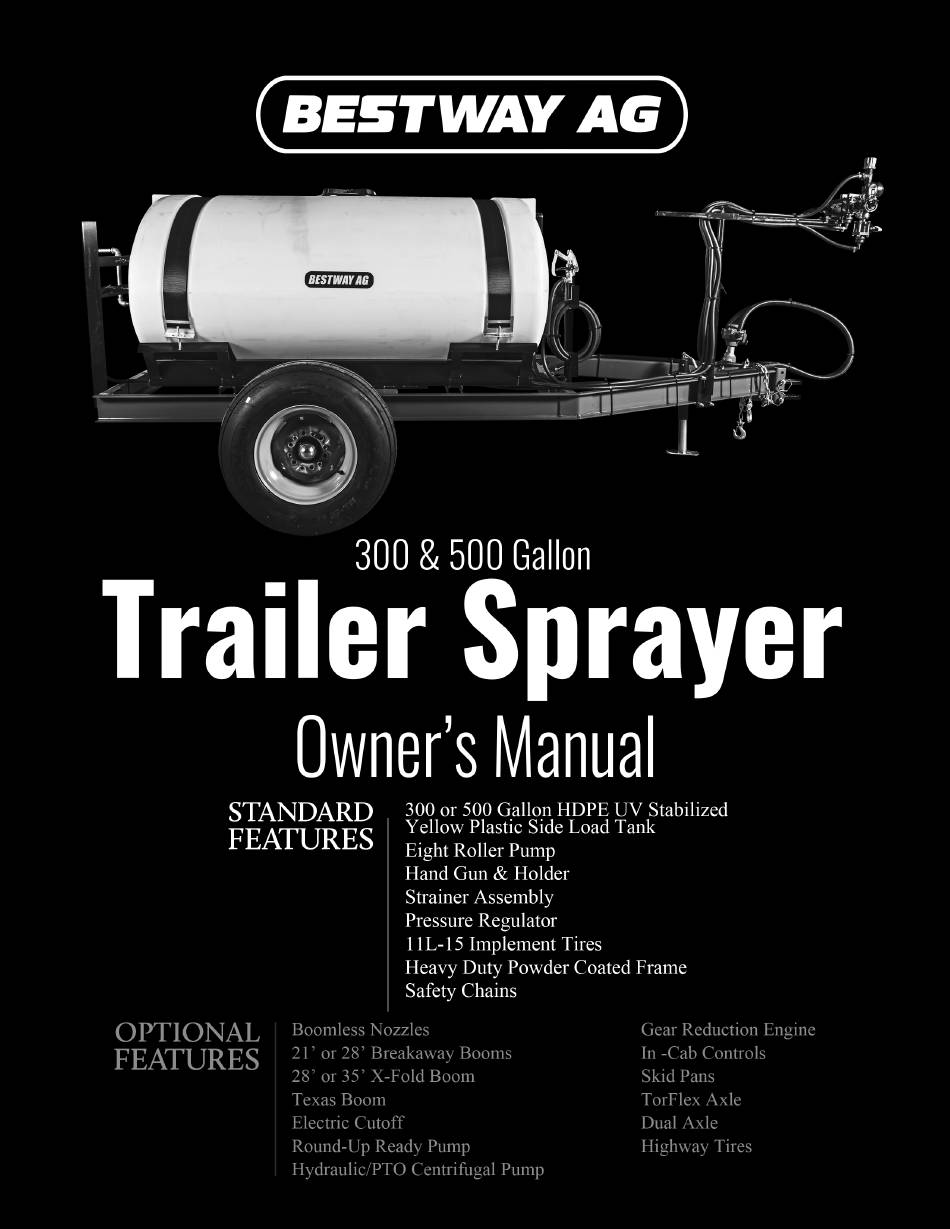

BESTWAY AG TS-300 Owner's Manual

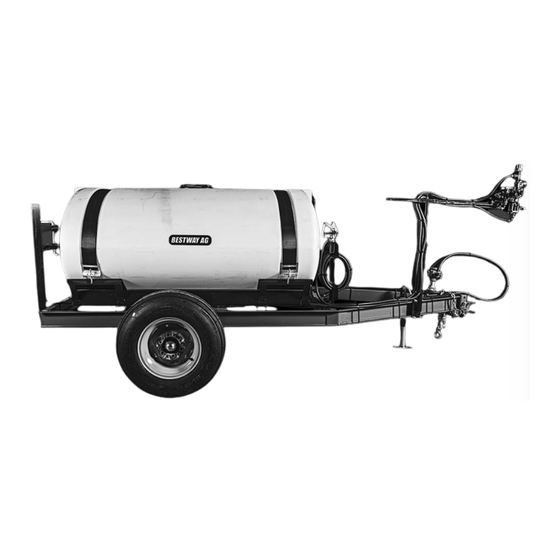

300 & 500 gallon trailer sprayer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-300 and is the answer not in the manual?

Questions and answers

Related Manuals for BESTWAY AG TS-300

Summary of Contents for BESTWAY AG TS-300

  • Page 2: General Safety

    Make sure area to be sprayed is clear of people or obstructions For further information, please contact Bestway Ag. • Never wear loose fitting clothing that may catch in moving parts TSM001 | Bestway Ag Trailer Sprayer Manual Rev. 1, March 2021. Printed in the U.S.A.

  • Page 3: Operating Safety

    Look before moving spraying, or engaging the OPERATION OF NEW SPRAYER • Never leaving running unattended Your Bestway Ag Trailer Sprayer is optimized for • Keep hands and body parts clear of all moving trouble free spraying and ease-of-use. parts, especially the PTO •...
  • Page 4 MAINTENANCE INSTRUCTIONS Your Bestway Ag Trailer Sprayer is engineered to be amongst the most durable, reliable sprayers on the market. By following these routine maintenance Not the only way...the BESTWAY! procedures, you will ensure your sprayer operates at peak efficiency through its lifetime.

  • Page 5: Standard Parts List

    STANDARD PARTS LIST NOTE: This list includes parts for base TS-300 and TS-500 units only. For assistance with boom/boomless parts, or custom unit parts, please contact Bestway Ag. 300 GALLON UNIT 500 GALLON UNIT PART # DESCRIPTION PART # DESCRIPTION...
  • Page 6 TEEJET 530 MANUAL VALVE/MANIFOLD SPECIFICATIONS Bestway Ag makes use of TeeJet 530 manifolds/ valves in the construction of our trailer sprayers. The use of this modern valve system allows for not only a cleaner overall appearance, but increased user functionality efficiency.
  • Page 7 PART # ITEM # DESCRIPTION BRASS ALUMINUM CP1325 CP1325-AL Cap, brass or aluminum D-** D-** Orifice disc, hardened stainless steel CP4743-NY CP4743-NY Gasket, Nylon CP10566 CP10566-AL Nozzle housing, brass or aluminum 10565-1-NY 10565-1-NY-AL Seat plug, seat plate, washer & core sub-assembly 10565 10565-AL Seat plug, seat plate, washer &...
  • Page 8 ROLLER PUMP SPECIFICATIONS TYPE: 8 Roller MATERIAL: Cast Iron FLOW RATE: 24 GPM MAX PRESSURE: 300 PSI MAX REC. TEMP: 140° F ROLLERS: 3/4” Ultra BEARINGS: Permanently lubricated, heavy-duty sealed PORT SIZE: 1” FNPT PTO: Use torque bar and chain SHAFT: 15/16”...
  • Page 9 To determine pressure & Gallons Per Acre (GPA) with a Hamilton nozzle, use the following formula: 495 x GPM GPA = MPH x Swath In Feet Bestway Ag Trailer Sprayers w/Hamilton nozzles are supplied with #20 495 (constant) x 6.7 GPM 3316.5 EXAMPLE: = 14.805 GPA 4 MPH x 56’...
  • Page 10 To determine pressure & Gallons Per Acre (GPA) with a BoomJet 5880, use the following formula: 495 x GPM GPA = MPH x Swath In Feet Bestway Ag Trailer Sprayers w/BoomJet are supplied with #20 nozzle 495 (constant) x 6.08 GPM 3009.6 EXAMPLE: = 16.008 GPA 4 MPH x 47’...
  • Page 11 Gallons Per Minute GPA = Gallons Per Acre MPH = Miles Per Hour Bestway Ag Trailer Sprayers w/BXT are supplied with XT024 tips. PSI = Pressure Per Square Inch BROADCAST & TURF APPLICATIONS GALLONS PER ACRE (AT SWATH SHOWN) SWATH (FT)
  • Page 12 TEEJET SPRAY TIP CALIBRATION FOR SIX AND EIGHT ROW BOOMS GPA x MPH x NOZZLE SPACING GPM = FORMULA: 5940 1600 20gpa x 4mph x 20” EXAMPLE: .27 GPM 5940 5940 Take the GPM calculated & look down the chart below to figure what pressure you need to run at that speed.
  • Page 13 NOTE: If spraying liquid nitrogen you will need to multiply the conversation factor with the GPA. MPH and nozzle spacing. 28% Nitrogen - 10.65 pounds per gallon - 1.13 Conversion Factor: 32% Nitrogen - 11.00 pounds per gallon - 1.15 20gpa x 4mph x 20”...

  • Page 14: Troubleshooting Guide

    Possible loose coupler or damaged shaft. EXCESSIVE VIBRATION OR NOISE Check and reconnect/replace if necessary. Excessive PTO or engine speed. Verify your PTO and engine settings. Impeller or internal problem. Inspect for is sues. Call your Bestway Ag dealer for further info or instructions.

  • Page 15: Maintenance Log

    MAINTENANCE LOG For your convenience, use the maintenance log below to record the date/time and maintenance actions taken for the upkeep of your trailer sprayer. Keeping a detailed log will assist in trouble shooting, should the need arise. DATE: ACTION PERFORMED:...

This manual is also suitable for:

Ts-500
