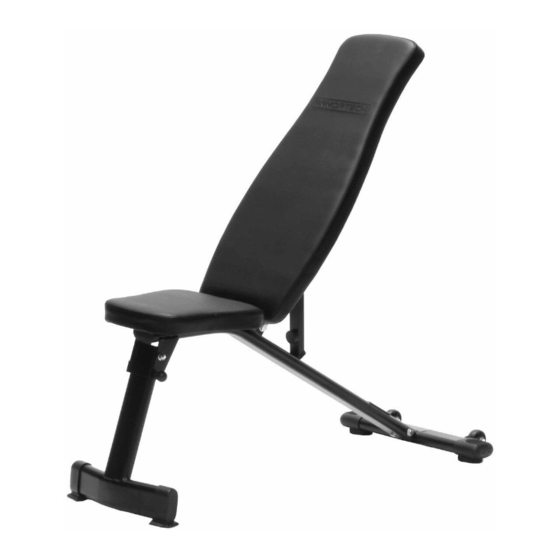

Summary of Contents for Armortech 3253
- Page 1 BENCH USER MANUAL...
- Page 2 PARTS LIST Back Cushion Main Frame Rear Base Front Upright Tube Back Cushion Tube Adjustable Frame 2pcs Seat Cushion Back Cushion Quick Pin Wheel Rear Foot End 2pcs Cap 2pcs Front Foot End 30X70mm Ellipse 25mm Square Plug M10X140mm Hex M8X90mm Hex Cap 2pcs End Plug 2pcs...
- Page 3 ASSEMBLY INSTRUCTION 17 21 STEP 1: 1. Attach the Rear Base (2) to the Main Frame (1), using three M8X20mm Hex Bolts (17), one M8 Washer (22) and two M8 Arc Washers (21). 2. Attach the Front Upright Tube (3) to the Main Frame (1), using one M8X90mm Hex Bolt, two M8 Washers (22), one M8 Nylon Nut (25) and one Quick Pin (8).
- Page 4 ASSEMBLY INSTRUCTION STEP 2: 1. Attach the Back Cushion (7) to the Back Cushion Tube (4),using four M6X40mm Hex Bolt (19) and four M6 Washers (23). 2. Attach the Seat Cushion (6) to the Main Frame (1), using four M6X16mm Hex Bolts (18) and four M6 Washers (23).
- Page 5 FOLDING INSTRUCTION ● Fold the BENCH as shown for storage.

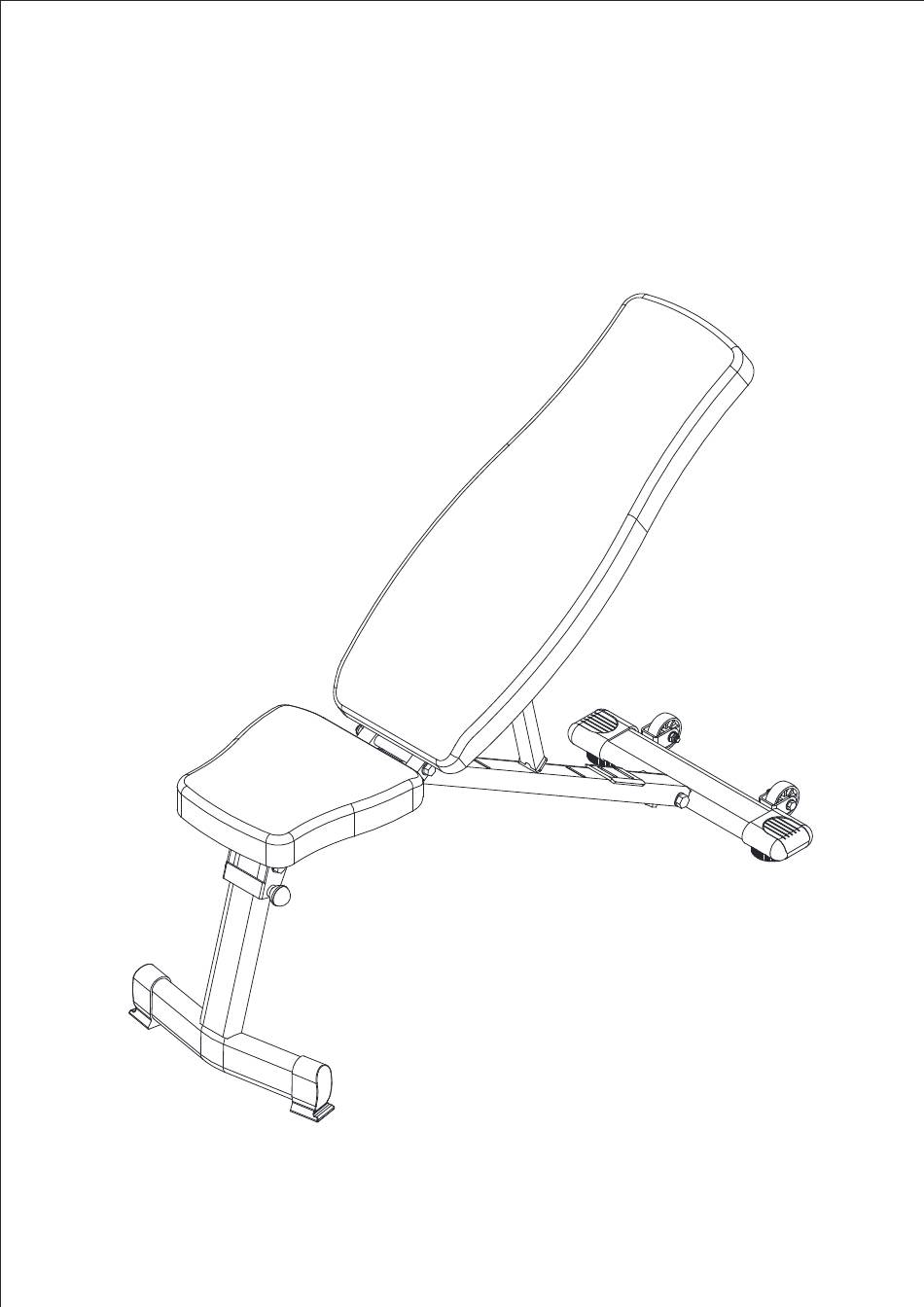

- Page 6 EXPLODED DRAWING...
