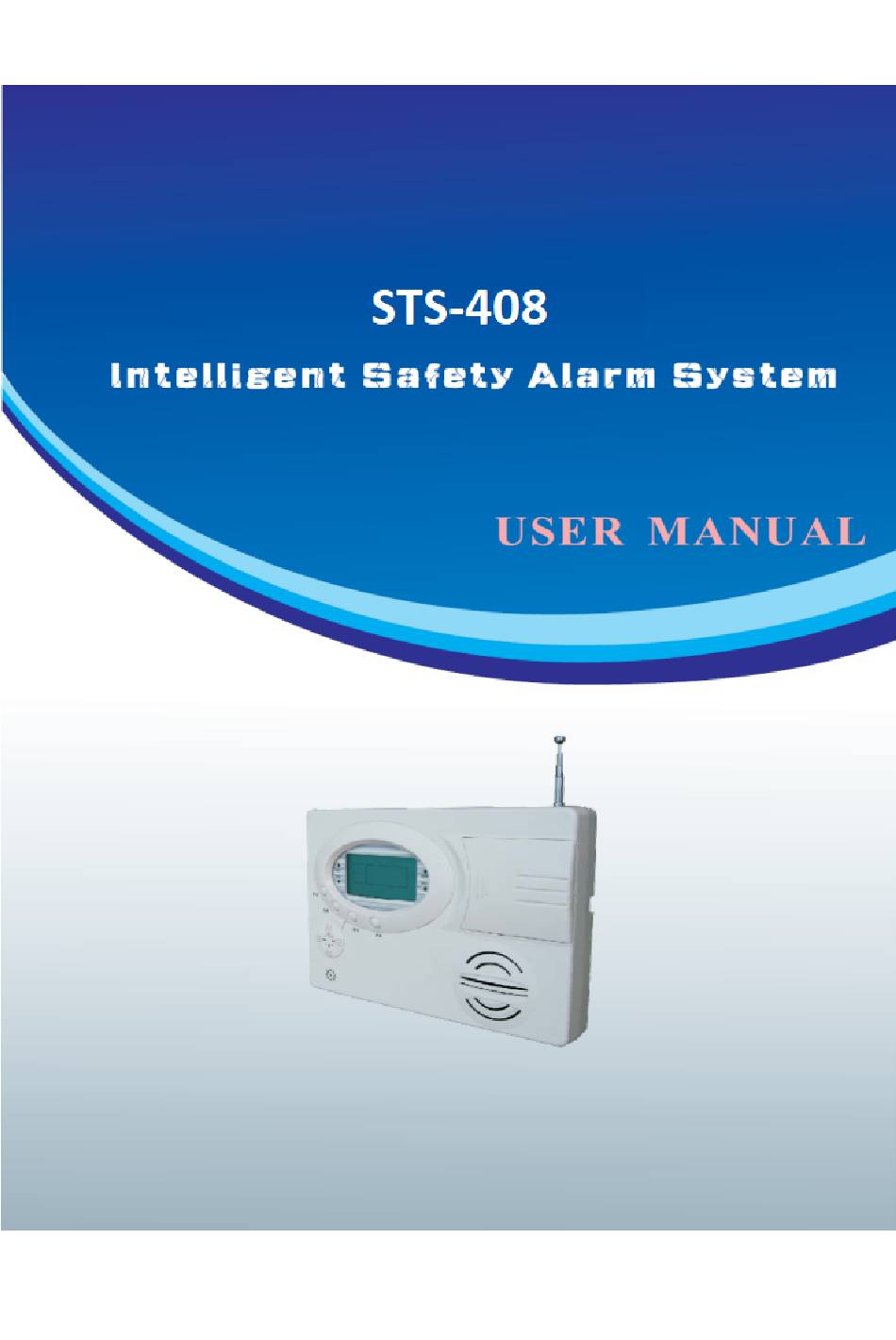

Shield Tech Security STS-408 User Manual

Intelligent safety alarm system
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the STS-408 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Shield Tech Security STS-408

  • Page 2 User Manual Components list Before installation please check if the whole set including the components as follow:...
  • Page 3 User Manual Brief Dear customer: Congratulations on purchasing your new FOCUS security system an thank you for the confidence you have shown in us. You have chosen a high-quality product that has been produced, tested and packed w the greatest care. Please familiarize yourself with these instructions before attempting to in stall the FOCUS security system because prolonged reliable and trouble-free operation will only been...
  • Page 4 User Manual Chapter I Introduction 1.1 Features Voice prompt and report: all operation, alarm message, and record have voice instruction, very convenient for operation. LCD Screen Indication: operation process, working status and alarm process can be showed. 16 Wireless Zones: auto register of every zones, and can also register through the keyboard.
  • Page 5 User Manual Siren on/off Selectable When Alarming: user can set the siren broadcast or not for different alarms. Anti-Tamper Alarm: when the wires connected the wired detectors and control panels are cut off, the control panel alarms. When the telephone line connected to the control panel is cut off, the siren starts to broadcast.
  • Page 6 User Manual StatusLED Record LED Power LED Signal LED Keypad Arm Away Arm Home Requiry/ Control appliance Panic /Bypass Built-in Siren Convoy [#] OR Keypad for operation LCD disypaly Voice prompt Caution Hint...
  • Page 7 User Manual Chapter 2 Installation and Connection 2.1 Opening the Box Open the package to check the contents as per the list. If the accessories are not integrated, please contact the distributor. 2.2Installation of control panel An obvious feature of the alarm is that it can be installed without open it.
  • Page 8 User Manual There should be no large metal goods around the control Make sure the distance between the control panels and detectors is valid. And it is better to put the control panel in a covert place. Metal 2.3 Wiring Diagram As the picture Lower zone Higher zone...
  • Page 9 User Manual 2.4 Installation of Wired Detector The wired zone is given 12 V from the main panel. The connections are given to eight zones based on the diagram with end of line resistance. For NC detector resistance is connected in parallel and for NO detector, resistance is connected in series.
  • Page 10 User Manual Chapter III Simple Setting and Operation This chapter gives an example to show the simple operation. User can follow it and to simple test. 3.1Operation Preparation 3.1.1 Connect the telephone line and power correctly. 3.1.2 Wireless Siren Register: When the power is on, input 1111 to disarm the control panel.
  • Page 11 User Manual 3.2 Daily operation Arm Home Arm Away Press the key for arm away on controller, Press the key for arm home on controller, it will sound"DeeDee" from control panel; or press the key "HOME" on panel, there or press "AWAY" on panel, there will be will be "Dee Dee"...
  • Page 12 User Manual Electronic appliance control Press check key more than 3 seconds Enter user password Electronic appliance switch Electronic appliance switch Electronic appliance control, press 1 status check, press 2 timing control, press 3 Enter electronic Enter electronic Enter electronic appliance Number appliance Number appliance Number...
  • Page 13 User Manual Set zones effective or bypass Press panic alarm key Enter user password Set No.1 to 8 wired zones, Set No. 1 to 8 wireless zone Set No. 9 to 16 wireless press 1 bypass, press 2 zone bypass, press 3 Press 1 to 8,set effective/ Press 1 to 8,set effective/ Press 1 to 8,set effective/...
  • Page 14 User Manual “tick, tick.” Input user password After phone receives the Dial the phone number and perform the pre-set ringing times, connected to control panel operation below control panel sends out 2 “tick, tick.” Sound 1.Press (1) key, remote away arming 2.Press (2) key, remote away disarming 3.Press (3) key, remote spot monitoring (this operation can be performed repeatedly)
  • Page 15 User Manual Chapter 4 System Setting 4.1 Default Setting Below are the default settings, user can change them System password:9999 User password:1111 Entry/exit delay time:10 seconds Audio monitoring time:10 seconds Cycle Dial times: 2 No of telephone rings before connnection:7 Telephone line testing function: effective Function of arming/disarming message sent to alarm center station: off Auto arm and disarm function: off...
  • Page 16 User Manual 4.3 Basic Setting Below are the steps to enter system setting and other function setting. Every time enters system setting needs to do this operation. Set clock and password press 1 Set voice alarm, press 2 Set network alarm press 3 Set system options press 4 Enter system password Set zone attribution, press 5...
  • Page 17 User Manual Set clock and password Modify system password, press 3 Set clock press 1 Modify user password, press 2 Enter date, time and press Enter user password Enter system password M M M M M M M M Enter the new user Enter the new system password again password again...
  • Page 18 User Manual For Example: We want to change the user password to 9876 9 9 9 Enter system password Set clock and password press 1 Press * for 3 seconds Enter 4 digit user’ Set user password, press2 old password Enter 4 digit user’...
  • Page 19 User Manual The main control panel can be programmed for 6 telephones. The maximum digit for the telephone is 15. For example 1: If your ST main panel is connected with single line, you can set the cell phone “13686867520” in the second line 9 9 9 Enter system password Set voice alarm,press 1to 6...
  • Page 20 User Manual Example 3: if your ST main control panel is connected with an extension number, you can set another extension “666” as the sixth receiving phone number, the procedure is as follows; 9 9 9 Set voice alarm,press 1 to 6 Enter system password Press * for 3 seconds Set voice telephone number,press 1 to 6...
  • Page 21 User Manual Note: user code is the ID in the alarm center station For example: set 81237569 as the first alarm center station telephone number. The process is the same as set alarm telephone number. Set 2006 as the user code. 9 9 9 Enter system password Set network alarm,press 3...
  • Page 22 User Manual User can set a timely test time and the panel will send message to the CMS at the same time everyday to test the status. For Example: set 17:30 as the test time, the processes are below: 9 9 9 Set network alarm,press 3 Enter system password Press * for 3 seconds...
  • Page 23 User Manual Set system options...
  • Page 24 User Manual For example: set the enter time delay to 9 seconds (the default setting is 10 seconds) 9 9 9 Enter system password Set system options press 4 Press * for 3 seconds Enter any number between 0 to 99, Entry delay, press 1 less than two digit,high full 0 Press...
  • Page 25 User Manual 4.8 Defense zones' property setting Set zone attribution Set No.1 to 8 wired Set No. 9 to 16 wireless Set No. 1 to 8 wireless zone bypass, press 1 zone bypass, press 3 zone bypass, press 2 Press 1 to 8,set zones Press 1 to 8,set zones Press 1 to 8,set zones accordingly...
  • Page 26 User Manual For example: set the NO.10 defense zones as burglar alarm zone and alarm immediately. Below are the processes. 9 9 9 Set zone attribution, press 5 Enter system password Press * for 3 seconds Press 1 to 8,set zones Set No.
  • Page 27 User Manual Enroll wireless device...
  • Page 28 User Manual For example: register a remote controller as the fifth of a control panel and then delete it. 9 9 9 Enter system password Enroll wireless device press 6 Press * for 3 seconds Press 1-8 respectively, Enroll remote controller, detectors and Electronic Enroll remote controller, press 1 appliance switches...
  • Page 29 User Manual 9 9 9 Enter system password Enroll wireless device press 6 Press * for 3 seconds Press 1-8 respectively, delete enrolled Delete No. 1-8 enrolled remote controller, detector and Electronic electronic switches, press 8 switch.Delete all the enrolled remote controllers, press 0 Press key twice...
  • Page 30 User Manual In order to avoid the interference, user can also input the address code of wireless accessories through the keyboard. There is 9-digit code label on the products, what you need to do is to input this number. For example: register the wireless detector of the address code 123456789 as the sixth wireless zone 9 9 9 Enter system password...
  • Page 31 User Manual Chapter 5 Alarming and Receiving alarm 5.1 Validity of activating alarm Only the stealing alarms, perimeter alarm (such as PIR, magnetic door contact, and beams detector) are controlled by arming/disarming at home or away, the other zones are effective all 24 hours. Once the stealing alarm, perimeter alarm are activated, the alarm will be transferred to CMS based on the delay time.
  • Page 32 User Manual means of icon displayed on LCD: Meaning Meaning Icon Icon Enroll devices Perimeter zoon Telephone line fault Disarm Burglar alarm Home arm Panic alarm Away arm Help Alarm Adequate battery Fire alarm voltage Gas leak Low battery Special alarm Alarm information Center link failure is reporting...
  • Page 33 User Manual 5.4 Alarm Process Diagram Mobile Tel of the alarm center Telephone Telephone The 1 center the 3 tel the 5 tel the 6 tel 2.the main control panel dial 1-6 telephones as preset, and the siren will hoot if setting Alarm 1.the detectors activated Alarm situation found,...
  • Page 34 User Manual 5.5 Telephone line false alarm When the checking function for phone line cutting is set, on arm status, the siren will hoot for 5 minutes until the phone is cut. On disarm status, the buzzer will sound lasting 60 seconds, during this period, if the phone line comes back or being disarmed, the buzzer will stop sound, otherwise, after finish the sounds, the spot high voice siren will sounds for 5 minutes immediately...
  • Page 35 User Manual 5.7.2 Event Check Presses the check key can the event recorded. Press the # key can check the record one by one. For example: stealing alarm at the fifth wired zone at 8: 30 am 3rd April, 2006 Check Press check key Check...
  • Page 36 User Manual Chapter 7 Technical specification 7.1 General data A area data: 8 wired defensive areas, 16 wireless zones, 8 remote controllers B wired area request: 51k and 30 k ohm resistance C Zone type: robbing alarm, thief alarm, gas leak alarm, ambulance alarm, self-defined alarm, fire alarm and boundary alarm events D Frequency: 433MHz E Signal transmit distance: 60 to 80 meters (open area)
  • Page 37 User Manual Chapter 8 Maintenance and protection 8.1 Regular test Design of components of the system is to reduce maintenance cost, but still it is suggested that periodical check may be carried out. 8.2 The cleanliness of control main machine Main control panel maybe be stained by fingers or covered by dust after using for a while.
