THE FERNWOOD

Assembly Instructions

Need help?

Do you have a question about the ACRE THE FERNWOOD and is the answer not in the manual?

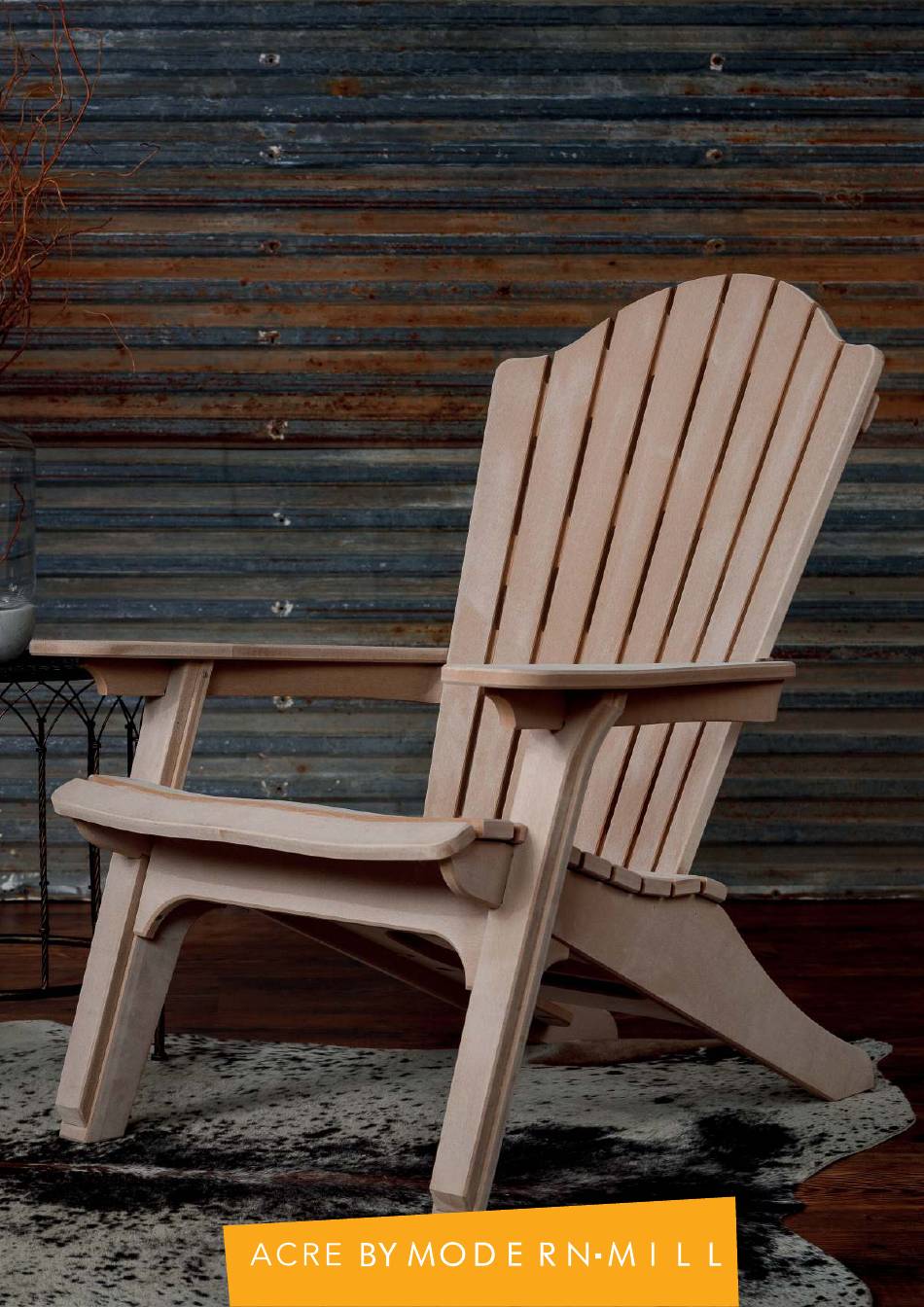

Page 1 THE FERNWOOD Assembly Instructions...
Page 2: Shipping Box
Unpack all the parts from the Painting or staining shipping box IF YOU PLAN TO FINISH YOUR FERNWOOD CHAIR, BE SURE TO PAINT OR STAIN EACH PIECE BEFORE ASSEMBLY. USE A WATER-BASED STAIN OR PAINT TO FINISH YOUR FERNWOOD CHAIR. LET DRY COMPLETELY BEFORE ASSEMBLY. (1) Left &...
Page 3 Insert cross support into corresponding pegs (2) 2-1/2 SCREWS (4) 1-1/2 SCREWS SEAT SUPPORT CROSS SUPPORT...
Page 4 Attach both legs to A-Frame with Secure A-Frame pegs on legs to slots on A-Frame with 1-1/2” screws (4) ON TOP (4) ON BOTTOM (8) 1-1/2“ A-FRAME SCREWS...
Page 5 Attach seat bottom to legs (6) FLAT HEAD 1-1/4” SCREWS INTO THE SIDES AND (2) 1-3/4” SCREWS INTO THE CROSS SUPPORT METAL SUPPORT (8) 3/4 SCREWS...
Page 6 Insert the back rest into Place arm around back and insert slot on seat into top notches on both legs SECURE WITH (8) 2-1/2” SCREWS SECURE WITH (8) 1-1/4” FLAT HEAD SCREWS IN PRE- MARKED HOLES ALONG THE BACK, AND (2) 1-1/2” SCREW ON THE INSIDE OF EACH FRONT LEG SUPPORT SCREW LOCATION (8) 2-1/2 SCREWS...
Page 7 Need help? Call or email us 601-869-5050 ZEN@MODERN-MILL.COM...
Page 8 601-869-5050...
