Related Manuals for HYPO SOURCE HYPO 7.5
Summary of Contents for HYPO SOURCE HYPO 7.5

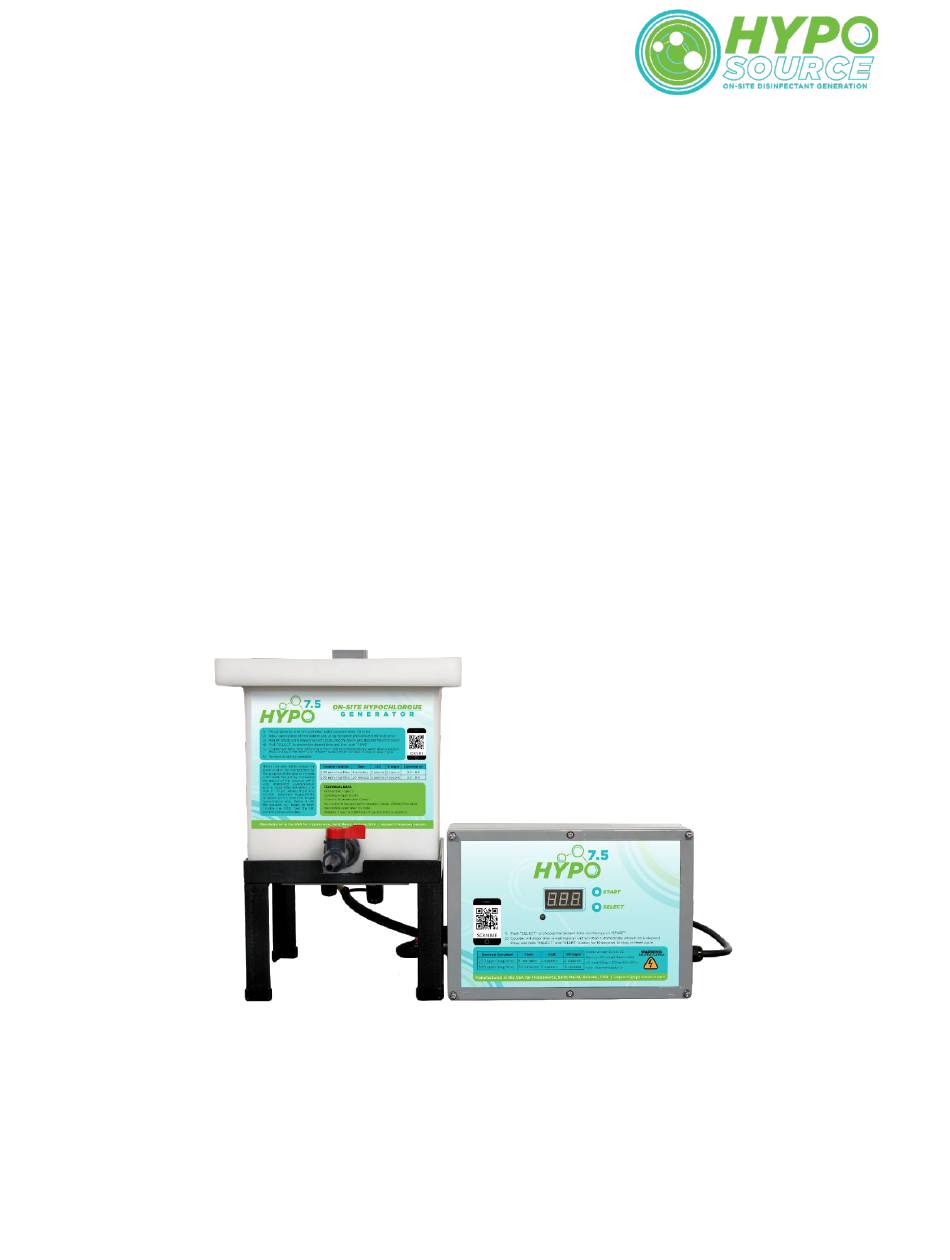

- Page 1 HYPO 7.5 by HYPO SOURCE Product Manual HYPO 7.5 Product Manual Page 1 of 15 4/26/2021...
-
Page 2: Table Of Contents
SECTION 6 - WARRANTY INFORMATION .............. 14 SECTION 7 – PARTS GUIDE ................... 15 Note: This manual is subject to change at any time based on system improvements, design changes, authorized modifications, or new information. Please consult Hypo Source for the latest revision. Hypo Source Saint David, Arizona, USA Support@HypoSource.com... -
Page 3: Section 1 - Description
7.5 can produce up to 7.5 liters (2 gallons) of hypochlorous acid at either 200 or 500ppm with a pH range between 5 and 6. The system produces hypochlorous acid in batches from a salt and acid solution. The HYPO 7.5 is designed for commercial use. The basic components of the system are outlined below. -
Page 4: Principles Of Operation
1.2 PRINCIPLES OF OPERATION To begin production of hypochlorous acid, the HYPO 7.5 storage tank is filled with two gallons of clean water. Consumables are added to the storage tank according to the operations video and the desired concentration (200 or 500ppm). -
Page 5: Hypo 7.5 Consumables
1.4 HYPO 7.5 CONSUMABLES pH control: 5% Vinegar (No dilution necessary) Salt: Table salt (iodized or non-iodized) Solution strength consumable table # of Scoops 200 ppm 500 ppm 5% Vinegar 2 scoops 4 scoops Table salt (iodized or non-iodized) 2 scoops 2 scoops HYPO 7.5 Product Manual... -
Page 6: Section 2 - Installation
MAINTENANCE OF THIS EQUIPMENT MUST BE FULLY FAMILIAR WITH THE CONTENTS OF THIS MANUAL. ANY SERVICING OF THIS EQUIPMENT MUST BE DONE WITH THE UNIT FULLY OFF AND DISCONNECTED FROM THE POWER SOURCE. HYPO 7.5 Product Manual Page 6 of 15 4/26/2021... -
Page 7: Plan Ahead
• USE ONLY THE CORD CONNECTED AT TIME OF MANUFACTURE. • REPLACE DAMAGED CORDS IMMEDIATELY. DO NOT BURY CORD. • DO NOT MODIFY THE PLUG PROVIDED WITH THE HYPO 7.5. IF IT WILL NOT FIT THE OUTLET, USE THE CORRECT PLUG. -
Page 8: Section 3 - Operation
Unpack the shipping box and confirm the contents according to the graphic below: 1 x Plug Adapters 1 x Fill Tube 1 x HYPO 7.5 1 x Spray Bottle 1 x Scoop 1 x Chlorine Test Strips ... -
Page 9: Operating The Hypo 7.5
Step 1: Unpack the components. Step 2: Place the cell assembly into the stand as shown below: Step 3: Place the power supply next to the HYPO 7.5 Step 4: Connect the power supply to the cell assembly using the two blue connectors. - Page 10 Step 14: Use the pH test strips provided to verify the pH of the solution is between 5-6. Step 15: The solution is now ready to use as needed. Step 16: Rinse the container with fresh water after each use. HYPO 7.5 Product Manual Page 10 of 15 4/26/2021...
-
Page 11: Section 4 - Maintenance
Use a 4:1 ratio of water and muriatic acid (typically 6.3%) in the storage container. Once the calcium has been dissolved, dispose of solution according to regulation and immediately rinse with water. HYPO 7.5 Product Manual Page 11 of 15 4/26/2021... -
Page 12: Section 5 - Fault Descriptions
4.0, dump the solution and create Measure the pH. If above 7.0, add a new batch with the correct vinegar to the solution (a scoop at vinegar measurement. a time) until the pH is between 5- HYPO 7.5 Product Manual Page 12 of 15 4/26/2021... - Page 13 Effect #1: The pH of the solution will be approximately 9.0 to 9.4 Remedy: Add vinegar to the solution (a scoop at a time) until the pH is between 5-6. HYPO 7.5 Product Manual Page 13 of 15 4/26/2021...
-
Page 14: Section 6 - Warranty Information
SECTION 6 - WARRANTY INFORMATION HYPO SOURCE HYPO 7.5 system carries a limited 5-year warranty 1. 5-year warranty on assembly of the system. 2. 1 year on all electrical items and production tanks. 3. 2,000 hours or operation or 5 years pro-rated monthly, on titanium electrodes. -
Page 15: Section 7 - Parts Guide
SECTION 7 – PARTS GUIDE Part #: KITESTK2.0HYPOM7.5 Part #: KITCBPSHYPOM7.5 HYPO 7.5 Product Manual Page 15 of 15 4/26/2021...
