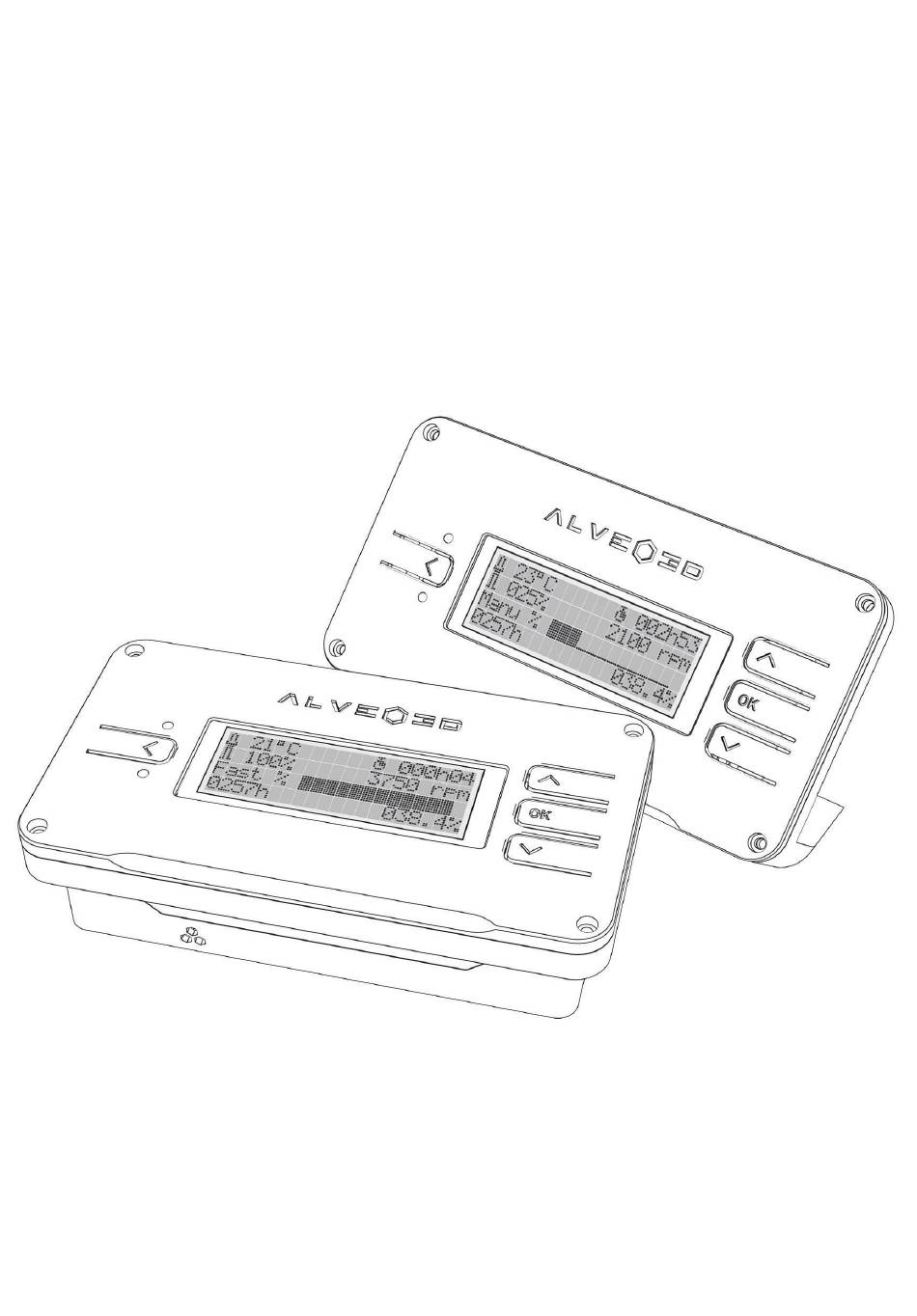

- Page 1 INSTRUCTION MANUAL Electronic controller board V2 for filtering system ALVEO3D Find all our tutorials and tips www.alveo3d.com/en/board-v2-assembly/ ALVEO3D v1.1 EN...
- Page 2 ELEMENTS PROVIDED Elements included in the board v2 package Electronic board v2 Temperature probe length 90 cm Power supply wire from v1 to v2 length 90 cm Cylindrical screw M3 20mm x4 Hexagonal nut M3 x4 Tool needed Hexagonal key 2.5 mm...
-
Page 3: Table Of Contents
STEP 7 - FILTER INITIALIZATION PROCESS p. 16 STEP 8 - END OF FILTER INITIALIZATION PROCESS STEP 9 - FILTER INFO & PROFILES REINITIALIZATION p. 17 STEP 10 - OPTIONS V2 p. 18 p. 19 STEP 11 - LEDS & ERRORS p. 20... -
Page 4: Security
SECURITY ( Please refer to instruction before use ) Read the conditions of use : The electronic board v2 is designed to work with alveoONE filtering kits. If you used the board v2 with other devices than recommended, no responsibility can be accepted in case of system malfunction. -
Page 5: Composition Board V2
COMPOSITION BOARD V2 The board v2 is provided and assembled with the power wire and temperature probe. Power wire V1 (to alveoONE & alveoONE-R) Temperature probe Green Validation Back Menu Orange Connector Connector V1 RS 232 Temperature probe GND / VCC / PWM / Tin... -
Page 6: Connect V2 To V1
CONNECT V2 TO V1 ON THE ALVEOONE Connect the 4 pins cable provided on the v1 connector called BOARD V2. The electrical supply comes from the v1 board, you shall turn it on to feed the Board-v1 From FAN From Board-v2... -
Page 7: Activation : Start Screen
At the first launch, the board v2 will require an initialization process. (see page 15 for the initialization process) After this step, the board v2 is ready to use, you can start to use it now. At the first use, select the language with OK. English and French are available, if... -
Page 8: Step 1 - Main Information
STEP 1 - MAIN INFORMATION When the device is turned on, the screen displays the main information and it waits for mode selection before to start. Find the board v2 tutorial video on : www.alveo3d.com/en/board-v2-assembly/ Main information Temperature Fan rotation speed... -
Page 9: Step2 - Modes
«Fast clean mode» is designed to clean up your enclosure air as fast as possible. With the enclosure air volume that you defined during the initialization step, the board v2 calculates the best timing to renew the air. The fan speed is running at 100 % power in this mode. -
Page 10: Step 3 - Fast Clean Mode
STEP 3 - FAST CLEAN MODE The fast clean mode turns on the fan at 100% speed during the time determined by the volume of your enclosure : this mode is designed to clean the air as fast as possible before an operation inside the enclosure. Main menu : Select fast clean mode Select the mode with the button OK... -
Page 11: Step 4 - Manual Mode
STEP 4 - MANUAL MODE Control the fan speed and duration with the manual mode Main menu : select the manual mode Mode selection with « OK » Choose filtration time needed with buttons - and + To reset the tiemr to zero faster, press buttons - and + together in the same time. -
Page 12: Step 4 - Manual Mode
STEP 4 - MANUAL MODE After the setting time, the manual mode main menu appears : the bar graph shows the fan speed. Manual mode setting Power settings with - and + buttons in real-time Click on Back to stop the mode or on OK to access to parameters Modify the remaining... -
Page 13: Step 5 - Automatic Mode
STEP 5 - AUTOMATIC MODE Profiles can adjust the speed of the fan automatically. That can help to change the temperature in the enclosure or reduce the fan noise. Main Menu : selection automatic mode Automatic mode profiles can be edited Select automatic mode with + and - Start the profile... -
Page 14: Step 5 - Automatic Mode
STEP 5 - AUTOMATIC MODE After the profile selection, duration should be defined if you wish an automatic fan stop. Automatic mode settings We recommend to define the profile duration on the printing time. Change duration with + and -. The interval is the time of each profile sections. -
Page 15: Step 5 - Automatic Mode
STEP 5 - AUTOMATIC MODE 3 automatic modes are available. Automatic mode : details Profil #1 : standard Fan speed (PWM signal power) Time Profil #2 : free profile Fan speed (PWM signal power) Time Profil #3 : first 10 minutes 100% speed before profile start then automatic Fast clean mode at the end Fan speed (PWM signal... -
Page 16: Step 6 - Edit Profiles
STEP 6 - EDIT PROFILES To edit profiles go to the main menu / «Settings» / «Edit profiles». You can add new profiles, but you can modify the 3 existing profiles. Edit profiles Select the profile to modify with the cursor and press OK There are 12 intervals show the total amount of running time. -
Page 17: Step 6 - Edit Profiles
STEP 6 - EDIT PROFILES Custom profiles can be created to suit your filtration needs. Edit profiles Press - and + to move the cursor to select the interval to modify Press OK to select the interval and the cursor change to With this cursor, you can modify the power of the interval with - and +... -
Page 18: Step 7 - Filter Initialization Process
It is to avoid mistakes. If you select «Reset filter» by mistake you can go back to the previous menu with BACK. After the double confirmation, reboot the board V2, by pressing ON/OFF on the filter box alveo3D... -
Page 19: Step 8 - End Of Filter Initialization Process
STEP 8 - END OF FILTER INITIALIZATION PROCESS The process is automatic, just follow the instructions displayed on the screen. Be very careful the fan will run at 100% speed during the process. Filter initialization Always place the fan grid in position before to run the fan. Choose «YES»... -
Page 20: Step 9 - Filter Info & Profiles Reinitialization
STEP 9 - FILTER INFO & PROFILES REINITIALIZATION If you want to get the default settings, go to «Settings» / «Reset option» / «Reset profile» Restore the default settings «confirm» then «validate» to save the settings. All profiles will be reset to default See the filter information Go to «Settings»... -
Page 21: Step 10 - Options V2
STEP 10 - OPTIONS V2 Set Options Go to «Options» to change parameters Use + and - button to select the option and «OK» to change it. #1 Lang: Change the language EN is English / Fr is French #2 Buzzer:... -
Page 22: Step 11 - Leds & Errors
At the start ( Power ON ) : The green LED is lighting. ( it confirms LED work. ) The orange LED lights up and blinks ( it confirms LED works, and board v2 is busy. ). During the filter initialization :... -
Page 23: Step 11 - Leds & Errors
Error #3 : The fan speed is lower than expected. The fan is not working properly. Or the board v2 is damaged. Error #4 : Error, the fan is rotating upper the expected speed : The filter is probably missing. - Page 24 NOTES :...
