Summary of Contents for Star Industrial Supply Chain E-300
- Page 1 Star Industrial Supply Chain Co.,Ltd E-300 Plasma Power Source Operating Instruction PAGE \* MERGEFORMAT - 1 -...
-
Page 2: Table Of Contents
Catalog Chapter 1 Safety ........................1 Introduction ........................1 I. Safety Details ........................1 II. Safety equipment .......................2 Chapter 2 Technical Specifications..................3 I. Overview and principle.......................3 II. Technical parameter......................4 III. The host power supply and torch..................5 Chapter 3 Installation......................6 I. Acceptance test........................6 II. Claims ........................6 III. -
Page 3: Chapter 1 Safety
Chapter 1 Safety Introduction All of the user should reading the following introduction before using the plasma cutting machines. I. Safety details 1. Protect from burning When the plasma cutting machine is working ,it will send out light and heat. So ensure safety when operate it. 1.1 Protecting eyes Wearing protective glasses. -
Page 4: Safety Equipment
Be sure connect the safety earth connection line good, in order to prevent accidents. Cutting table and workpiece must connect with safety earth connection. II. Safety equipment 1． In order to ensure safety, must not take safety interlock to short or dismantled; Don’t remove or use the damaged power supply box cover;... -
Page 5: Technical Parameter
This equipment can be used for manual cutting (including car semi-automatic cutting, profiling cutting), also can form a complete set of automated cutting CNC machine tool. II. Technical parameter Table 1 E series Technical Specification Parameters Name Technical parameter Model E-300 3 380VAC 50Hz ±10% Rated input voltage（V） Rated input power（KVA） 90-300A Output Current（A） Duty cycle（%）... -
Page 6: The Host Power Supply And Torch
III. The host power supply and torch 1. Host powers This device is the current host power stepless adjustable structure. 2. Hand torch Our company's hand torch mainly used for processing less demanding applications in small batches cutting straight lines, curves, arcs, and so on. -
Page 7: Claims
the goods, must pay attention to whether the dealer is less loaded or missing equipment parts, if quality problems or other errors, you should refer to The following "right item" content for processing II. Claims 1. Transportation damages If your equipment or parts that are damaged during shipping, you must be accountable to the transportation sector demand compensation. -
Page 8: Connecting Cutting Torch
1. Connecting power lines Refer to Table value of an input AC current, and with 30% of a suitable power line selection specification, one connected to meet the above-mentioned "VII.1" line switches mentioned condition, the other end connected to the power supply wiring to the rear panel box, both ends must be fastened, must not be loose. -
Page 9: Chapter 4 Operation
Chapter 4 Operation I. Operating introduction 1. Check safety Before you start cutting, you should ensure that the working environment and safety measures to adapt to "the first chapter security" of the proposed requirements. 2. Installation inspection: Follow the "Chapter 3 Installation" content, ensure proper installation specifications. 3. -
Page 10: Cutting Chart
Drawing 4 Starting cut diagram II. Cutting chart Note: In the machine cutting, this chart is for reference only, actual cutting height will directly affect the cutting speed and cutting quality. Table 2 (air dry cutting) gas pressure settings see Chapter 4 I operating instructions number 7. Protective Water Copper... -
Page 11: Claims And Technical Problems
you can sub plane cutting to the required depth. Drawing 5 Grooving 3. Machine used torch cutting technology 3.1 Cutting torch alignment: for vertical slot, must use square to right-angle alignment with cutting torch, in case due to the cutting torch inaccurate installation to cause a drop in the quality of cutting. 3.2 According to the given parameters "cutting chart"... -
Page 12: Chapter 5 Components And Parts
Chapter 5 Components and Parts I. Electric spark discharge Spark is an important component of the arc device, and keeps electric erosion in the work, when the electric erosion for a long time so that a gap between the tungsten carbon increases or too much, and will cause the non transferred arc arc difficult until the arc, so after half a year (e.g. -
Page 13: The Cutting Torch And Torch Cable
Drawing 6 Spark gap II. The cutting torch and torch cable Plasma cutting system, the cutting torch and cable assembly is an important part, therefore, in daily work, must pay attention to check and maintenance. Between the cutting torch and the power, use cutting torch cable to connect electricity, gas, arc and control. So, in the replacement and installing a cutting torch, it is important to note that the connection interface can't make a mistake, and all the interface connection to ensure the reliable fastening, never loose. -
Page 14: Automatic Machine Cutting Torch Accessories

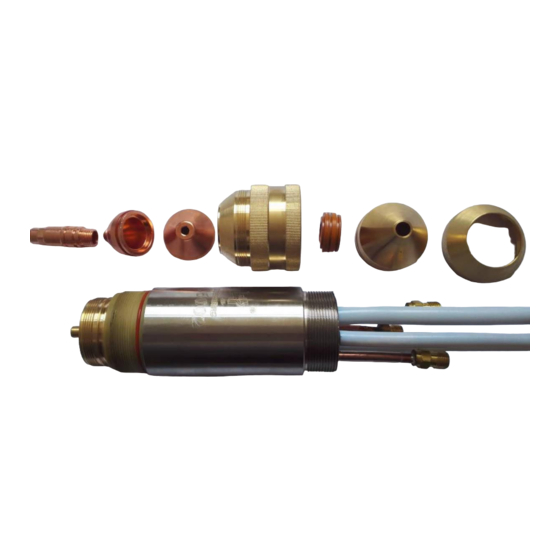

Drawing 7 Cutting torch parts IV. Automatic machine cutting torch accessories Use cutting torch is mainly used for semi-automatic cutting machine, profiling cutting machine, CNC cutting machine, etc. So in the process of connection ask for autonomy (order) a pair of clamping device (see below). In addition, must pay attention to when installation, the cutting torch and clamping between the metal parts must be fitted with a nylon bushing, to ensure good insulating properties. -
Page 15: Chapter 6 Maintenance
Chapter 6 Maintenance I. Repairs Common phenomena, failure causes and troubleshooting methods see five troubleshooting table (table) Table 5 Troubleshooting table Fault cause of the problem Elimination method phenomenon After the "power 1.Without three-phase power supply Overhaul power supply line and the switch switch"... -
Page 16: The Cutting Torch Remove And Replace
when nozzle has 2. Excessive amounts of moisture in the air Increase the filter series airflow can't continuous arc, but workpiece can 3. Arc resistance is bad Change be cutting 1. Instability of input voltage Maintenance Instability 2. Instability of cutting height Maintenance cutting power 3. - Page 17 PAGE \* MERGEFORMAT - 1 -...
