Summary of Contents for ATSS INFORMER

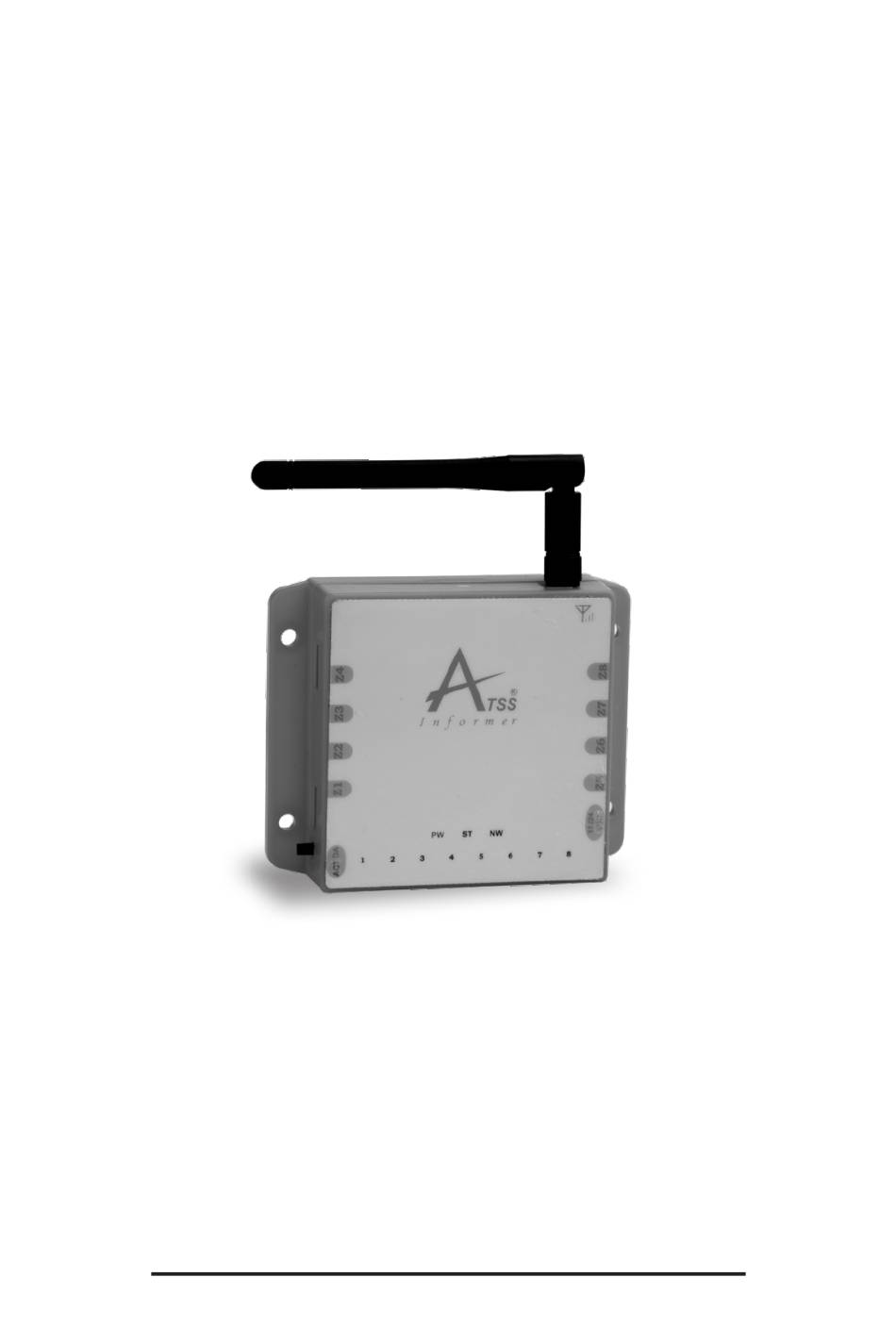

- Page 1 INFORMER USER MANUAL...
- Page 3 FEATURES INFORMER Eight Input Zones Ÿ Each Input Can Be Assigned To A Separate User Ÿ Emergency Alert Switch. Ÿ 8 Individual Sms Alert For Each Zone. Ÿ Built-In Gsm Communicator Ÿ Stores 4 Users & 1 Admin Contact No.
- Page 4 USER MANUAL INFORMER Introduction Informer is a Eight trigger GSM communicator, which can send SMS and make dummy call when trigger is in open/close condition. This device can be controlled through SMS & Android application. LED INDICATORS & EMERGENCY SWITCH...
- Page 5 Informer number. You would get a reply message Ÿ “Admin change success” NA:Admin change SUCCESS which confirms the process. Only Admin number can change/access settings of Informer. Ÿ SET BALANCE COMMAND Type BAL*xxx# and send to Ÿ BAL*123# Informer from Admin number.
-
Page 6: Add Phone Numbers
USER MANUAL INFORMER ADD PHONE NUMBERS PHO2 xxxxxxxxxx Type PHO2 <Phone number> Ÿ and send to Informer from Admin number. P2: SUCCESS Likewise Type PHO3,PHO4, Ÿ PHO5 and add other numbers. You would get a reply message P2 success which confirms Ÿ... - Page 7 CLOSE ALERT Fo r C l o s e a l e r t , Ty p e A L T Ÿ ALT CCCCCCCC CCCCCCCC and send to Informer from Admin number You would get a reply message Ÿ SALT:CCCCCCCC:SUCCESS SALT:CCCCCCCC:SUCCESS which confirms the process.
- Page 8 Zone 5 - open (o) Zone 6 - close (c) Zone 7 - open (o) Zone 8 - close (c) Just Type ALT CSCSOCOC and send to Informer from Admin number. (Likewise you can set alert conditions which you want for each ZONES.) You would get a reply message Ÿ...
- Page 9 INFORMER SET ALERT TYPE BOTH CALL & SMS ALERT For both call & sms alert,Type CS Ÿ CS YY YY and send to Informer from Admin number CS:SUCCESS You would get a reply message Ÿ CS SUCCESS. ONLY CALL ALERT For only call alert,Type CS YN Ÿ...
- Page 10 Once set, the Phone Numbers will receive alerts from those particular zones. You can assign multiple phone numbers with same zones also. Type ZP and send SMS Ÿ Informer number to know status of Phone numbers assigned to zones. You would get a reply message Ÿ...
- Page 11 ZP5 12348 DEACTIVATE ALERTS FOR PHONE NUMBERS Deactivate the Zone Alerts Ÿ ZP1 D For Phone number 1, Type ZP1 D and send to informer number. You Would Get a reply Message Ÿ ZP1D:SUCCESS as SZP1 D:SUCCESS Which Confirms the Process.
- Page 12 Particular phone numbers, Follow below Commands, To Activate the Zone Alerts For Ÿ ZP1 A Phone number 1, Type ZP1 A and send to informer number. You Would Get a reply Message Ÿ ZP1A:SUCCESS as SZP1 A:SUCCESS Which Confirms the Process.
- Page 13 ACTIVATE ALL ZONES Only Admin can Activate the system To Activate all Zones, type ACTA Ÿ ACTA and send to Informer from Admin number. You would get a reply message Ÿ SACTA:SUCCESS S A C T A : S U C C E S S w h i c h confirms Activation.
- Page 14 INFORMER DEACTIVATION OF INFORMER DEACTIVATE ALL ZONES Only Admin can Deactivate the system To Deactivate all Zones, type Ÿ DAA and send to Informer from Admin number. You would get a reply message Ÿ SDAA:SUCCESS SDAA: SUCCESS which confirms Deactivation.
- Page 15 USER MANUAL INFORMER TO CHECK STATUS To check Informer status, Type Ÿ STS and send to Informer from Admin number. You would get a reply message Ÿ with status of Informer. SMS- CALL- TO CHECK BALANCE To check Balance, Type BAL and Ÿ...
- Page 16 USER MANUAL INFORMER TO CHECK PHONE NUMBERS STORED To check Phone numbers stored, Ÿ Type PHO and send to Informer from Admin number. P1- XXXXXXXXX You would get a reply message P2-XXXXXXXXX Ÿ with Phone numbers stored in P3-XXXXXXXXX P4-XXXXXXXXX Informer.
- Page 17 INFORMER How to Change Admin Number??? To Change Admin Number , Type Ÿ PHO1 xxxxxxxxxxx PHO1 <New number> and send to Informer from present admin number. You would get a reply message as Ÿ P1:SUCCESS P1:SUCCESS which confirms Admin change.
- Page 18 TO CHECK STATUS CS YY ALERT TYPE Notes : Ÿ You would get all sms commands as a message when Ÿ you send any wrong commands to Informer. If operations are not successful you would get FAILED Ÿ message as reply.
-
Page 19: Specification
SPECIFICATION INFORMER POWER SUPPLY Max Power Consumption 24 watts Supply Voltage 12-24 V Total current Rating 2 amp (max) ZONES < 500 Millisecond Zone Response Time < 5 kilo Ohm For Normally Closed Zone Loop Resistance 150 m Max Length of Sensor Cable... -
Page 20: Installation Diagram
INSTALLATION DIAGRAM INFORMER ZONE 4 ZONE 3 ZONE 2 ZONE 1... - Page 21 INFORMER WARRANTY CERTIFICATE Customer Name : Invoice No : Date : Signature Serial No : How To Obtain Warranty Service? You must present your Warranty Card and a copy of your original sales receipt to validate warranty coverage. DO NOT lose your receipt.
