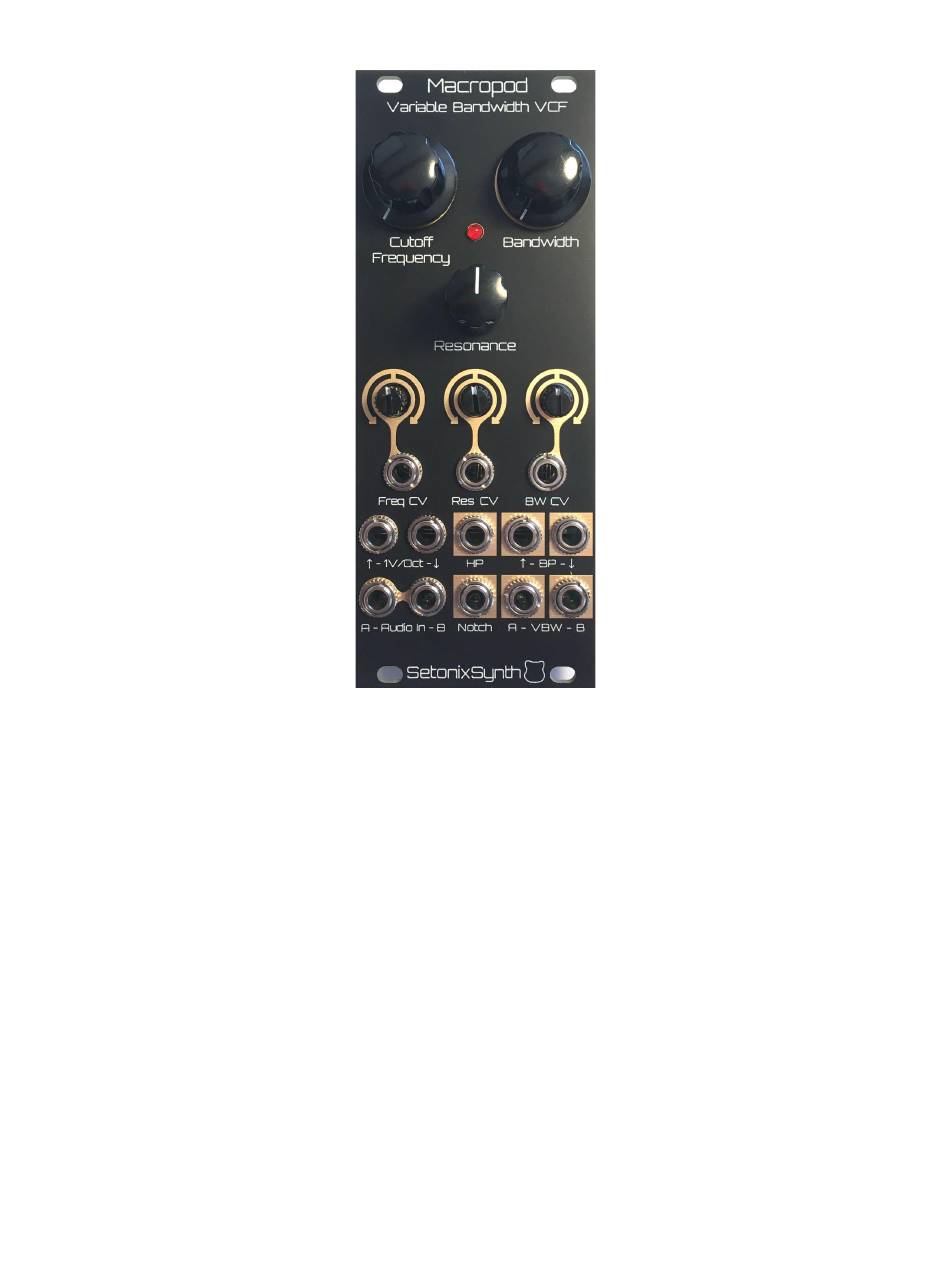

- Page 1 Macropod Variable Bandwidth VCF User’s Manual - Eurorack Copyright 2022 SetonixSynth. All rights reserved.
- Page 2 1. Connecting your Macropod Connect a power cable to the pin header at the top of the Macropod pcb. The -12V side of the connector must be aligned with the silkscreen stripe indicator for proper use. This module is reverse diode protected, but it is still not recommended that you plug it in backwards to see what happens.
- Page 3 control, which introduces an inverted voltage to both filters to control their distance from the center Cutoff (e.g. a positive voltage input to the Bandwidth CV jack will simultaneously increase the cutoff frequency of the Low Pass Filter section and decrease the cutoff frequency of the High Pass Filter section in equal amounts).
- Page 4 “mute” until the voltage threshold is reached. 4. Calibration Calibration of the Macropod is simple and should be done by ear. Patch a triangle-wave VCO within the audible frequency range (probably 1kHz or so is best) into “Audio In B” and turn the Resonance control fully CW.
