Summary of Contents for WEMAX L176FGN
- Page 1 WEMAX Laser TV 4K Cinema User Manual...
-
Page 2: Table Of Contents
Table of Contents User Notice ..................3 Heat Dissipation Maintenance ..........20 Legal Notice ..................3 Cleaning & Maintenance ............20 Laser Safety Information ..............5 Specifications ..................21 Safety Instructions ................6 Troubleshooting ................23 Package Contents ................8 Product Certifications ..............24 Product Overview ................9 Product Warranty................25 Exterior .....................9 Connection Ports ................. -
Page 3: User Notice
Hereby, [Fengmi (Beijing) Technology Co., Ltd.] declares that the radio equipment type [Formovie Laser TV 4K Cinema / L176FGN] is in compliance with Directive 2014/53/EU, 2009/125/EC, 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.formovie.com/global/service/support/declaration. - Page 4 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
-
Page 5: Laser Safety Information
Laser Safety Information Laser Information Label For Europe The product complies with IEC 60825-1:2014 Class 1 and RG2 IEC 62471-5:2015. As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015 For U.S.A. Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed. 1.0. For more information see Laser Notice No. -
Page 6: Safety Instructions
Safety Instructions Before using the product, please carefully read the following safety instructions. Safety Label Description This warning symbol informs the user that this product contains non-insulated voltage sources that can cause an electric shock. Coming into contact with any internal component may result in an electric shock. This symbol informs the user about important handling and maintenance related information. - Page 7 - If you use an extension cord, it must not have a current rating lower than the projector's original power cord. Failure to heed this warning may result in the extension cord overheating and could pose hazards such as electric shock and fire. - To avoid damage caused by a power surge or lightning strike, unplug the projector from the power outlet during thunderstorms or when it is not in use for a long time.
-
Page 8: Package Contents
When opening the packaging, check the contents of the box against the list below. If there is anything missing, please contact the seller in time. Power Cord Laser Projector Remote Control WEMAX Laser TV �K Cinema User Manual User Manual Cleaning Cloth Note: - The actual contents may vary depending on the country (or region) of sale, please refer to the actual product. -
Page 9: Product Overview

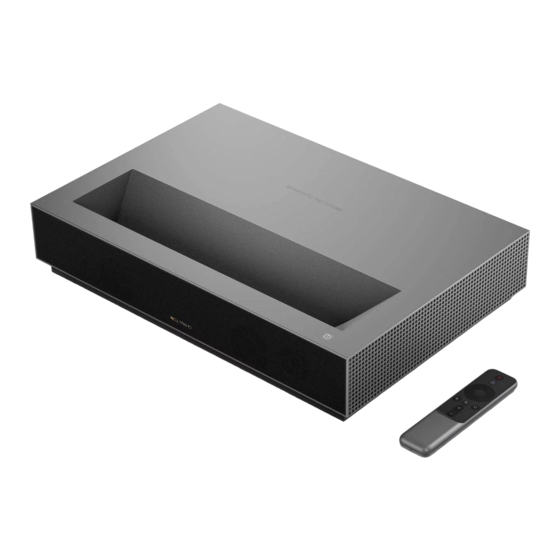

Product Overview Exterior Vents Height Adjustable Wheel USB 2.0 Port Projection Lens Human Body Detection Power Button Heat Dissipation Vents Height Adjustable Wheel Speaker Grille Caution - Do not place any flammable objects nearthe heat dissipation vent. - Do not place any objects near the vents, as this may cause heat to build up inside the projector. -
Page 10: Connection Ports
Connection Ports Power Port Supports USB 2.0 communication protocol HDMI input port 1 Audio output port HDMI input port 2 AV input port (3.5 mm composite AV port) Optical digital audio signal output port HDMI input port 3 (ARC) Audio return channel port Ethernet port... -
Page 11: Power Indicator
Power Indicator Power Indicator The power indicator (a white light) to the corresponding projector's status is as follows: - The indicator blinks when the projector is turning on. - The indicator turns off after the project is turned on. - The indicator remains on after turning off the screen. - The indicator blinks when the projector is turning off. -
Page 12: Remote Control
Remote Control Power Button: When the projector is turned off, Google Assistant: press to turn on. Press the Assistant button on your When the projector is on, press to remote to talk to Google Assistant select Power off, Restart, Bluetooth speaker mode or Screenshot. -
Page 13: Projection Distance & Screen Size
Projection Distance & Screen Size Projection screen Projection screen Determine the distance between the projector and the wall or screen according to the desired screen size. Screen Dimensions (SD) Screen Dimensions Relative Distance Relative Height The diagonal size of the projection screen (in inches). (SD) 80"... -
Page 14: Suspended Ceiling Installation
Suspended Ceiling Installation Suspended ceiling installation is one of the installation methods that you hang the projector in an overhead location, for example, on a high ceiling, through a ceiling mount. A projector supporting suspended ceiling installation has threaded holes on the bottom, you can install the project on the mount by attaching the screws into the holes. The installation steps are as follows: 1. -
Page 15: Getting Started
Getting Started Pairing the Remote 8 in After installing the batteries Place the remote control close to the A notification will appear on in the remote control, press bottom right corner of the projector, then the projected image once the t h e O K b u t t o n t o s t a r t simultaneously press and hold the Home remote control has been paired... -
Page 16: Image Focus
Image Focus Keystone Correction Go to Settings > Projector > Focus, press the left and To perform keystone correction, go to Settings > Projector > Keystone Correction. Use the Left and Right remote right button on the remote control to manually fine tune. buttons to select 8-Point Keystone Correction, Fine Tune, or Reset. -
Page 17: Network & Internet
Network & Internet Smart Temperature Control Go to Settings > Network & Internet. Select a wireless The projector automatically monitors the ambient network to connect to, enter the password, and wait t e m p e r a t u r e ( o p e r a t i n g t e m p e r a t u r e r a n g e i s for the projector to connect. -
Page 18: Safety & Protection
Safety & Protection The projector comes with an infrared sensor which is able to intelligently detect and protect the human eye from damage caused by strong light within the projected area. The projector will reduce its brightness to the lowest possible value when the sensor is triggered and issue the following notification: "Do not look directly at the light source."... -
Page 19: Bluetooth Speakers
Bluetooth Speakers The projector has four high-quality built-in speakers with a total output of about 30 W. The speakers can also be used as a stand-alone Bluetooth stereo. Tweeter Full Range Speakers Full Range Speakers Tweeter To use speakers as the Bluetooth stereo, press the Home button, then select Settings > Remotes & Accessories > Bluetooth speaker mode from the home screen. -
Page 20: Care & Maintenance
Care & Maintenance Heat Dissipation Maintenance Outlet Inlet Note: Do not touch the heat dissipation vent or ventilation vents as temperatures can reach up to 20 in. 20 in. 65°C. Note: Do not place any objects within 20 inches of the projector's air vents, as this will affect its heat dissipation effect. -
Page 21: Specifications
Specifications Name WEMAX Laser TV 4K Cinema Model L176FGN Basic Information Item Dimensions 456 x 308 x 91mm Net Weight 7.0kg Power Consumption < 300W (Highlight Mode) Electrical Specifications Rated Input 100-120/200-240V~ 3/2.5A 50/60Hz Standby Power Connsumption < 0.5W Display Technology 0.47"DMD... - Page 22 Audio Effects Dolby Audio/DTS-HD Speaker Audio Speaker Full Range x 2/Tweeters x 2 Power Supply Built-in Power Supply Built-in AC-DC Smart Temperature Control Automatic Brightness Adjustment/Smart Fan Speed Adjustment Safety & Protection Temperature Switch Overheating Auto Turn-off Laser Projector Eye Protection Human Body Detection Sensor (can be disabled) Noise Level ≤...
-
Page 23: Troubleshooting
Troubleshooting Issue Solution Turn off the projector and disconnect from the power, then plug in the power cord and turn on the No projected image projector. Turn off the projector and disconnect from the power, then plug in the power cord and turn on the projector. -
Page 24: Product Certifications
DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Inc. Rights Reserved. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. WEMAX®, a brand of Ampula Inc., Bellevue, WA 98005 For further information, please go to www.wemax.com D66050000104... -
Page 25: Product Warranty
The duration and conditions related to the legal warranties are provided by respective local laws. Except as prohibited by laws or otherwise promised by WeMax, the after-sales services shall be limited to the country or region of the original purchase.
