350W LED Moving Head Light

3in1

User Manual

Table of Contents

Need help?

Do you have a question about the Rush 350 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rushstage Rush 350

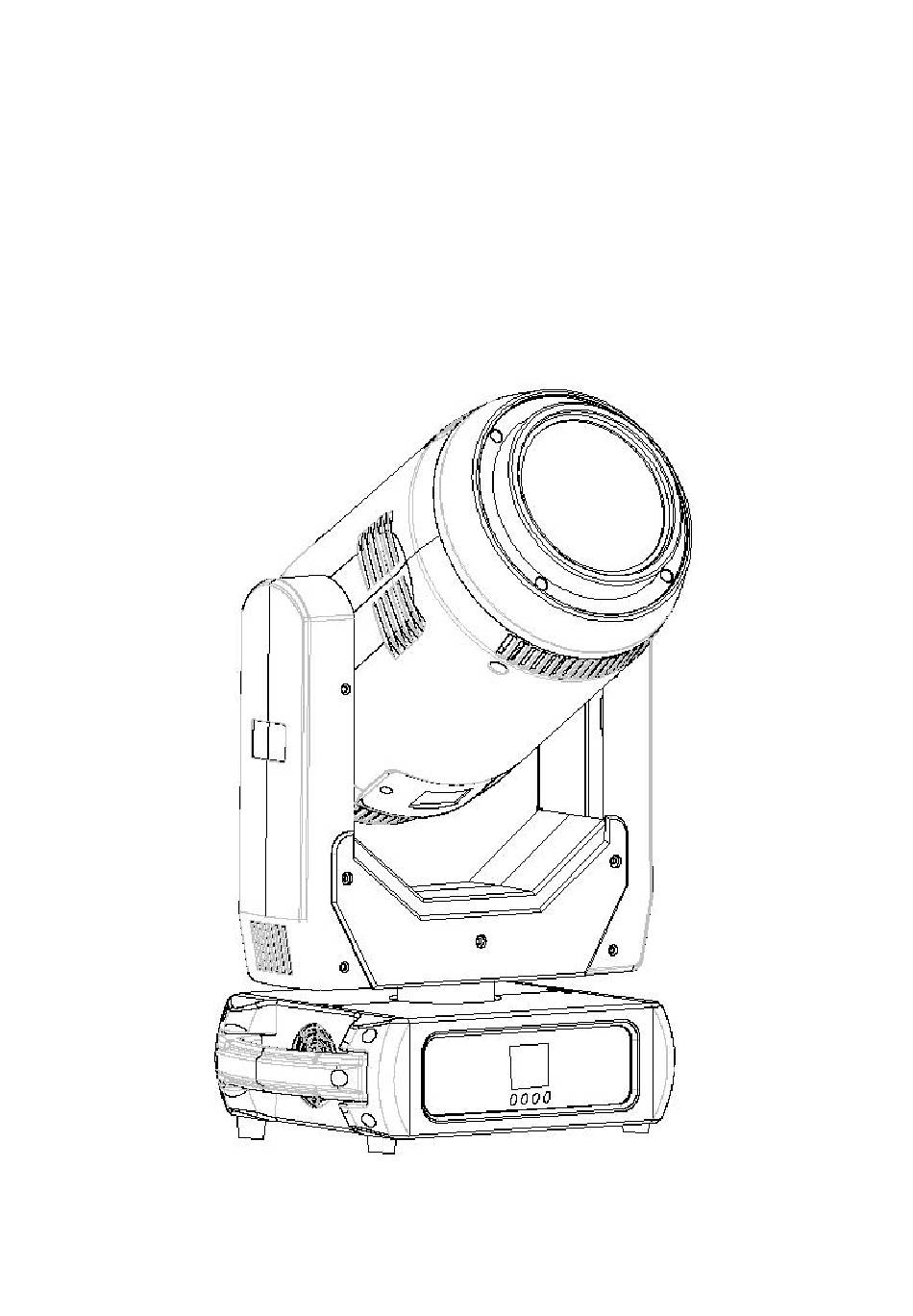

Page 1 350W LED Moving Head Light 3in1 User Manual...
Page 2: Table Of Contents
Note: This manual include important information on how to install and use it safely. Please read it carefully before install and operate as required. At the same time, please keep this manual properly for emergencies. Contents 1. Safety warning …………………………………………………………3 2.
Page 3: Safety Warning
manual are not within the scope of the dealer's responsibility. This manual is subject to technical changes without notice. Note: The company's products are calculated based on the company's delivery date. The warranty period of the whole machine is one year, and the light source is not within warranty.
Page 4 ● When the lamp is in use, it must be kept away from high temperature, fire, electric shock, vibration strong light environment. ● Qualified operators can carry out installation, maintenance and repair, and ensure that they operate in strict accordance with the operating procedures of this manual ●...
Page 5 electrical components. ● There is a safety rope connection hole at the bottom of the lamp. For safety reasons, please pass the safety rope equipped with the lamp through the safety rope connection hole for auxiliary lifting. ● Before any installation, maintenance and cleaning of the lamp, please make sure that the power supply has been cut off! ●...
Page 6: User Instructions
● This product complies with the "General Technical Requirements Standards for the Recycling of Waste Electrical and Electronic Products" ● When the product reaches the scrap standard and needs to be scrapped, the customer can scrap and recycle the product. USER INSTRUCTIONS Cleaning and Maintenance When the lamp cannot be started, please check whether the power fuse of the lamp is...
Page 7 surrounding environment. When cleaning, use a soft cloth and general glass cleaning products to clean. It is recommended to clean the external optical system at least once every 20 days, and clean the internal optical system at least once every 30/60 days. Keep the lens clean and do not directly touch the optics of the lamp with your hands.
Page 8: Lamp Appearance
Check if the XLR signal cable is damaged The lamps work intermittently Check whether the fan is working normally, and whether dust is blocking the fan and the fan net The light is dim and the brightness Check whether the LED light source has is obviously reduced reached the expiration date Check whether the internal and external...
Page 9 Clamps Safety cable Take out the 2 hooks and 1 safety rope that came with the machine, use the 4 hook quick knobs attached to the hooks to install the 2 hooks on the bottom of the luminaire, and then hang the luminaire on the fixed bracket with the hooks and twist Tighten the hook and lock bolts to fix the whole lamp.
Page 10 L (fire wire) = brown wire E (ground wire) = yellow/green two-color wire N (center line) = blue line When connecting the power supply, please note that the power supply voltage and frequency must be consistent with the voltage and frequency marked on the nameplate of the lamp.
Page 11 the connection methods shown in the list above, the XLR plug/seat and the XLR control line cannot be connected in any other way. This product receives the international standard DMX512 (1990) control signal. Use the XLR-XLR control cable to connect the DMX output port of the controller to the DMX input port of the first slave, and connect the DMX output port of the first slave to the DMX input port of the second slave, and so on By analogy, until all the slaves are connected, and finally the circuit is connected to the signal output port of the last lamp to...
Page 12: Function Setting
DMX 回路插联接 dmx loop plug connection Connect a 120 Ω (OHM) resistor 在 XLR 插头的2针和3针之间联接 before pin 2 and pin 3 of the XLR 一个 120 (OHM) 的电阻，并将其 plug, and plug it into the DMX 插在最后一台灯具的 DMX 120Ω output of the last lamp 输出插座上。...
Page 13 start address to receive the signal from the controller and respond correctly. This product has 2 control modes, namely standard mode and simplified mode. Take the standard mode as an example: the product has 18 channels, the DMX start address of the first lamp is set to 001, the second is 019, the third is 037, and so on, and so on.
Page 14: Menu Operation
Lopper MENU OPERATIONS MENU Address Set Set Address Numbers] 001-255 Pan reverse (On/Off) Tilt reverse (On/Off) Display (On/Off) Screen Reverse (On/Off) Setup [Function Setting] Channel (16/18CH Select) Sensitivity (01-100) Motor zero Reset Factory Set [DMX] Run Mode [AUTO] Auto 1- Auto 2...
Page 15: Dmx Channel
[SOUND] [MANUAL] Manual Test Function and Operation DMX Address System Information Ver V1 Temperature DMX CHANNEL 18/16 channel mode sheet Channel 18CH 16CH Function Description Value 0-255 0-540° Pan fine 0-255 Pan Fine Tilt 0-255 0-270° Tilt Fine 0-255 Tilt Fine X, Y speed 0-255 From fast to slow 0-255...
Page 16 White 16-31 Color 1 32-47 Color 2 48-63 Color 3 64-79 Color 4 80-95 Color 5 96-111 Color 6 112-127 Color 7 128-191 CW from slow to fast 192-255 CCW from slow to fast 0-10 No function Color effect 11-209 Color fine tuning 210-255 Color shake from fast to slow...
Page 17 113-119 Gobo 1 shake 120-127 open 128-191 Gobo rotate CW from slow to fast 192-255 Gobo rotate CCW from slow to fast CH11 7 rotation 0-15 open gobos 16-31 Gobo1 +White 32-47 Gobo2 48-63 Gobo3 64-79 Gobo4 80-95 Gobo5 96-111 Gobo6 Gobo7 112-127...
Page 18: Technical Parameters
Rotation 16-95 Prism Rotation 0-250 96-135 Prism Rotating 0-90 136-155 Prism Rotating 0-250 CH14 156-175 Prism Rotating 0-360 Prism self-rotating CW from slow to 176-215 fast Prism self-rotating CCW rotating from 216-255 slow to fast 0-63 Open CH17 Frost CH15 64-255 Frost CH16...
Page 19 is Removable, it is more convenient to change the gobo · 1 Static Gobo Wheel: 8 gobos + white, wheel rotation and shake Prism: 8-facet Prism, bi-directional rotatable at variable speeds · · Frost effect High speed strobe effect with 0.3-25 flashers per second ·...
Page 20: Photometric Data
PHOTOMETRIC DATA...
