Summary of Contents for ELARABY TORNADO GHV-M90CSU-BK

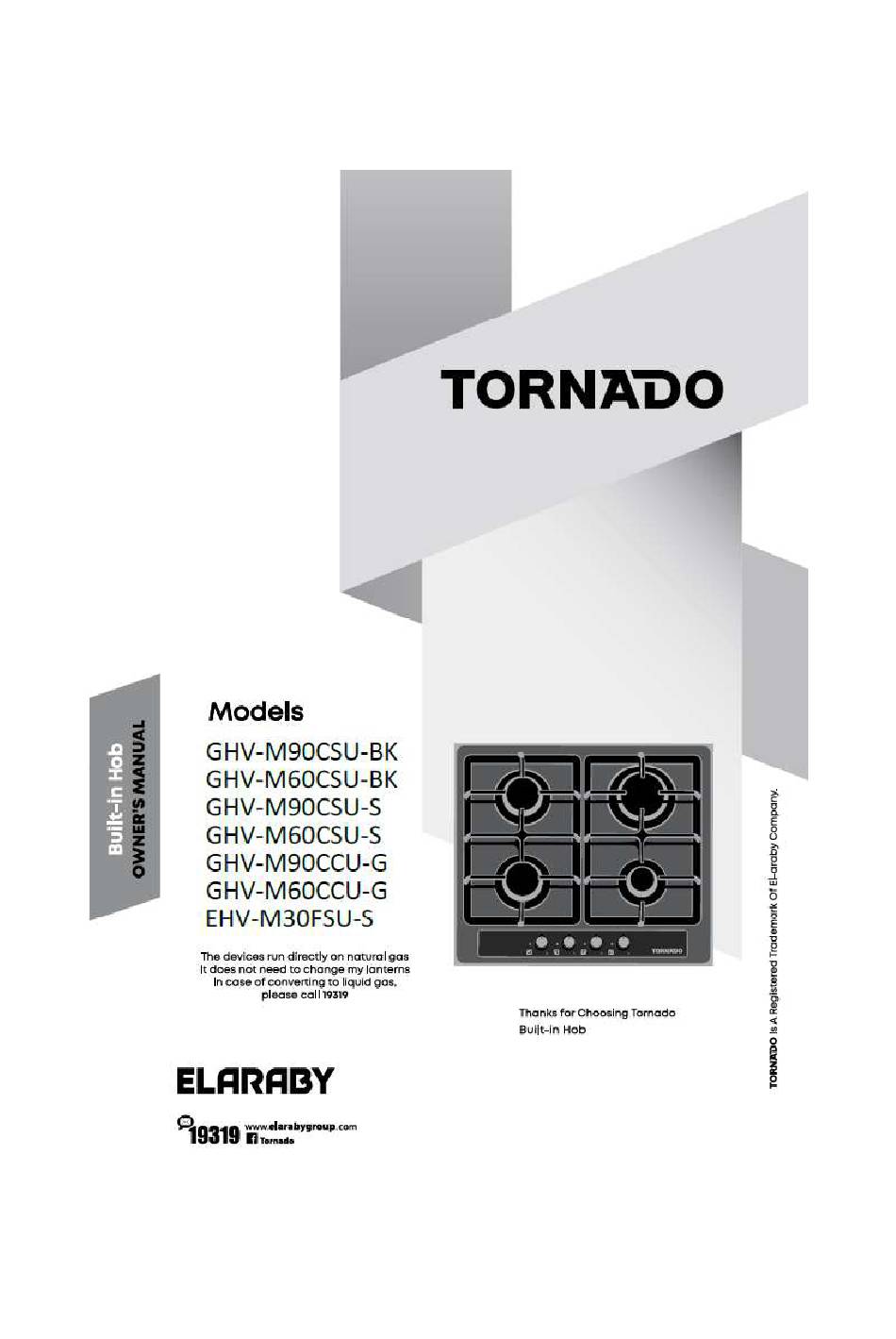

- Page 1 1 - ENGLISH...
- Page 2 ENGLISH Before leaving the factory, this appliance was tested and regulated by expert and skilled personnel to give the best operating results. Any repair or regulation that may subsequently be necessary must be carried out with the greatest care and attention.
- Page 3 General warnings Dear Customer, Thank you for having chosen one of our products. This appliance is easy to use, but you must read this booklet carefully before installing and using it. The booklet contains instructions that will help you to install, use and service the product in the best way.
- Page 4 General warnings and cover the flame with a lid or a blanket made of fire-retardant material for example. WARNING: Fire risk. Do not leave objects on the surface of the hob. WARNING: If the glass or glass-ceramic surface is cracked, switch off the appliance to prevent the risk of an electric shock.
- Page 5 General warnings The electric power cable of the appliance must not be replaced by the user. It must only be replaced by a qualified electrician. When used, gas-fired appliances produce heat and humidity in the room where they are installed. Make sure that this room is properly ventilated by keeping the natural air vents open or by installing a extractor hood with exhaust duct.
- Page 6 Instructions for use Description of the main parts of the appliance 1 = grid = electric hot plate control knob 2 = cover = separate ON switch (for the versions so equipped) 3 = spreader 4 = ON spark plug (for versions = electric hot plate (where with lighting) there is one)
- Page 7 Instructions for use The hob control area houses the devices and knobs for operation of the gas burners and/or the electric hot plates. Operation of gas burners The burner regulation knobs can be turned anticlockwise from the closing position to the widest open position and vice versa in the opposite direction (put the needle to the position required): = no gas/ electric supply = maximum gas/ electric supply...
- Page 8 Instructions for use Advice on the use of gas burners For lower gas consumption and a better yield, use saucepans with diameter suita- ble for the burners, avoiding the flame coming up round the side of the saucepan (see the Container Table). Use only flat-bottomed pans. As soon as a liquid starts to boil, turn the flame down to a level sufficient to maintain boiling.
- Page 9 Instructions for use Electrical Connection: Pay attention to the following points while making the electrical connections. Make sure that the current carrying capacity of home mains and the socket, to which the device will be connected, is correct for the maximum power used by the stove.
- Page 10 Instructions for use CONNECTION OF THE FEEDING CABLE TO THE MAINS Connect the feeding cable to a plug suitable for the load indicated on the rating plate of the product. In case of a direct connection to the mains (cable without plug), it is necessary to insert a suitable omnipolar switch before the appliance, with minimum opening between contacts of 3 mm (the grounding wire should not be interrupted by the switch).
- Page 11 Instructions for use The Operation of the Electric Heater: The heaters are controlled by 3-stage buttons. We can operate the button of the device belonging to the relevant heater by switching between stages 1-3. If the warning lamp under the control buttons is on, that means the device is working.
- Page 12 Instructions for use Description electric cooker Hot Plate Hot Plate (Rapid) Lamp Hot Plate table Technicial Specifications: Model 1 Electric 2 Electric 4 Electric 220-240 V ~ 50 / 380-415V 2N Voltage / Frequency 220-240 V ~ 50 / 60 Hz 60 Hz ~ 50 / 60 HZ 32 A...
- Page 13 Instructions for use The manufacturer shall not be responsible for any damages that may arise if used without a grounded line. Warning: The device may only be connected to the mains electricity by an authorized and competent person and the product warranty only begins after the correct installation.
- Page 14 Instructions for use Maintenance and cleaning Do not use jet of steam for cleaning. Before any operation disconnect the appliance electrically. Wash the enamelled parts with lukewarm water and detergent. Do not use abrasive products. Wash the burner spreader frequently with boiling water and detergent being sure to remove any deposits which could block the flame outlet.
- Page 15 Below we give the instructions for qualified installers so that the installation, setting and maintenance operations are performed correctly and according to the regulations in force. Positioning products. The appliance can only be installed and operate in permanently ventilated rooms according to the local regulations in force. The natural flow of air must be direct through permanent holes made in the walls of the room to be ventilated leading to the outside, or through single or collective branched ventilation ducts.
- Page 16 Important: When installation is complete, check that all the gaskets are leaktight using a soap-based solution, never a flame. Warning: The customer should call the service line for ELARABY /TORNADO or national gas company for gas hob installation or gas...
- Page 17 Adaptation to different types of gas To adapt the appliance to a gas different from that for which it was set up (see label on both the packaging and the bottom of the appliance) proceed as follows: remove the grids remove the covers and the spreaders with a 7 mm socket spanner unscrew and remove the injectors.
- Page 18 Setting the minima The flame on the small output is regulated in the factory. When the injec- tors have been replaced or there are special mains pressure conditions, it may be necessary to regulate the minimum again. The operations neces- sary to perform this operation are the following: light the burner turn the knob to the minimum position...
- Page 19 Burner and nozzle characteristic table Category: II 2H 3B/P Burner By pass Thermal power Liquid gas Natural 1/100mm (heights (kW) cover Output Injector Output Injector (mm) (g/h) 1/100mm (l/h) 1/100mm Rated Reduced G30 =G31 G 20 Triple ring 1,45 Quick 2,80 0,80 Medium...
- Page 20 Instructions for building in the units The appliance is of class 3. It can be installed with just one side part (to right or left of the hob) higher than the cooking hob and placed at a minimum distance as shown in figure. It can be built into all units whose walls withstand a temperature higher than room temperature (UNI EN 30-1-1 e/o CEI EN 60335-2-6).
- Page 21 Position special sealed gasket (provided) on the edge of the hob making sure that the ends meet without one lying on top of the other. Put the hob in the unit opening making sure that it is centred. Fasten the hob to the unit with the fastening brackets.
- Page 22 Placing the Stove: Apply the single-sided adhesive seal strip under the stove plate along all edges. Place the stove plate properly on the cut-out. Fix the stove to the counter by adjusting the mounting clip position. Stove Plate Mounting sponge Mounting stand Mounting bracket Mounting screw...
- Page 24 9143 model Glass /Inox 9720 model Glass /Inox 120 cm Glass /Inox...
- Page 25 Place the pan in the middle of the stove; pans and utensils should not go over the buttons. IF THERE IS STILL A PROBLEM WITH YOUR DEVICE, PLEASE CALL ELARABY /TORNADO AUTHORIZED SERVICE...
- Page 26 TORNADO ELARABY...
- Page 27 30 cm 60 cm 70 cm 90 cm 9143 9720 120 cm...
- Page 30 UNI EN 30-1-1 e/o CEI EN 60335-2-6 9132 9710 9711 9143(model) 9720(model) 1180 100 min 100 min (490x830) 830x380 9143 1-2-3-4-6=490 860x490 9720 (1150x380) 5-7= 380...
- Page 31 CAT. II2H3B/P 1/100 1/100 1/100 G30 = G31 1,45 2,80 0,80 1,70 0,60 0,95 0,40 G30 = 28 G20 = 20 (H2O 10,197 1) ( G31 = 37 (*) =...
- Page 34 = 2mt TORNADO ELARABY...
- Page 37 L2 + L1 L2 + L1...
- Page 38 V 2N V ~ 50 / 60 Hz V ~ 50 / 60 Hz H05RR-FG IPX0...
- Page 43 << >>...
- Page 45 WEEE REACH...
