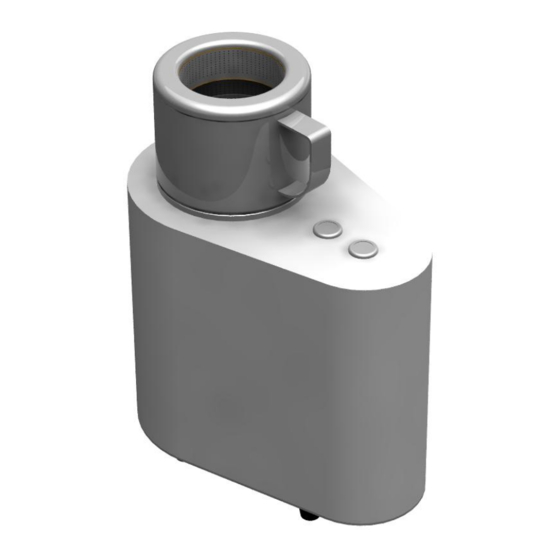

Summary of Contents for Roast Rebels Santoker Q5
- Page 1 Q5 Coffee Roaster——Instruction...
- Page 2 Parameter Roaster Type Hot air Main machine Size Length 26.5cm width 16cm height 24.5cm Chaff collector size Diameter 11.6cm height9cm Net Weight Capacity Voltage 220V 2KW Notice erature during the work, please use it according to the instructions roaster; the upper part of the roaster and the chaff collector are hot during ...
- Page 3 Roaster parts and function 1. Chaff collector/ roasted beans collector 2. Start/Finish 3. Roasting air/drop air volume switch 4. Main body 1. Chaff collector/ roasted beans collector Use for collect chaff during roasting, when roasting is finish, pull out chaff and put back, collect roasted beans.
- Page 4 1. Open roaster, the roaster will created a WIFI named SANTOKER Q5. 2. Open your mobile or Android Pad, connect to the WIFI SANTOKER Q5. 3. Open Q5 roaster app, it will notice you to open Bluetooth, after open Bluetooth, renew the app(touch and pull down), will see the roaster connect with app.
- Page 5 2. Manual roasting After you start roasting, you will go to this Select Curve page. If you do manual roasting, skip this page. You will go to manual roasting page. In manual mode, you can adjust Burner and Fan volume In the roasting page click + or -, Q5 roaster recommend volume is air38%-42%, fire60%-100%.
- Page 6 3. Roasting Curve After your manual roasting, you will get 5 curves. ET BT ROR Burner, Fan. And can record Begin yellow first crack, second crack, end time. 4. Automatic roasting After start roasting –select curve- OK After selecting the curve, insert the coffee beans. Click Start, and the app will automatically adjust the fire damper according to the curve and finish roasting and cooling.
- Page 7 In automatic model, it will roasting according to the selected curves, you can see the BT and ET are both same with the first batch, when finish roasting, it will stop heating automatically and notice you the roasting is ended. 5.
- Page 8 For example: This is compare detail of base curve and repeat curve:...
- Page 9 6. Edit curve Go to Main page- Roast Record- Select curve (push for 2 seconds)-Edit curve You can edit the several points temperature and time, then keep it. Do Not change the temperature too fast, if over range the roaster’s ability, the edit curve can’t be successfully. You can drag the points move, or point + or –...
- Page 10 7. Share curve and exported in excel Go to Main page-Curve record-Click a curve You can view, share and edit curves in the curve management page. Click the details to view the minute data and other details, and click the share curve to send the curve to friends via WeChat, SMS, email, etc. After receiving the curve, the receiver can copy the text of the curve then open the APP ,will view and download the curve.
- Page 11 This is the exported to excel curve, it show every second temperature of the curve, hope it’s helpful to your roasting!
- Page 12 Some Tips; 1. When do automatic roasting, try to let the begin temperature same or close to the base curve begin temperature. 2. If you want to better repeat result, you can use a voltage stabilizer . 3. When fill in beans, do remember to keep the fan volume under 43% or lower, or beans will be flow up. 4.
