Summary of Contents for SY-SUMBOY ZX-GZ5-C2V3

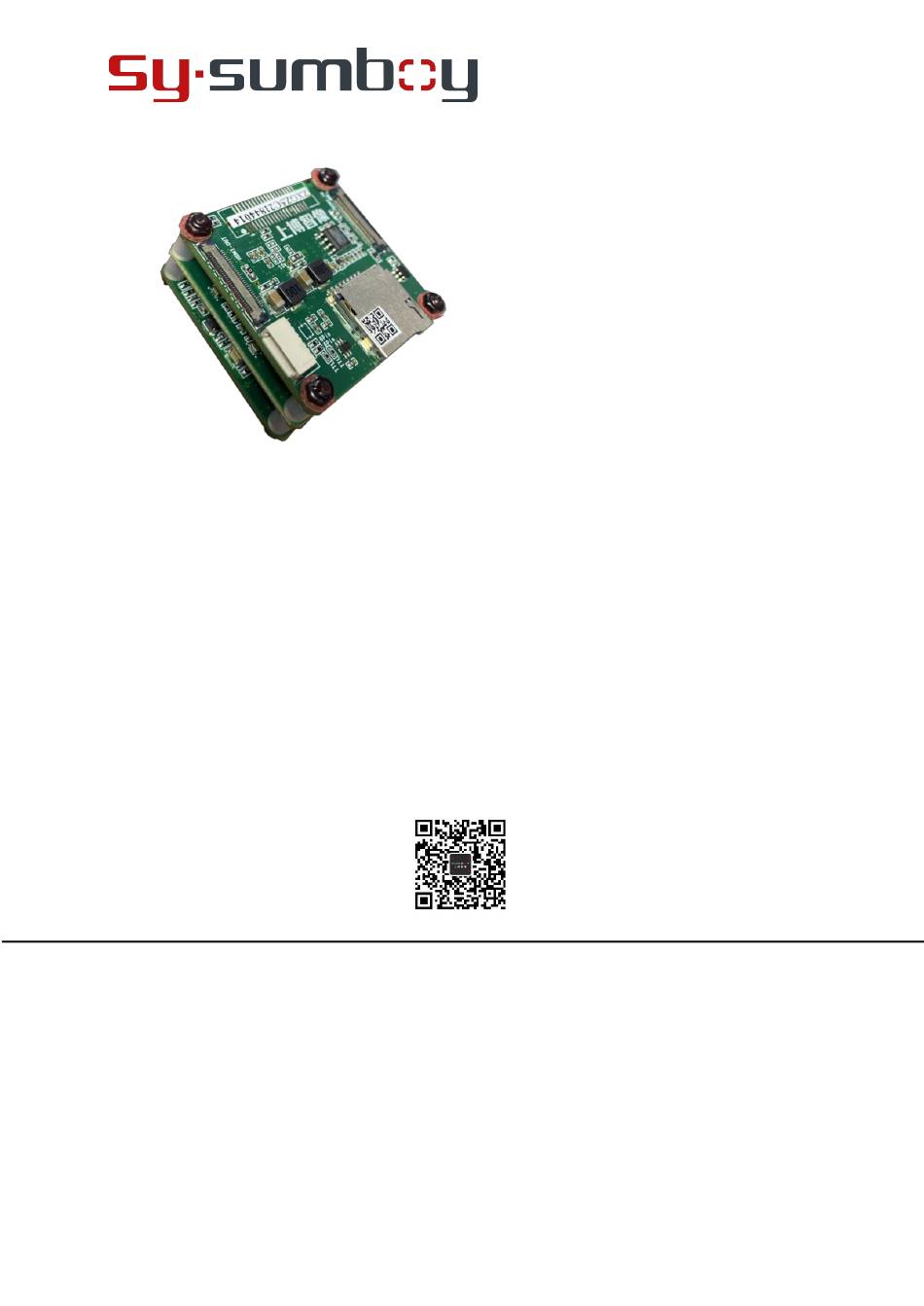

- Page 1 Video Converter ZX-GZ5-C2V3 User Manual V2.0 Shenyang Sumboy Intelligent Imaging Technology Co., Ltd. No.24 Shiji Rd., Hunnan Dist., Shenyang, Liaoning Prov., Tel: +86 （0）24 31694422 Fax: +86 （0）24 31694422 www.irseen.com...
- Page 2 CONTENT NOTICE ................................3 PACKAGE LIST ............................... 4 CONNECTION INSTRUCTION ........................5 TROUBLESHOOT ............................. 6 PIN DEFINITION .............................. 6...
- Page 3 Notice In order to ensure the instruments are in good technical condition, the daily maintenance of the operating personnel is only limited to the replacement and inspection of cables, cleaning and functional inspection. Please do not open the cabinet in any case even if the system runs into malfunction.
- Page 4 Package List Sony Camera Core×1 (optional or Video Converter×1 purchased by user) 6pin (TTL) testing cable×1 30pin cable×2 30pin HDMI converting board×1 Ethernet cable×1 (optional) Attention: please insert power as the final step so as to prevent the device from being damaged, make sure all pins are properly inserted.
- Page 5 Connection Instruction Pic 1 Front side interfaces Video input Video output (30PIN cable---Sony camera) (30PIN cable---converting board) Connect to 6pin testing cable SD card Pic 2 Side interfaces Pic 3 Side interfaces Do NOT insert upgrading interface (7 pin) Ethernet Pic4 Connections as a whole...
- Page 6 Troubleshoot Please use the form below to check the infrared camera when it has any trouble. Disconnect the power and contract our technical support department if the problem cannot be fixed. Malfunction Reason and solution 1. Check whether the power is connected. Video tracker cannot 2.
- Page 7 Ethernet interface Video output Video input Ethernet pin definition Pin # Pin Title Function DATA_1_N TX_N DATA_1_P TX_P DATA_0_N RX_N DATA_0_P RX_P 30pin definition Video input Video output TXOUT3+ TXOUT3- TXCLKOUT+ TXD_30pin TXCLKOUT- RXD_30pin TXOUT2+ 6-10 TXOUT2- TXOUT1+ 12-14 TXOUT1- HDMI_HPD TXOUT0+ HDMI_OUT_5V...
