Summary of Contents for Royal-Kincool GLACIAN HPB1152

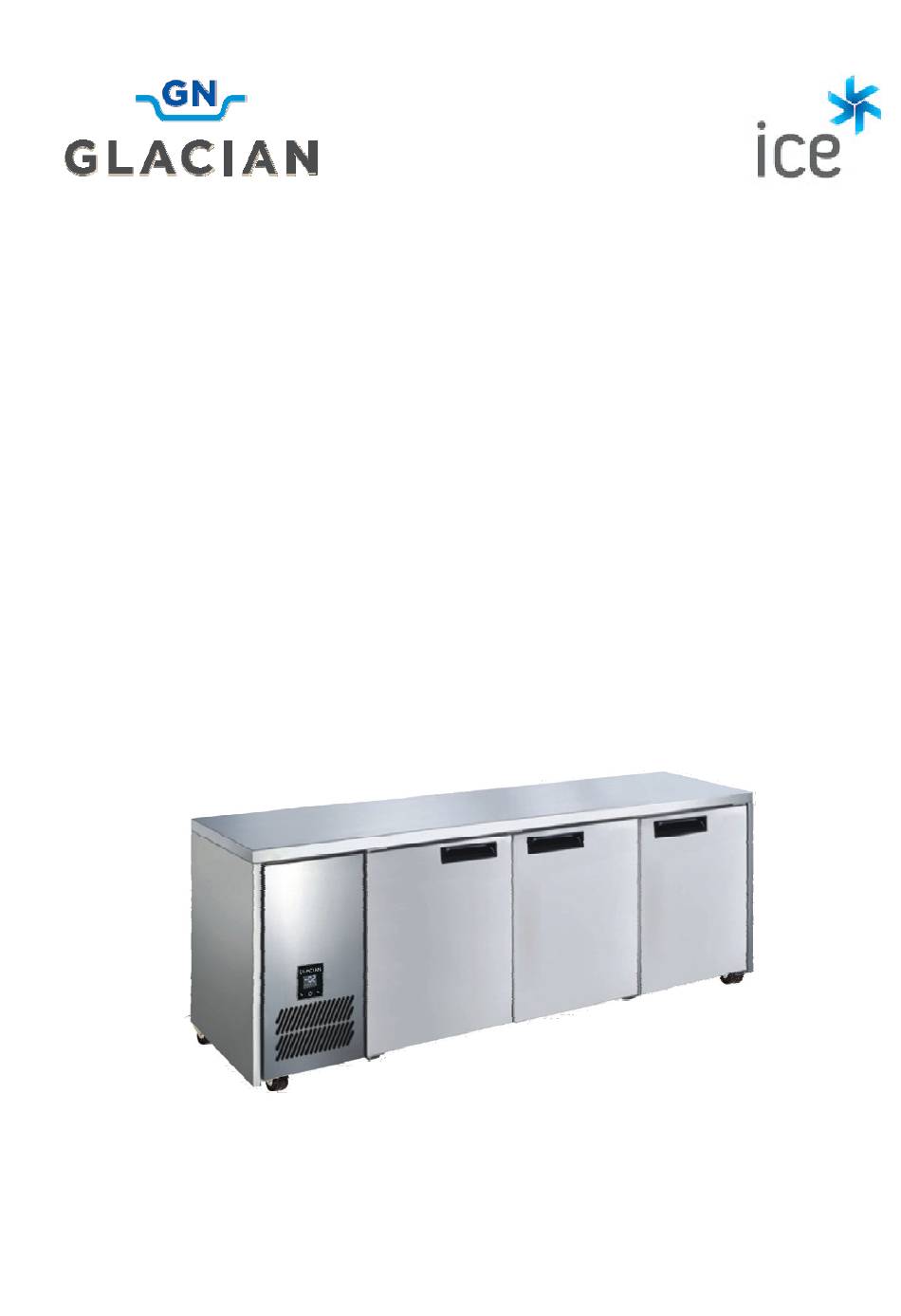

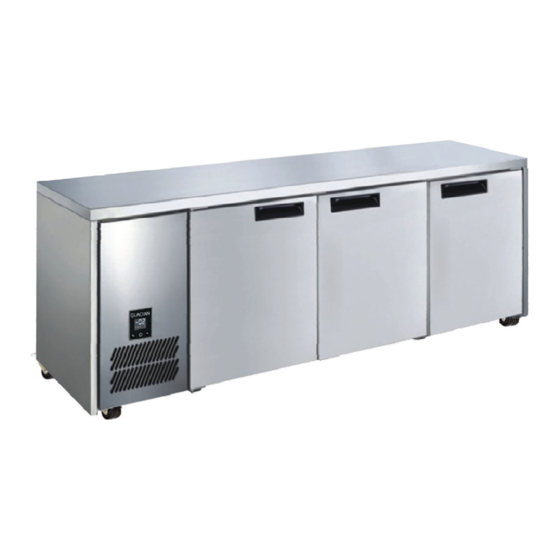

- Page 1 By Royal-Kincool Underbench Chiller & Freezer OPERATING INSTRUCTIONS Read these operating instructions carefully before using the machine...
- Page 2 Undercounter Chiller and Freezer Pizza Preparation Fridge...
-
Page 3: Table Of Contents
INDEX 1．WARNING………………....……..........1 2．INSTALLATION..................1 3．OPERATION..................3 4．CLEANING....................5 5．DISPOSAL.....................5 6．TECHNICAL SPECIFICATIONS..............5 7．TROUBLESHOOTING................8 8．WIRING DIAGRAMS................9... -
Page 4: 1．Warning
1. WARNING 2. INSTALLATION This instruction manual is an integral part of the 2.1 Transportation machine and must be kept for any further consultation. Please keep the unit upright during transportation. Never try to use this machine for applications which Any excessive tip or lean may cause damage to the are not described in the instructions or for the unit’s unit internally. - Page 5 Please do not leave stock on the floor of the unit. All 2.6 GN Pan Installation stock must be up on a shelf for good ventilation. For adjustment of refrigerator supporting legs, please Remove the GN pan protective package(not refer to the following figure, with max.
-
Page 6: 3．Operation
2.8 Power Connection In case of failure of power supply, please restart the compressor after five minutes to prevent damage. Any damage of compressor due to low voltage will Do not cut off or remove three-pin plug. not be included within the warranty range. ... - Page 7 3.2 Stainless Steel Door Under Counter Chiller Startup: Press the power switch button for 3s. Shutdown: Press the power switch button for 3s. Set Temp: Press for 3s, the setting temp. flashing, and then press to adjust the temperature. After without pressed any key for 6s, it will return to display working temp.
-
Page 8: 4．Cleaning
4. CLEANING 4.1 Interior and Exterior Cleaning Before cleaning, please turn unit off. Use warm soapy water is used to clean (do not use flammable or toxic substance for cleaning). During cleaning process, wring dry the cloth to prevent water from flowing into the electric component to cause short circuit. 4.2 Condenser Cleaning In order to ensure the cooling effect of refrigerator, condenser must be regularly cleaned to prevent dust or grease accumulation, at least monthly, a dust pan brush can be used to remove dust etc. - Page 9 Drawers pizza cabinet with cutting board Model HPB1152DD HPB1815DD HPB2476DDD Parameter 220-240V~50Hz Capacity (L) 216L 416L 656L Working Temp. (℃） +2~+8℃ R290 Weight (kg) Climate Class Dimensions (cm) 1152*760*1050 1814*760*1050 2476760*1050 Packing Dimensions (cm) 1215**820*1250 1875**820*1250 2535*820*1250 Solid doors counter chiller Model BCS6995 BCS61420...
- Page 10 Solid doors counter freezer Model BFS6995 BFS61420 BFS61885 BFS62350 Parameter 220-240V~50HZ Capacity (L) 123L 267L 420L 590L Working Temp. (℃） -22~-18℃ R290 Weight (kg) Climate Class Dimensions (cm) 955*660*850 1420*660*850 1885*660*850 2350*660*850 Packing Dimensions (cm) 1015*720*910 1480*720*910 1945*720*910 2410*720*910 Glass doors counter freezer Model BFG61420 BFG61885...
-
Page 11: 7．Troubleshooting
7. TROUBLE SHOOTING If found that the refrigerator can not work normally, please find out the cause according to the following table. Failure Cause Solution Check whether the mounting position is well Poor ventilation ventilated Condenser is blocked Clean the condenser filter Check stock placement. -
Page 12: 8．Wiring Diagrams
8. BASIC WIRING DIAGRAMS Glass door under counter chiller Stainless steel door under counter chiller... - Page 13 Stainless steel door under counter freezer...
- Page 14 — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...
- Page 15 — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...
- Page 16 www.internationalcatering.com.au INTERNATIONAL CATERING EQUIPMENT Unit B2, 6-10 Durdans Avenue, Rosebery NSW 2018 Australia...
