User manual

Water softener

AQUATIP AQ® BNT 8

Table of Contents

Need help?

Do you have a question about the AQ BNT 8 and is the answer not in the manual?

Questions and answers

Summary of Contents for AQUATIP AQ BNT 8

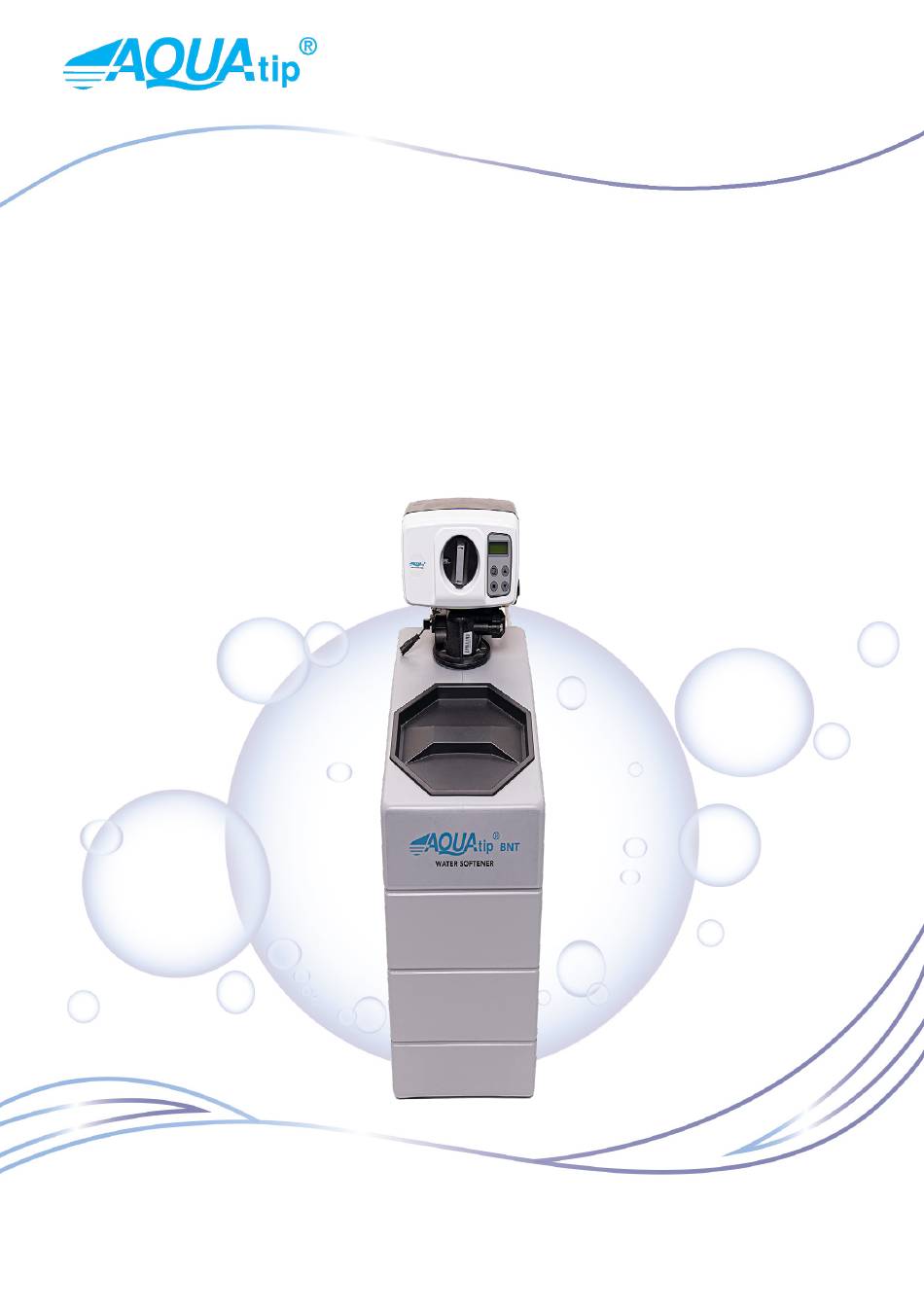

Page 1 User manual Water softener AQUATIP AQ® BNT 8...
Page 2: Main Benefits
(Na +) and subsequently discharged in the waste as part of the spent regenerate. The AQUATIP AQ® BNT 8 water softener is a reliable option for water softening in an ideal price-quality ratio. It is suitable for households and companies.
Page 3: Installation Steps
Water softener AQUATIP AQ® BNT 8 User manual/ 2 INSTALLATION STEPS Close the water supply. Remove the pipe that led from the cap further into the pipe in the building. Connect a softener between the supply and the pipe. Remove the top cover from the device and connect the ByPass to the device from the back.
Page 4: Technical Specification
Water softener AQUATIP AQ® BNT 8 User manual/ 3 AUTO-LOCKING In standby mode, all keys lock after 3 minutes. To unlock hold down the “MENU” button for 3 seconds. TECHNICAL SPECIFICATION Hydrostatic Test Pressure 24.15 bar Working Pressure 1.38~8.62 bar Working Temperature 1°C~39°C...
Page 5: System Initialization
Water softener AQUATIP AQ® BNT 8 User manual/ 4 Program will be back to standby status if any key was not operated in 1 minute. Without being operated in 3 minutes, the keys will be locked INQUIRY FUNCTION Press the key simultaneously at the standby status, the screen will display different regeneration information at different regeneration mode.
Page 6 Water softener AQUATIP AQ® BNT 8 User manual/ 5 MENU DIAGRAM AT DIFFERENT REGENERATION MODES...
Page 7 Water softener AQUATIP AQ® BNT 8 User manual / 6 There is no “BRINE DURATION” and “REFILL DURATION” in filter valve.
Page 8: Default Settings
Water softener AQUATIP AQ® BNT 8 User manual / 7 DEFAULT SETTINGS Three default settings are available: - Large capacity mode (L-CAPA.) fit the larger size tank. - Medium capacity mode (M-CAPA.) fit the medium size tank. - Small capacity mode (S-CAPA.) fit the smaller size tank.
Page 9 Water softener AQUATIP AQ® BNT 8 User manual/ 8 INLET/OUTLET SCREW ADAPTOR (OPTIONAL)
Page 10 Water softener AQUATIP AQ® BNT 8 User manual/ 9 INLET/OUTLET CONNECTIONS TYPES DRAIN LINE FLOW CONTROLS (DLFC) AND INJECTOR Different Size injector is available for different tanks as follows: Replacing Injector and DLFC according to the following picture.
Page 11: Bypass Assembly
Water softener AQUATIP AQ® BNT 8 User manual / 10 BYPASS ASSEMBLY Bypass valve is provided with many functions such as bypass, water hardness adjustment. Different angles of bypass knob have different functions (see following picture). The bigger angle (value A), the higher water hardness in hardness adjustment position.
Page 12: Valve Powerhead Assembly
Water softener AQUATIP AQ® BNT 8 User manual/ 11 VALVE POWERHEAD ASSEMBLY BNT165 POWERHEAD ASSEMBLY PARTS LIST...
Page 13 Water softener AQUATIP AQ® BNT 8 User manual / 12...
Page 14 Water softener AQUATIP AQ® BNT 8 User manual / 13 Bnt165 Valve Body Assembly Parts List...
Page 15 Water softener AQUATIP AQ® BNT 8 User manual / 14...
Page 16 Water softener AQUATIP AQ® BNT 8 User manual / 15 Zoznam jednotlivých častí ventilu BNT 165...
Page 17 Water softener AQUATIP AQ® BNT 8 User manual / 16 BNT165 VALVE BODY ASSEMBLY PARTS LIST...
Page 18: General Valve Installation
Water softener AQUATIP AQ® BNT 8 User manual / 17 GENERAL VALVE INSTALLATION Locate the softener tank and brine tank close to a drain where the system will be installed. The surface should be clean and level. Perform all plumbing according to local plumbing codes. Use a 1/2” minimum pipe or tubing size for the drain line.
Page 19: Troubleshooting
Water softener AQUATIP AQ® BNT 8 User manual/ 18 TROUBLE SHOOTING...
