Summary of Contents for ATEMPOWER AP500X

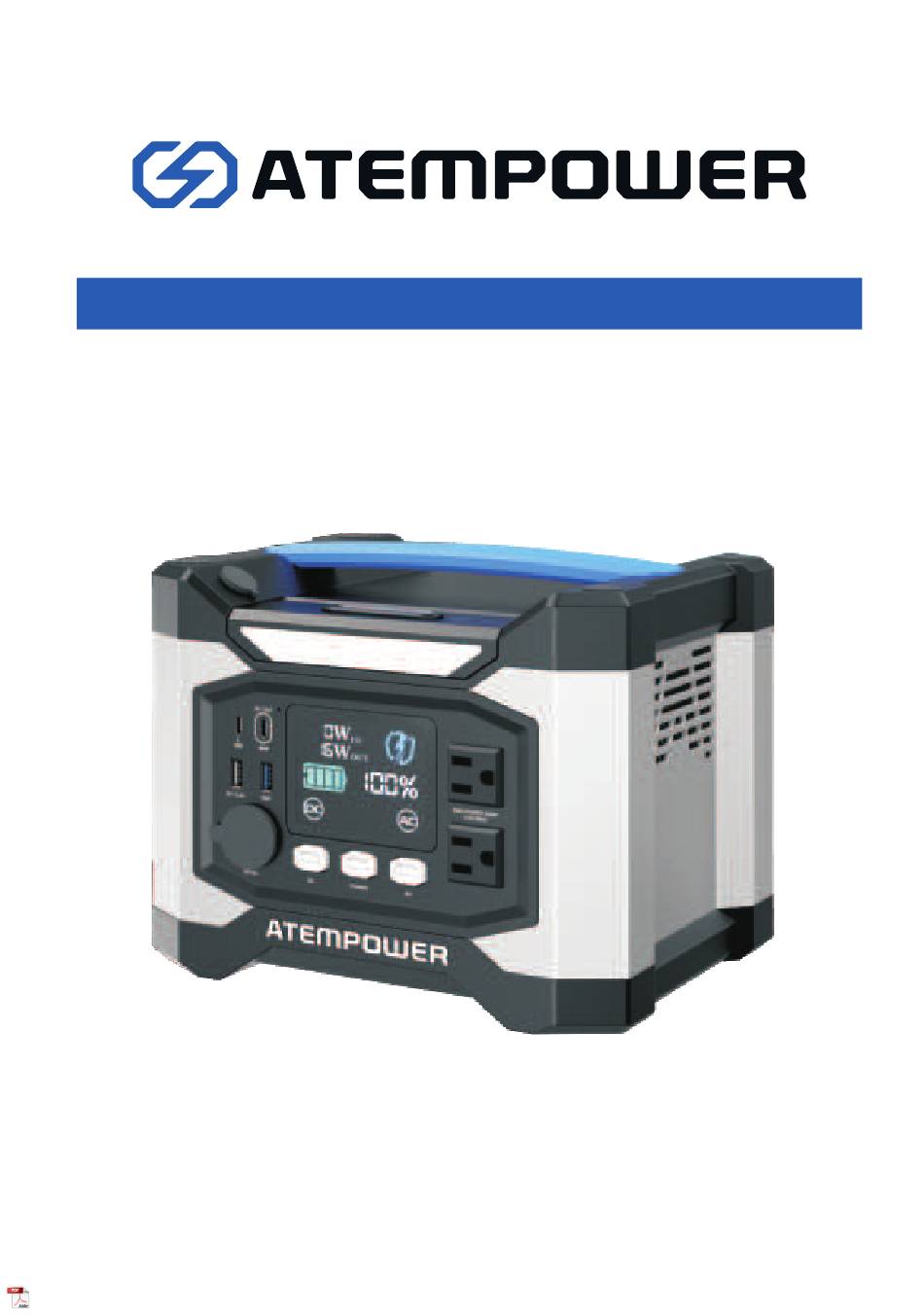

- Page 1 PORTABLE POWER STATION USER MANUAL PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION AND MAINTENANCE, FOLLOW ALL PROVIDED WARNING & SAFETY GUIDANCE, AND KEEP IT FOR FUTURE REFERENCE.
- Page 2 ABOUT US ATEM POWER, born in June 2017, as a synonym for exciting outdoor experience, is an Australian company with dedication and passion for the R&D of high quality products in the field of renewable energy products, batteries and related accessories. Since the company was founded, we have committed to innovation that aims to make your life infinitely more convenient.
- Page 3 WARNING & SAFETY GUIDANCE The user must read and understand all of the warning and safety messages supplied with your product prior to operation or maintenance. Failure to follow these guidance may damage your unit or cause severe accidents! Do not disassemble, repair, modify or alter this power station by yourself, since such action will cause potential hazards including fire, explosion or electric shock, result in damage to the unit or injuries as well as void your warranty.
- Page 4 TROUBLESHOOTING 1.Failure to charge Connection between charger, power station and AC is loose (and the indicator is not turn on either.) Please check whether their connection is clean and tight. Connection is clean and tight, but the indicator doesn't turn on. Charger might break down, please contact customer service for help.
- Page 5 Is it normal for a battery charger to become very hot? The answer is, yes. The charger becomes hot during charging. So if you touch the charger and find that it is very hot to the touch, don't panic. Why does my power station automatically shuts off after connected to my miniwatt devices for several hours? Your power station is designed to automatically shut off its output when it is connected to a miniwatt device.
- Page 6 TECHNICAL SPECIFICATIONS Battery specification Li(NiCoMn)O2; 18650; 3,000mAh Battery Quantity Battery Capacity 21.6V*24Ah=518Wh Topology 8P6S Charge Cut-off Voltage 24.9V Charge Recovery Voltage Discharge Cut-off Voltage 16.2V Discharge Recovery Voltage Max Charge Current Max. Continuous Discharge Current 33.18A Max. Instant Discharge Current 100.5A,≤1S Charge Temperature 0~40°C...
- Page 7 USB-C Input (Bi-directional) PD 60W DC Input Input 30A Anderson Solar Input Adjustable & Removable LED Light Lighting Rated Capacity 500LM, 5W Display 3.5” LCD Display DC Switch AC Switch Display Switch USER INSTRUCTIONS The LCD display will light up when button is pressed, and the backlight will turn off after 15 seconds. Press POWER button to power your devices.
- Page 8 7. Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in ATEM POWER's user manual. 8. Attempted repair by anyone other than an authorized facility. For more information,please visit: www.atempower.com...
