Operation Manual
Floor-mounted 2-bike Rack
62832
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Table of Contents
Related Manuals for toboli 62832
Summary of Contents for toboli 62832

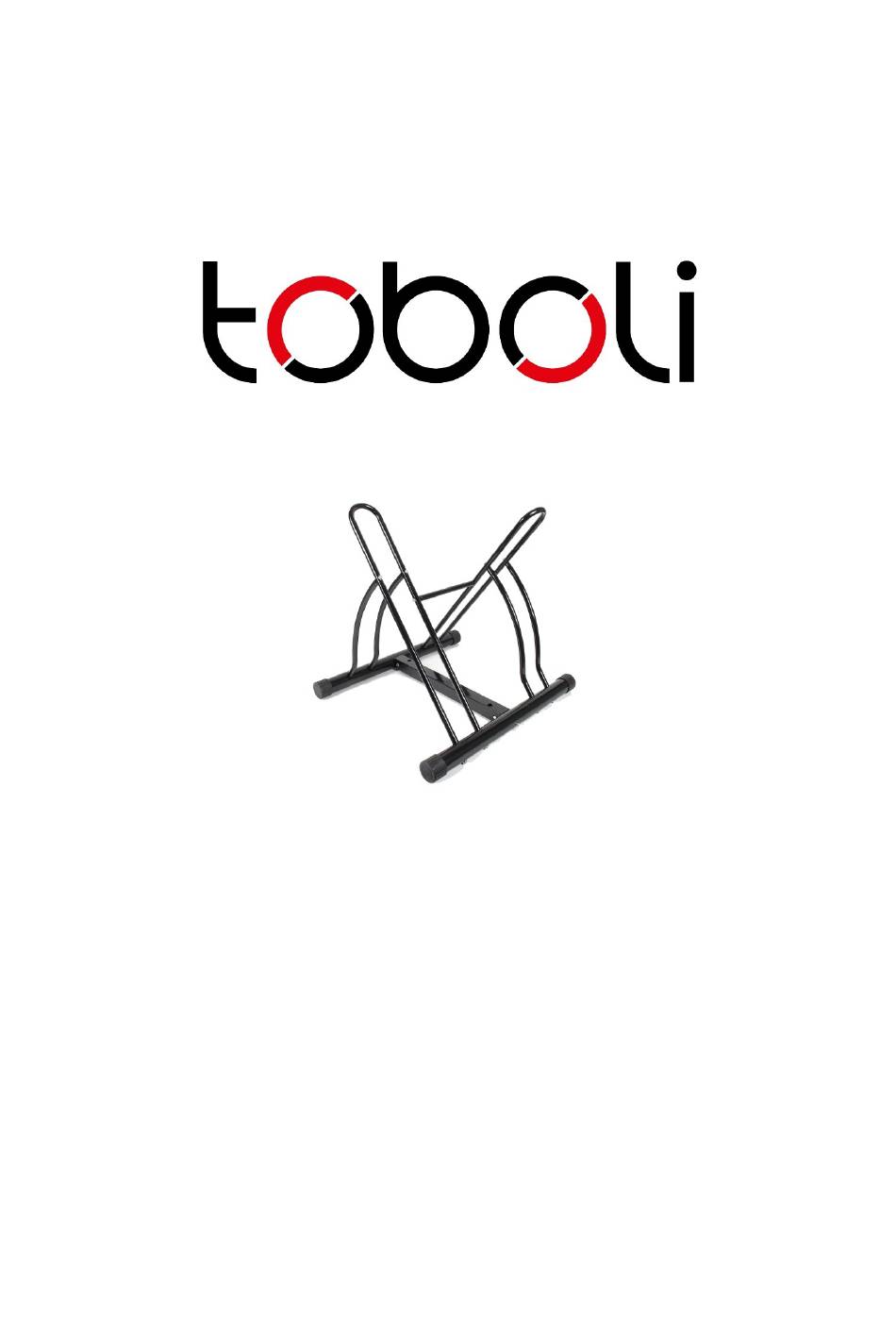

- Page 1 Operation Manual Floor-mounted 2-bike Rack 62832 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
- Page 2 To allow for a smooth execution of your complaint or return, it is important to contact our customer service team before returning the goods. Returns Department WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 © by WilTec Wildanger Technik GmbH Item 62832 Page 2 http://www.toboli.com 05 2022-1...
- Page 3 Base leg Tire loop support Base support leg M6×20 screw Connection bar M6×65 screw Tire loop M8 washer Tools required • 10 mm wrench • 14 mm wrench © by WilTec Wildanger Technik GmbH Item 62832 Page 3 http://www.toboli.com 05 2022-1...
- Page 4 Fit the two base leg assemblies together and se- cure with M6×20 screws (F). Step 4 Fit the connector bar (C) between the two tire loops (D) and secure with M6×20 bolts (F). © by WilTec Wildanger Technik GmbH Item 62832 Page 4 http://www.toboli.com 05 2022-1...
- Page 5 (F). Step 2 Repeat step 1 on the other base leg. Step 3 Fit the two base leg assemblies together and se- cure with M6×20 bolts (F). © by WilTec Wildanger Technik GmbH Item 62832 Page 5 http://www.toboli.com 05 2022-1...
- Page 6 The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual require the written permission of WilTec Wildanger Technik GmbH. © by WilTec Wildanger Technik GmbH Item 62832 Page 6 http://www.toboli.com 05 2022-1...
