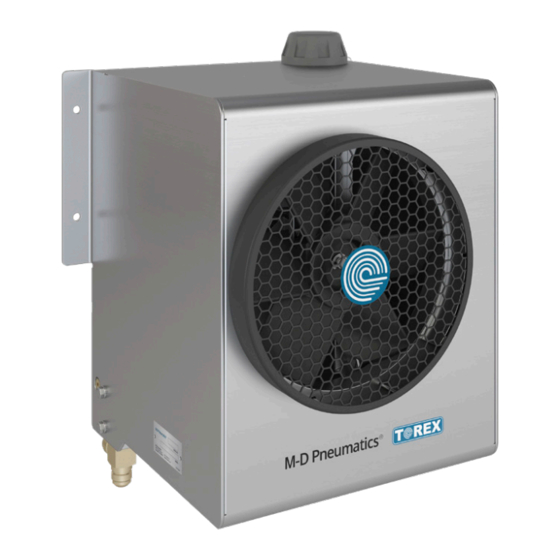

- Page 1 Manual 2028 Rev A WARNING: Do Not Operate Before Reading Manual TOREX Hydraulic Cooler OPERATOR’S MANUAL 35 G.P.M. 3000 P.S.I. 800.825.6937 | www.md-kinney.com Original Instructions...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Operation, Maintenance and Installation ........3 Safety Precautions ................3 Initial Hydraulic System Startup ............3 Maintenance ..................3 Normal Operation ................. 4 Suction Line Installation Guidelines ............4 Mounting the Torex Hydraulic Cooler ............ 4 Hydraulic Hoses and Fittings .............. -
Page 3: Operation, Maintenance And Installation
OPERATION, MAINTENANCE AND INSTALLATION SAFETY PRECAUTIONS 4. Slowly engage the P.T.O. and pump. Stop when level drops in the Torex tank to just below the oil • Do not work under the vehicle when the engine is sight glass. running. Do not work on any part of the hydraulic 5. -
Page 4: Normal Operation
Operation, Maintenance and Installation NORMAL OPERATION MOUNTING THE TOREX HYDRAULIC COOLER Visual Checks Prior to System Start: 1. Check that oil level is within oil sight glass level. Behind the cab is the preferred mounting method. Frame rail mount may also be acceptable, but should 2. -
Page 5: Mounting Options
Operation, Maintenance and Installation MOUNTING OPTIONS BEHIND-THE-CAB MOUNT (IDEAL) EXAMPLE ONLY - REFER TO SPECIFIC SYSTEM SCHEMATIC FOR DETAILS ON YOUR SYSTEM FRAME RAIL MOUNT (ACCEPTABLE) EXAMPLE ONLY - REFER TO SPECIFIC SYSTEM SCHEMATIC FOR DETAILS ON YOUR SYSTEM Manual 2028 Rev A... - Page 6 Operation, Maintenance and Installation TRAILER MOUNTING - OPTION 1 TRAILER MOUNTING - OPTION 2 Manual 2028 Rev A...
- Page 7 Operation, Maintenance and Installation TRAILER MOUNTING - OPTION 3 Manual 2028 Rev A...
-
Page 8: Parts List And Drawings
PARTS LIST AND DRAWINGS FAN & GUARD ASSEMBLY Item # Part No. Description Item # Part No. Description 500080218 FRAME 506022206 300001228 HYDRAULIC FAN MOTOR 244010200 FAN RETAINING RING 302095219 HYDRAULIC ELBOW (FAN) 521022202 FAN GUARD 302183202 HYDRAULIC BARB (TANK) 240404000 FAN GUARD WASHER 236105400... -
Page 9: Control Block Assembly
Parts List and Drawings CONTROL BLOCK ASSEMBLY Item # Part No. Description Item # Part No. Description 311003202 CONTROL BLOCK HYDRAULIC FLOW 304060209 CONTROL (CB) RADIATOR BY-PASS CHECK 304059203 VALVE HYDRAULIC RELIEF VALVE 303000008 (CONTROL BLOCK) HYDRAULIC ELBOW 302180204 (CHECK VALVE) 258208208 MAGNETIC DRAIN PLUG HYDRAULIC ELBOW... -
Page 10: Radiator & Breather Assembly
Parts List and Drawings RADIATOR & BREATHER ASSEMBLY Item # Part No. Description Item # Part No. Description 308011213 RADIATOR SCREW (BLANKING 214304212 PLATE/RADITOR) 309001203 BREATHER CAP WASHER (BLANKING 240004400 RADIATOR BLANKING PLATE) 540063209 PLATE SPEED NUT 299120204 212303216 BREATHER SCREWS (BLANKING PLATE) 307058205 SIGHT GLASS... - Page 11 WARRANTY WARRANTY: The Seller warrants the goods sold hereunder against defects in workmanship or materials under normal and proper installation for a period of twelve (12) months from the date of delivery. BUYER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY IS FOR THE REPAIR OR REPLACEMENT AT SELLER’S OPTION, WITHOUT CHARGE TO BUYER EXCEPT FOR SHIPPING EXPENSES, AT THE OFFICE OF THE SELLER IN LOUISVILLE, KENTUCKY, OF ANY PART WHICH HAS PROVEN TO BE DEFECTIVE AT THE TIME IT WAS DELIVERED.
- Page 12 For Service & Repair, Technical Support, or Product Sales contact: M-D Pneumatics 4840 West Kearney Street Springfield, Missouri USA 65803-8702 O 417.865.8715 800.825.6937 F 417.865.2950 Manual 2028 Rev A www.md-kinney.com 12/21...
