Summary of Contents for Metaflux 74-1000

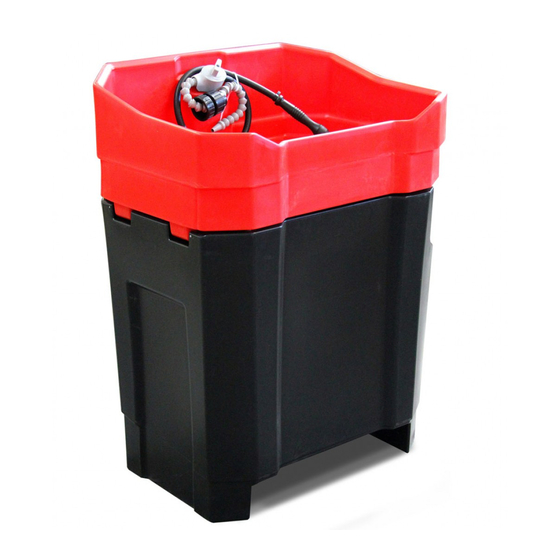

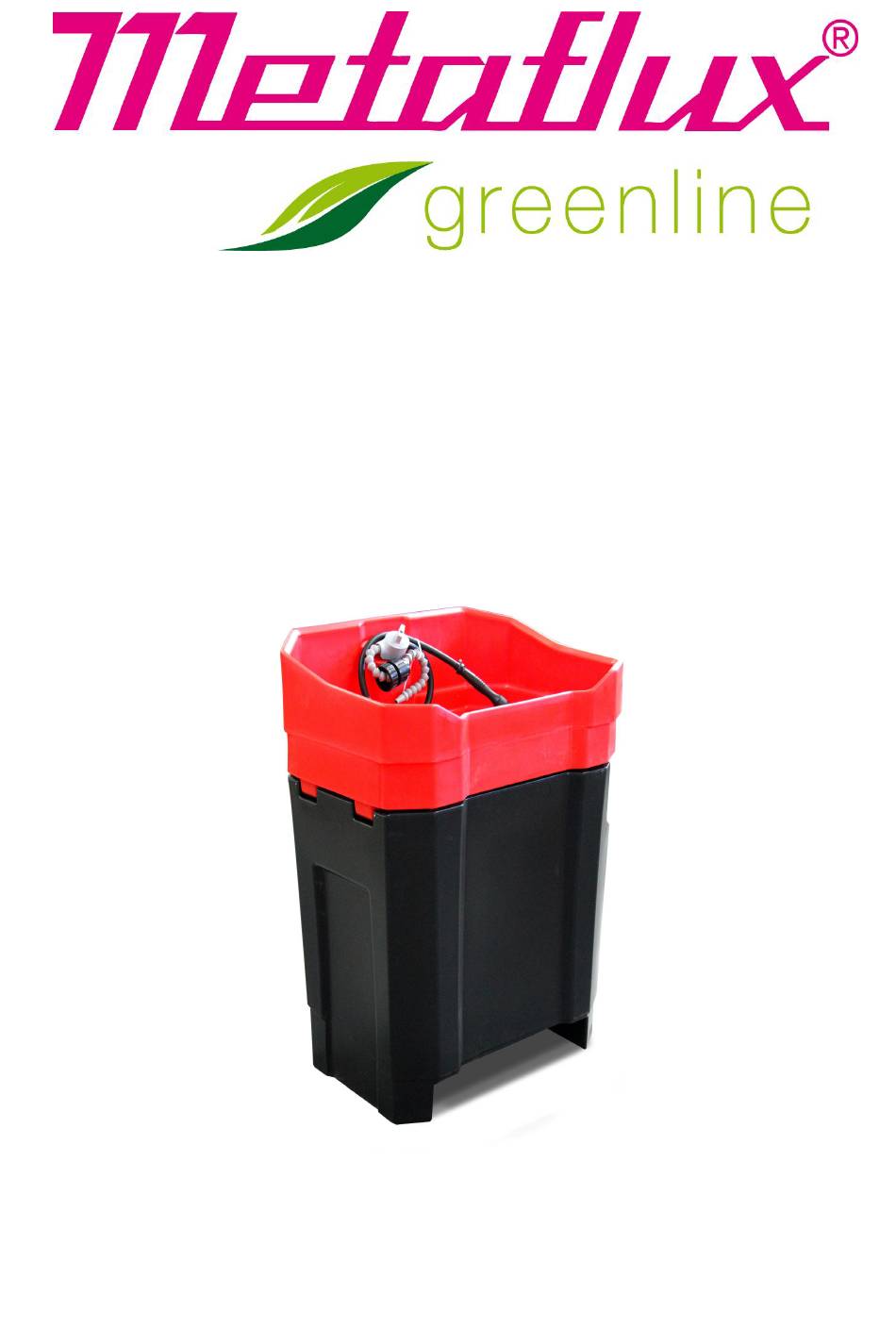

- Page 1 Washstand Compact Artikel No. 74-1000 OPERATING INSTRUCTIONS...
- Page 2 Thank you for purchasing the METAFLUX Washstand Compact Artikel No. 74-1000 This operating instruction has been designed to give you all information on the METAFLUX Washstand Compact 74-1000. To ensure perfect functioning of your METAFLUX Washstand Compact, carefully read this operating instruction before using the machine.
-
Page 3: Table Of Contents
Table of Contents General Points Fundamental Safety Instructions 3. Product Description 3.1 Assembly an Mode of Operation 3.2 Intended Use Technical Data 5. Start Up Operating instructions 7. Maintenance Notes for Waste Disposal Trouble Shooting Guide Wiring diagram 11. Regulations 12. -
Page 4: General Points
1. General Points 1. General Points These operating instructions are applicable to the METAFLUX Washstand Compact. It specifies the information necessary for its correct handling and usage and covers the initial set up, operation, maintenance, shut down and waste disposal. The warnings and advices mentioned in these instruction are to be observed and adhered to. -
Page 5: Product Description
3. Product Description 3.1 Assembly and Mode of Operation... - Page 6 Machine 1 Sink 2 Fitting 1/2" external thread 3 Pan head screw 4 Flex faucet 5 3-way valve 6 3-way valve cap and knob, grey 7 Hose clamp size F 8 Flowthrough brush 9 Flowthrough brush hose, length 80 cm 10 Hose clamp size H 11 Hose 12 x 4, lenght 180 cm 12 Loop strap inside diameter 22 mm...
- Page 8 Control box 1 Housing 2 Power cord 3 Cable gland M16 Lock nut M16 4 Lid 5 Allen screw M5x10 6 Nitril hose inside diameter 4 mm 7 Y-hose connection 8 Wooden air diffuser 9 Air diffuser bracket 10 Pump 40 W, 230 W 11 Pump bracket 12 O-Ring for pump bracket 13 Allen screw M6x10...
- Page 9 The used cleaning liquid runs through the sinks centered filter back into the container. Microorganisms then break down the oil and fat impurities. Comparison between conventional Parts Cleaner with Cold Cleaner and METAFLUX Washstand Compact 74-1000...
-
Page 10: Intended Use
3.2 Intended Use The METAFLUX Washstand 74-1000 is used to clean work pieces that are soiled with oil and grease, using only the Metaflux Washstand cleaning fluid. 4. Technical Data Dimensions approx. H (back) 1060, (front) 940 x B 840 x T 600 mm... -
Page 11: Start Up
The ground must be even. If necessary level the ground out with suitable material. Ensure that the drain valve is closed. Use only the genuine Metaflux Cleaning Liquid. To fill to the optimum volume, 90 l should be required. Do not overfill! -
Page 12: Operating Instructions
6. Operation Instruction Turn the cleaning pump ON pressing pump switch. Wet the sink, parts to be cleaned and any brushes prior to cleaning; this will prevent grease and dirt from sticking to the surfaces. The maximum load of 100 kg must not be exceeded! Depending on the positioning of the 3-way control valve, cleaning can occur via: Washing by means of a versatile jointed hose with nozzle. -
Page 13: Maintenance
7. Maintenance Warning! Before beginning to work on fixtures, make sure that there is no electrical current. Pull the plug from the mains! Check that the unit has no current! For maintenance purposes the table can be opened sideways. The sink will be kept into open position via sink rod, make sure the sink is lifted up to end position. - Page 14 Annual maintenance It is recommended that your Metaflux Washstand is inspected and cleaned annually to perform at optimal efficiency. Depending on the application non-digestible matter can accumulate as sludge at the bottom of the tank over time, which can negatively affect the bioremediation activity.
-
Page 15: Notes For Waste Disposal
Cleaning of the parts takes place with an alkalescent, biodegradable, non-toxic cleaning agent in a warm aqueous solution. Used Metaflux washstand cleaning liquid can usually be added to your other oil-water waste (such as water soluble cutting fluids) for disposal. - Page 16 For a re-start take approx. 40 l out of the tank and replace by new Metaflux Washstand Cleaner. After approx. 5 days the liquid gains its original ability to break down oil and fat impurities.
-
Page 17: Wiring Diagram
10. Wiring diagram BELEGUNG X1 Power X2 Air pump X3 Heater X4 Liquid pump X5 Signal light X6 Pump push button X7 Sensor plug Error Red LED blinking: Level low, top up device Red LED permanently on: Unplug device, check for possible overheating, check level switch and level, if necessary let cool down and plug in again for reset. -
Page 18: Regulations
The units are subject to strict safety regulations. Therefore, faulty parts must be replaced by original spare parts only. The Metaflux washstand 74-1000 comply with the CE criteria, see last side of this manual. 12. Terms of Guarantee All Techno-Service GmbH articles are inspected and tested before shipment and are warranted to be free from any defect in material and faulty workmanship. - Page 20 TECHNO-SERVICE GmbH Detmolder Str. 515 D-33605 Bielefeld Tel. +49 (0) 521 924440 Fax +49 (0) 521 207432 info@metaflux.de www.metaflux.de...
