Summary of Contents for DORLAND EX PDA500i

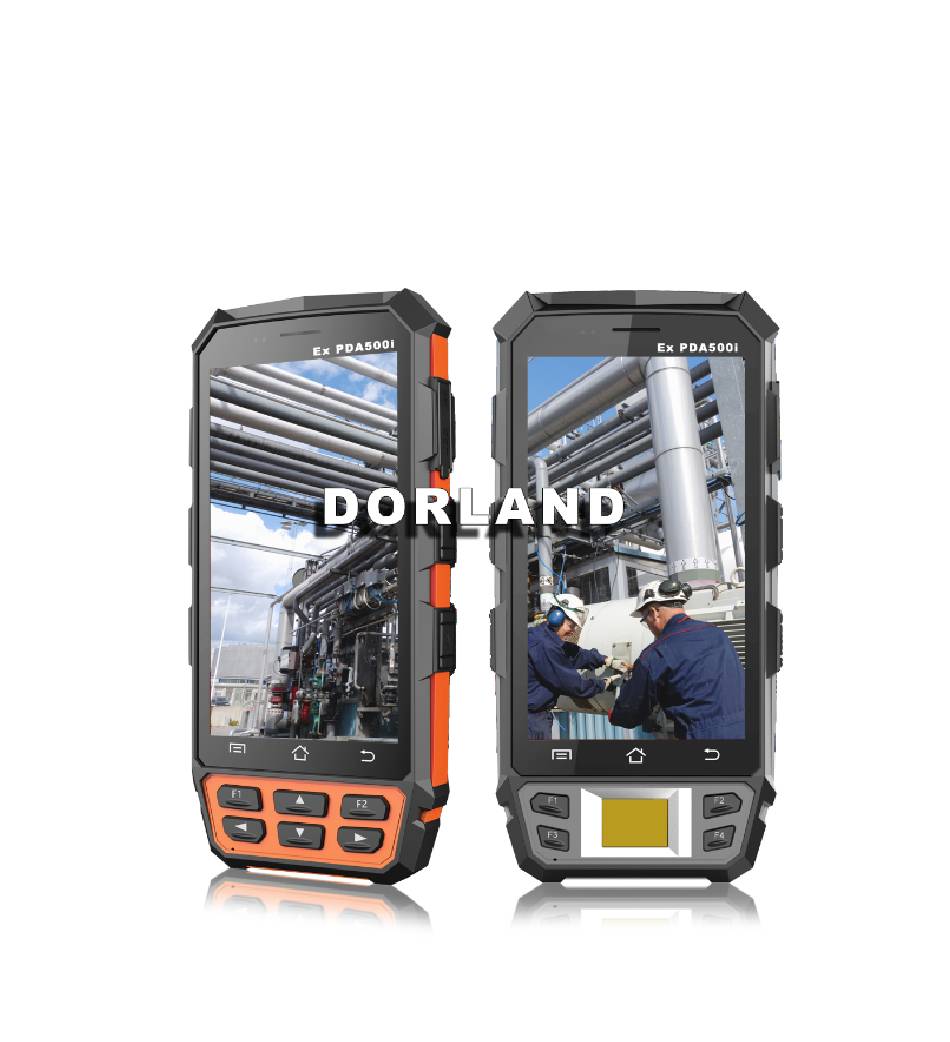

- Page 1 Industrial Intrinsically safe EX handheld terminal EX PDA500i product instruction manual DORLAND System Control Technology Co.,Ltd...
-
Page 2: Table Of Contents
Contents Chapter 1 Safety and Maintenance --------------------------------（2） Chapter 2 Function illustration --------------------------------（2） Chapter 3 Installation and Charging -------------------------------（6） 3.1 Battery Removal and Installation 3.2 Charge the battery 3.3 Memory card installation and removal 3.4 How to boot and shut down Chapter 4 Device key functions -------------------------------------（7）... -
Page 3: Chapter 1 Safety And Maintenance
Safe use warning Only strictly follow the instructions in this section.The industrial Intrinsically safe EX handheld terminal EX PDA500i is guaranteed.Before use, please be sure to read this section carefully.If you have questions or do not understand, please consult the... - Page 4 Safe use rules The safe use of Industrial Intrinsically safe EX handheld terminal EX PDA500i is based on the user's compliance with the following rules of use. The battery provided by the mobile phone is a battery specially produced by the manufacturer, and only the original battery meets the intrinsic safety requirements.Any...
-
Page 5: Chapter 2 Function Illustration
Chapter 2 Function illustration DC port USB data charging port Custom function key Custom function keys Power button Volume button HOME key Menu Return key Custom function key F1 Custom function key F2 Left arrow Right arrow Up arrow Down arrow... - Page 6 Scanning head Camera Card reading area Speaker Lock Lock Wristband mouth...
-
Page 7: Chapter 3 Installation And Charging
Basic function parameters Blueteeth Camera 1、Size：170*85*23mm 720 * 1280 （ Gorilla glass screen ） 2、Color screen：5 inch 3、Communication： Unicom/CT 4G、3G、2GFree switch 4、The internet：WiFi、Blueteeth 5、Battery：4500mAh Chapter 3 Installation and Charging 3.1 Battery Removal and Installation Battery Removal and Installation Note: Before removing the battery, be sure to turn off the device and remove the external power supply. -
Page 8: Memory Card Installation And Removal
The battery that came with your device must be fully charged before use. Do not remove the battery while charging If the battery runs out, the device turns off automatically. Memory card installation and removal Memory card installation Please follow the steps below to install： Remove battery back cover and battery, insert according to direction 1、... -
Page 9: Chapter 5 Optional Function Guide
Description Press the key The non-standby interface short press to return to the standby interface, long press will bring up the interface of the Home key recently run application. In the client application, the Home key can be used as a function key (scan, card reading, etc.) Return key Return to the previous level volume button Adjust the volume... -
Page 10: Uhf
UHF（915M） See the device's built-in demo. If the customer needs secondary development, contact technical support engineers. UHF read distance is about 3 meters. Fingerprint recognition See the device's built-in demo. If the customer needs secondary development, contact technical support engineers. There are optional fingerprint and biometric fingerprint modules of the Ministry of Public Security, both of which are capacitive and inductive. -
Page 11: Chapter 7 Enter Text
Description Menu Sound Recorder Can record music or other sound Calendar This feature makes it easy for you to check the date Can set up different functions in the device to achieve Settings Clock Set alarm Gallery You can see pictures and videos after entering Check the contents of the SD card File manager Check the current download of the local resources, etc. - Page 12 In addition, please contact technical support to confirm whether it is a hardware problem. Beijing Dorland System Control Technology Co., Ltd. Add：Room1107, Tower B, Tsinghua Tongfang Technology Square, No.1 Wangzhuang Road, Haidian District, Beijing, P.R.China...
