LED Light Source LUMINAR ACE Model LA-HDF5010RL LA-HDF7010RL Instruction Manual Thank you for purchasing our product. Prior to using it, please read the instruction manual thoroughly for safe and correct operation. Be sure to keep the instruction manual carefully at hand. POWER 4 6 LED ON REMOTE 2 8 LED LED OFF MANUAL 0 10 TEMP. LIGHT CONTROL FINE ALARM HAYASHI-REPIC CO.,LTD.
Page 2
This LED light source is used for the illumination of image processing, microscope, science observation. CAUTION Caution labels and statements provided in this manual are the description of potentially hazardous situation which if not avoided could result in moderate or minor injury. It could also advise safety precautions against unsafe practices. CAUTION Please carefully follow the instruction as misuse of the product may lead an accident of fire, electric shock or malfunction of the product. CAUTION Please use the light guide specifically provided for the product by manufacturer. It may cause malfunction or insufficient performance of the product in case you use no light guide or non-specified light guide. CAUTION Please use the AC power supply included. When using something other than the included AC power supply, please use the high-performance products more than accessory. CAUTION AC power supply cable must be properly grounded. It may lead an accident or malfunction of the product if you do not make the proper ground. CAUTION Do not move while it is being illuminated. Do not drop, or give a shock to the light source apparatus. (A trouble may result) Do not disassemble or modify the light source apparatus. (A trouble may result.) 1. Accessories Instruction Manual, Ethernet installation instructions, Accessories Command manual, AC power supply(AC100V) AC power supply: Options US type (AC120V), UK type (AC240V), European type (AC230V)
Page 3

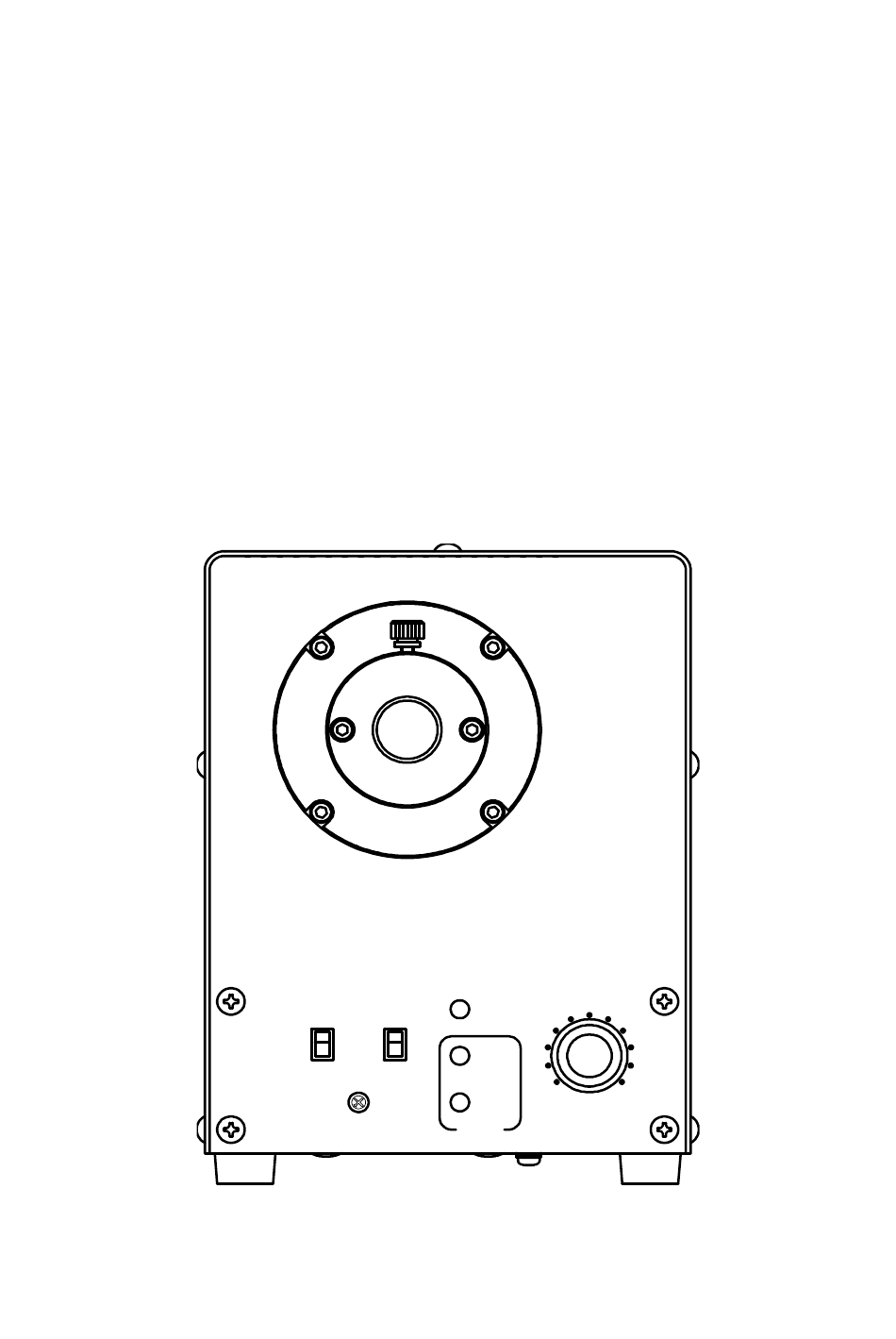

2. Part Names Front Panel Light Guide Socket This is a socket to introduce a light from the LED lamp built in this apparatus to the light guide. * Please Using Hayashi standard light guide. Control function change switch Front switch [UP:REMOTE / DOWN:MANUAL] * Regarding the switching of control function, please see to [ 3. Operation method ]. Light quantity control knob (LIGHT CONTROL) This knob is used when controlling brightness of the LED lamp manually. A light quantity is increased by turning the knob in the POWER 4 6 LED ON REMOTE clockwise direction. 2 8 LED LED OFF MANUAL 0 10 TEMP. LIGHT CONTROL FINE ALARM Indicator POWER(Green):When the power ON, the light up. LED(Orange):When an abnormality occurs for LED ramp, the light up. TEMP.(Red):When an abnormal temprature rise by inside the light box, the light up. * LED ramp light is turn off. Current adjustment volume (FINE) For maintenance, so usually do not touch.
Page 4
3. How to use 1) Insert the light guide in to the light guide socket of the apparatus. 2) Please insert the power supply into the AC inlet. 3) Switch the control function selector switch to the desired control function. Control MANUAL REMOTE RS232C function Switch Front switch MANUAL REMOTE Rear switch 1 STANDARD STANDARD SERIAL SERIAL Rear switch 2 RS232C ・ MANUAL : Manual light quantity control (using light control knob at Front panel). ・ REMOTE : Remote light quantity control (Input the 8 bit parallel signal) ・ RS232C : Remote light quantity control (256 gradation command input from 0 to 255) ・ LAN : Remote light quantity control (256 gradation command input from 0 to 255) * Be sure to turn off the power supply switch before switching the control switch. 4) Insert the plug of the AC cord in the outlet. (Please take the ground) 5) Turn on the power switch. 6) Control the light quantity to your desired level to operate the lighting apparatus. * LED lamp may slightly light on during minimum light volume operation. * LED lamp may be un- stable during minimum light volume operation. 7) To finish, turn off the power switch. CAUTION Avoid looking irradiation light through light guide or light source. It may cause the pain of eyes or the sight injury.
Page 5
4. External Control 4.1 REMOTE(parallel communication ) The interface (INPUT) allows an external control that turns on and off the product and adjust the light volume as the SELECTOR SWITCH is set REMOTE. * Use as shorter shielded cable(2m max) as possible for the external control. Long cable may result in a noise interfusion, and a noise may hinder the product from working properly as the cable is placed near the source of noise. PIN ASSIGNMENT for the interface(INPUT) Interface: Dsub female(socket), 25pins * An external control I/O interface is not provided. ※ Example of the recommendation for the external control I/O connector Connector : Japan Aviation Electronics Industry model Co., Ltd. : DB-25PF-N Resin hood : Japan Aviation Electronics Industry DB-C8-J10-F1-1R us Co., Ltd. These items are also available from us. Please contact with your sales representative. CAUTION The 2nd pin, the 3rd pin, the13th pin, the 17th pin and the 24th pin are pins for services work. Never connect those pins by yourselves. It will cause malfunction. PIN ASSIGNMENT PIN ASSIGNMENT PIN ASSIGNMENT Pin No. Pin No. Pin No. Supply power supply *1 LED abnormal output Light quantity control 8 No conect No conect No conect No conect LED lamp on/off *1. 18,19,20,21,23 are common Temperature error output Light quantity control 1 No conect Light quantity control 2 Light quantity control 3 Light quantity control 4 Supply power supply *1 Light quantity control 5 Light quantity control 6 SET signal...
Page 6
1) LED lamp on/off function It is a function to turn on / off the LED lamp. It is valid during the control function selector switch is set to "REMOTE setting". It is turned on by shorting the No.25(REMOTE IN) and No.23(GND(-)) pins at the INPUT connector. Examples of connecting IN P UT c o nn ec t or I N PU T c on ne c to r Ds u b co n ne ct o r ma l e( Pi n ) D su b c on n ec to r f em a le (S o ck et ) 2 3 2 3 resistance...
Page 7
Light quantity control (REMOTE) It is valid during the control function selector switch is set to "REMOTE setting". The following table shows a connection example and the light quantity at input. The light quantity can be changed by entering SET signal(<1ms pulse signal) with a interval more than 2ms after confirming the light quantity adjustment signal 1-8. IN PU T c on n ec t or IN PUT c o nn ec t or IN P UT co nn e ct o r I NP UT co n ne ct o r D s ub c o nn e ct or ma l e( Pi n ) Ds u b co n ne c to r f em a le (S o ck e t) D su b c o nn ec t or ma le ( Pi n )
Page 8
*The Light intensity table at input INPUTconnector No.5 pin No.6 pin No.7 pin No.8 pin No.9 pin No.10 pin No.11 pin No.12 pin Pin No. (Low) (High) Light quantity Light quantity Min(0) Light quantity UP Course ↓ : : : : : : : : Light quantity Max 0 : Short circuit 1 : Open LED abnormal output In the case of abnormality such as the opening circuit of a LED, it will internally make a short circuit between the first pin of the INPUT connector (REMOTE IN) and the 14th pins. The LED (orange) of the front indicator also turns on. If the LED abnormality output appears, stop to use it and ask the manufacturer for repair. P C C 1 1 LED abnormal signal *Abnormal:SHORT *Normal :OPEN...
Page 9
4.2 RS232C、LAN(Serial communication) 1) Communication specification Communications protocol RS232C Baudrate 9600bps Data length 8bit Parity bit none Stop bit 1bit * All the data for transmission and reception except STX and ETX should be half-width capital letter. (ASCII code) Connector specification ・RS232C Connector * Use a straight cable to connect to a PC. PIN ASSIGNMENT for the interface(RS232C) Signal Wiring inside Pin No. content light source No connect To light source reception To light source transmitter Short circuit of 4pin - 6pin Grand Short circuit of 7pin - 8pin Interface: Dsub female(socket),25pins * An external control I/O interface is not provided. No connect...
Page 10
・LAN port (X-PORT produced by Lantronix) * Use a crossing cable to connect to a PC and use a straight cable to connect to the hub. Right LED Left LED No light :No connection No light :No communication Green light :100BASE-T connection state Green light :Full duplex communication state Orange light:10BASE-T connection state Orange light:Half duplex communication state CONTACT 8 CONTACT 1 Default value Item Set value Note At the factory Communications protocol TCP/UDP IP address 192.168. 0.101 At the factory Subnet mask 255.255.255. 0 At the factory Default gateway 0. 0. 0. 0 At the factory Port 10001 At the factory The initial setting of the PC side is necessary to operate with the PC. Please see "Ethernet introduction procedure for initial setting" Please see "command manual" for the commands in detail. E-10...
Page 11
5. Installation CAUTION Do not use the product in an enclosed area, where may result in malfunction. Do not Install to a product upside down. Make room for ventilation so that the product's vent hole is not blocked off. * Make sure an open upper space. 60mm and up I EC 6 2 47 1 RISK GROUP 2 I EC 6 2 47 1 RISK GROUP 2 WARNING WARNING IR emitted from this product. IR emitted from this product. Do not stare at operating lamp. Do not stare at operating lamp.
Page 12
MANUAL 0 10 TEMP. LIGHT CONTROL FINE ALARM LA‑HDF5010RL:265mm 120mm LA‑HDF7010RL:315mm ※ Bottom surface:LA‑HDF7010RL 7. Specifications (Subject to change without prior notice due to product improvement) Input rated Voltage AC100V-AC240V ±10% Input rated frequency 50/60Hz Power Consumption LA-HDF5010RL: 95W / LA-HDF7010RL: 155W LED Color White LA-HDF5010RL: 1,400,000Lx *1 Illuminance LA-HDF7010RL: 1,800,000Lx *1 6,500K (typ.) *2 Color Temperature(typ.) LED Lifetime 30,000H *3 MANUAL : Consecutive dimming by adjusting the light quantity control knob. Light REMOTE : 8 bit digital light quantity control quantity control RS232C : 256 gradation command input LAN : 256 gradation command input 1) LED lamp ON / OFF function : External input and Front switch Function 2) LED abnormal output : External output and Front indicator 3) Temperature error output : External output and Front indicator...
Page 13
8. Trouble shooting Check again before asking for repair. Malfunctions Check Handing A power supply cord may be Plug in. unplugged. The LED cannot be illuminated even if the power is turned on. A light quantity control knob Turn the control knob (LIGHT may be set on zero level. CONTROL) to adjsut the light volume. The light quantity cannot be Is the control function selector Set the control function change switch to controlled by turning the light switch set to a setting other MANUAL. quantity control knob. than MANUAL? The temperature might be Use it within the operational temperature Phenomenon: beyond the limit of the range. The device can be reset after The temperature abnormality operational temperature range cooling the device by turning off the output appeared. due to in the closed place etc. power supply. CAUTION In case of malfunction, disconnect the power supply immediately. The repair service should be performed by manufacturer. The product must be shipped to manufacturer for repair. CAUTION This product contains no replaceable parts. Please send the product to manufacturer in case you need replacement for such as LED lamp etc.
Page 14
9. After-sale services When you ask for a repair, let us know the following: ☆ ・ Model Name : LA-HDF5010RL or LA-HDF7010RL ・ Serial Number : Inscribed on the serial number label pasted to this product. ・ Details of trouble : Detailed information such as a period of use, the operating condition at the time of trouble. ・ Date of purchase : Date of purchasing this product. ・ Your name, your company name, address, phone number and fax number. HAYASHI-REPIC CO.,LTD. Division-1 1-28, Kitaohtsuka, Toshima-Ku, Tokyo 170-0004 JAPAN TEL : +81-3-3918-5623 FAX : +81-3-3918-5683 KORIN ELECTRONIC CO.,LTD. Room 1005, Fook Yip Bldg., 53-57 Kwai Fung Crescent, Kwai Chung, HONG KONG TEL : (852)-2418-1122 FAX : (852)-2418-1235 HAYASHI TRADING (SHENZHEN) CO.,LTD. Room 27B07, 27F, Jueshi Building, 4018 Jiabin Road, Luo Hu District, Shenzhen 518001, CHINA TEL : (86)-755-3685-6361 FAX : (86)-755-3685-6364 2020.05.08 IM-135-Rev.2 E-14...
