INSTRUCTIONS
& LEARNING GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the HIGH ALTITUDE ROCKET and is the answer not in the manual?

Questions and answers

Related Manuals for Blue Marble HIGH ALTITUDE ROCKET

Summary of Contents for Blue Marble HIGH ALTITUDE ROCKET

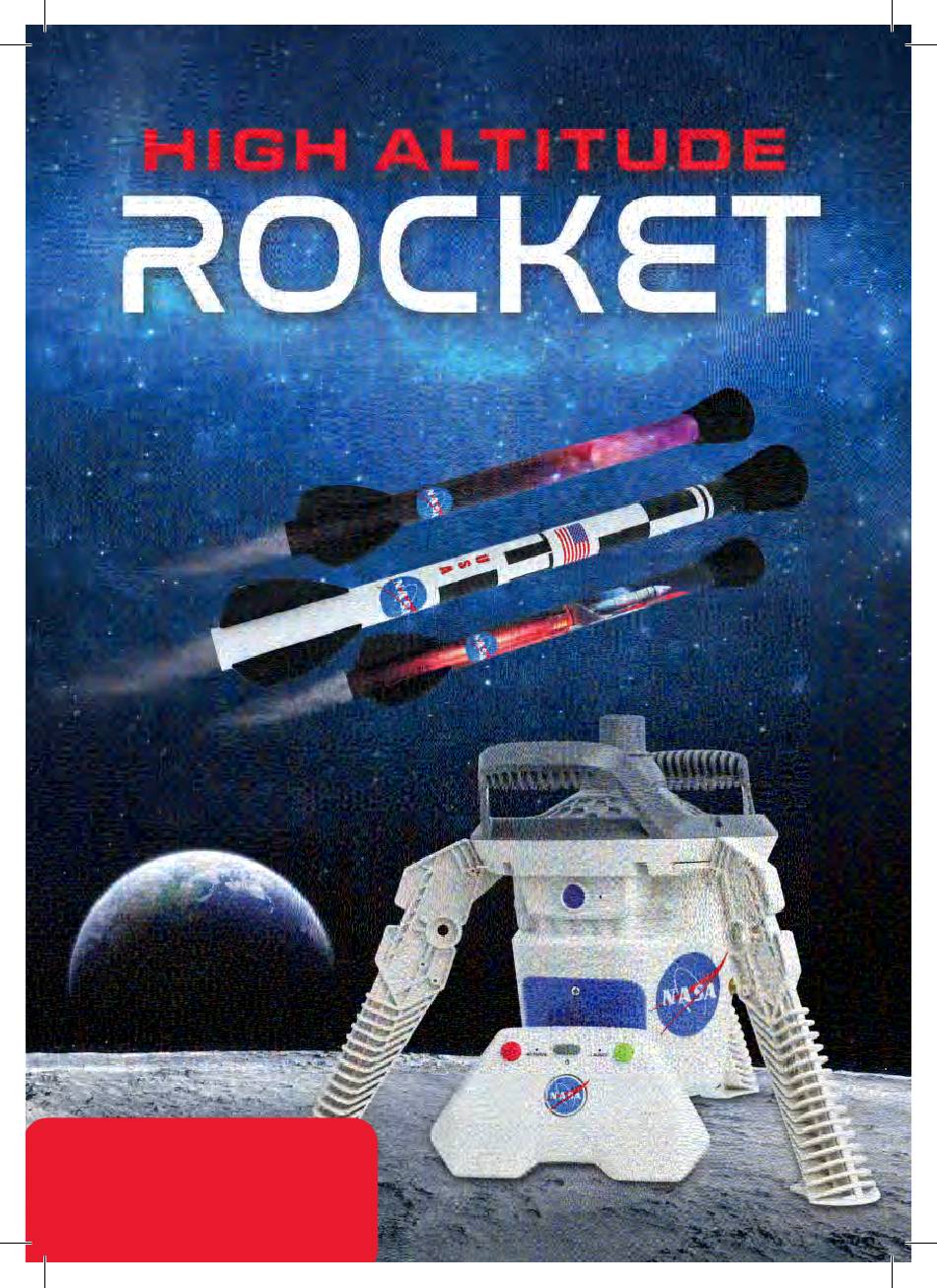

  • Page 1 INSTRUCTIONS & LEARNING GUIDE...

  • Page 2: Safety Information

    SAFETY INFORMATION WARNING: Not suitable for children under 14 years of age. CAUTION: Keep away from obstacles and electrical hazards. For outdoor use only. Adult supervision advised. IMPORTANT: Read instructions carefully before each use. Retain this information and address for future reference. This device complies with Part 15 of the FCC Rules.

  • Page 3: Instructions For Safe Use

    INSTRUCTIONS FOR SAFE USE • Never look down the extension tubes. • Never place any body parts or animals on the extension tubes or air exits. • Never fire your rocket indoors. • DO NOT attempt to catch the rockets. •...
  • Page 4 MAINTAINING YOUR LAUNCHER • Always carry the launch base by the handles. • Never place anything other than the rocket on the extension tubes. • Never put liquids in the extension tubes or base. • Never pressurize the tank without the extension tubes installed, the legs installed, and the remote and launch base turned on.

  • Page 5: Kit Includes

    INSTRUCTIONS INSTRUCTIONS KIT INCLUDES NEED TO GET A: Launch base • Air pump Requires one 9V battery, not included You may use a variety of air pumps with this rocket including hand pumps, bike tire B: Launch base legs (x3) pumps, electric pumps, or floor pumps.
  • Page 6 ASSEMBLY 1. Attach each of the three launch 3. Screw base legs to the launch base using the extension included screws and a Phillips head tube #1 screwdriver. Each leg requires 3 screws, directly into two on the bottom and one on top. the launch base.
  • Page 7 LAUNCH INSTRUCTIONS Note: Before any launch, refer to 3. Turn on the remote by pressing the the safety information section at the power button in the center. The left LED beginning of this booklet to ensure safe, light will flash red, the right LED light will successful launches.
  • Page 8 5. Attach the air pump to the valve 9. Continue holding the left button on the side of the launch base. You until the right LED flashes green and may leave the air pump attached to you hear “Ready to Launch.” Once the rocket base if you’re performing you’ve heard “Ready to Launch”...

  • Page 9: Troubleshooting

    TROUBLESHOOTING I’m experiencing a “Tilt Fault” error. My remote is not making sounds. • The launch base has an angle sensor • Check that the batteries are installed inside to ensure the rocket only fires correctly in your remote and in the upward.
  • Page 10 My air tank won’t hold pressure. My rocket will not fire. • In the event your air tank won’t hold • Ensure you’re following the ignition pressure, you may hear air coming out of and launch sequence properly, the launch tube. remembering to keep the left button pressed through the entire sequence.
  • Page 11 LEΑ Α RNING GUIDE RNING GUIDE WHAT IS A ROCKET? Have you ever blown up a balloon and then let go of it without tying it off? The balloon moves forward as the air escapes, right? Well, rockets work in the same way.
  • Page 12 PROJECTILE PHYSICS Scientists call things that fly through the air (like rockets) projectiles, and they study the physics of projectiles to figure out where rockets will go when they blast off. Some of the important questions they have to answer are: •...
  • Page 13 AERODYNAMICS The science of aerodynamics studies the motion of air and the forces that act on flying objects. Even though we can’t see them, the molecules in our air can slow down a rocket by creating friction that scientists call drag. Also, the force of air molecules can change where a rocket flies by pushing more on one side than the other.
  • Page 14 DID YOU KNOW . . . SHAPE DOESN’T MATTER IN SPACE? Science fiction movies and TV shows like to show spaceships with sleek pointy shapes, but since space is a vacuum, friction no longer matters. Once a rocket gets past our planet’s atmosphere (about 600 miles / 960 km above the Earth’s surface), there are no more air molecules to worry about, and objects in outer space can be any shape at all.
  • Page 15 Getting a rocket past the Earth’s atmosphere is no easy job! It takes lots of fuel, and the fuel tanks are the heaviest things on a rocket when it is launched. But as that fuel is burned up, the rocket gets lighter and lighter. Check out a video of a rocket launch and you’ll see the rocket accelerating slowly at first and then gaining speed.
  • Page 16 Blue Marble logo are trademarks of JMW Sales, Inc. Customer Service: 1 (541) 708-6738 • help@thinkbluemarble.com JMW Sales, Inc., dba Blue Marble™ • 340 Oak St., Ashland, OR 97520 USA Read all warnings and follow all directions carefully. Adult supervision required. Retain this information, addresses, and phone numbers for future reference.
