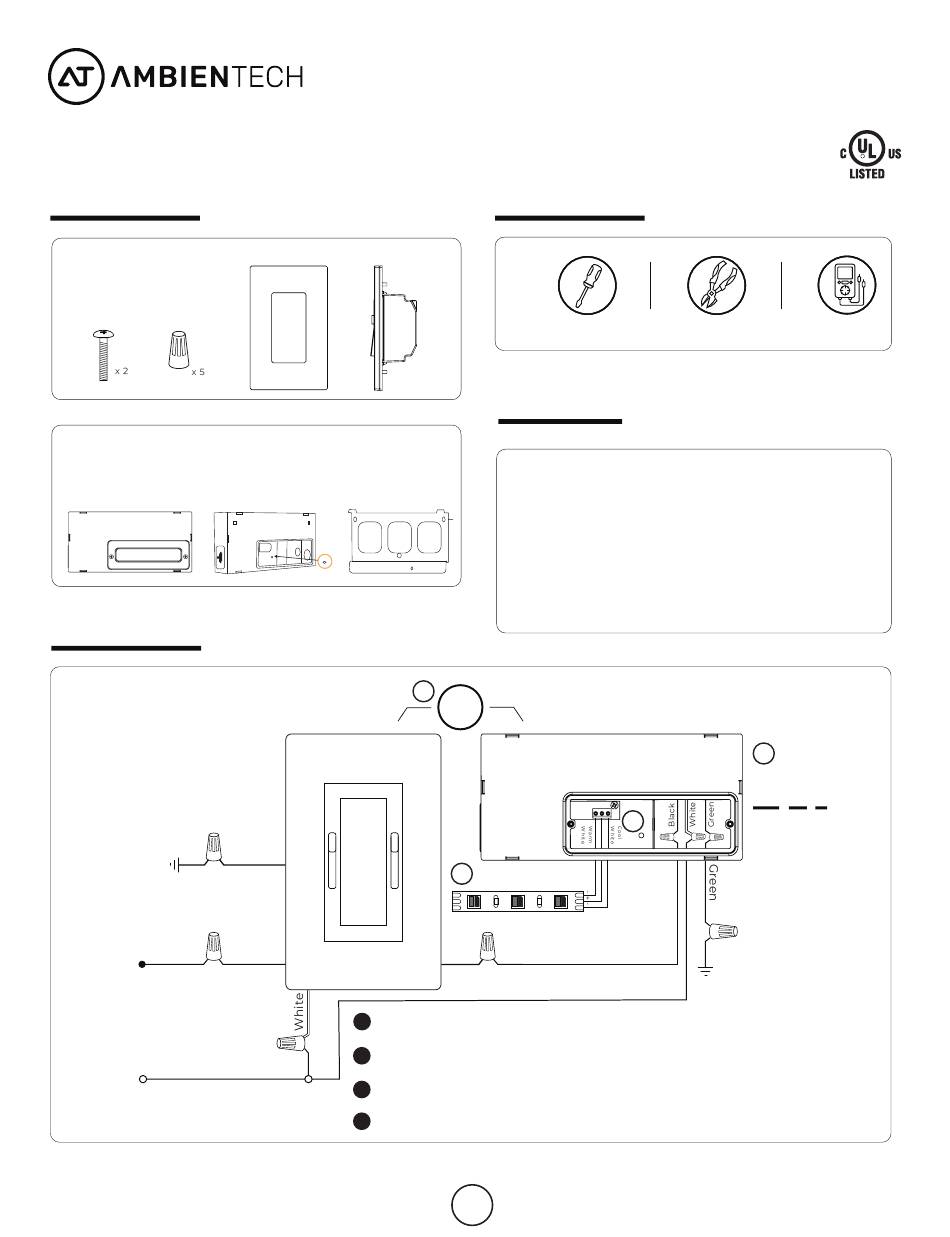

AMBIENTECH TONE-WS Series Installation Instructions

Item Identification
Mounting Wire
Screws
Connectors
LED Driver
LED Driver Bracket Lock Screw
Overview of System Wiring
Ground
Line/Hot
120 V~
50/60 Hz
Neutral
Cover Plate Wall Switch
Wall Bracket
Wall Switch
Green
Black
Automatic RF Pairing using an electrical signal (CCT/Dimming)
1
Max distance between Wall Switch and Driver 30m/100 ft
One wall switch can control up to 7 LED drivers
2
12/24VDC three wire output
3
The Driver is compatible with any CV Tunable White/Dim-to-Warm LEDs
4
P/N: TONE-WSx | WARM-WSx
Tools Needed
Screwdriver
Important Notes
Please Read Before Installation!
• Neutral Wire required. If you don't have Neutral wire in
the wallbox, please consult an electrician.
• The system is to be installed in accordance with the
National Electrical Code or local code.
• The system is to be installed and serviced by a qualified,
licensed electrician.
• Wall switch must be grounded in accordance
with the NEC or local codes.
1
RF
LED Driver
-
+
4
Red
1
Installation Instructions
Wire Stripper
2
UP to 7
Drivers
3
-
Ground
R
DIMMER
E507432
Voltmeter
