Summary of Contents for AlfaBot X7

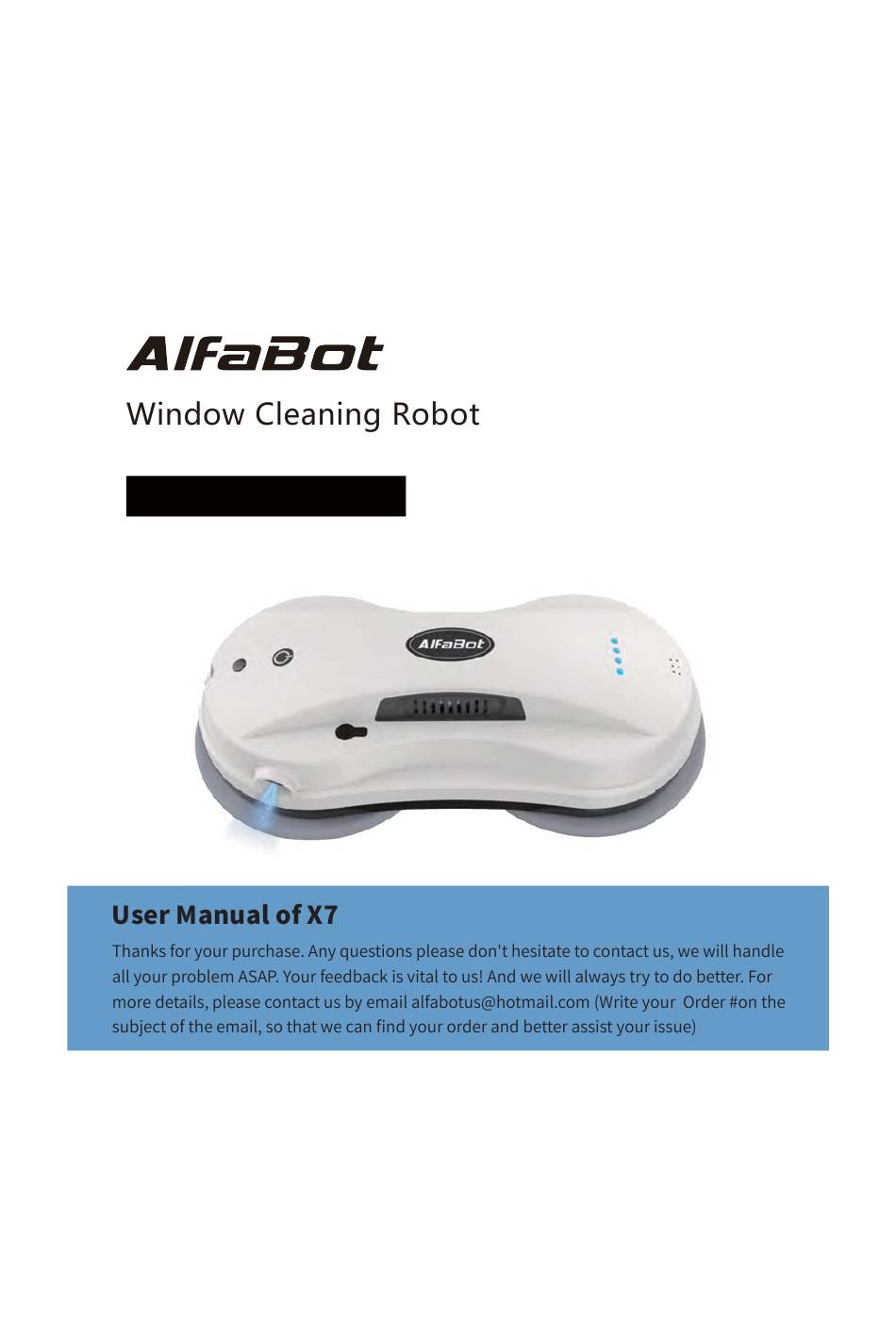

- Page 1 USER MANUAL...
- Page 2 The product is suitable for cleaning all kinds of smooth surfaces, including glass, floor, ceramic tile, marble, etc. This product is a glass cleaning tool. The place and safety of use must be judged and responsible by the user. Be sure to fasten the safety rope before use, and tie the safety rope to the indoor to avoid falling of the machine.
- Page 3 glass and coated glass, be careful to scratch the glass surface due to wind and sand. Do not let hair, clothing corners, hands, fingers and any part of the body close to the product opening or rotating parts. Do not allow the machine to inhale flammable liquids or gases such as gasoline, or use it near flammable liquids or gases.
- Page 4 Can wipe any thickness of glass. Artificial Intelligence Technology. Three directions of automatic mode, automatic cleaning of the whole window. Automatically stop after cleaning. Built-in uninterruptible power UPS system, which can maintain power for 30 minutes when the power is off. Anti-drop design.
- Page 5 White light: the white light is always on when it is turned on Charging indicator: red light is on during charging; green light is on when fully charged Red light: error warning light Blue light: in normal work; Blue light always on: manual water spray mode. Blue light flashing: automatic water spray mode.
- Page 6 spray function and do not spray any water), and first remove the wind and sand on the glass surface. water will mix with the sand and turn into yellow muddy water, and the wiping result will be poor. works best. moisture traces.
- Page 7 The machine has a built-in battery for backup power in case of power failure. Before use, please make sure that the battery is fully charged (green light is on) to indicate the charging state.
- Page 8 As shown in the below pic, make sure that the cleaning cloth is placed on the cleaning ring, and then the cleaning ring is correctly placed on the cleaning wheel to prevent air leakage from the machine. ground downstairs, and people are prohibited from approaching. (3) Be sure to fasten the safety rope before use, and tie the safety rope to the fixed objects in the house to avoid danger.
- Page 9 Add water here Only use clean water or clean solutions with pure water. (3) Confirm that the machine can be attached to the glass before letting go. (3) Press the to manually operate the machine.
- Page 10 power for 30 minutes. a warning sound and the red/blue light will flash alternately. At this time, the user should retract the machine as soon as possible to avoid the power being run out and falling. (3) The safety rope can be used to gently pull the machine back; when pulling the safety rope, it should be as close to the glass as possible to avoid falling.
- Page 11 Automatically move up Manually move up then down Automatically move left Manually move down then down Automatically move Manually move right right then down Auto spray switch Manually move left on/off Manual spray switch Start Cleaning Stop Cleaning Pause cleaning Auto Up then Down Auto Left then Down Auto Right then Down...
- Page 12 Solutions: When unpacking the machine, clean the cleaning pads and dry it before use. Spray a little water on the cleaning pads or the surface of the glass to be wiped. (3) After the cleaning pads is dampened and wrung out, put it into the cleaning ring of the machine for use.
- Page 13 Solutions: You can choose the manual window cleaning mode to wipe the parts that have not been wiped (sometimes the glass or cleaning cloth is slippery, the width of the wiped glass is large, and the top row appears to slip a little bit and the upper left position cannot be wiped). Solutions: You can press to continue the unfinished part in auto window cleaning mode.
- Page 14 or matte sticker area), please use it in a single area. (3) The cleaning wheel screw is loose, please tighten it (do not lock it too tight, otherwise it may affect the glass glue at the bottom of the window frame is too thick or the performance of the beveled window frame).
- Page 15 (3) Check if there is any cause of air leakage. Solutions: For the first cleaning, turn off the water spray function and use a clean cloth to remove wind and sand. Wipe for the second time, clean and replace with a clean cleaning pads, turn on the water spray function or keep the upper cleaning wheel clean and dry, spray a little detergent or A completely wet cleaning pads will affect the operation of the machine.
- Page 16 Brand AlfaBot Model Net weight Item size Cleaning method Rotary cleaning Auto water spray Build-in Water tank Applicable glass thickness Power Run time of built-in battery Certification Cleaning speed Cleaning method Rotary cleaning Auto water spray Build-in Water tank...
- Page 17 If you receive a defective item or have any problems with this item, please email us at alfabotus@hotmail.com with Amazon Order ID Short description of the defect Your Shipping Address and Phone Number We will send a new item to you immediately. NO NEED to return the defective item.
