- Page 1 Oxford Plastics Product Guidelines AVALON BARRIER | TECHNICAL SPECIFICATION AVALON BARRIER Oxford Plastics Product Guidelines OXFORDPLASTICS.COM | VERSION 1 NO1...
-
Page 2: Table Of Contents
Oxford Plastics Product Guidelines AVALON BARRIER | TECHNICAL SPECIFICATION CONTENTS PAGE Features and Benefits What problems does it solve Dimensions and weights 6 - 7 Full product range Spares Inspection and maintenance Repair Guide - Reflective Repair Guide - Feet... -
Page 3: Features And Benefits
Oxford Plastics Product Guidelines AVALON BARRIER | TECHNICAL SPECIFICATION FEATURES AND BENEFITS CHAPTER 8 COMPLIANT HOLES TO FIX SIGNAGE REFLECTIVE ANTI-TRIP & HI-VIS CLEAR PATH EXTRA FEET HOOK & BUCKET SPACE FOR LINKING SYSTEM ENGRAVED CUSTOMER LOGO SAFETY BARRIER EASY TO USE & TRANSPORT... -
Page 4: What Problems Does It Solve
Oxford Plastics Product Guidelines AVALON BARRIER | TECHNICAL SPECIFICATION WHAT PROBLEMS DOES IT SOLVE PLASTIC ROAD SAFETY BARRIER CREATE ACCESS Provides safe access for pedestrians Clearly defined access in high traffic areas. through highways and construction works. Link barriers together using the hook... -
Page 5: Dimensions And Weights

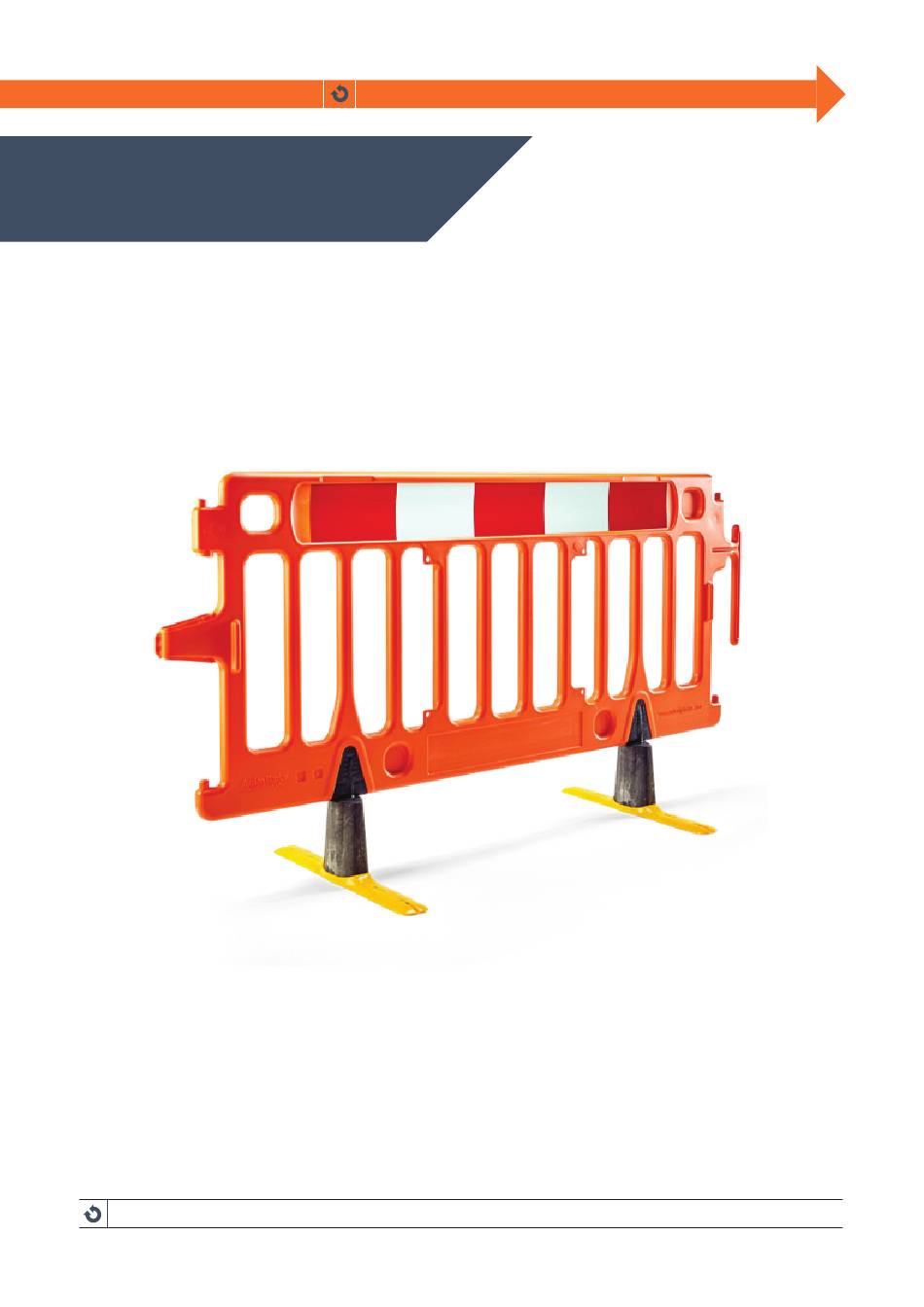

Oxford Plastics Product Guidelines AVALON BARRIER | TECHNICAL SPECIFICATION DIMENSIONS AND WEIGHTS AVALON BARRIERS - 2m, 1m and 0.5m, SHOWN WITH CLEARPATH EXTRA FEET WIDTH OVERALL LENGTH 2005mm / 78.9” 40mm / 1.6” OVERALL FOOT LENGTH 645mm / 25.4” OVERALL LENGTH OVERALL LENGTH 1075mm / 42.3”... -
Page 6: Full Product Range
Oxford Plastics Product Guidelines AVALON BARRIER | TECHNICAL SPECIFICATION FULL PRODUCT RANGE Description Dimensions Images O646 Avalon Barrier 0.5m 655mm / 25.8”(L) x 40mm / 1.6”(W) x Orange with reflective 1000mm / 39.3”(H) O634 Avalon Barrier 1.0m 1075mm / 42.3”(L) x 40mm / 1.6”(W) Orange with reflective, with x 1000mm / 39.3”(H) - Page 7 Oxford Plastics Product Guidelines AVALON BARRIER | TECHNICAL SPECIFICATION FULL PRODUCT RANGE Description Dimensions Images O197 Avalon Double Sided 1000mm / 39.3”(L) x 520mm / Ballast Base 20.5”(W) x 300mm / 11.8”(H) O274 DropBlock Barrier 98mm / 3.9”(L) x 250mm / 93.8”(W) x Ballast Weight 395mm / 15.6”(H)
-
Page 8: Spares
Oxford Plastics Product Guidelines AVALON BARRIER | TECHNICAL SPECIFICATION SPARES Parts can be disassembled, enabling elements to be replaced in the unlikely event of damage. Part Name Material Product Code ClearPath Extra Feet Yellow HDPE, Black recycled PVC, GRP Rebar... -
Page 9: Inspection And Maintenance
Oxford Plastics Product Guidelines AVALON BARRIER | TECHNICAL SPECIFICATION INSPECTION AND MAINTENANCE Care for the product by following the below guidance: SIGNS OF DAMAGE Cracks or breaks in the Avalon Barrier indicate it has been damaged through improper use. If the products feet,... - Page 10 Oxford Plastics Product Guidelines AVALON BARRIER | TECHNICAL SPECIFICATION REPAIRING THE REFLECTIVE A guide to reapplying reflective strips on Chapter 8 barriers. You will need a wallpaper The applicator should be a handheld size, scraper, sponges, a self-made approx. 12x8cm. Fabricate from a piece...
- Page 11 Insert the new spigot into the new Stand the Avalon Barrier in line with the Ensure the spigot is fully inserted. foot and place on the floor. foot and firmly press down.
- Page 12 Site Specific Risk Assessments should be carried out to ensure the usage is suitable for the scenario. The Avalon Barrier is suitable for Wind Category C (19mph) but does require additional ballasting for Category B (39 mph) and Category A winds (59 mph).
-
Page 13: Wind Resistance
WIND CLASSIFICATIONS FOR BS8442 shown below. Category A: 26.3 m/s, 59mph The Avalon Barrier is suitable for Wind Category C (19mph) but does require additional ballasting for Category B: 17.6 m/s, 39mph Category B (39 mph) and Category A winds (59 mph). -
Page 14: Code Compliance
The Street Works manual, or Red Book, tells contractors how to set up their street works sites in a compliant manner and tells manufacturers how to make compliant products. Oxford Plastics design plastic safety barriers and anti-climb enhanced barriers that are 100% compliant... -
Page 15: Recyclability
Oxford Plastics Product Guidelines AVALON BARRIER | TECHNICAL SPECIFICATION RECYCLABILITY MATERIALS The Avalon Barrier body is made from HDPE, with Standard feet made using recycled plastics and ClearPath Extra feet made using recycled plastics & HDPE. StrongWall Base Ballast is also made using recycled plastics. -
Page 16: Associated Products
AVALON BARRIER | TECHNICAL SPECIFICATION ASSOCIATED PRODUCTS When setting up a street works site, other Oxford Plastics solutions can be used to ensure compliance is achieved. Browse our Chapter 8 solutions; including advanced barrier systems, trench covers, road plates, wheelchair ramps and street works signs. -
Page 17: Contact Information
Oxford Plastics Product Guidelines AVALON BARRIER | TECHNICAL SPECIFICATION CONTACT INFORMATION UK & R.O.W Oxford Plastic Systems Ltd Oxford Plastic Systems LLC Unit T2, Enstone Business Park 1011 Centre Rd, Enstone, Suite 312, Chipping Norton Wilmington Oxfordshire OX7 4NP 19805 United Kingdom sales@oxfordplastics.com...
