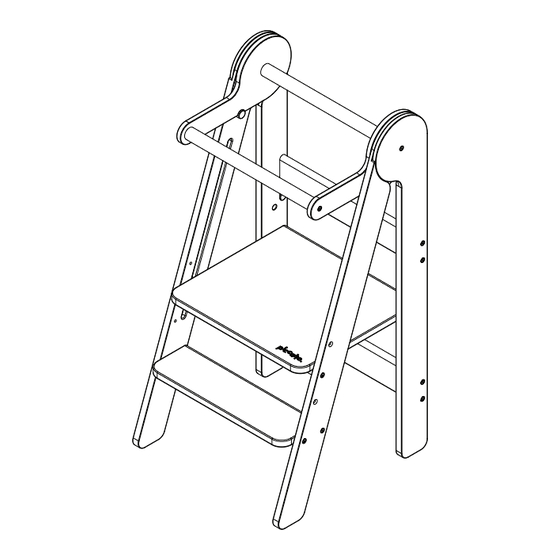

piccalio Mini Chef Foldable Helper Tower Assembly Instructions Manual

Download this manual

Assembly Instructions

Mini Chef Foldable

Helper Tower

Need help?

Do you have a question about the Mini Chef Foldable Helper Tower and is the answer not in the manual?

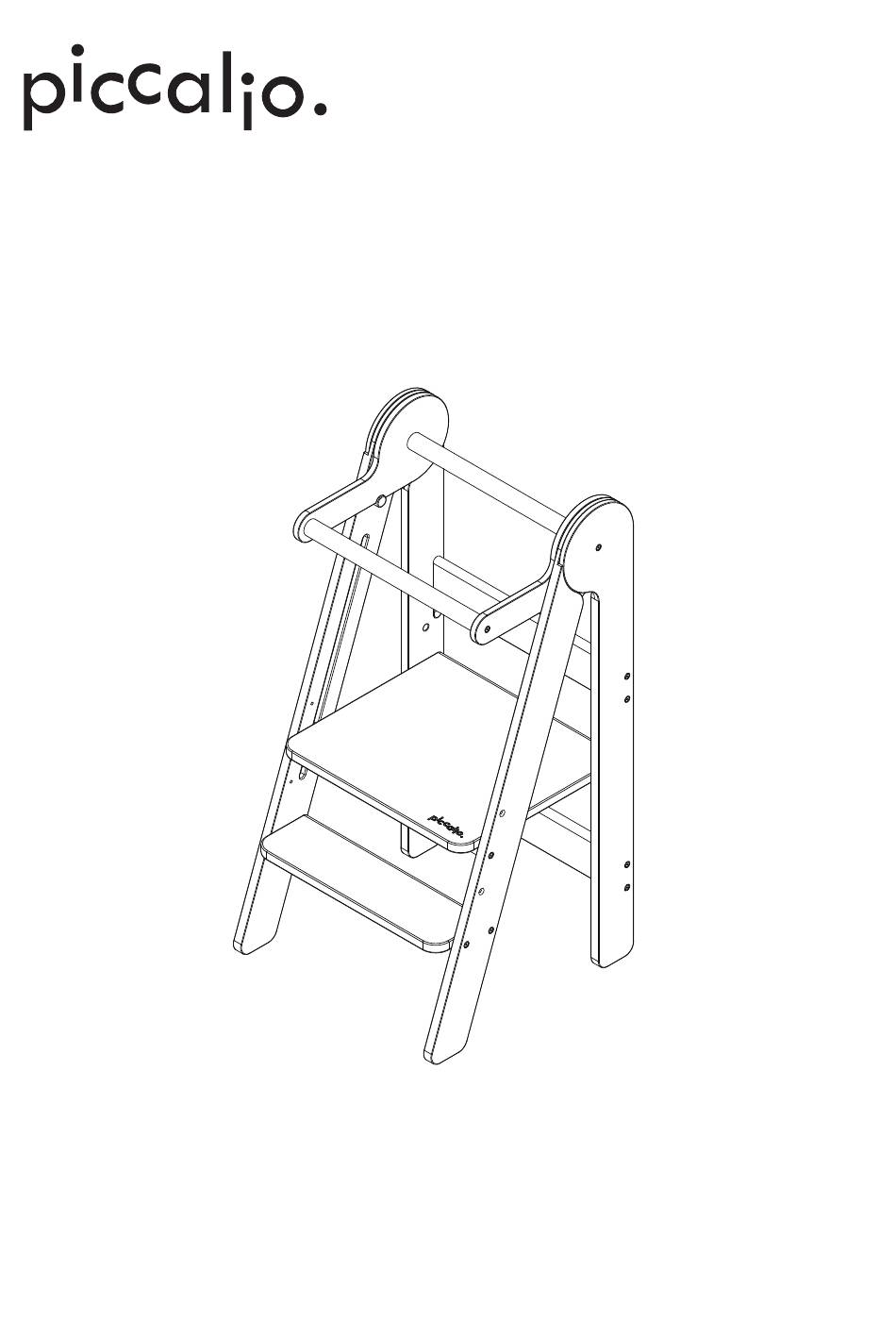

Page 1 Assembly Instructions Mini Chef Foldable Helper Tower...
Page 2: Safety First
Safety ﬁrst Important! Read instructions before assembling and using the product. WA R N I N G FALL HAZARD: This product must be used under adult supervision at all times. Falls can happen suddenly if child is not restrained properly. NEVER leave the child unattended.
Page 3: Parts Inventory
Assembly Instructions Refer to parts inventory for guidance, and ensure you have all pieces before starting. If you’re having difﬁculty, our friendly Customer Care team is always here to help. Email hello@piccalio.com. Parts Inventory...
Page 4 Screw in 2 x Part E into Part A.
Page 5 Place Part B on Part A, screw Part F into Part B.
Page 6 LEVEL LEVEL LEVEL For the alignments of parts D and G, use the above symbol guide. For example, if part G is placed in Level 1, use the corrosponding hole for the wooden pin in Part D.
Page 7 Screw in Part G into Part B.
Page 8 Insert Part D into Part A and B using the wooden dowels.
Page 9 Insert wooden dowel in Part D in corrospondence to which level you have part G and D positioned.
Page 10 Screw second Part A onto Part E x 2.
Page 11 Screw on Part Second Part B onto Part G and F.
Page 12 Connect both C parts with Part H.
Page 13 Use the 2 longer bolts (J) to connect H and A and B, placing part H in the middle.
Page 14 Use the 2 longer bolts (J) to connect H, A and B, placing part H (2) in the middle.
Page 15 FOLDING...
