Everdeck Staging VERSA 750 DECK Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

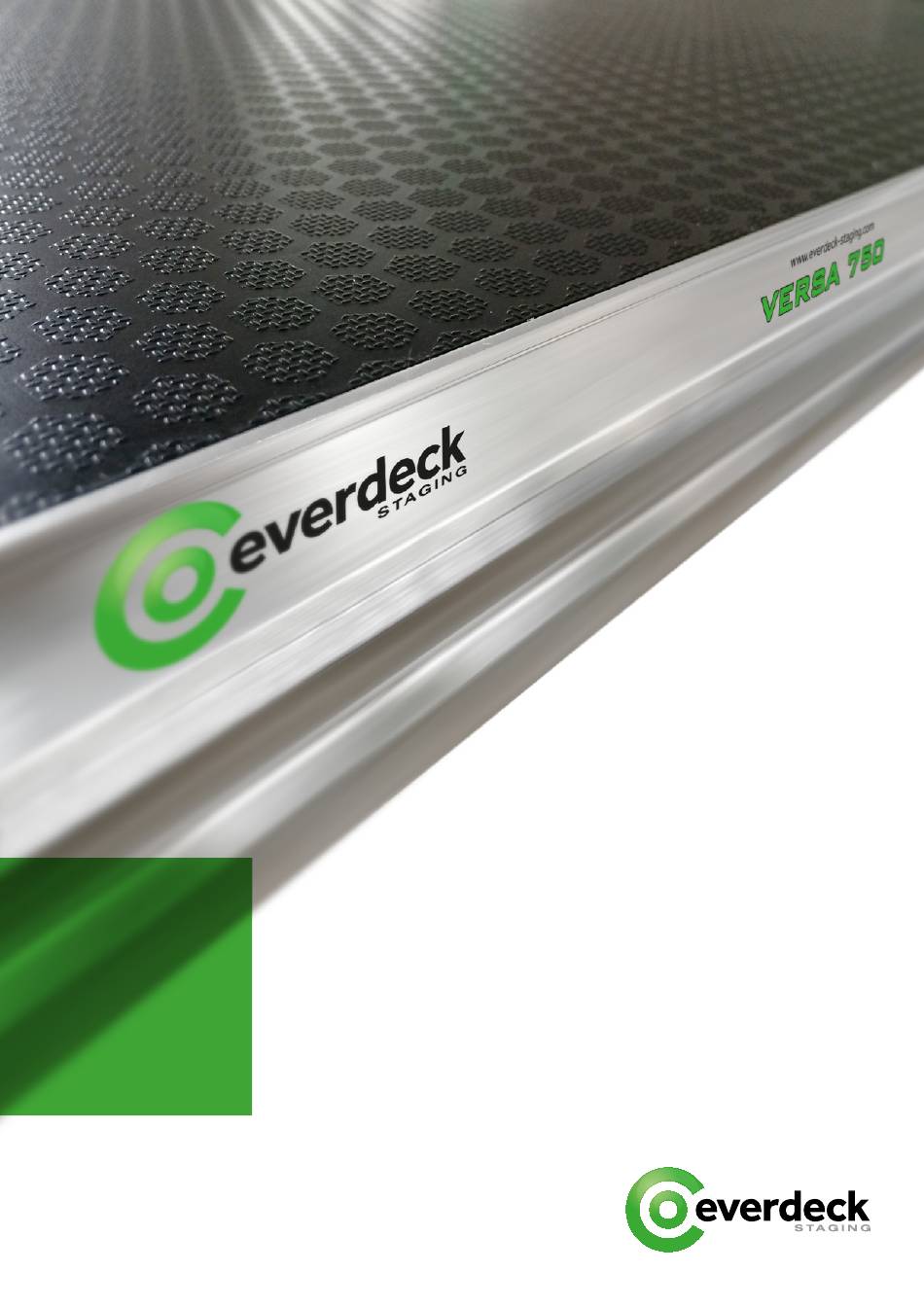

ASSEMBLY MANUAL
FOR EVERDECK
VERSA 750 DECK
Read this manual carefully and understand
all of it's contest before you assemble the
Everdeck stage panels.
Version 1 , OCT 2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the VERSA 750 DECK and is the answer not in the manual?

Questions and answers

Summary of Contents for Everdeck Staging VERSA 750 DECK

  • Page 1 ASSEMBLY MANUAL FOR EVERDECK VERSA 750 DECK Read this manual carefully and understand all of it’s contest before you assemble the Everdeck stage panels. Version 1 , OCT 2017...
  • Page 2 LIMITATION OF USE and IMPORTANT NOTICE: Everdeck stage deck dimension up to 244cm x 122cm on 4 legs can be used to carry loads up to 750kg/m2. The maximum horizontal load is set at 10% of the maximum total vertical load. Make sure only Everdeck original components are used.

  • Page 3: Assembly Instruction

    ASSEMBLY INSTRUCTION: Tools needed: Allen key size 8 Allen key size 10 Leveler NOTE: Please check all the connections, deck to deck, leg to leg and whole stability of the system before loading the stage.

  • Page 4: Leg Assembly

    LEG ASSEMBLY: Put the required leg type in the leg adapter at the underside of the deck frame. Tighten the leg by tightening the knob. Do this at all 4 corners. Tip the deck over and put it in the right possition. IMPORTANT (telescopic legs) IMPORTANT...
  • Page 5 SELF LEVELING INSERT Level the decks using the self leveling insert, use 3 pcs on 2/1m deck. 1pcs of deck leveler on one meter side and 2 pcs on to meter side. DECK TO DECK CLAMP Connect each deck element by using deck to deck clamp. Use 3 clamps per deck, one on the short edge, and 2 on the long edge.
  • Page 6 LEG TO LEG CLAMP Use one single clamp for two legs, position them max 20cm underneath the deck. LEG TO LEG CLAMP Use one double clamp for 4 legs, position them max 20cm underneath the deck.
  • Page 7 SKIRTING 1. Slide the aluminium skirt profile into the deck profile as shown on below diagram and fasten it with an alley key. 2. Attach the skirt to the skirt profile using the velcro straps.
  • Page 8 MODULAR STAIRS Install the steps modular according to the below diagram, using the supplied screws and accessories.
  • Page 9 MODULAR STAIR HANDRAIL Install the modular stair handrail to the modular steps and connect with the stage deck as shown on the below diagram.
  • Page 10 ADJUSTABLE STAIRS 1. Attach the adjustable stairs to the stage deck and fasten it with all 4 screws to the assembly inserwts. 2. After leveling the stage steps fasten all screws on the side profiles of the adjustable stair.
  • Page 11 ADJUSTABLE STAIRS HANDRAIL Install the adjustable stairs handrail to the stairs as shown on below diagram using the supplied screws and accessories.
  • Page 12 HANDRAILS Install railings according to the above diagram, using the supplied screws and accessories and handrail correction (straight or corner).
  • Page 13 HANDRAILS CORNER CONNECTION Connect the handrails on the corner with a handrail corner connection as shown on the below diagram.

  • Page 14: Transport And Storage

    TRANSPORT AND STORAGE Transport all components on pallets, dollies or flight case when moving from one location to another. Store all components in such way that they are free of dust and environmental influences. 1. Deck trolley - for transport and storage in horizontal position.

  • Page 15: Maintenance

    3. Handrail trolley MAINTENANCE Keep the system free from dust, Use warm water to clean all the parts, avoid cleaning materials and chemical fluids. IMPORTANT If you are not sure how to properly fit the different components of contact with Everdeck.
  • Page 16 EVERDECK s.c. ul. Kluczborska 13 B 46-243 Bogacica Poland e-mail: info@everdeck-staging.com phone: +48 795 426 103 phone: +48 668 897 881...
