Summary of Contents for DRIVEN DIESEL DD-67L-1719-TCOOL

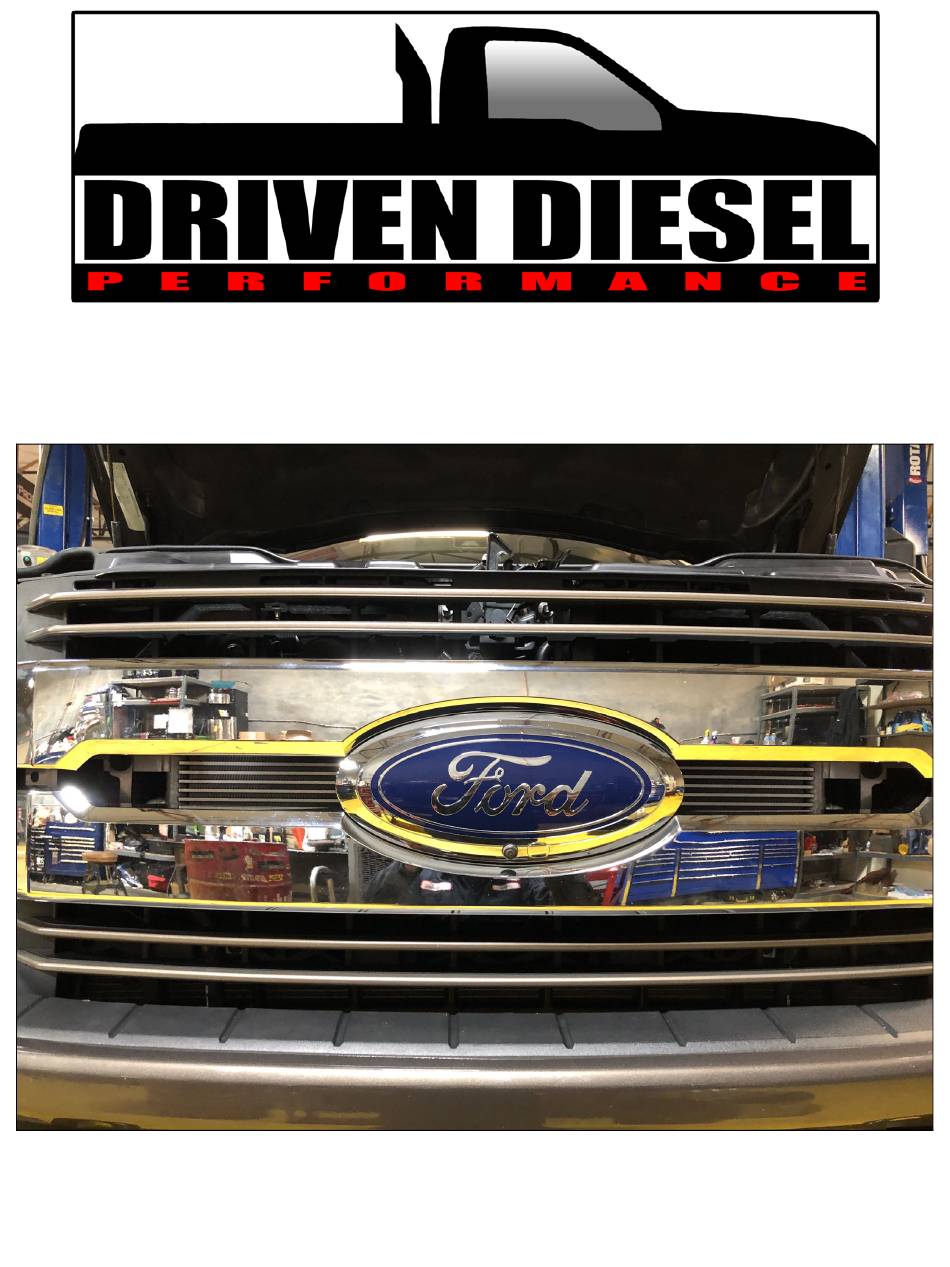

- Page 1 TRANSMISSION COOLER KIT Fits 2017-2019 6.7L Ford Powerstroke Diesel Pickup Trucks Installation Guide...
- Page 2 INSPECT CONTENTS OF THIS KIT THOROUGHLY BEFORE STARTING THE INSTALLATION PROCESS! IF YOU FIND A PROBLEM WITH YOUR PACKAGE: • KEEP ALL OF THE PARTS & PACKAGING TOGETHER • DO ATTEMPT INSTALLATION OF THE PRODUCT • PROMPTLY NOTIFY YOUR SELLING DEALER •...
- Page 3 You for purchasing the Driven Diesel 2017-2019 6.7L Ford Powerstroke Transmission Cooler Kit! Please read and familiarize yourself with this manual fully before proceeding with the installation of the kit. Also, always work safely. Make sure that there is plenty of light and adequate ventilation, and allow yourself several hours to complete the installation.
- Page 4 Constant Tension Hose Clamp - Vinyl Clamp Vinyl Coated Isolation Clamp - 08HB-08Comp ½” Compression to ½” Hose Barb Adapter - Cable Tie 15” Cable Tie - DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 2 of 17 © Driven Diesel, LLC...
- Page 5 11. Unplug the horns and unclip the camera wiring from the center support as shown in Figure 12. 12. Unbolt the horn assembly and move the camera wiring out of the way as shown in Figure 13. DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 3 of 17...
- Page 6 Make sure you protect the air conditioning condenser during this step! See Figure 19. DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 4 of 17 © Driven Diesel, LLC...
- Page 7 If you disassemble the fitting, the ferrule is reinstalled with the thin end pointing into the fitting and the stepped end pointed toward the nut. DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 5 of 17...
- Page 8 Remove the truck from the jack stands and proceed with the next steps if there are no leaks. DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 6 of 17...
- Page 9 49. Reinstall the (8) OEM grille mounting bolts using a 10mm socket, to finish securing the top of the grille. DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 7 of 17 © Driven Diesel, LLC...
- Page 10 CONGRATULATIONS! You’ve just completed the installation of the Driven Diesel 2017-2019 6.7L Transmission Cooler Kit! DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 8 of 17 © Driven Diesel, LLC...
- Page 11 FIGURE 2 : Orientation of Capture Nuts FIGURE 3 : Orientation of Installed Brackets – Note Direction of Bends and Orientation of Cooler Inlet/Outlet Tubes FIGURE 4 : Location of Panel Retainer Pins DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 9 of 17 © Driven Diesel, LLC...
- Page 12 FIGURE 6 : Retainer Pin Removed FIGURE 7 : Location of Grille Mounting Bolts FIGURE 8 : Grille Removal FIGURE 9 : Camera and Squirter Locations (if equipped) DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 10 of 17 © Driven Diesel, LLC...
- Page 13 FIGURE 13 : Harness Moved and Horns Removed FIGURES 14 & 15 : Use Cable Saw in LONG – SLOW Strokes – Cutting Too Fast Will Break Saw DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 11 of 17 © Driven Diesel, LLC...
- Page 14 FIGURE 17 : Second Cut – Center Top – Cut UP FIGURE 18 : Third and Fourth Cuts FIGURE 19 : Center Brace Removed FIGURES 20 & 21 : Positioning The Cooler Using Cable Ties DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 12 of 17 © Driven Diesel, LLC...
- Page 15 FIGURE 23 : Pre-Drill Hole Position FIGURE 24 : Hose Crimp Pliers on Trans Cooler Lines FIGURE 25 : OEM Cooler Cut and Clip Locations FIGURE 26 : Second Cut Location DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 13 of 17 © Driven Diesel, LLC...
- Page 16 FIGURE 29 : Passenger Side Hose Routing with Loom FIGURE 30 : Driver Side Hose Routing with Loom FIGURE 31 : Hoses Route Inside Grill Clip Locations (circled) DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 14 of 17 © Driven Diesel, LLC...
- Page 17 FIGURE 34 : Horn Installed w/Capture Nut, Spacer and Bolt FIGURE 35 : Horn Installed Above Trans Cooler FIGURE 36 : Locations (6 Total) to Notch Factory Grille – See Close-Up Below DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 15 of 17 © Driven Diesel, LLC...
- Page 18 FIGURE 37 : High Speed Die Grinder with Grinding Stone FIGURE 38 : Completed Notches (viewed from top) FIGURES 39 & 40 : Air Deflector Scoop – Before and After Trimming TRANSMISSION COOLER INSTALLATION COMPLETED! DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 16 of 17 © Driven Diesel, LLC...
- Page 19 The Warranty shall be governed by the laws of the State of Arizona (excluding Arizona law with respect to conflicts of law). * Driven Diesel was formerly known as ITP Diesel, LLC and Sinister Diesel, LLC. DD-67L-1719-TCOOL - Last Updated: 4/7/2022 Page 17 of 17 ©...
