CyBe Construction B.V.

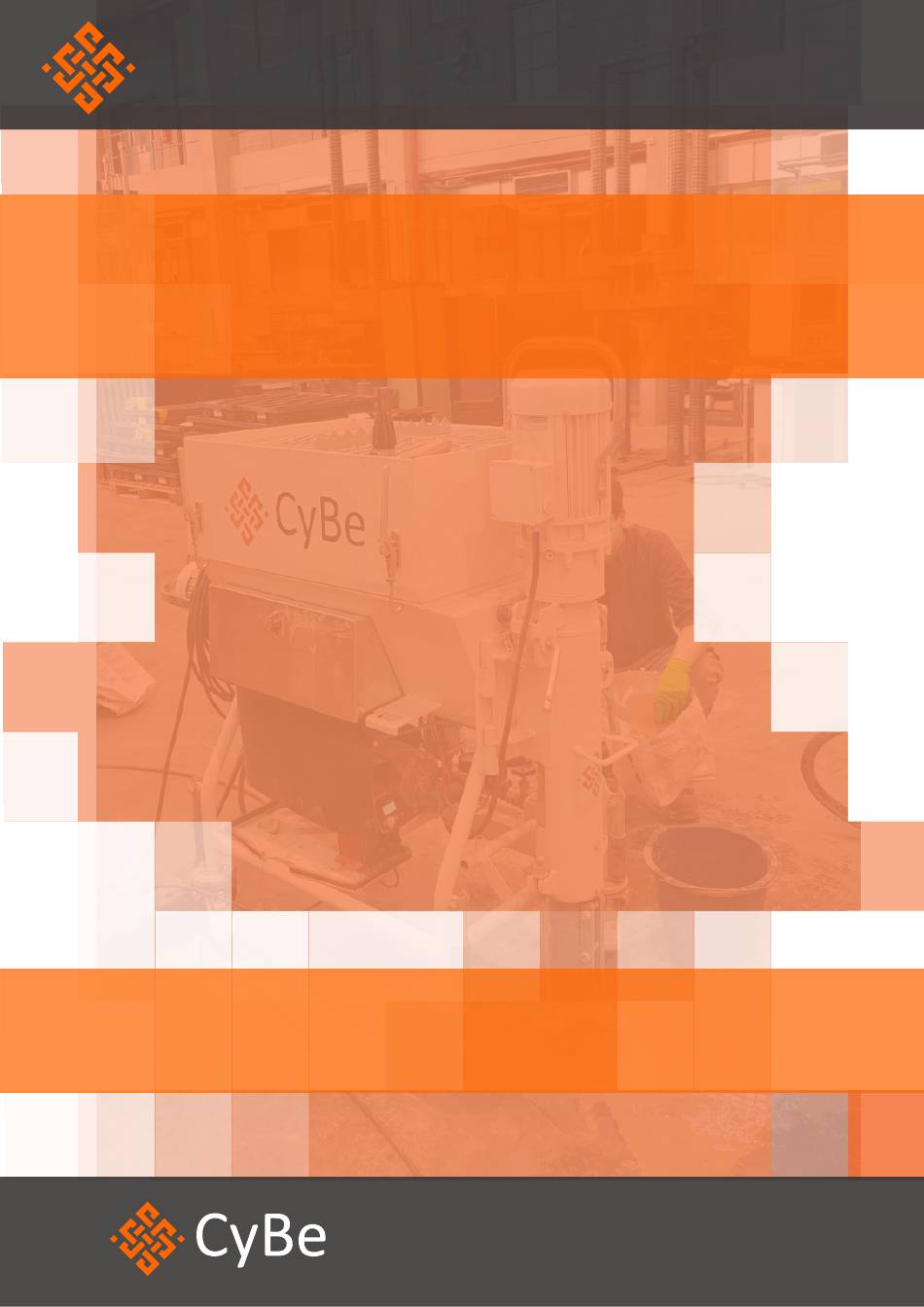

CYBE MIXER 3DP 1.0
OPERATORS MANUAL
CyBe Construction B.V.
Kanaalstraat 12B
5347 KM Oss
The Netherlands
Email
info@CyBe.eu
Phone +31 (0) 412 676 030
KvK
59128380

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3DP 1.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CyBe Construction 3DP 1.0

  • Page 1 CyBe Construction B.V. CYBE MIXER 3DP 1.0 OPERATORS MANUAL CyBe Construction B.V. Email info@CyBe.eu Kanaalstraat 12B Phone +31 (0) 412 676 030 5347 KM Oss 59128380 The Netherlands...
  • Page 2: Table Of Contents

    TABLE​ OF CONTENTS PREFACE SAFETY REGULATIONS DESCRIPTION COMMISSIONING 1.) Connections 2.) Connect the system 3.) Starting up the system 4.) Prepare for printing 4.) Start printing 4.) After printing 5.) Reset the machine: WORK BREAKS 1.) Short Work Breaks 2.) Long Work Breaks and End of Work MAINTENANCE AND CARE MORTAR HOSES UNLIKELY OCCASION OF ERROR &...
  • Page 3: Preface

    In order to avoid damages caused by faulty wear and spare parts and in order to avoid the loss of the guarantee, we recommend to use original wear and spare parts only and to order them by CyBe Construction. Please indicate the article name, as in the list below.
  • Page 4: Safety Regulations

    Nevertheless, in case of improper use, danger to life and health of the operator or other persons can be caused or the machine or other property can be damaged. Commissioning by trained staff only! Only personal, trained by instructors of CyBe Construction ​ w hich received a ​ C yBe 3Dconcrete printing operating equipment ​...
  • Page 5: Description

    With an additional switch, it is possible to run the pump motor backwards for a short while, e. g. to reduce pressure in mortar hose. The machine frame of the CyBe MIXER 3Dp 1.0 is equipped with 4 big swiveling wheels (two with brakes) which enable an easy transport even in small rooms and a safe installation of the machine.
  • Page 6 TECHNICAL DATA Machine type CyBe MIXER 3Dp 1.0 based on PUTZKNECHT S48.3 Order-No. 048.00.100 Drive/Capacity conveying screw 1,1 kW pump 5,5 kW, three phase Operating voltage 400 V/50 Hz Power supply CEE 532/6h Control voltage 42 V/50 Hz Power consumption cpl,...
  • Page 7: Commissioning

    COM​ M ISSIONING 1.) Connections A wire with 5 poles 32 amp / 5p A water connection 2.) Connect the system 1. Connect the electricity cable to the connection on the mixing pump system. 2. Connect the electricity cable to the socket of your power resource. 3.) Starting up the system 3.
  • Page 8: Start Printing

    4.) Start printing 23. Start printing 24. Regularly (every 5 minutes) check the water temperature, the temperature of the jacket and the rotor, and the temperature of the material that comes out of the print nozzle if necessary adjust the additive, the water should only be adjusted in extreme need.
  • Page 9: Work Breaks

    WORK​ BREAKS 1.) Short Work Breaks In case of short work breaks which are not longer than the setting time of the mortar (up to approx. 20 min.), e. g. to transport the machine from one room to another, only stop the machine by remote control. Turn off main power switch and close the slide gate to avoid water running into the dry mortar hopper.
  • Page 10 3.) Preparation for a Long Standstill: Should the CyBe MIXER 3Dp 1.0 be prepared for a longer standstill, e. g. during winter season, we recommend taking out the pump screw from the screw jacket in addition to the cleaning procedure mentioned under point This procedure avoids distortion of the inner screw jacket and possible adhesion of the purnp screw to the screw jacket.
  • Page 11: Maintenance And Care

    Ensure that machine cannot be started unexpectedly during all maintenance and repair work (disconnect main power supply!). The CyBe MIXER 3Dp 1.0 has been constructed almost maintenance-free. For a trouble-free operation mixing chamber, mixing shaft, conveying screw, mortar hopper and vent hole have always to be free from hardened mortar residuals.
  • Page 12: Unlikely Occasion Of Error & Troubleshooting

    ERROR & TROUBLESHOOTING In most of the cases faults at the CyBe MIXER 3Dp 1.0 can be corrected easily. When correcting faults, observe carefully the following instructions: Disconnect main power supply before opening the control box! Switch off main power supply switch or disconnect main power supply when working at the moving parts...
  • Page 13 The content of this operator's manual is not to be reprinted - even partly - without our written permission. All technical information, drawings etc. are subject to copyright. Copyright by CyBe Construction B.V. Technical Data is subject to change without notice.
