Summary of Contents for EVA Sing Dongle ED02

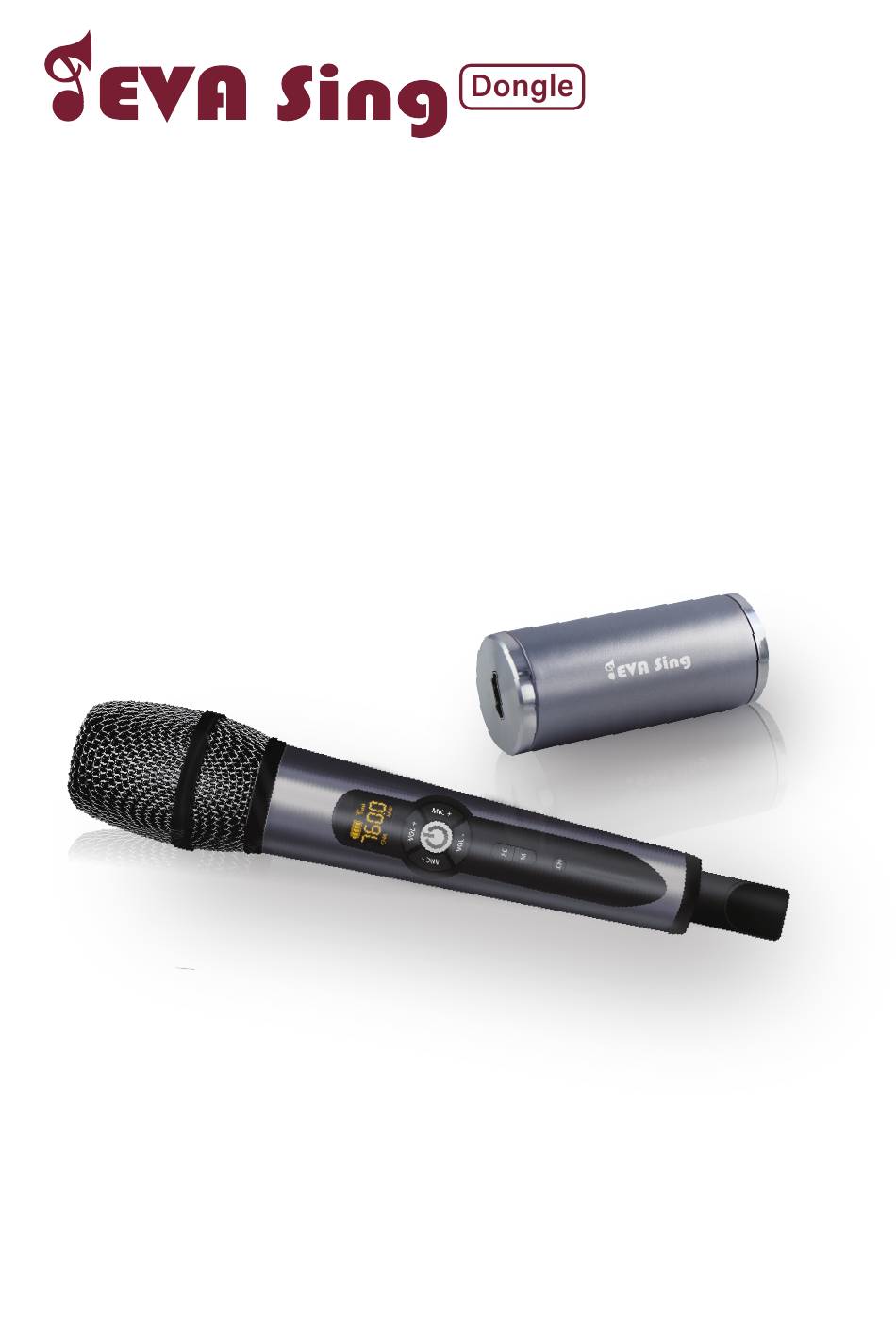

- Page 1 Home Karaoke Set ED02 Quick Start Guide...
- Page 2 Ⅰ. Introduction Thanks for using our product—EVASing Dongle Home Karaoke set (Consists of microphone and reverb receiver). It is the first all-in-one audio and video output device that makes reverberation of vocal and background music. Wide compatibility, suitable for all devices with HDMI output such us set-top box, DVD player, HDMI display dongle, laptop etc.
-
Page 3: How To Connect
Ⅱ. Diagram (1)How to connect ? HDMI DISPLAY DONGLE SET-TOP BOX DVD PLAYER HDMI out HDMI in LAPTOP Micro USB HDMI OUT: HDMI IN: HDMI Out, connected to HDMI In, connected to display devices such as TV or set-top box, DVD player, projector HDMI display dongle, laptop or other devices... - Page 4 (2)Microphone-Key Description VOL‒ VOL+ Background music volume MIC+ MIC‒ LED indicator Microphone volume Power button Adjust ECHO mode Adjust sound effect mode Code key...
- Page 5 ●Description of each key function LED indicator Microphone power and frequency band will be displayed here Power button Short press: turn on ; long press for more than 3 seconds: turn off Short press MIC+, there will be a beep "di" ; long press for Microphone continuous addition.
- Page 6 Ⅲ.Pairng steps of microphone and reverb receiver 1. Connect reverb receiver to HDMI input device and TV or other display device. Temporarily do not supply power. 2. When microphone and reverb receiver are both off, press the code key and power button of the microphone at the same time for 3 seconds.
- Page 7 Ⅳ. Q&A Q. Microphone is turned on, but no sound? A. (1) Please confirm microphone volume setting. Press MIC+ to increase microphone volume. (2) If there is no prompt tone during the adjustment, please make sure that the blue LED light of reverb receiver is on long bright. If not, please follow the steps to pair microphone and reverb receiver again.
- Page 8 Ⅴ. Specification ● Reverb receiver High-performance 32-bit DSP audio processor ; Highest frequency: 288MHz Bluetooth V5.0, compatible with V4.2 and V2.1+EDR Bluetooth PLL-DQPSK digital modulation Signal modulation method 50Hz-15KHz Frequency response 510MHz~980MHz Frequency Range ≥10m Receiving range ≤300mA Working current Micro USB 5V/1A or powered by USB port on TV or set-top box Power supply High-definition digital signal audio and video input...
- Page 9 Ⅵ. Content (1) Reverb receiver*1 (2) Microphone: Single mic / Double mic (3) HDMI cable*1 (4) Micro USB cable*1 (5) Microphone protection cover*2...
- Page 10 Glorykylin International Co.,Ltd. +886-6-722-5111 No.240, Zhongshan Rd., Jiali Dist., Tainan City 722, Taiwan (R.O.C.) service@glorykylin.com...
