EVIE Smart Home Charging Installation Manual
LED Indicators
LED Display
RFID Swipe
Cable Entry
Accessories Supplied in Box
1x Wall
3x RFID Cards
Mounting
(pre-paired)
Bracket
Product Code: EVIECSP732SHA
Type 2, Mode 3, Single Phase 7.2KW 32A
3x Wall Plugs
and CS Screws
1x Cable Gland
(No. 8
M32 & Locknut
recommended
40mm long)
3x Security
2x Keys for
Screws
Enclosure
Lock
1x Security Key
Emergency Stop
Button
Key Lock
Type 2 Socket
1x 32mm to
25mm Plastic
Reducer
1x 32mm to
20mm Plastic
Reducer
Advertisement
Related Manuals for EVIE EVIECSP732SHA
Summary of Contents for EVIE EVIECSP732SHA

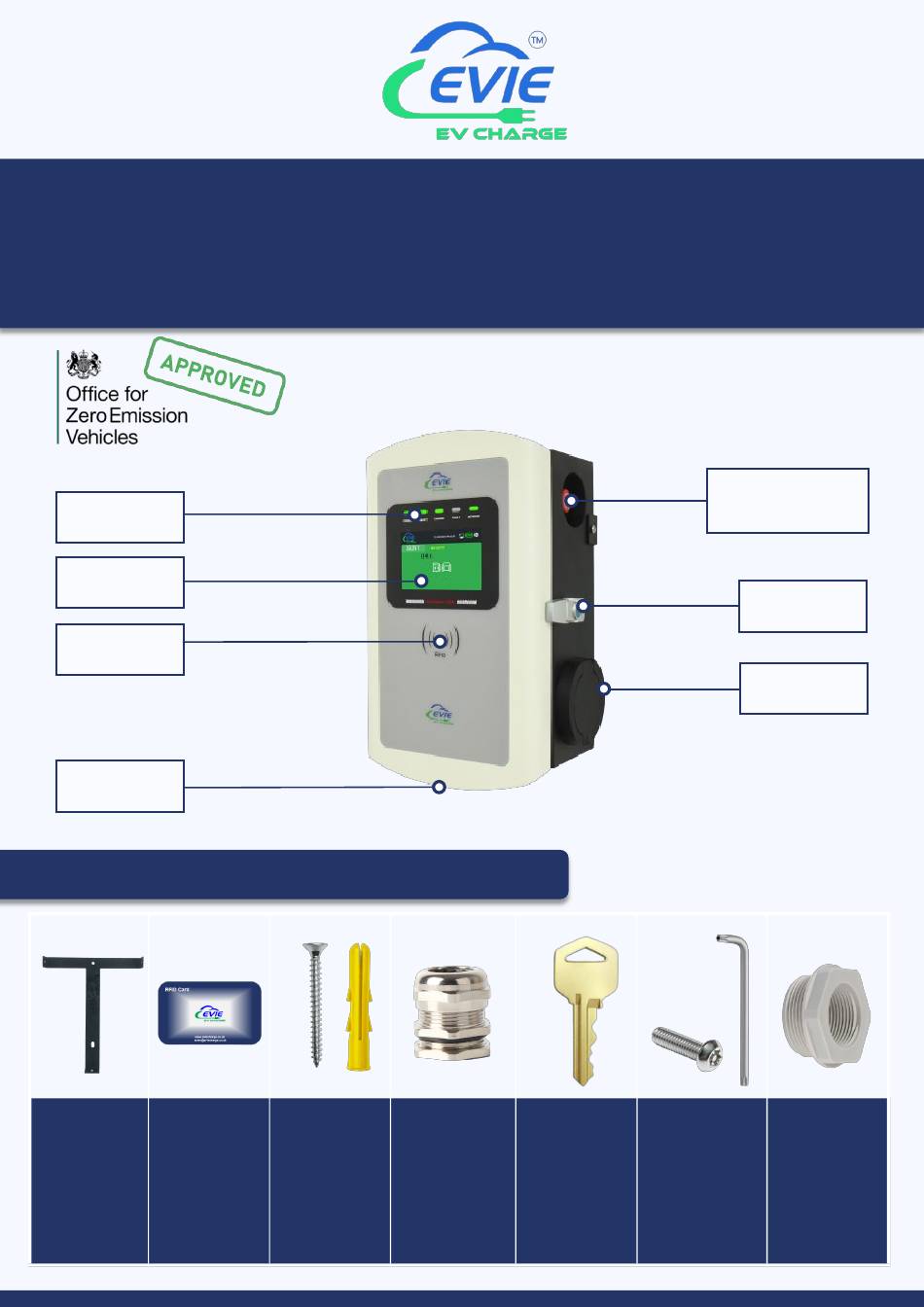

- Page 1 EVIE Smart Home Charging Installation Manual Product Code: EVIECSP732SHA Type 2, Mode 3, Single Phase 7.2KW 32A Emergency Stop Button LED Indicators LED Display Key Lock RFID Swipe Type 2 Socket Cable Entry Accessories Supplied in Box 1x 32mm to...
- Page 2 Overview Page Unit Installation Guide Internet Connection Instructions EVIE App Instructions Important Safety Instructions...
- Page 3 Unit Installation Guide Power Cables The unit can be installed using a suitable 6mm² three core cable Live supply = Brown Neutral cable = Blue PE cable = Green/Yellow Step 1: Attach the mounting bracket to the wall or the ground mounting pole Wall mounting: Please ensure the unit bracket is fixed to an exterior brick wall or suitable wooden •...
- Page 4 Step 2: Connect the power cables (Live, Neutral and Earth) The unit requires an available 40amp dedicated supply from your consumer unit • Ensure the supply cable is not live and is disconnected • Connect the power cables via the cable gland to the indicated input position below •...
- Page 5 Internet Connection Instructions Step 1: Click the settings symbol on the LCD screen Enter the password (123456) when prompted • Select ‘Settings’ • Select ‘Network’ • Choose internet connection type (Wifi/Ethernet/Lan/4G) • - Wifi: Press the refresh button to scan for local networks - Wifi: Enter the network password when prompted The OCPP symbol will appear green after successful connection to your internet network •...
- Page 6 Press send • A 6 digit verification code will be sent to your email address • Copy and paste this code into the EVIE charge app (shown below) • Complete the remaining fields in the form • Press sign up •...
- Page 7 Scan the QR code on the LCD screen and this will complete the pairing • To authorise other users: On the EVIE app select your ‘profile’ by pressing the person icon in the top left of the screen • Select ‘Charger setting’...
- Page 8 When selecting “Set time” you can choose a time to automatically begin charging • (Day/Night). Step 6: Select “Finish Now” on the EVIE app to stop the charging process OR you will receive a push notification displaying ‘Charging Stopped’ (showing the amount of time your vehicle has been charging for)
- Page 9 Plug the charging gun into the vehicle again • Error Message: Network Failure In the event of an error message on the EVIE app stating the unit is offline OR the ‘Network’ • indicator on the unit flashing green reconnect the Wi-Fi: Click the settings symbol on the LCD screen •...
- Page 10 Important Safety Instructions This manual contains instructions that should be followed during installation, operation and maintenance of the EVIE Home Charging unit. For permanently connected (hardwired) charging stations, the unit must be installed by a qualified electrician and in accordance with the latest 18th edition IET Wiring Regulations.
