1. Product features
Small and exquisite, MP3 audio format, excellent sound quality.
Two levels volume for option, small or maximum.
Human body induction, induction distance within 4 meters.
Using WT2003 voice chip solution, unrepeatable triggering pulse.
Standard 32Mbit SPI-flash, available to replace capacity according to customer requirements.
A and B buttons are corresponding to the previous audio, the next audio.
Power-down memory function.
Micro USB interface.
Support to replace the audio files of SPI Flash through USB interface on computer.
3 AAA batteries or USB for power supply.
Built-in 8Ω1 watt speaker.

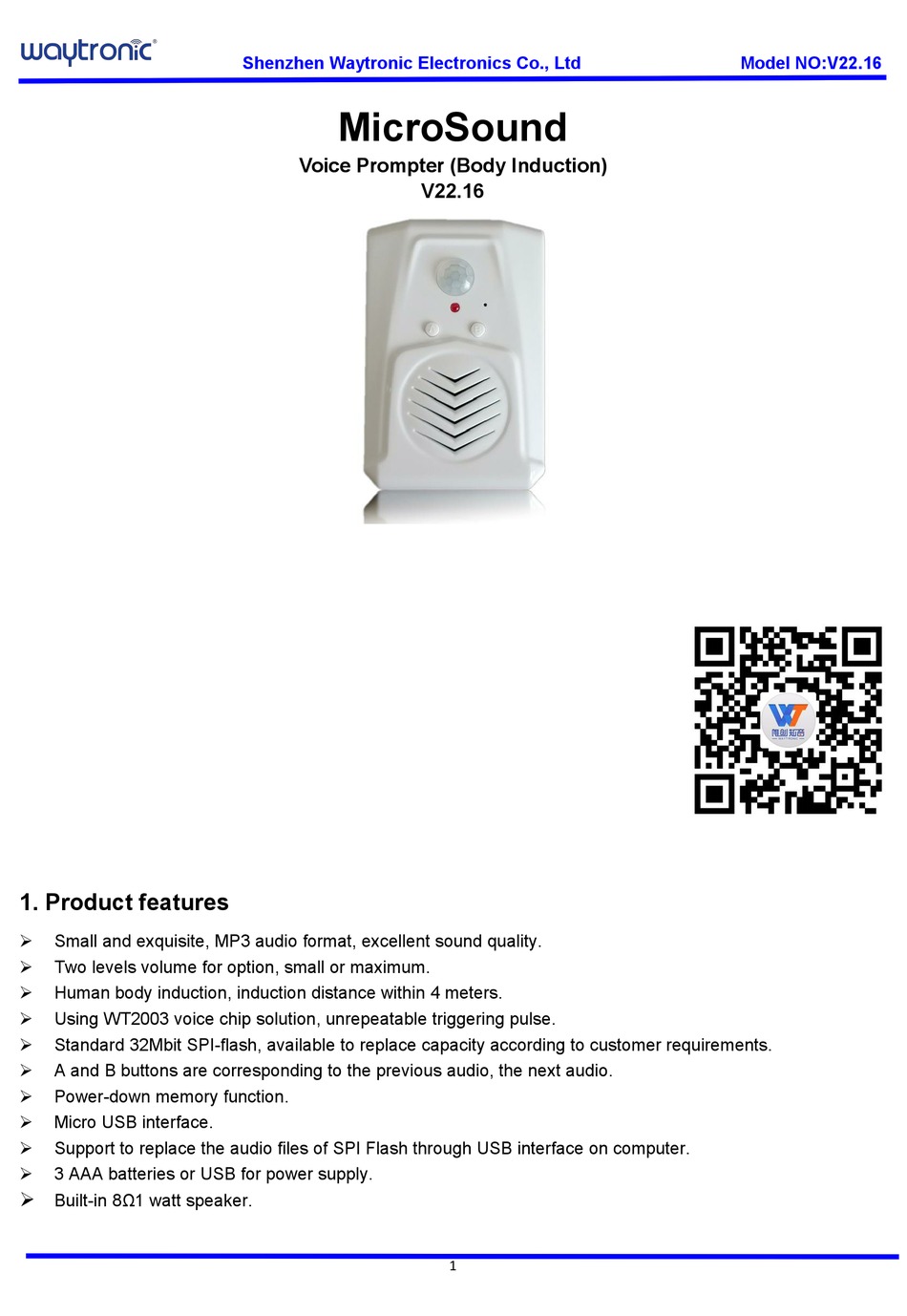

Shenzhen Waytronic Electronics Co., Ltd

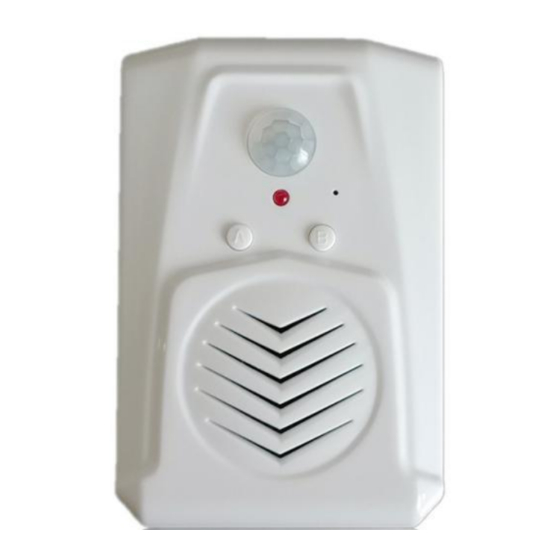

MicroSound
Voice Prompter (Body Induction)
V22.16
1
Model NO:V22.16
Advertisement
Table of Contents
Related Manuals for Waytronic MicroSound V22.16
Summary of Contents for Waytronic MicroSound V22.16
- Page 1 Shenzhen Waytronic Electronics Co., Ltd Model NO:V22.16 MicroSound Voice Prompter (Body Induction) V22.16 1. Product features Small and exquisite, MP3 audio format, excellent sound quality. Two levels volume for option, small or maximum. Human body induction, induction distance within 4 meters.
- Page 2 Shenzhen Waytronic Electronics Co., Ltd Model NO:V22.16 2. Electrical parameters Power supply mode DC3V~ 5V stabilized voltage supply Sleep standby mode ≤100uA Working Current Playing mode ≤130mA(DC4.7V) Audio Format Bit Rate: 8~320Kbps Audio Output Power 8Ω/1W(typical value) Infrared Induction Range ≤4m(120°Angle)
- Page 3 Shenzhen Waytronic Electronics Co., Ltd Model NO:V22.16 To the bottom Switch off Slide Switch To the middle Small volume Uppermost Maximum volume Playing Light off Power off or no voice playing indicator light Light on Voice playing Short press Play the previous audio...
- Page 4 Shenzhen Waytronic Electronics Co., Ltd Model NO:V22.16 ★ Note: 1. When switch on, wait about 20S, then it can work normally. Within 4 meters, when people or animal walk by, it will trigger the sensor to play voice. 2. Each time, after triggering to play voice, you need to wait 2S, then it can trigger again to play voice.
- Page 5 Shenzhen Waytronic Electronics Co., Ltd Model NO:V22.16 Normal induction distance is 0-3 meters. If the temperature is high, induction distance is about 2 meters. If there is electric fan or air conditioner blowing, influence on the temperature of induction area, it can trigger to play voice.
- Page 6 Please replace the battery in time. Disclaimer Shenzhen Waytronic Electronics Co., Ltd. reserves the right to modify the use of materials without notifying customers. The new product specifications will be subject to the latest version of the usage data.
