Connecting Your EQ901 to an Audio

There are three options to connect your EQ901 B or a BOSE 901

Audio Video Receiver (AVR).

Option 1: Adding a Separate Power Amplifier - Best Option

This option requires that you add a separate power amplifier

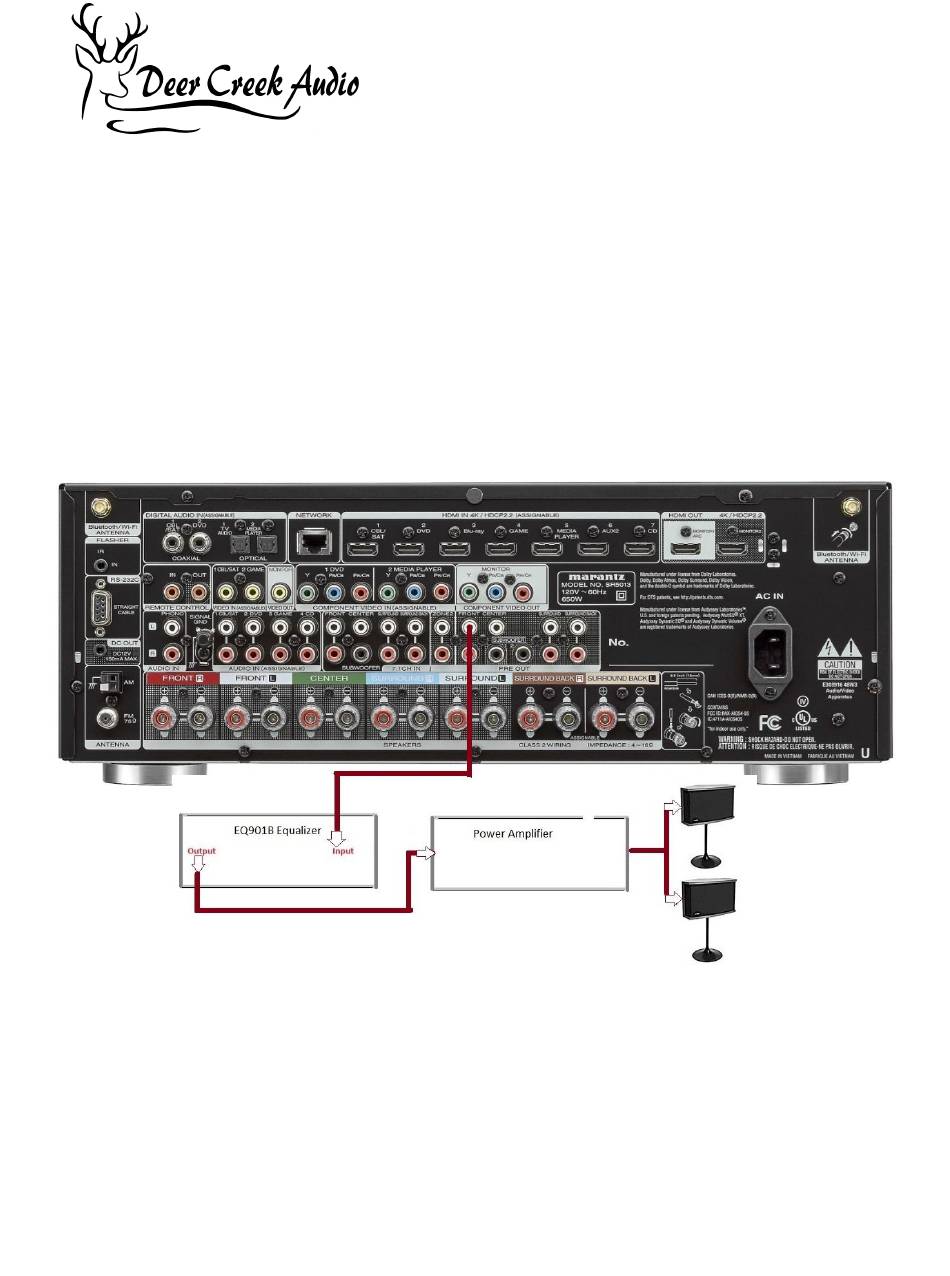

1. Connect the pre-out main left and right to the EQ901 inputs 1 and 2, and the

EQ901 outputs 1 and 2 to the power amplifier inputs left and right

2. Connect your 901 speaker to the power amplifier outputs

The equalized signal will now play through the front left and right speaker outputs in the

stereo and home theater modes.

Video Receiver (AVR)

Equalizer to a typical

Table of Contents

Do you have a question about the EQ901 and is the answer not in the manual?

Page 1 This option requires that you add a separate power amplifier 1. Connect the pre-out main left and right to the EQ901 inputs 1 and 2, and the EQ901 outputs 1 and 2 to the power amplifier inputs left and right 2.
Page 2 Option 2: Setting up Your EQ901 B Using Zone 2 Loop 1. Connect Zone 2 pre-out to the EQ901 input 2. Connect the EQ901 output to any unused analog input 3. Select the Zone 2 source as any input you desire (ie CD player) 4.
Page 3 1. Use this option if you have only one source. This example uses a CD player 2. Connect the EQ901 B in between the CD player and any AVR input 3. This may require the 2V input mode on the EQ901B The equalized signal will play only the single source (i.e.
