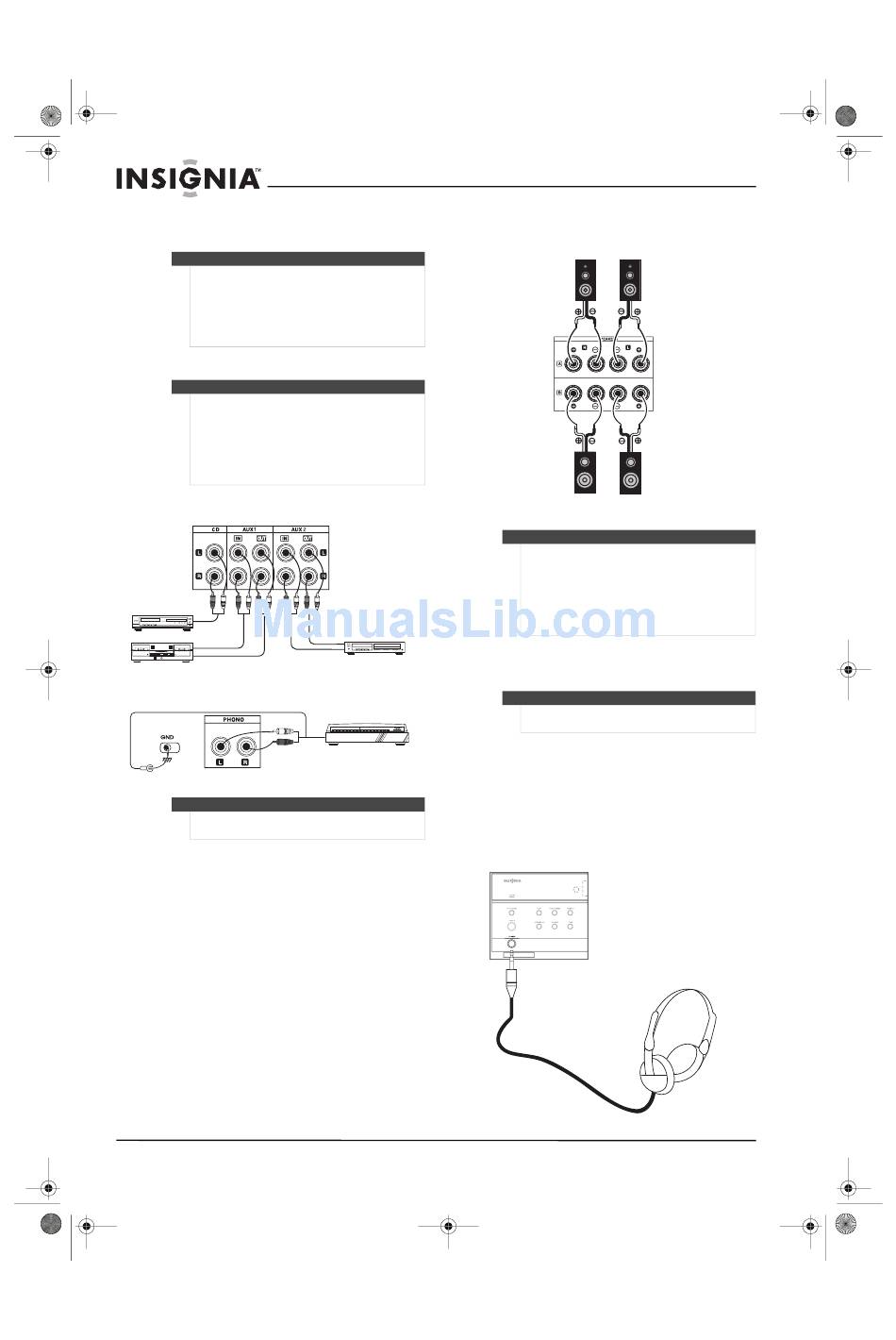

To connect the antennas:
1 Connect the FM antenna to your receiver.
Note
If you are using an indoor FM antenna, change the
position of the antenna until you get the best
reception of your favorite FM stations.
To improve reception, you may use a 75 Ω
outdoor antenna instead of an indoor antenna.
Disconnect the indoor antenna before replacing it
with an outdoor antenna.
2 Connect the AM loop antenna to the receiver.
Note
Place the AM loop antenna as far as possible from the
receiver, television, speaker cords, and the AC cord.
Change the position of the antenna until you get the
best reception of your favorite AM stations.
To improve reception, you may use an outdoor AM
antenna instead of a loop AM antenna. Disconnect
the indoor antenna before replacing it with an
outdoor antenna.
Connecting audio components
CD player
Tape deck
PLAY (LINE) OUT
REC (LINE) IN
Connecting a turntable
Note
To connect a turntable with an MC type cartridge, use
a separate head amplifier or step-up transformer.
4
Connecting speakers
VCR/DVR recorder
REC IN
PLAY OUT
Turntable with MM-type cartridge
Connecting headphones
www.insigniaproducts.com
Insignia NS-R2001 AM/FM Stereo Receiver
Speaker A
Right
Right Left
Speaker B
Caution
Use speakers with an impedance of 8 Ω or more if
using only the SPEAKER A or SPEAKER B
terminals. Use speakers with an impedance over
16 Ω or more if using both the SPEAKER A or
SPEAKER B terminals.
Do not let the bare speaker wires touch each other or
any metal part of this receiver. Doing so may damage
the receiver or speaker.
To connect your speakers:
• Connect your speaker cables to the receiver.
Notes
If you have only one pair of speakers, connect them
to the SPEAKER A terminals.
Be sure to connect the speakers firmly and
correctly according to the channel (left and
right) and the polarity (+ and -). If you do not
make the connections correctly, you will not
hear any sounds from the speakers.
If the sound is unnatural and lacks bass, the
speaker polarity is incorrect.
Left
