OWNER'S MANUAL
L-880 (L) /L-881 (L)

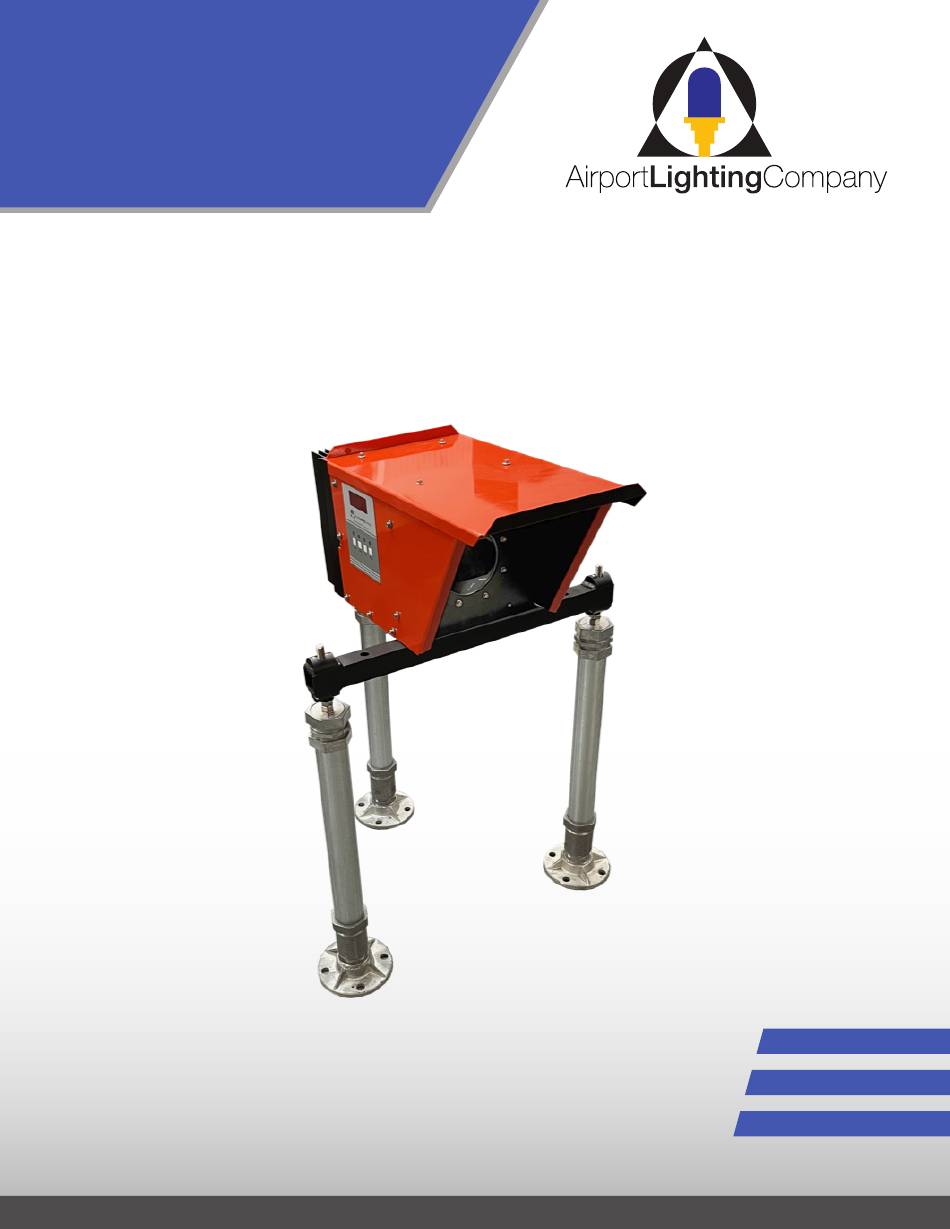

LED Precision Approach Path Indicator (PAPI)
Airport Lighting Company | 108 Fairgrounds Drive | Manlius, NY, USA 13104 | (315) 682-6460 | airportlightingcompany.com
1
[MAN] Precision Approach Path Indicator (PAPI) LED Rev 4
