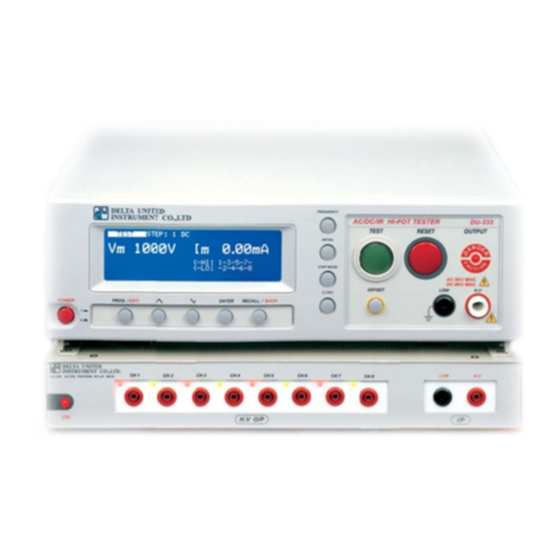

Programmable hi-pot tester

Advertisement

Quick Links

P
r
o
g
r
a
m
P
r
o
g
r
a
P
r
o
g
r
a
H
i
-
P
o
t
T
H
i
-
P
o
t
H
i
-
P
o
t
DU–331/332
m
a
b
l
e
m
m
a
b
l
e
m
m
a
b
l
e
s
t
e
r
T
e
s
t
e
r
T
e
s
t
e
r
Operation Manual
e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DU-330 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Delta United Instrument DU-330 Series

  • Page 1 DU–331/332 Operation Manual...
  • Page 2 ** CAUTION - HIGH VOLTAGE ** ※ This tester generates high voltage up to 5 KV AC (DU-331 & DU-332) 6 KV DC (DU-332 only) ※ Any incorrect operation may cause serious damage and fatal electric shock ※ In order to avoid any accident please read the section 1 “Safety Steps Before Operation”...
  • Page 3 ******* GUARANTEE ******* This tester has been under thorough testing, inspection and quality control before shipments. specification and performance have been under intensive burn-in testing such that Tester’s it performs all functions with guarantee specifications as specified. We provide free warranty of 12 months from date of purchase for defects due to manufacturing poor workman-ship and the tester is under normal usage.
  • Page 4 *UNPACK CARTON BOX & INSPECTION * This tester has been under thorough quality inspection both electrical and mechanical. Should there be any damages or malfunction due to mechanical shock during transportation, please inform manufacturer or distributor for inspection. STANDARD ACCESSORIES Item Accessories Qty Nature...
  • Page 5: Table Of Contents

    1. Safety Steps Before Operation 1 - 4 2. Overview 5 - 6 3. Specification 7 - 8 4. Panel Layout 9- 11 Front Panel Layout 9 - 10 Rear Panel Layout 10 - 11 5. Operation Instructions 12 - 25 5.1 Caution - Before Operation 5.2 Test Datum Setting Operation 12 -15...
  • Page 6: Safety Steps Before Operation

    1. Safety Steps Before Operation This tester can generate up to 5 KV AC (for DU-331) and 6 KV DC as well (for DU-332) at output terminals. Make sure that the tester is properly used as instructed otherwise there is a danger to encounter electric shock that can cause fatal accident of any damage.
  • Page 7 1.3 Connecting Voltage Test Lead (Black) to “LOW” Output Terminal Always connecting Voltage Test Lead (Black) to “LOW” Output Terminal when the tester is under operation as shown in (Diag.2). Also always check if the test lead is properly connected to the “LOW” Output Terminal without loosen or fallen off. When tester is under operation connect the “LOW”...
  • Page 8 OUTPUT indicator is “OFF”, it shows that the voltage indication lamp may be malfunction. Please contact the manufacturer or distributor for repair. Page 3 1.10. The DU-330 Series Tester has 4 selections on AC Input Voltage Range (Pls. see Table 1).
  • Page 9 Check the AC power line and select the correct useable voltage range from the “Voltage Selection Panel” located at the rear panel. There are two types of fuse provided. Use correct fuse according to Table 1 as shown. Voltage Nominal Value Voltage Range Type of Fuse Indication...
  • Page 10: Overview

    2.2.2 Large LED Display DU-330 Series tester uses a large LCD display. With it’s well display format design, it can display all setting parameters, test results, step numbers, memory numbers etc. simultaneously in one display area. This allows the operator to see in the most convenient way all necessary testing parameters under setting mode, and test results.
  • Page 11 2.2.4 Saving and Recall Setting Parameter DU-330 Series has internal memory for storage of setting parameters. It provides 9 groups of memories and each group has 99 steps of setting parameters. Any of these 9 groups and 99 steps of memory can be recalled for usage or change of parameters. This feature can save time and effort to set testing parameters whenever is required.
  • Page 12 3. SPECIFICTIONS. Model DU-331 DU-332 DU-333 Scan Test 8 ports ± phase Withstanding Voltage Test (DU331 AC, DU332, 333 AC/DC) AC: 0~5000V / DC: 0~6000V. Digital setting (4 digits), 10V/ step, Output Voltage adjustable with^ / ﹀keys. ≤1%+5V Voltage Regulation Waveform &...
  • Page 13: Specification

    Source Protection Function Fast Output Cut off < 0.4ms Fast Discharge < 0.2s Panel Operation Lock Power On Data Rally Reset Protection Key Other Function Display 240x64 Dot Graphic LCM, CFL back light. Signal Output PASS, FAIL, and TEST with relay contact signal. Data Hold Judgment Result Display PASS/ FAIL and Alarm.
  • Page 14: Panel Layout

    4. Panel Layout 4.1 FRONT PANEL LAYOUTS. 1. POWER ON/OFF SWITCH This is an On/Off switch for AC power source. Please refer to Section 1 “Safety Steps Before Operation” for detail. 2. PROG. /EXIT This allows tester-entering program set up mode. When this button is pressed LED display screen will show all set up parameters.
  • Page 15: Rear Panel Layout

    11. OFFSET This switch enables the tester to offset any residual leakage current occurs on test leads or test fixture in used. 12. TEST When this switch is activated the tester will enter into test mode such that the output terminals will experience high voltage.
  • Page 16 3. VOLTAGE SELECTOR These are input voltage range selection switches, which enable the tester for global usage are 4 different voltage ranges for selection as listed: a. 90 ∼ 110 V AC b. 104 ∼ 125 V AC c. 194 ∼ 236 V AC d.
  • Page 17: Operation Instructions

    5. Operation Instruction 5.1 CAUTIONS - BEFORE OPERATION 1. Make sure the AC power line supply matching the selected voltage range before turning on the AC power switch. 2. The tester has self-calibration function which performs right after the power switch is “ON” Should there be any extra-ordinary situation happened turn off the in power switch and un- plug the AC power source.
  • Page 18 2. Test Mode Set Up: AC / DC / IR Test mode can be assigned by pressing ∆ or ∇. Setting can be confirmed by pressing [ENTER] and the cursor automatically jumps to next setting parameter. 3. Leakage Current Hi Limit: 0.10 ∼ 15.00 mA (DC 7.50mA) Value of current can be set by pressing the ∆...
  • Page 19 If test mode has been selected as IR, the cursor is highlighted at the position of the value of Insulation Resistance for High Limit. Press the ∆ or ∇ key to change the value and confirmed by pressing [ENTER], thus position of the cursor will jump to next page.
  • Page 20 7. Test Time Setting: 0.00 ∼ 99.9 Sec. or 0.00 Sec. for continuous test “Test Time” is high-lighted by the reverse video cursor. The assigned length of test time can be changed by pressing the ∆ or ∇ key. If 0.00 Sec.is set, the test will perform continuously until [RESET] is key in.
  • Page 21: Test Operation Procedure

    5.3 Test Operation Procedure 1. Connection to Device Under Test (DUT) Before connecting to the DUT make sure “DANGER” LED lamp is off. Make sure there is no voltage existing across the output terminals by plug in the black test leads to “LOW”...
  • Page 22: Initial" Operation Instruction

    When test results are out of either Hi or Lo Limit the tester determines the DUT is fail. Output voltage will be cut off immediately, “FAIL” sign, disqualified judgment is displayed on the LCD display. “FAIL” output signal appears at rear panel terminals, and the buzzer alarms continuously until [RESET] are pressed.
  • Page 23: Utility

    Press the ∆ or ∇ key so the desired interface (GPIB or RS232) is highlighted. Then press the [ENTER] key again to initiate the interface data set-up mode, which is clearly marked as shown. Pressing can change the value for these two interfaces the ∆...
  • Page 24: Initial Value

    5.4.3 INITIAL VALUE Moving the ∆ or ∇ key so the cursor moves to “INITIAL VALUE” in the “SYSTEM SETUP” page, then press the [ENTER] to initiate the “INITIAL VALUE” page as shown. On this stage the tester provide a function to cancel datum stored in the memory and previous calibration set values.
  • Page 25: Step Mode Test Selection

    5.5 Step Mode Test Selection This function is to provide various test sequence selection for different applications. Just pressing the [STEP MODE] button on the front panel, the following page appears on the display. There are four basic test sequence combinations as follows: 1.
  • Page 26: Adj. Operation

    The next step is to assign the last step by changing the number as pointed by the arrow as shown. Using the ∆ and ∇ keys to change the number as desired and press [ENTER] to complete the command setting. The cursor will then jump to and highlighted at “TIMES (S)”.
  • Page 27: Freq Adjustment

    5.7 FREQ. Adjustment The operating frequency of the AC output test voltage can be changed between 50 Hz to 60 Hz. Pressing the [FREQ.] button under “STAND BY” mode to activate the change as shown. 5.8 OFFSET function operation To allow a more accurate leakage current measurement any residual leakage current occurred in the test fixture or test leads can be offset by the “OFFSET”...
  • Page 28: Recall / Store Function

    5.9 RECALL / STORE function There are two major functions. 1. To recall and store setup parameters from and to the memory for operation. Press [RECALL BACK] button to activate this function and the following page may appear as below: Press [ENTER] to confirm recalling desired memory group The memory number has been highlighted.
  • Page 29: Remote Control (Rmt) Operation

    5.10 Remote control (RMT) Operation There is a 9 pin D type connector for remote control operation. There are three types of connections as follows: 1. “TEST” & “RESET” can be control remotely. For “TEST” mode one can operate with or without front panel “TEST”...
  • Page 30: Signal Output

    5.11 Signal Output The tester offers signal output for remote control at the rear panel. TEST -- Under test condition the two terminals marked with “TEST” at the rear panel is short circuited for remote control. This short circuit status changes until “RESET”...
  • Page 31: Calibration

    6. CALIBRATION 6.1 List of equipments required for calibration 1. High Voltage Meter: Measuring range - AC 0 ∼ 10,000 KV, accuracy = ± 1% DC 0 ∼ 10,000 KV, accuracy = ± 1% Input Impedance - ≥ 1000 MΩ AC 0 ∼...
  • Page 32: Calibration Procedure And Method

    6.4 Calibration procedure and method 1. Connecting up the input terminals of the high voltage meter to the output terminals of the tester. Press the [INITIAL] button and position the cursor to the position marked “CALIBRATION” using the ∆ and ∇ keys. To initialize the calibration mode just press [ENTER] and the following page appears.
  • Page 33 5. Change the resistor load value to “100.0 KΩ“ in series with the current meter. Press [TEST] to initiate the 10.00 mA calibration. Set the value of the current in side the bracket with the ∆ and ∇ keys to match with that measured by the current meter.
  • Page 34 8. Disconnect the voltmeter and use a current meter to connect a “10.00 MΩ“ resistor load in series to the output terminals. Set the voltmeter to DCA 20.000 mA current range. Press [TEST] to initiate the DCA 0.10 mA calibration mode. Use the ∆ and ∇...
  • Page 35 voltmeter. Press [ENTER] to complete this calibration step as shown: 12. Take away the voltmeter and replace with a resistor load of 4500 MΩ connecting across the output terminals. Press [TEST] entering into the IR RES. 4500 MΩ calibration mode. Wait for approximately 5 min. and press [ENTER] to complete this calibration step as follow page is shown: 13.
