USER MANUAL

1. Understand the

headphone

Need help?

Do you have a question about the B20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Corsran Technology B20

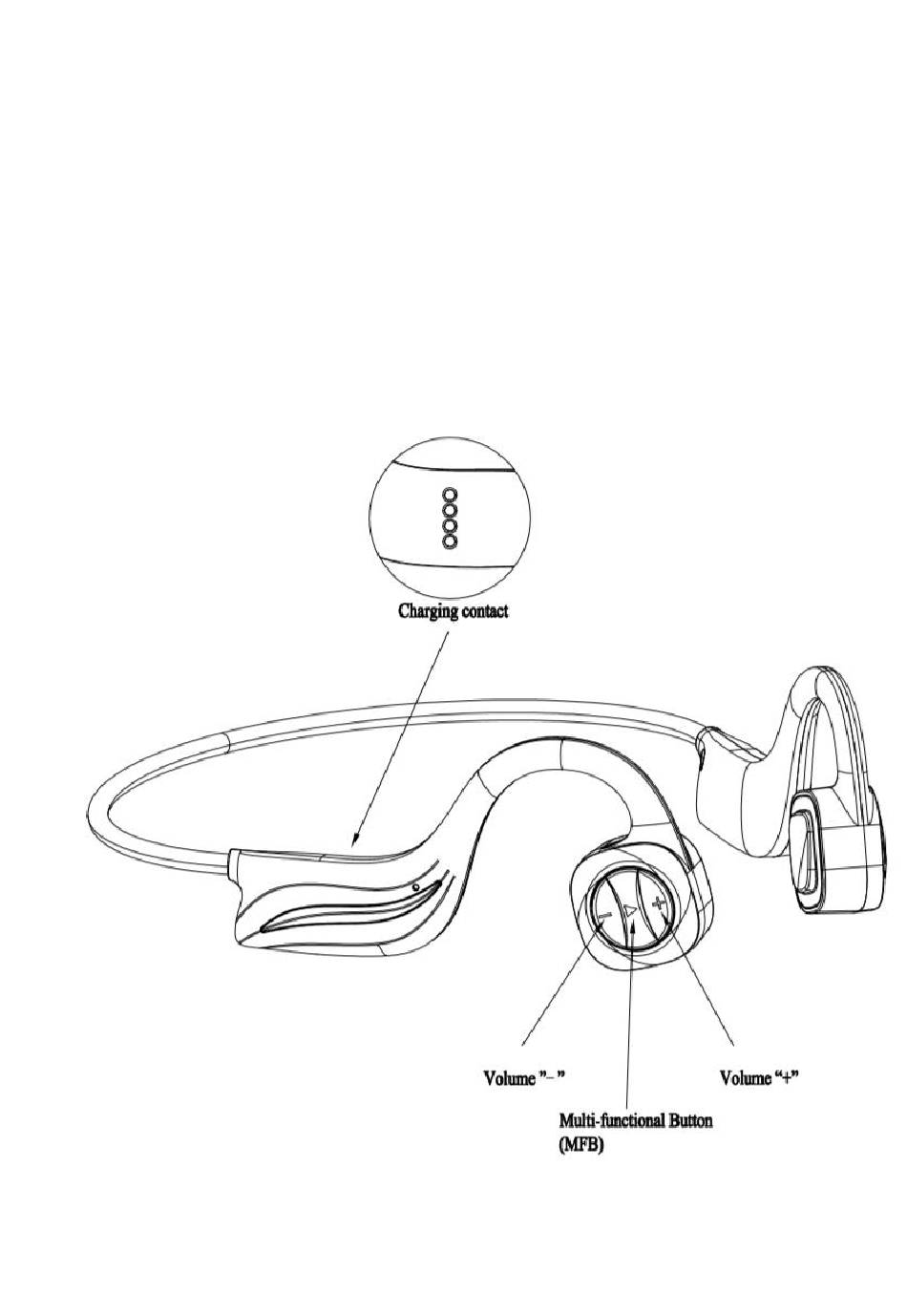

Page 1 USER MANUAL 1. Understand the headphone...
Page 2 2. How to wear 3. Charging and transmit music files 1) Headphones comes with unique charging base 2) Bring the charging base and charging contacts together as follows to charge or transmit files 3) Always ensure the charging contacts and the charging base are clean to avoid bad contact...
Page 3 4. Wireless Headset controls 1) On/Off: Press the “MFB” for about 3 seconds 2) Pairing： (1) While the device is turned off, press and hold the Power Button for 3 seconds, at which point the Led Indicator will begin flashing in alternating red/blue and voice promotion “waiting for connection”...
Page 4 (2) On the electronic device that you’re pairing your headphones with, locate the Bluetooth menu and select the headphones (3) Headphones will be connected within seconds and voice will prompt with the word “Device connected”. 3) Mode switching between Wireless Mode/MP3 Mode ：...
Page 5 8) Reject a call: Press and hold the MFB 9) How to control MP3 play: Click the “-” to the single track, single play or Loop Playback 5. Specifications: Wireless version: Wireless 4.2 Support profile: A2DP v1.3,AVRCP v1.5,HFP v1.6,HSP v1.2 Working frequency: 20HZ –20KHZ Speaker Diameter: 16 mm Speaker Impedance: 8 ohm...
Page 6 Charging time: 1.5 hours Charging port: Charging contacts & charging base Wireless transmission distance: 33 feet (free space) Microphone: Built-in microphone Microphone sensitivity: -38 dB Headphone type:Bone conduction Power display: IOS device Main material: PC/ABS Weight: 1.6 OZ Dimensions: 4.48*3.24*1.41 inch Built-in Memory: 8GB Waterproof rating: IPX8 6.Tips for using this headphones for...
Page 7 position before you wear your swimming cap, so that the swimming cap will help to position the headphones 2) Turn your headphone to MP3 mode for better music experience when swimming 7.Cautions 1) Liquid except water, sweat, such as salty water may lead to damage of the headphone.
Page 8 Charging Dock*1 User Manual*1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
Page 9 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 10 equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
Page 11 help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
Page 12 使用手册一、功能图示...
Page 13 二、如何佩戴佩戴方式如下图所示...
Page 14 三、如何充电和数据传输底座充电和数据传输如下图所示...
Page 15 四、产品功能 1，开机：长按耳机中间键开关机键 3 秒开机。 2 ，配对：开机红蓝灯闪烁时进入配对模式，在手机上选择此设备名完成配对。 3，蓝牙本地播放切换：同时按下加减键。 4，关机：长按耳机中间键 3 秒关机。 5，音量调节：按一下减号键音量减小，按一下加号键音量加大。 6 ，上下一曲：长按减号键上一曲，长按加号键下一曲。 7 ，中间按键短按一下暂停，播放，接听电话。 8，本地播放音乐：连续按 2 下减键单曲循环、顺序播放、列表循环。...
Page 16 9 ，充电和数据传输配有专用底座。五、充电和数据传输。将底座放好在背部触点位置，可以充电或数据传输。注意背部触点和底座接触位置表面比较脏时，可能导致接触不良引起充电或数据传输失败，请保持背部触点和底座弹针表面干净。六、参数说明蓝牙版本：Bluetooth 4.2 支持协议： A2DP v1.3,AVRCP v1.5,HFP v1.6,HSP v1.2 工作频率：20HZ–20KHZ 喇叭直径：16mm 喇叭阻抗：8ohm 电池：锂聚合物电池，200mAH 音乐播放时长：4-5 小时...
Page 17 通话时长：4-5 小时待机时间：120 小时充电时间：1.5 小时充电端口：底座无线传输距离：10-15 米（空旷处）内置麦克风麦克风灵敏度：-38 dB 耳机类型：骨传导 IOS 设备电量显示主要材料：PC/ABS 重量：45 g 尺寸(L*W*H)：148mm *108mm*47mm 机身内存：8G 耳机防水等级： 8 级七、关于游泳时说明一，游泳前的准备...
Page 18 1，将耳机戴在耳朵合适位置。 2，戴好耳机后，再戴泳帽，把耳机套在泳帽里面，防耳机掉落。二，注意事项 1，底座不防水，请勿接触到水。 2，在河流或海洋中游泳时请勿使用本耳机。 3，无法将本耳机蓝牙连接到智能手机，请使用本地播放音乐。 4，在公共或私人游泳设施中使用本耳机时，请遵守设施的相关规定。 5，本耳机适用淡水、池水、自来水、汗液。不适用除上述以外的其他液体。 6，避免以高音量播放音乐，长时间播放可能会影响听力。八、包装清单耳机 X1 底座 X1 说明书 X1...
