Summary of Contents for ANDIG WSP-i450

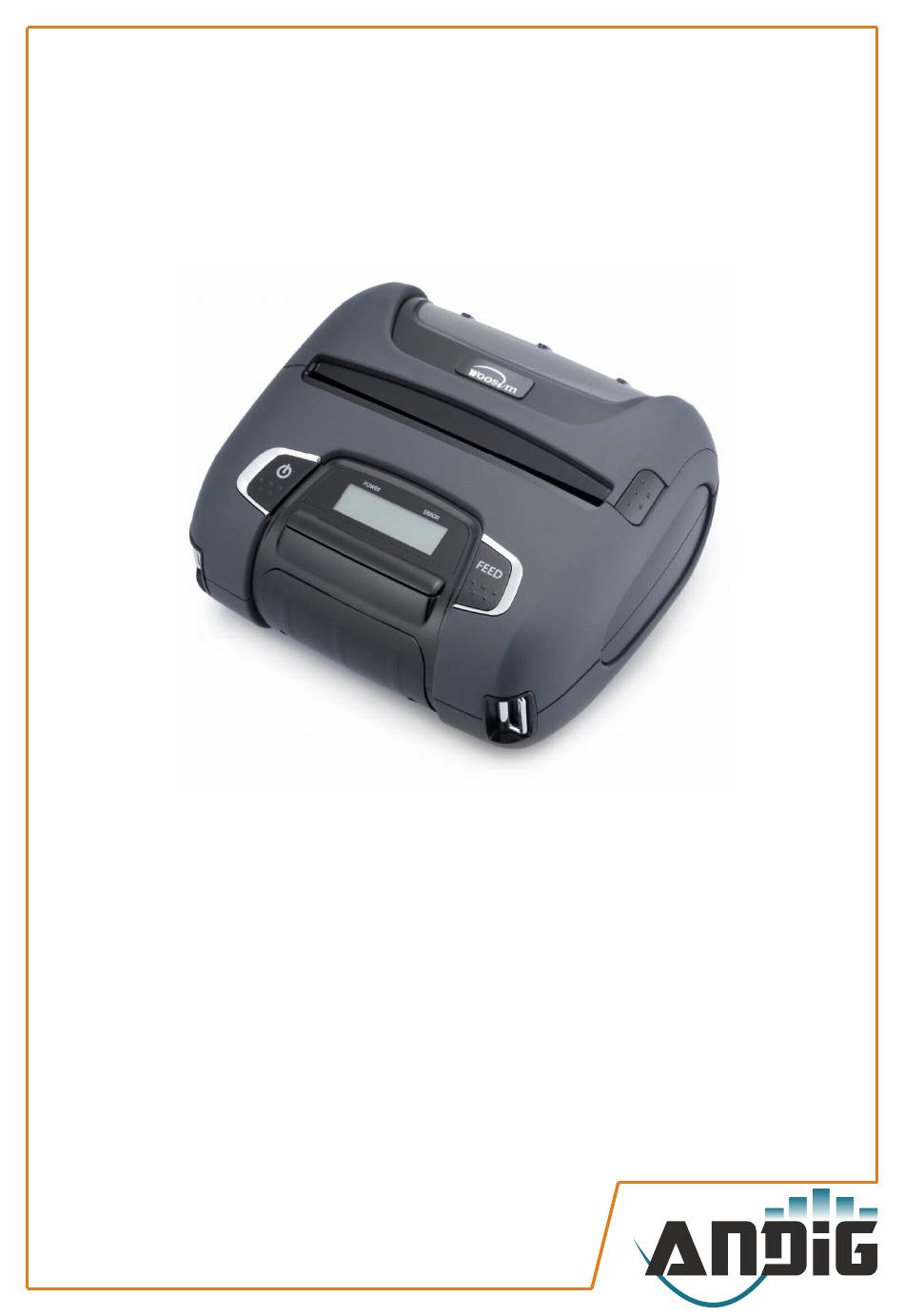

- Page 1 WSP-i450 Mobile thermal printer ● Rugged design ● Support text and graphic printing ● Mild (596g) ● UART (RS-232C or TTL), Bluetooth Ver3.0, USB, WiFi ● High resolution (203dpi : 8 points /mm) Version 0.1...
-
Page 2: Table Of Contents
Introduction....................3 Operating precautions :.................4 Specifications :....................5 Setting up the printer :..................6 Printer features :....................7 Dimensions :....................8 Replacing the paper roll:................9 Control panel :....................10 Set operation mode :...................11 Interface :....................14 The self-test :....................15 Using belt-clip :..................15 Consumable parts :..................16 Doc WSP-i450... -
Page 3: Introduction
Introduction → The WSP-i450 is the perfect partner in application such as mobile bank system, retail, point of sales, credit card transaction, other travelling and mobile computing, etc... → General features : ➢ Compact size (150 x 136.4 x 63.3 mm) ➢... -
Page 4: Operating Precautions
Do not rub the paper with hard object. • Do not allow plastic film, erasers, or adhesive tape to touch the paper for long periods. • Do not use chemical glue. • Always use the clean thermal paper. Doc WSP-i450... -
Page 5: Specifications
MSR [option] ISO 7810 / 7811 / 7812 1&2 &3 tracks reading ISO 7816 Compliant (EMV level 1 certified) Module Smart Card T=0, T=1 / 1 SAM (Security Application Module) 128 x 32 dots FSTN (Blue LED backlight) Doc WSP-i450... -
Page 6: Setting Up The Printer
Printer & accessories → Your printer should include these items. If any items are damaged or missing, please contact your dealer for assistance. Box contents : • Printer WSP-i450 : • Thermal Roll Paper : • Communication cable : •... -
Page 7: Printer Features
Optional accessories: • MSR: • Shoulder strap: • Car charger: • SAM: • Smart Card: • Battery external cradle: Printer features : Doc WSP-i450... -
Page 8: Dimensions
Dimensions : Doc WSP-i450... -
Page 9: Replacing The Paper Roll
→ Install the paper roll as shown below : 1) – Open the paper cover by pressing the open switch: 2) – Insert the paper roll as shown: 3) – Tear the excess paper off using the edge of paper door as a tear bar : Doc WSP-i450... -
Page 10: Control Panel
POWER (green) : The printer is on and ready to receive data. → ERROR (red) : Indicates a fault condition or a printer error (no paper, paper cover open, etc...). • LCD: → The LCD screen will display most of the printer status (connection type, end of paper, etc...) Doc WSP-i450... -
Page 11: Set Operation Mode
→The menu navigation in operation mode is done as: POWER button: Used for changing OPTION status of a mode. FEED button: Used to switch from one MODE to another. Doc WSP-i450... - Page 12 38400 bps 57600 bps 115200 bps 7 DATA bits Data bit 8 DATA bits No parity Parity bit Odd parity Even parity 1 Stop bit Stop bit 2 Stop bit Medium Density High High +1 High +2 Quality High Doc WSP-i450...
- Page 13 5 minutes Off To leave the operation mode, press simultaneously on the FEED and POWER button again. Note : → When you will leave the operation mode, the printer will print a ticket with her setting on. Doc WSP-i450...
-
Page 14: Interface
Interface : a) UART(RS-232C or TTL) / USB interface → The WSP-i450 printer has a UART/USB interface and is connected by a means of 5 pin mini USB socket. In the following table, the signal present on the mini- USB socket are listed : USB: N°... -
Page 15: The Self-Test
4. And then a pattern of characters will be printed out. 5. The self-test will be finished automatically and turned to the standby status. Using belt-clip : → Insert belt-clip in the hole and screw it with a screwdriver or a coin. Doc WSP-i450... -
Page 16: Consumable Parts
2) – C hemicals or oil may change the color of paper, or printed characters may fade. 3) – Change of paper color starts from approximatively 70°C. 4) – Color of paper may be changed by being scratched with a nail or hard metal, etc… Doc WSP-i450... - Page 17 Printing position : Doc WSP-i450...
- Page 18 Doc WSP-i450...
- Page 19 Doc WSP-i450...
- Page 20 Precision Potentiometers Production center & Precision Resistors Commercial Office Servo Systems Sensors ANDIG Interface 451 route des Blaves Printing systems Z.I. de Noyer Joysticks-Trackballs F- 74200 ALLINGES Tel: +33 (0) 4.50.70.54.54 - Fax: +33 (0) 4.50.70.56.56 Internet: https://www.andig.fr - E-mail: info@andig.fr...
