Summary of Contents for ASTER TECHNOLOGIES FT-650

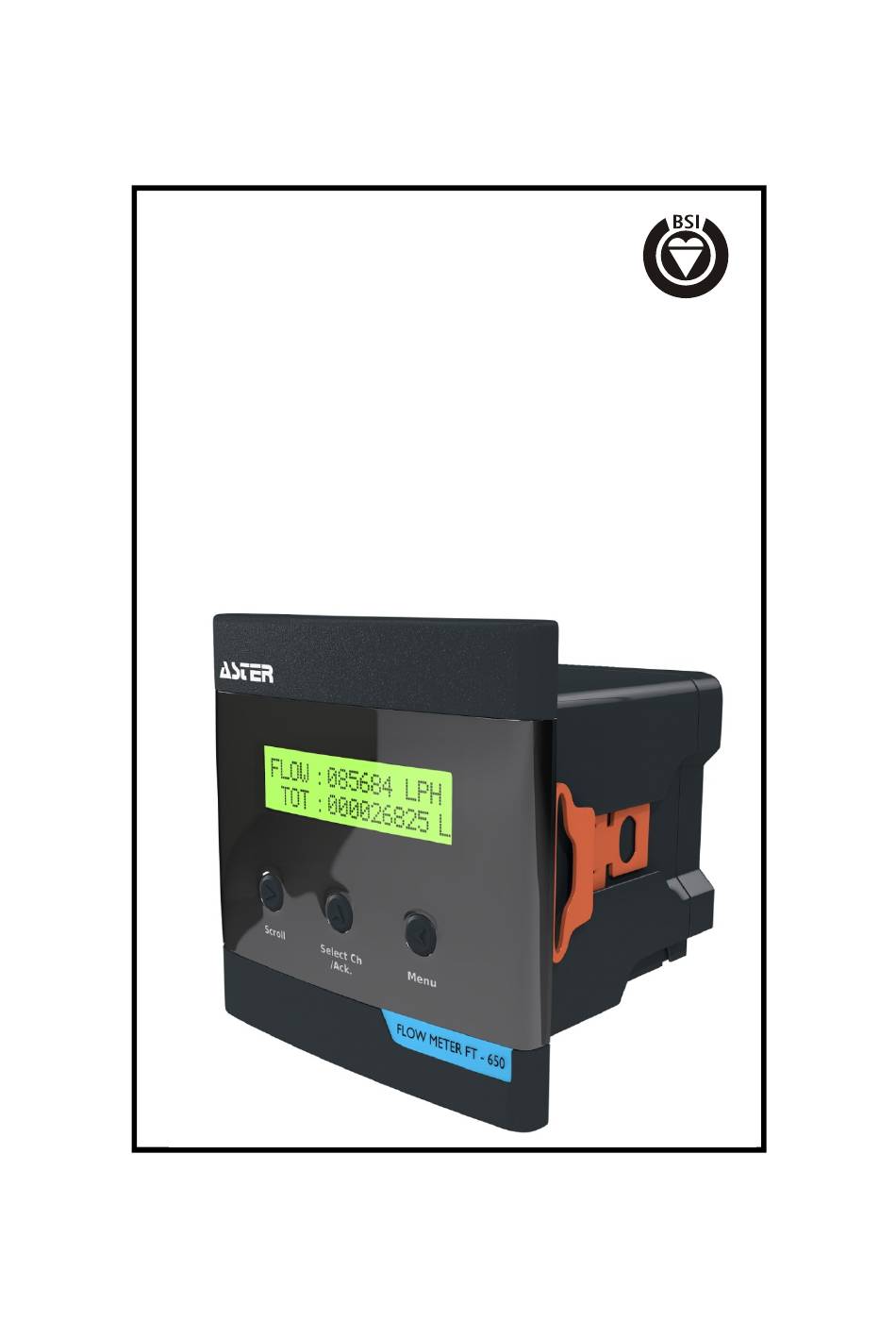

- Page 1 ASTER TECHNOLOGIES ISO-9001:2008 Certified Company FM 564741 FLOW METER FT-650 (Full bore type)
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS INDICATOR 105 X 105 X 130 mm 1. Physical dimensions 90 mm X 90 mm (panel cut out) ABS Weather proof IP 65 2. Enclosure 3. Mounting Field/Panel 4. Supply power 230V A.C./115V A.C./24V D.C. 5. Display range 0-999999.9 m³/0-9999999 liters 6. -
Page 3: Wiring Connections
WIRING CONNECTIONS: Part no.# FT-650 FB 2 1 1 N Sr.No. Factor: Not Appl... -
Page 4: Mounting Possibilities
INSTALLATION GUIDELINES: 1)METER: Meter has been designed to suit panel as well as field mounting as shown below. PANEL MOUNT APPLICATION FIELD MOUNT APPLICATION Press this downwards & Push forward to lock Press this downwards & Pull out to unlock. MOUNTING POSSIBILITIES 2)SENSOR: Sensor Cable... - Page 5 ON SITE CALIBRATION OF METER: Each flow meter normally comes duly calibrated along with the corresponding sensor (for a given line size). In case re - calibration is required at site,the previously programmed channel constant can be increase/decreased in proportion to the difference n the reading between the actual flow and the displayed reading.
- Page 6 BATCHER MODE: In this mode the relay is programmed to operate after a fixed quantity of water passes through the sensor. When the power to the unit is switched ON, it displays ASTER And then FR1: 00000.0 Lit /hr Press scroll key to toggle between Total O/P T1 : 00000.0 Lit &...
- Page 7 Menu QUIT Menu EXIT HOW TO DO BATCHER SETTINGS: KEY TO BE PRESSED DISPLAY Menu View settings The display scrolls through all the settings of meter and finally comes to -- CHANGE SETTINGS Menu CH1 SETTINGS CH1 BATCH QTY (and th en Menu previously set value) Set required batch quantity by using scroll &...
- Page 8 Recovery can be calculated by the formula: Permeate flow Rate (PR) X 100 % Recovery = Permeate flow rate(PR) + Reject flow rate (RR) The relay will get energized, if actual recovery exceeds the set value. NOTE:Second sensor is normally supplied for reject flow sensing. This can however be assigned as the inlet sensor.
- Page 9 To change the SPAN settings follow below guideline: Scroll & select ch simultaneously PASSWORD :000 Enter the password 678 using scroll & select ch keys Menu 000.00 m3/hr. Menu previously set value Required value can be set by scroll & select ch key Instrument also works as 4_20 mA current simulator.It gives 4 mA &...
-
Page 10: Troubleshooting
TROUBLESHOOTING: TROUBLE PROBABLE CAUSE ACTION ecK i any downstream valve is closed. Open the valve, remove the sensor from the fitting and check the change in reading by Flow less than the physically rotating the minimum sensing turbine. If meter shows value required reading check whether... - Page 11 Reset readings ---- Batcher settings Current output Span settings Meter address (In case of RS 485 O/P only) Contact us: ASTER TECHNOLOGIES Survey No. 32/1B/2, Behind Hotel Shivai, Kondwa-Pisoli Road,Pisoli Tal:Haveli Dist.: Pune Pune-411060 Revision no.05.21.12.13 Tele No.:91-020-32517858 Issue date: 01/01/2014 Email: quality@astertechnologies.in...
