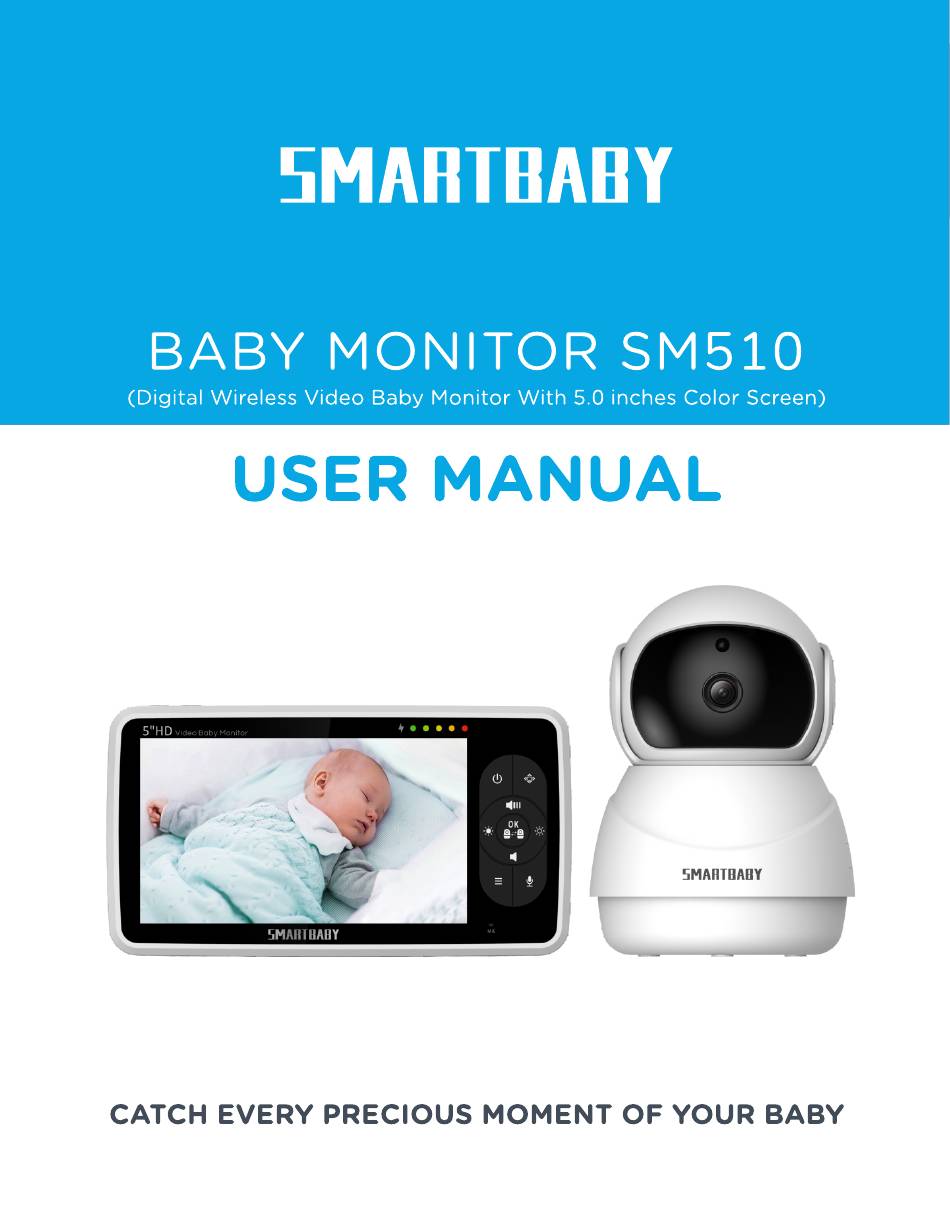

SMARTBABY SM510 User Manual

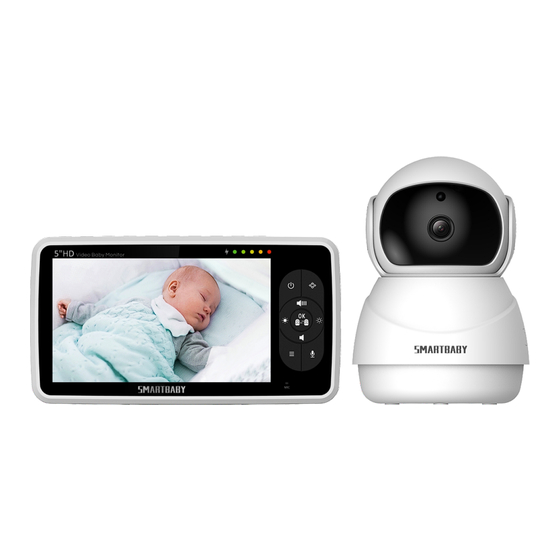

Digital wireless video baby monitor with 5.0 inches color screen
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM510 and is the answer not in the manual?

Questions and answers

Jordin DeWald
June 14, 2025

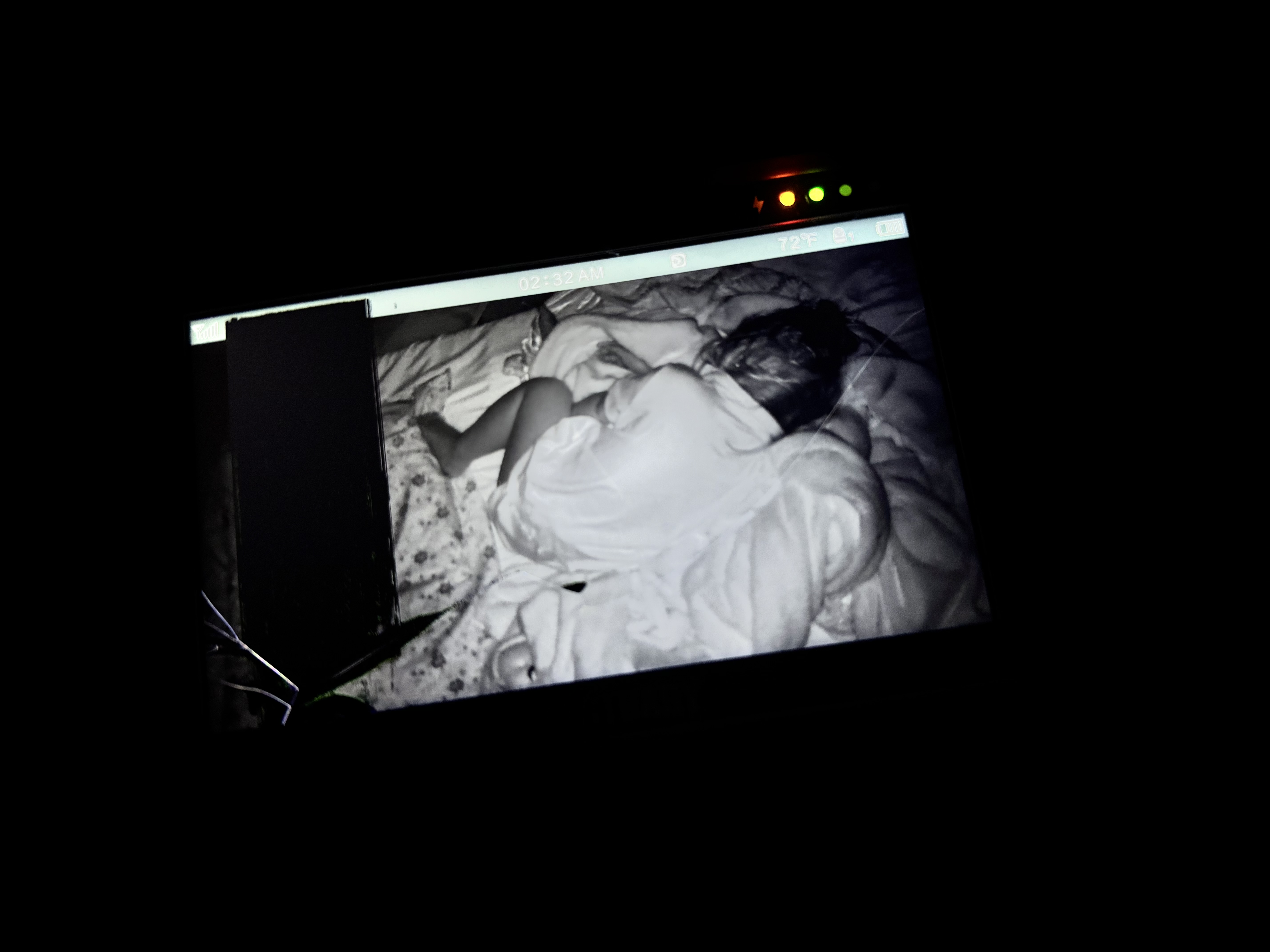

Is there anyway to get a replacement monitor and still hook up to the same camera?

User image 684ddb16df737
0

Summary of Contents for SMARTBABY SM510

  • Page 2 service@smartbaby.info...
  • Page 3 service@smartbaby.info...

  • Page 4: Table Of Contents

    CONTENT 1. SAFETY INSTRUCTIONS 2. PRODUCT OVERVIEW 2.1 Package list 2.2 Parent unit(monitor) 2.3 Baby unit(camera) 2.4 Icons overview 3. USING THE BABY MONITOR 4. FUNCTION OVERVIEW 4.1 Lullaby setting 4.2 VOX setting 4.3 Digital zoom 4.4 Split screen setting 4.5 Pairing the camera and monitor...

  • Page 5: Safety Instructions

    service@smartbaby.info...
  • Page 6 service@smartbaby.info...

  • Page 7: Product Overview

    service@smartbaby.info...

  • Page 8: Parent Unit(Monitor)

    Power key: Long press to turn on/o the monitor; short press to screen on/o . Pan/Tilt Press the key to enter into the pan/Tilt mode. Volume + / Up key: Press Volume+ to increase the volume/ To up the camera in the Pan/Tilt mode.
  • Page 9 *Bear in mind that you can't listen to your baby while you're talking to them; to listen to it, you will have to stop pressing this button. Menu/Exit: Press short Menu/Exit key the menu will pop up, and press again to EXit.

  • Page 10: Baby Unit(Camera)

    Light sensor Speaker infrared LEDs Pair key CMOS sensor DC-Jack Power LED Temperature sensor Antenna Alert volume Alert T ime format Setting...

  • Page 11: Using The Baby Monitor

    3.1 CHARGING AND POWERING THE MONITOR UNIT Step1: Charge the monitor by connecting the A/C adapter included in this package to the monitor and a socket. (It takes about 4 hours for the monitor to be fully charged). Charging: Red/orange...
  • Page 12 Note: *Place the camera at least 3ft / 1m away from your baby. Gently press and hold the Power Button for 3s to turn on the monitor, then you can see the live view. *Follow your needs to adjust the sound, brightness, and reasonable placement of the camera.
  • Page 13 10cm 3.5 SCAN AND SWITCH THE CAMERAS Short press the OK key to switch camera view when two or more cameras are connected. Long press OK key to enter scan mode, a icon will be Scan mode on displayed at the bottom left corner of the screen for 8 seconds, The camera switch icon will displayed on the top of the screen.

  • Page 14: Function Overview

    4.FUNCTION OVERVIEW 4.1 LULLABY SETTING You can soothe the baby to sleep by playing a gentle lullaby from the baby unit. Step1: Press Menu / Exit key and the menu will pop up. Step2: Select the lullaby you want to play through the NAVIGATION key and OK...

  • Page 15: Vox Setting

    4.2 VOX SETTING This mode allows you to control the sound activation of your baby monitor. The VOX default setting is OFF. If there is no sound around the camera within 30 Seconds, it will stop transmitting. The monitor screen turns o when the camera is not transmitting.

  • Page 16: Digital Zoom

    4.3 DIGITAL ZOOM Step1: Press the Menu / Exit key and the menu will pop up. Step2: Press UP key or DOWN key to select digital zoom setting. Step3: Set the zoom scale through the NAVIGATION key, Press OK key con rm.

  • Page 17: Split Screen Setting

    4.4 SPLIT SCREEN SETTING Step1: Press the Menu / Exit key and the menu will pop up. Step2: Press UP key or DOWN key to select split screen setting. Step3: Choose single screen display or dual screen display through the NAVIGATION key, Press OK key to con rm.

  • Page 18: Pairing The Camera And Monitor

    4.5 PAIRING THE CAMERA AND MONITOR Step1: Press Menu / Exit key and the menu will pop up. Step2: Press UP key or DOWN key to select pair camera setting. Select the camera to be paired through the NAVIGATION key, Press OK key or right key to to start the pairing.

  • Page 19: Delet The Camera

    4.6 DELET THE CAMERA Step1: Press Menu / Exit key and the menu will pop up. Step2: Press UP key or DOWN key to select the delete camera icon. Step3: Select YES and press ok key to delete the camera.

  • Page 20: Setting

    4.7 SETTING 4.7.1 Temperature unit setting Step1: Press Menu / Exit key and the menu will pop up. Step2: Press UP key or DOWN key to select the setting icon. Step3: Press right key to Select Step4: Select , Press OK key to con rm.
  • Page 21 Step3: Press right key to Select Step4: Set the appropriate maximum and minimum temperature, Press OK key to con rm. Step5: Press the Menu / Exit key to Exit. 4.7.3 Time format setting Step1: Press Menu / Exit key and the menu will pop up.
  • Page 22 Step3: Select the time display format and set the appropriate time, Press OK key to con rm. Step4: Press the Menu / Exit key to Exit. 4.7.4 Language setting Step1: Press Menu / Exit key and the menu will pop up.
  • Page 23 Step2: Press UP key or DOWN key to select the setting icon. Step3: Select the alarm timer, Press OK key to con rm. Step4: Press the Menu / Exit key to Exit. 4.7.6 Warning alert volume setting Step1: Press Menu / Exit key and the menu will pop up.
  • Page 24 Step3: Select the alert volume, Press OK key to con rm. Step4: Press the Menu / Exit key to Exit. 4.7.7 Frequency setting Step1: Press Menu / Exit key and the menu will pop up. Step2: Press UP key or DOWN key to select the setting icon.
  • Page 25 Step2: Press UP key or DOWN key to select the setting icon. Step3: Select the working status of night vision, Press OK key to con rm. Step4: Press the Menu / Exit key to Exit. The default setting is AUTO. If you choose OFF, the item will not enter the night vision mode even in darkness.

  • Page 26: Technical Data

    service@smartbaby.info...

  • Page 27: Trouble Shooting

    *Con rm that the Camera and Monitor Unit are ON(check power LED Product does indicator). not switch on *Con rm that Power adapters are properly connected. *The camera and Monitor Unit may be too far apart. *The battery power may be too low.
  • Page 28 * Night vision LED may be ON. Night vision mode operates in black Picture is black and white. and white *Turn on room lights to force monitor out of night vision mode. * Try moving the Camera Unit closer to the Monitor Unit The picture * Remove obstructions between the Camera and Monitor Unit.

  • Page 29: Fcc Statements

    service@smartbaby.info...
  • Page 30 CUSTOMER SUPPORT If you encounter any problems in the process of using the product, please feel free to contact us, we will reply to you within 24 hours and resolve the issue in a way that satis es you.
  • Page 32 service@smartbaby.info...
