Summary of Contents for APEX DISPLAY UniSlot Pod

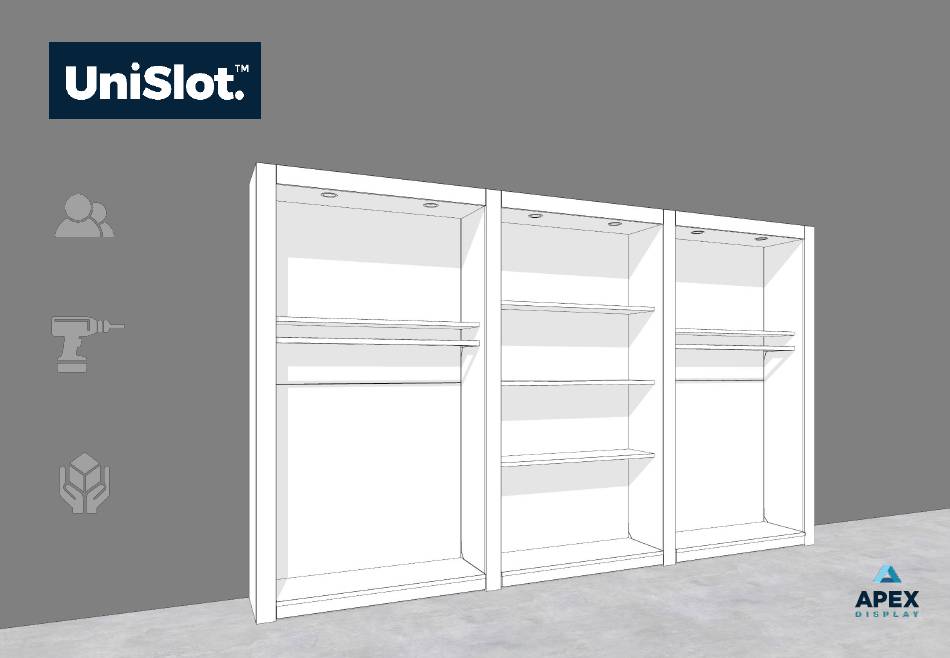

- Page 1 Install Guide Ask someone else to help assemble Easier with cordless screwdriver Handle carefully to keep in good condition For further advice on installing your UniSlot™ display, call 1800 111 488 or email sales@apexdisplay.com.au...
- Page 2 Step 1: Mark the position of your UniSlot™ Wallmount Pod Measure your wall and mark the overall length to the outsides of your Pod. If you are unsure what the overall length of your display is, refer to Page 9 and speak to your sales consultant. Install Guide Find the highest point of the floor with a level, and mark this point on the wall.
- Page 3 Step 2: Mounting timber wall battens Cut three 66x18mm timber battens to the required length for your Pod display (34mm shorter than the overall display width). Install Guide Starting from the highest floor point identified in Step 1, mount your wall battens level, as shown in the below diagram.
- Page 4 Step 3: Mounting UniSlot™ Wallmount Posts Mark the positions of the UniSlot™ Wallmount posts along each batten. Refer to the Dimension Guide (Page 9) supplied by your sales consultant. The outer side of your outer posts must be Install Guide flush with the ends of the wall battens.
- Page 5 Step 4: Installing UniSlot™ Back Panels If you have purchased UniSlot™ Back Panels, now is the time to attach them to the wall mounted posts. Ensure you install the panels with the “TOP” sticker on the back of the panel facing upwards. Install Guide Tip - If your display contains downlights, it is best to run an extension lead behind the back panels For further advice on installing your...
- Page 6 Step 5: Installing UniSlot™ Pod Wings Centre wings can be clipped directly onto the posts. Take care to ensure they are fully secured. If there is a skirting board or other obstruction in your install location, you will need to notch Install Guide either the skirting board or a section of the Left and Right Wings before installing.
- Page 7 Step 6: Installing UniSlot™ Header Units & Lighting If you have purchased UniSlot™ Headers, clip these into the posts, as shown below. Take care to ensure the brackets have securely located onto the posts. If your headers have downlights, Install Guide insert the downlights now and connect them to a power board.
- Page 8 Step 7: Installing UniSlot™ Base Shelves & Skirts If you have Base Shelves & Skirts, attach the brackets and skirts now. Once fully assembled, they can be clipped into the lowest position on the wall mounted posts. Install Guide For further advice on installing your UniSlot™...
- Page 9 Step 8: Installing other UniSlot™ accessories The last step to installing your UniSlot™ Pod display is installing your accessories – shelves, hangrails, crossbars, forward-facing arms etc. Install Guide Give your display a wipe over with a damp cloth and spray & wipe, to remove any dirt or dust from the manufacturing process and installation.
- Page 10 Pod Dimensions Guide 18mm thick batten must be used to mount UniSlot™ Wallmount Posts to the wall 3071mm overall width from outside-to-outside of outer posts 901mm 901mm 901mm ~3105mm entire width of display, with end wing panels mounted on posts All dimensions in above are measured from the centre of one UniSlot™...
