Summary of Contents for AMSTRON MedXP 400

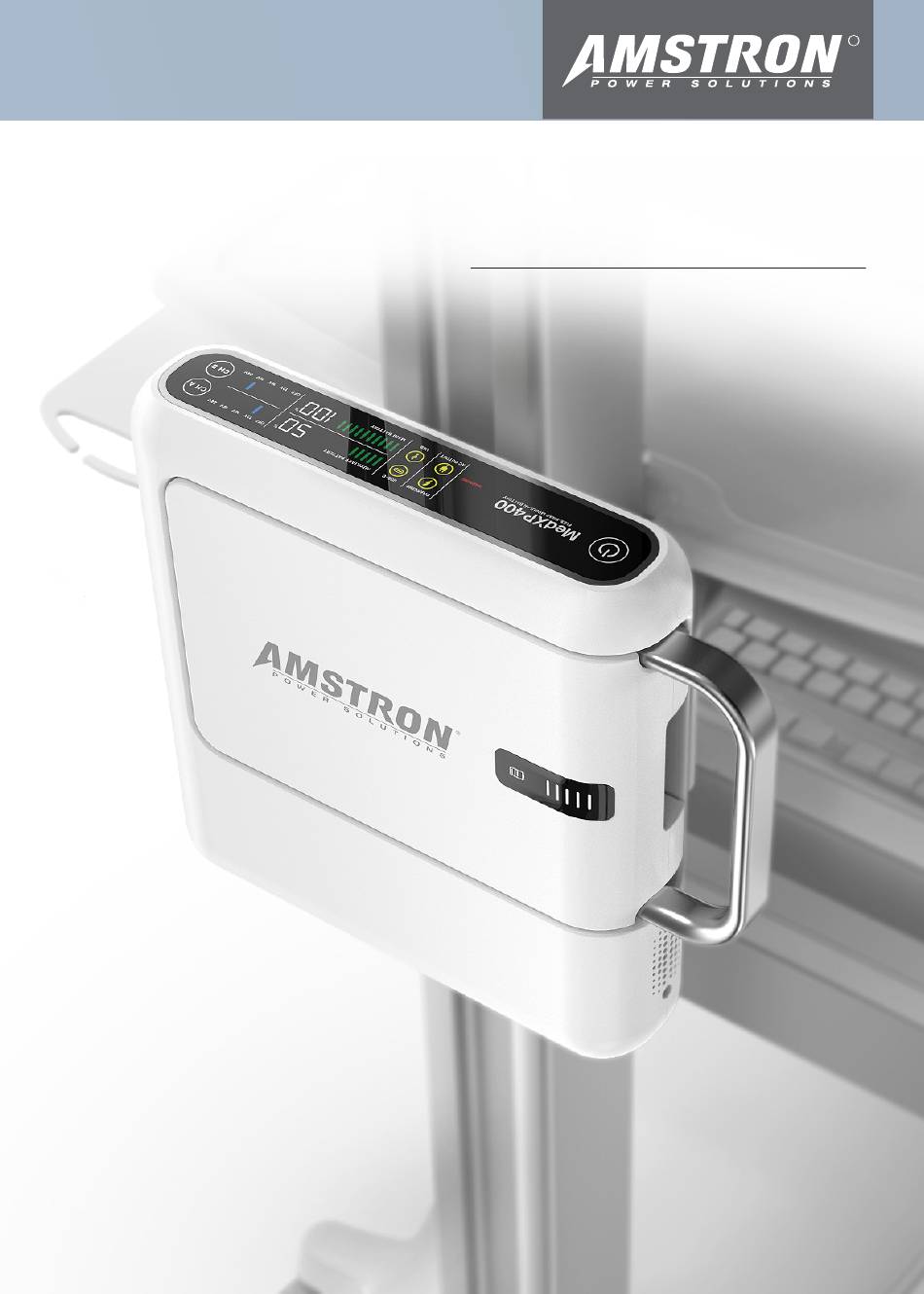

- Page 1 MedXP 400 Certified Medical Grade Battery Designed to be the most flexible mobile power solution User Manual...
- Page 2 • Product: Rechargeable Li-ion Battery • Model: MedXP-400 • Derivation Model: MedXP-400-BASE, MedXP-400-AUX • Battery Cell Spec: 3.6V, 3350mAh, 432Whr (Total Power Combined) • Charging Voltage/Current : 4.2V/ 3.4A max (per cell) • Output Power: Max 180 Watt • IEC 60601-1 (3.1 Edition) and UL Certified 62133 / TUV Certified IEC62133 for battery packs Overview •...
- Page 3 Charging • To charge the MedXP-400, use only the AC adapter provided. • The MedXP-400 can be fully charged in under 6 hours. Howev- er, charge time may increase if your device is being used while charging. • During charging, the main battery pack will charge first and the auxiliary pack will charge second.
- Page 4 Power On and Selecting/Changing the DC Voltage Press the Power button for 2 seconds to turn on the MedXP-400. Press the CH A or CH B button for 3 seconds. Once the blue volt- age indicator bar begins to blink, the voltage may be changed. Use the CH A or CH B button to select the desired voltage (12V, 16V, 19V, 24V), then hold down for 3 seconds to save.
- Page 5 Connecting Your Device First select the voltage (See instructions above). Connect the interchangeable tip to the DC output cable. (See diagram) Be sure to select the correct size tip for your device. If you are unsure of which tip to use, contact your local dealer or the manufacturer for assistance.
- Page 6 Mounting the Battery • The MedXP-400’s Integrated Mounting Solution is a unique feature that allows the user to mount the unit directly onto a medical cart or other mobile workstation, eliminating the need to purchase a separate holster. • Remove the AUX battery pack to reveal several hole patterns for mounting •...
- Page 7 On-Screen Software • Ask your dealer for the latest version of the On-Screen software file for your MedXP-400 battery System • Install the .exe file on the computer you want to have On-Screen mon- itoring of the MedXP-400 battery system. •...
- Page 8 Warning Light The warning light will appear to indicate any of the following: • Low capacity: Under 5% • To recover, charge the MedXP-400 with the included AC adapter. Once capacity is restored, the light will turn off. • Overvoltage protection: 29.5V •...
- Page 9 Specifications Output voltages QC2.0 5V, 9V, 12V, 18W Max USB PD3.0 45W Max Output Power 12V 72W, 16V 90W 19V 90W, 24V 120W Maximum output power : 180W Capacity Main base pack : 145Wh Auxiliary pack : 289Wh Total 434Wh Dimension 10”...
- Page 10 Caution • LITHIUM-ION BATTERIES CAN BE DANGEROUS IF MISHAN- DLED. • DISPOSE OF BATTERY PROPERLY. CONTACT YOUR LOCAL RECYCLING CENTER FOR INSTRUCTIONS. • KEEP AWAY FROM CHILDREN. • DO NOT DROP, PUNCTURE, IMMERSE IN WATER OR OTHER LIQUIDS. • KEEP AWAY FROM DIRECT SUNLIGHT, FIRE OR HEAT. •...
- Page 11 Customer Service For problems or inquiries regarding this product, please contact the dealer from whom the MedXP-400 was purchased. Or you can contact the manufacturer directly at: Amstron Power Solution, Inc. 28381 Constellation Road Valencia CA, 91355 www.amstron.com support@amstron.com 818-504-1634...
