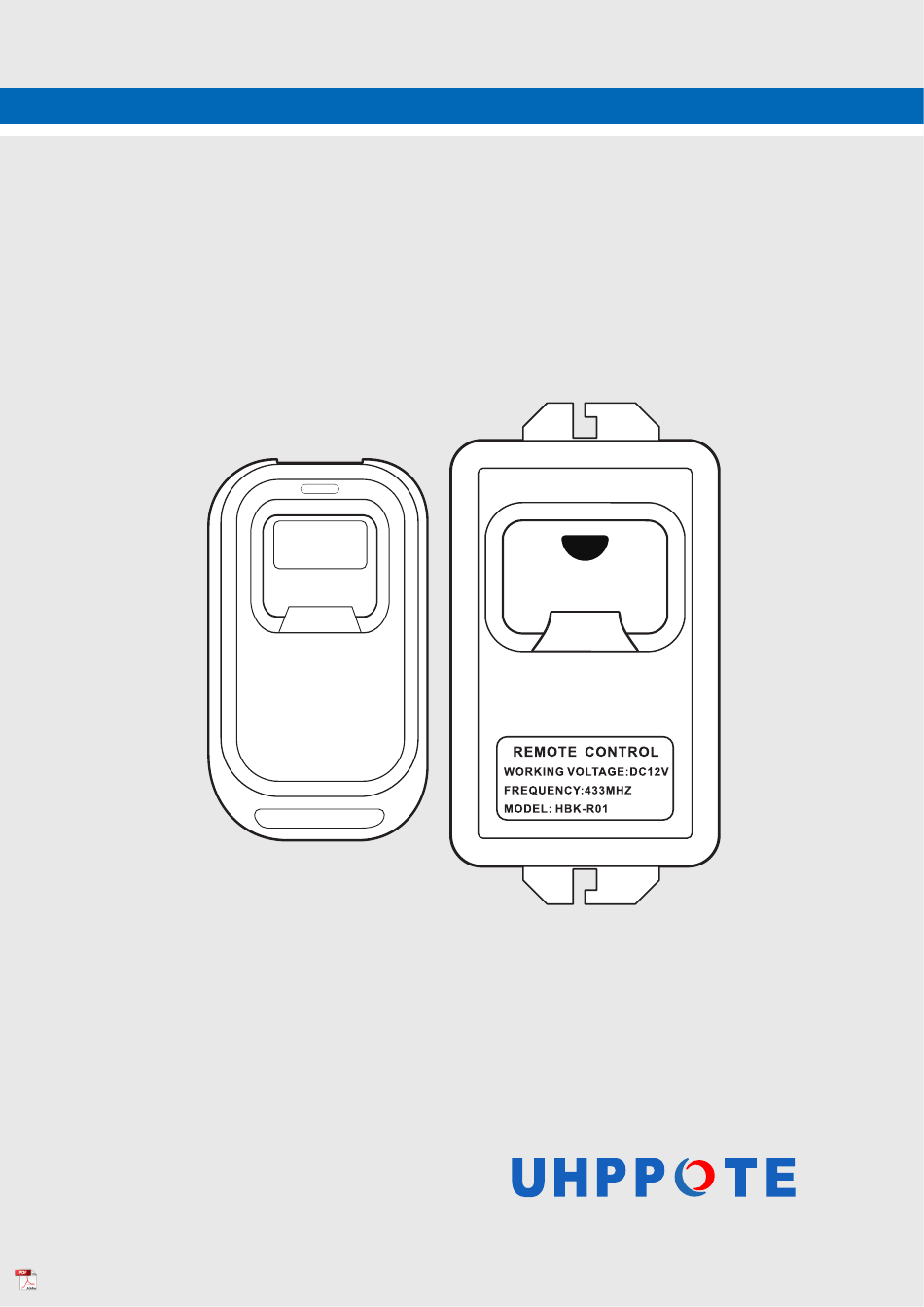

- Page 1 REMOTE CONTROL SWITCH USER MANUAL Model:HBK-R01...
- Page 2 Thank you for choosing the wireless remote control switch Home Security Camera provided by us. Our goal is to provide the best products and service to all of you! PRECAUTION For avoidance of damage to the product or injury to the people, please carefully read this manual before use and keep it for future reference.
-
Page 3: Main Features
MAIN FEATURES · Specialized for the access control system and unable to be Home Security Camera applied to other fields. · The number of the remotes which can be connected to one receiver · 0/5/10 seconds locking delay time is adjustable, and default is 5 seconds. -
Page 4: Main Components
MAIN COMPONENTS Components Model Manufacturer STM8S003F3 Linear Regulator SPX117-3.3 SIPEX RF Transceiver Chip SYN500R SYNOXO Relay OMRON OPERATING SETTINGS 1. Lock Mode Select NO: Fail-Secure Lock 10 5 0 RF-KEY NC: Fail-Safe Lock 2. Operating Mode Select Relay T: Toggle L: Latched EXIT BUTTON LOCK... -
Page 5: Wiring Diagram
WIRING DIAGRAM 1. When connect Fail-Secure Lock 10 5 0 RF-KEY Relay EXIT BUTTON LOCK PUSH TO EXIT 2. When connect Fail-Safe Lock 10 5 0 RF-KEY Relay EXIT BUTTON LOCK PUSH TO EXIT... - Page 6 Switch to "NO" Fail-Secure Lock Note: Exit button, access keypad, buzzer, lock and power adapter are only for demonstration purpose, which are not included.
- Page 7 Switch to "NC" Fail-Safe Lock Note: Exit button, access keypad, buzzer, lock and power adapter are only for demonstration purpose, which are not included.
- Page 8 TROUBLE SHOOTING 1. Q: Why does not the transmitter's LED light up when I press the button on it ? A: The battery power may be exhausted. Please replace the battery. 2. Q: Why can't the lock be unlocked after pressing the transmitter? A: Please check the issue by the following steps: a.
- Page 9 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
