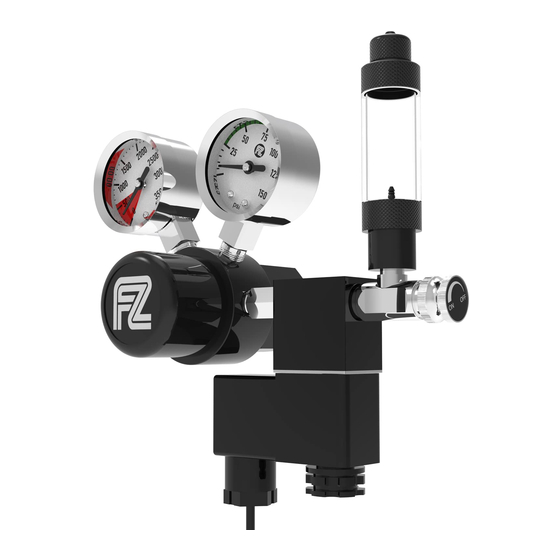

Summary of Contents for FZONE STUDIO FZ-1011
- Page 1 FZ-1011 USER’S MANUAL MULTI STAGE CO2 REGULATOR Website: https://www.fzaqua.com Email: service@fzaqua.com Facebook: https://www.facebook.com/Fzoneaqua WhatsApp: +86-180-2538-1909...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Please read the following safety instructions thoroughly before attempting to use this product. Failure to read and follow safety instructions can result in serious injuries and/or accidents. WARNING • Before installation of the regulator, ALWAYS inspect for damaged threads, dirt, dust, oil or grease. •... -
Page 4: Usage Guide
Note: The operating temperature range shall be no greater than 150° F (70°C) and no less than 0°F (-18°C). Use 15-20 foot pounds of torque for assembly. Always leak test connections before use. If temperature is 40°F or below, extra heat may be required to maintain tank pressure. Do not place near extreme heat sources. - Page 5 STANDARD CGA-320 CYLINDER with gauge and bubble counter facing upwards PAINTBALL CO2 CYLINDER with included adapter DISPOSABLE CO2 CARTRIDGE with pre-attached CGA-320 adapter removed...
-
Page 6: Package Contents
PACKAGE CONTENTS [A] PRESSURE ADJUSTMENT KNOB [B] BUBBLE COUNTER WITH BUILT-IN CHECK VALVE [C] NEEDLE VALVE [D] CGA-320 ADAPTER [E] PAINTBALL ADAPTER [F] ALLEN KEY, FOR CGA320 ADAPTER [G] ALLEN KEY, FOR NEEDLE VALVE LOCKING [H] NEEDLE VALVE LOCKING HOLE [I] POWER ADAPTER [J] Extra O RINGS... -
Page 7: Additional Accessories
ADDITIONAL ACCESSORIES For a complete planted aquarium CO2 injection system, the following additional CO2 accessories are required. We recommend using Fzone CO2 accessories for best results. [K] PRESSURE-PROOF CO2 TUBING [L] CO2 DIFFUSER... - Page 8 SETUP GUIDE Please follow the instructions below for safe CO2 regulator setup: 1. Turn Pressure Knob counter-clockwise all the way down AND Needle Valve clockwise all the way down. This is indicated by the “-” AND “OFF” sign respectively. 2. Ensure that the adapter (CGA-320 or Paintball) of choice is tightened down correctly. Then, attach regulator securely to CO2 cylinder of choice.
- Page 9 STEP 1 STEP 2 STEP 3 STEP 4...
- Page 10 STEP 5 STEP 6 STEP 7 STEP 8...
- Page 12 FZONE STUDIO Website: https://www.fzaqua.com Email: service@fzaqua.com Facebook: https://www.facebook.com/Fzoneaqua/ WhatsApp: +86-180+2538+1909 THIS PRODUCT IS INTENDED FOR AQUARIUM USE ONLY. KEEP AWAY FROM CHILDREN.
