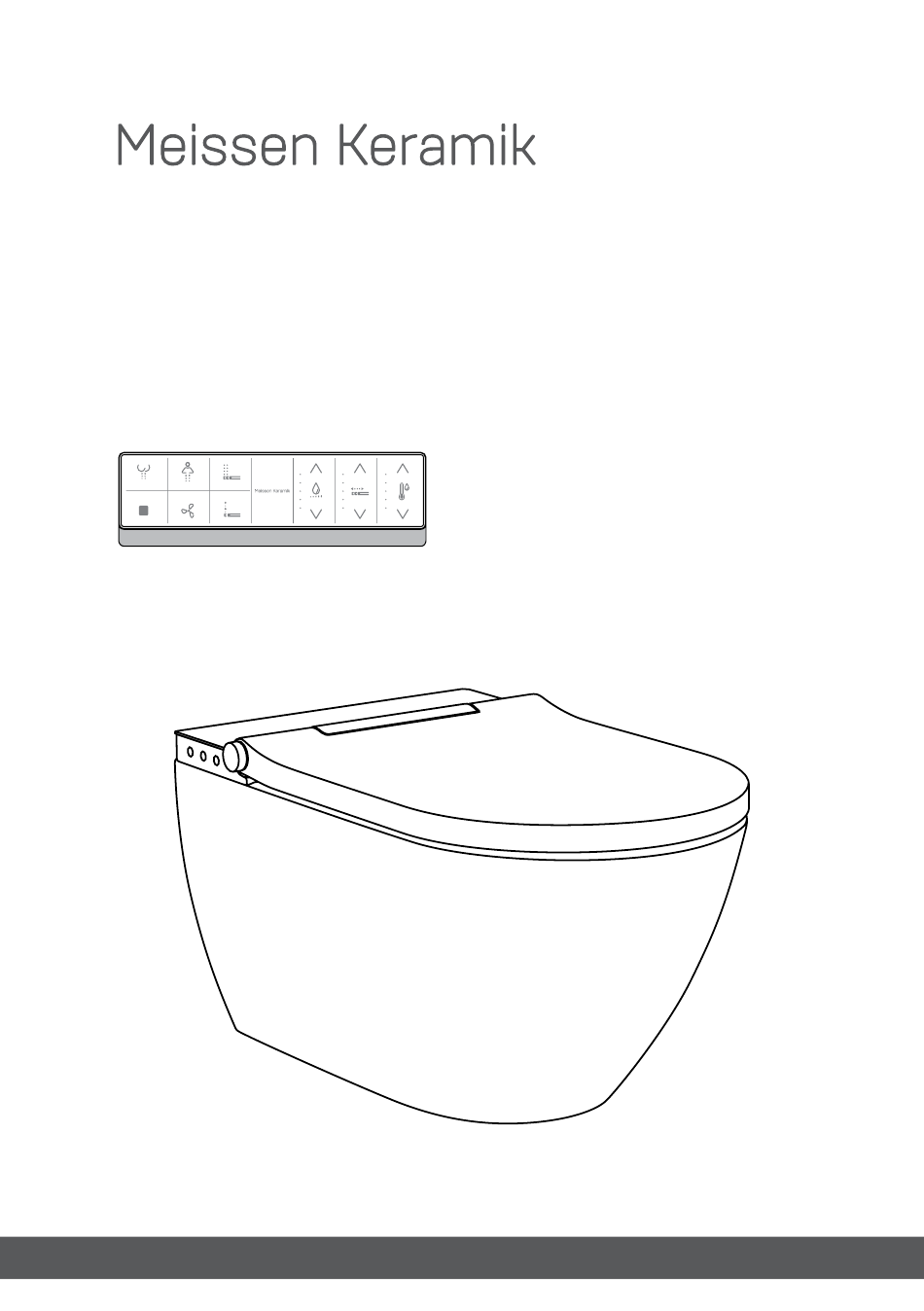

- Page 1 USER MANUAL shower toilet GENERA Ultimate meissen-keramik.com...
- Page 2 Thank you for purchasing MEISSEN KERAMIK shower toilet. IMPORTANT: Read and understand this manual before installing and using this product! The illustrations in this manual are for reference only and may differ from the actual appearance of the product.
- Page 3 Features and available functions of the shower toilet GENERA Ultimate Standard wash Feminine wash Oscillation wash Pulse wash Washing Water spray intensity adjustment Water temperature adjustment Spray nozzle position adjustment Nozzle self-cleaning Replaceable nozzle tip Hygiene Antibacterial nozzle Easy detachable lid and toilet seat...
-
Page 4: Table Of Contents
Table of Contents Chapter 1 Safety principles ......1 1.1 Symbols and their meaning............1 1.2 Safety considerations. -
Page 5: Chapter 1 Safety Principles
Chapter 1 Safety principles To ensure safe and trouble-free use of the shower toilet, read the user manual and observe the safety rules! 1.1 Symbols and their meaning Warning This symbol indicates hazards that may lead to death or injury if ignored. This symbol indicates hazards that may lead to Caution injury and/or damage to shower toilet or other... -
Page 6: Safety Considerations
1.2 Safety considerations Make sure that the power cord is not damaged! Avoid crushing or jamming the power cord! The power cord must not come into contact with heated surfaces and sharp edges! If you have any questions about the operation of the appliance, please contact the customer service helpline to avoid product failure and damage caused by misuse. - Page 7 Warning Do not immerse in or spray the appliance or electrical system with water or other liquids. Electric shock, damage to the appliance or fire hazard. Do not place hot objects or flammable materials near the appliance. Fire hazard. Do not disassemble, modify or repair the appliance. Electric shock, short circuit or fire hazard.
- Page 8 If the appliance will not be used for a longer period of time (several months), turn it off with the ON/OFF button. Caution Do not allow children to play, stand or sit on the lid. Do not place heavy objects on it. This may lead to injuries or damage to the appliance.
- Page 9 Do not use aggressive, concentrated or abrasive clean- ing agents. They can damage the product. Do not use appliances near the shower toilet that could interfere with its operation. Do not lean against the lid. This may cause damage or injury.
-
Page 10: Precautions For Use
1.3 Precautions for use Connect the appliance to the cold water supply system using the new hose supplied with the product. Use only new hoses to connect the shower toilet. When moving the appliance from a cool to a warm room, condensation may occur on the surface of some system components. -
Page 11: Chapter 2 General Product Characteristics
Chapter 2 Ogólna charakterystyka produktu 2.1 Use of the shower toilet Power on/off Standard wash Feminine wash Bumper Safety considerations Infrared sensor detecting the user Drying nozzle Odor extractor Control knob Night light Ceramic bowl Spray nozzle... -
Page 12: Remote Control - Front Panel
2.1 Remote control - front panel Symbol Function Symbol Function Standard wash Water spray intensity adjustment Feminine wash Stop Nozzle position adjustment Drying Oscillation wash Water temperature adjustment Pulse wash (See section 3.5 for detailed information on the individual functions). -
Page 13: Remote Control - Rear Panel
2.3 Remote control - rear panel Battery socket opening slider Display Panel with buttons Battery socket 2.4 Rear panel button functions ENTER 1. Press to start the MENU on the rear panel MENU / RETURN Entering the main menu, returning to the MENU previous menu 1. -
Page 14: Rear Panel Display Functions
2.5 Rear panel display functions Level 1 Level 2 Level 3 Hint: MANUAL to return to CLEANING the previous menu, press Number 1. MANUAL of elements CLEANING displayed AUTO on the screen DEODOR- IZER AUTO 1. ON MENU FUNCTION 1. MANUAL 2. -
Page 15: Night Light
2.6. Night light The shower toilet is equipped with an LED night light function for easy orientation at night. If this function is activated, the light will switch on automatically when the room gets dark. To activate this function, use the rear panel of the remote control: MENU AUTO NIGHT... -
Page 16: Chapter 3 Operating Instructions
Chapter 3 Operating instructions 3.1 Starting the shower toilet 1. Open the shut-off valve and check if there is water flow and that the hose connection is tight. 2. Remote control battery The battery cover is located on Insert two AAA batteries, paying After installing the batteries, the back of the remote control. -
Page 17: Ceramic Pre-Spraying Function
4. Control knob battery Cover Battery Remove Remove the control knob. Open the cover and insert the battery with the positive side upwards. Use CR 2032 3V battery. 5. Pairing the control knob Press simultaneously Press and hold Press the on/off and standard wash buttons Press and hold the control knob until you hear a simultaneously. -
Page 18: Shower System Button Functions
3.3 Shower system button functions Power Standard Feminine wash on/off wash Press and hold the on/off button The wash function can be activated The wash function can be activated for about 5 seconds to turn the when the user is sitting on the toilet when the user is sitting on the toilet appliance on/off. -
Page 19: Knob Control
3.4 Knob control Standard Drying Feminine wash wash Water spray Air flow Water pressure intensity Nozzle Stop Stop Stop temp. Nozzle position position The wash function can be activated Press the knob to activate the hot The wash function can be activated when the user is sitting on the toilet air drying function. -
Page 20: Remote Control
3.5 Remote control The shower toilet can be operated with the buttons on the side panel (standard wash, feminine wash), the control knob or remote control. The control knob can control the standard wash, feminine wash and drying functions. The remaining functions are activated with the remote control (including appliance settings). - Page 21 Feminine wash Press the "Feminine wash" button. You will hear a beep, the button will be highlighted and the feminine wash function will be activated (the user must sit on the toilet seat). During feminine wash, press “ “ in "water During feminine wash, press “...
- Page 22 Drying Press the "Drying" button to activate the drying function (the user must sit on the toilet seat). The drying function is activated, the drying nozzle Press the "Stop" button to finish drying or wait 4 will open and warm air will flow out of the nozzle. minutes until the drying process is automatically completed.
- Page 23 Pulse wash During pulse wash the water is fed with varying pressure. Condition: Standard or feminine wash function is enabled Press the indicated button to start wash with pulse Press the wash with pulse wash button again to wash. finish it, or wait 3 minutes until the pulse wash. process is automatically completed.
- Page 24 Water spray intensity adjustment It is possible to set 5 water spray intensity levels. The default setting is level 3. Condition: Standard or feminine wash function is enabled. Backward Forward Press the " " button in the water spray intensity settings to increase it. With each subsequent press, the water spray intensity will increase by 1 level.
-
Page 25: Operation Of The Descaling Function
3.6 Operation of the descaling function The hardness of water varies depending on the region. In order to check the local water quality, perform the test using the water hardness test strip supplied with the appliance. The test must be carried out as follows: Please refer to the actual color of the color chart. -
Page 26: Cleaning And Maintenance
Chapter 4 Cleaning and maintenance 4.1 Shower toilet cleaning Clean the appliance and wipe out any dirt on a regular basis. If the product is not cleaned regularly, it can lead to dirt buildup that is difficult to remove. Take care not to flood the appliance connected to the power supply when cleaning. -
Page 27: Odor Reduction System Cleaning
4.3 Odor reduction system cleaning The odor absorber should be cleaned using a small brush. Odor absorber Odor absorber Open the glass cover on the back of the product. Remove the odor absorber. Filtering openings Use a toothbrush or other small brush to clean the Insert the cleaned odor absorber and close the odor absorber in order to remove dust. -
Page 28: Descaling
4.4 Descaling Descale the appliance regularly to prevent limescale deposits, which may cause malfunction or damage. Decalcification control Switch descaling on/off Open the rear glass cover. Press the descaling cycle switch to start emptying the tank. This will be accompanied by an intermittent beep. -
Page 29: Remote Control Cleaning
4.5 Remote control cleaning Use a soft, damp cloth or sponge to clean the remote control. Avoid spilling water or other liquid on the remote control, as this will damage it. 4.6 Waste disposal Waste electric and electronic equipment (WEEE) may contain dangerous and hazardous substances. -
Page 30: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Disconnect the appliance from the power supply and then turn it on again after at least 3 minutes. If the appliance still does not work properly, please contact your customer service center or your retailer. Do not disassemble, modify or repair the appliance. Electric shock, short circuit or fire hazard. - Page 31 Standard wash / Feminine wash When switching between standard Switching between and feminine wash modes, the standard and feminine No user intervention is required spray head retracts and self- wash takes too long cleaning is performed Wait for the water supply in the water No water supply supply system to be restored The water shut-off valve is closed...
-
Page 32: Chapter 6 Technical Data
Chapter 6 Technical data Model Water connection type G 1/2 Supply voltage AC220V-240V 50/60HZ Power 1200W Permissible feed water pressure 0.07~0.7MPa (0.7~7.0Bar) Permissible feed water temperature 4~30 Permissible ambient temperature 4~40 Water resistance class IPX4 Water flow 500~650ml/min Spray temperature range Off, 32~40 Washing cycle duration 3 min.
